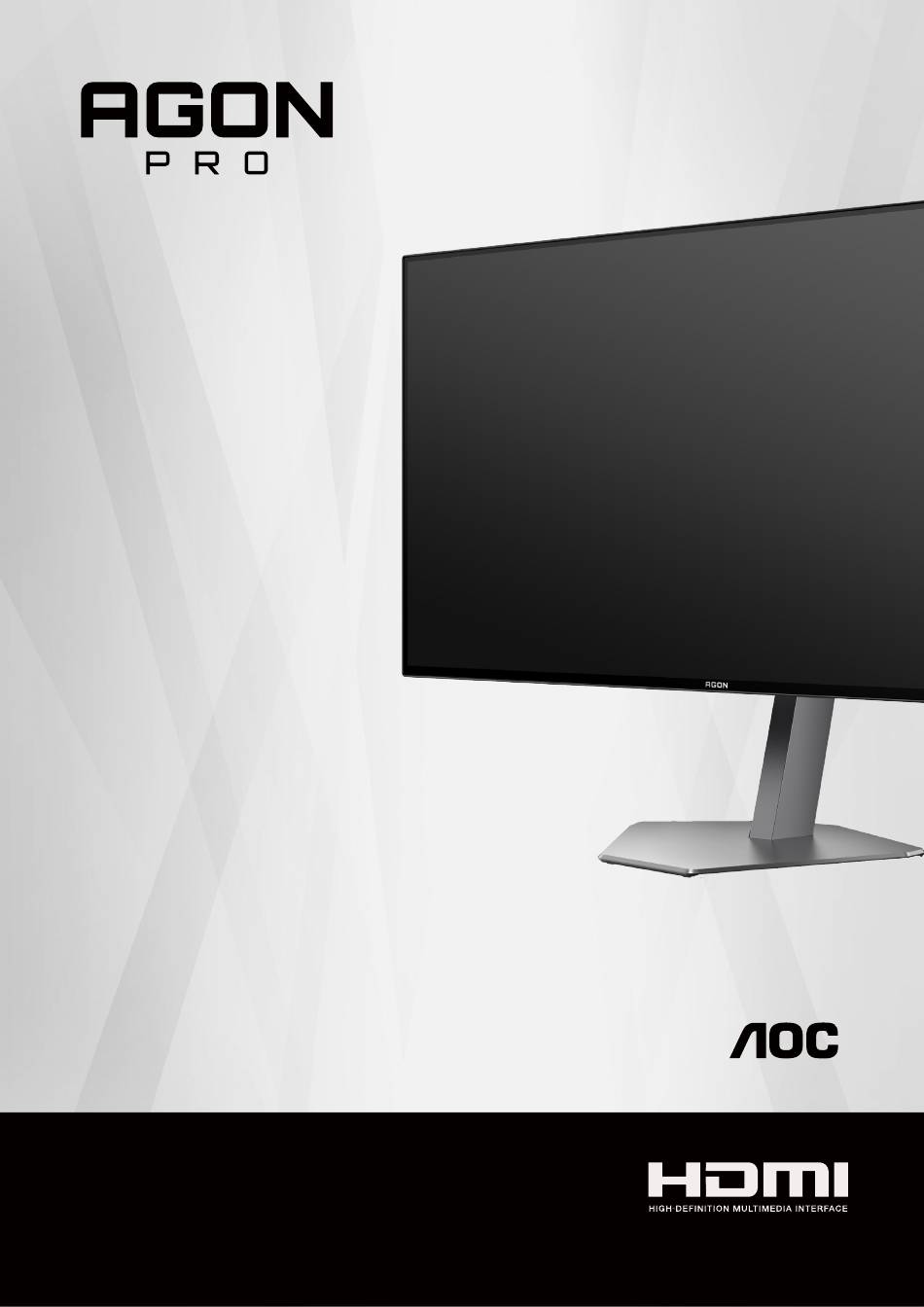

- Page 1 OLED Monitor As an OLED product, this display needs regular screen maintenance to reduce the risk of image retention (burn-in). User Manual AG276QKD www.aoc.com ® 2024 AOC.All Rights Reserved ©...
-
Page 2: Table Of Contents
Safety ....................................1 Notational Conventions ............................. 1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting the monitor ..............................9 Connecting the Monitor ............................10 Wall Mounting................................11 AMD FreeSync Premium function .......................... -
Page 3: Safety
Safety Notational Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with a water-dampened, soft cloth. When cleaning use a soft cotton or microfiber cloth. The cloth should be damp and almost dry, do not allow liquid into the case. Please disconnect the power cord before cleaning the product. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the OLED monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Warranty card Stand Base Screwdriver Bracket Screws USB Cable Power Cable Adaptor DisplayPort Cable HDMI Cable Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... - Page 10 Wall hanger： M4x10mm 100mm 100mm Specification of wall hanger screws：M4*10mm M=4.0Max M4-P0.7 L=10+0 H=2.0±0.1 Dk=8.0±0.2 - 0.5 Specification for base screw: M6*13 mm (effective thread 5.5 mm)
-
Page 11: Adjusting The Monitor
Adjusting the monitor For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand to steady the monitor, and grasp only the bezel to adjust the monitor’s angle. You are able to adjust the monitor as below: 30°... -
Page 12: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor: 1. Power 2. HDMI1 3. HDMI2 4. DisplayPort1 5. DisplayPort2 6. USB3.2 Gen1 upstream 7. USB3.2 Gen1 downstream + fast charging USB3.2 Gen1 downstream x1 8. Earphone Connect to PC 1. Connect the power cord to the back of the display firmly. 2. -
Page 13: Wall Mounting
4. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions on attaching it to the wall. Noted: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. 0° 90°... -
Page 14: Amd Freesync Premium Function
AMD FreeSync Premium function 1. AMD FreeSync Premium function is working with DisplayPort/HDMI 2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD.com Graphics Cards • Radeon™ RX Vega series • Radeon™ RX 500 series •... -
Page 15: Hdr
This monitor is compatible with HDR10 formatted input signals. The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content. If you have no need for the automatically activated HDR functions, please select “OFF”... -
Page 16: Adjusting
Adjusting Hotkeys Source/Up Dial Point/Down Game Mode/Left Light FX /Right Power/ Menu/Enter Power/Menu/Enter Press the Power button to turn on the monitor. When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 seconds to turn off the monitor. Dial Point/Down When there is no OSD, press Dial Point button to show / hide Dial Point. -
Page 17: Osd Key Guide (Menu)
OSD Key Guide (Menu) Enter Move Exit Enter : Use Enter key to enter the next OSD level Move : Use Left / Up / Down key to move OSD selection Exit : Use Right key to exit OSD Enter Move Exit Enter : Use Enter key to enter the next OSD level... -
Page 18: Osd Setting
OSD Setting Basic and simple instruction on the control keys. PIP Setting Color Setup PIP Setting Audio Light FX OLED Care/Extra Audio Light FX OSD Setup Enter Move Exit Enter Move Exit 1). Press the MENU-button to activate the OSD window. 2). -
Page 19: Game Setting
Game Setting Game Setting Game Mode Shadow Control Game Color Sniper Scope AMD FreeSync Low Input Lag Frame Counter HDMI1 Console/DVD HDMI2 Console/DVD Exit Enter Select No optimization by Game Mode. For playing FPS (First Person Shooters) games. Improves dark theme black level details. For playing RTS (Real Time Strategy). - Page 20 Shutting down the frame buffer can reduce input delay. Note: Low input delay is disabled by default and unadjust- able when the field frequency is less than 120 Hz; and it is Low Input lag On / Off enabled by default and unadjustable when the field frequen- cy is equal to 120 Hz and in the AMD FreeSync Premium state.
-
Page 21: Luminance
Luminance Luminance Contrast Brightness UniformBrightness Dark Boost ECO Mode Standard Gamma Gamma1 Exit Enter Select Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment In the SDR model, once this feature is activated, the system UniformBrightness On/ Off will maintain consistent screen brightness even when the screen displays different sizes of bright white windows. - Page 22 Note: “Luminance” controls “Contrast,” “Eco Mode,” and “Gamma” can only be adjusted when “HDR Mode” is set to “OFF.” No “Luminance” controls are adjustable when “HDR” is active. When the Color Space under Color Settings is set to sRGB or DCI-P3, the Contrast, Brightness Scenario Mode, Gamma, and HDR/HDR Mode items are not adjustable.
-
Page 23: Pip Setting
PIP Setting Disable or Enable PIP or PIP Setting Off / PIP / PBP PBP. Main Source Select main screen source. Sub Source Select sub screen source. Size Small / Middle / Large Select screen size. Right-up Right-down Position Set the screen location. Left-up Left-down Disable or Enable Audio... -
Page 24: Color Setup
Color Setup Color Setup LowBlue Mode Color Temp. Warm Color Gamut Panel Native Green Blue Exit Enter Select Off / Multimedia Decrease blue light wave by controlling color LowBlue Mode / Internet / Office temperature. / Reading Warm Recall Warm Color Temperature from EEPROM. Recall Normal Color Temperature from Normal EEPROM. -
Page 25: Audio
Audio Audio Volume Exit Enter Select Volume 0-100 Adjust volume setting... -
Page 26: Light Fx
Light FX Light FX Light FX Medium Light FX Mode Static Pattern Rainbow Foreground R Foreground G Foreground B Background R Background G Background B Exit Enter Select Off / Low / Medium / Light FX Select the intensity of Light FX. Strong Audio1 / Audio2 / Static / Dark Point Sweep /... -
Page 27: Extra
Extra OLED Care/Extra OLED Care/Extra Pixel Orbiting Strongest Input Select Auto Auto Warning Off Timer Pixel Refresh Image Ratio Wide Screen Saver DDC/CI Reset Resolution:2560 (H) x 1440 (V) SDR Time after Pixel Refresh H.Frequency: 209 KHz Pixel Refresh Counts V.Frequency: 120 Hz Exit Enter... - Page 28 This function will help eliminate image retention. After startup, select “Yes” from the menu prompt. The display will shutdown the screen and run the maintenance cycle. The power indicator will flash Pixel Refresh On/ Off white (1 second on/1 second off) while the cycle runs, about 10 minutes.
-
Page 29: Osd Setup
OSD Setup OSD Setup Language English Timeout DP Capability 1.2/1.4 H.Position V.Position Transparence Break Reminder Exit Enter Select Language Select the OSD language Timeout 5-120 Adjust the OSD Timeout Note: 1. Only DP1.2/DP1.4 support AMD FreeSync/ G-SYNC Compatible functionality. DP Capability 1.1/1.2/1.4 2. -
Page 30: Led Indicator
LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange Pixel Refresh under Flashing White (1 second on/1 second off) process JB under process Flashing White (3 seconds on/3 seconds off) OLED panel malfunction Flashing Orange (1 second on/1 second off) Shutdown mode The indicator is not lit. -
Page 31: Troubleshooting
Refer to the “Screen Maintenance” section. Please refer to Regulation & Service Information which is in the CD manual Regulation & Service or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page. -
Page 32: Specification
Specification General Specification Model Name AG276QKD Driving System OLED Panel Viewable Image Size 67.3 cm Diagonal Pixel Pitch 0.2292mm(H) x 0.2292mm(V) Display Color 1.07B Colors Horizontal Scan Range 30k~510kHz Horizontal scan Size(Maximum) 586.75 Vertical Scan Range 48~480Hz Vertical Scan Size(Maximum) 330.05 Optimal Preset Resolution 2560 x 1440@60Hz... - Page 33 Note: 1)The maximum number of display colors supported by this product is 1.07 billion, and the setting conditions are as follows (there may be differences due to the output limitation of some graphics cards): HDMI2.1 DisplayPort1.4 YCbCr422 YCbCr444 YCbCr422 YCbCr444 YCbCr420 YCbCr420 Color Bit...
-
Page 34: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION (±1Hz) FREQUENCY(kHz) FREQUENCY(Hz) 640×480@60Hz 31.469 59.940 640x480@72Hz 37.861 72.809 640x480@75Hz 37.500 75.000 640x480@100Hz 51.080 99.769 640x480@120Hz 60.938 119.720 800x600@56Hz 35.156 56.250 800×600@60Hz 37.879 60.317 800x600@72Hz 48.077 72.188 SVGA 800x600@75Hz 46.875 75.000 800x600@100Hz 62.760 99.778 800x600@120Hz 76.302... - Page 35 720x400@70Hz 31.469 70.087 MAC MODES 640x480@67Hz 35.000 66.667 SVGA 832x624@75Hz 49.725 74.551 Note: According to the VESA standard, different operating systems and graphics cards may have certain errors (+/-1Hz) on resoution. Actual please refer to the actual product.
-
Page 36: Pin Assignments
Pin Assignments 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock-... -
Page 37: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
