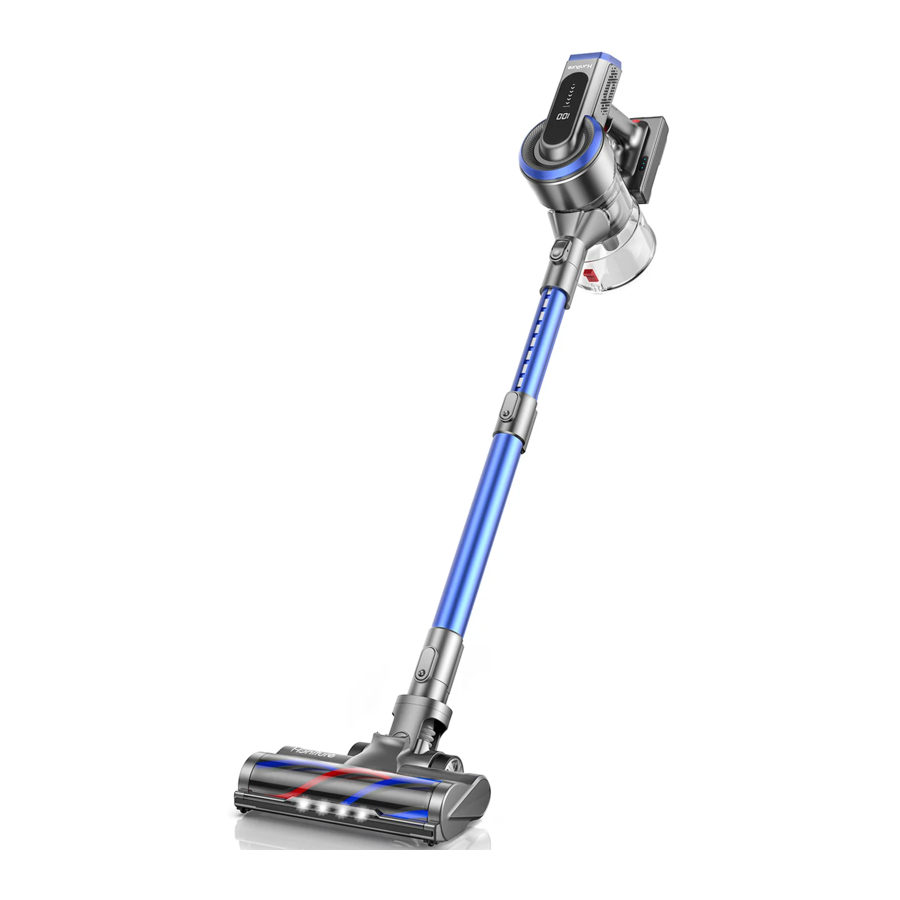

HONITURE S12 Manual

Overview & Assembly

Package List

Please check and confirm the accessories and parts according to the following sheet before using.

Overview

The LCD Screen

Product Assembling Diagram

1. Install the Battery Pack
   Align the side of the battery with the terminal to the dust cup and press firmly.

2. Install The Machine
   Align the protruding black part of the main unit with the hole in the dust cup, and then press the main unit firmly until you hear a "kata" sound.



Wall Mount Installation

Tip:
It is better to choose a cool, dry place with a nearby power source for the rack location and make sure there are no wires or pipes or other facilities directly behind the installation area.

1. According to the length of the whole machine (Main body Aluminum tube Floor brush), choose the right height and circle the three screw hole locations. (The floor brush is better to close the floor enough)
2. Use a 7mm drill bit power tool to punch holes according to the screw hole's ocations and place the telescopique tube in the drilled holes.
3. Hang the wall mount with two screws fixed.

How to Use

Preparation

• Please charge it for 4-5 hours before first use to ensure the normal operation of the product.
• Please confirm if the vacuum is fully charged before using.
• Select the appropriate brush head according to the area need to be cleaned.

Start to Work

Press the power button, the vacuum will start to work.

Select Suction Gear

Note:
Please do not use sharp objects to scratch or scrape the digital display screen. The S12 cordless vacuum cleaner is equipped with 5 levels of suction to suit different cleaning tasks.

Slide the small arrow up, and each time a smal arrow is slided, a suction level is higher, when you need to lower the suction, slide down small arrow, which changes the motor speed and suction level between carpets and hard floors for energy efficient powerful cleaning.

Abnormal Indicator

1. When the Brush Roller is tangled, the Brush Tangled Indicator flashes 6 times and then the floor brush will stop working, indicating that the floor brush needs to be cleaned.

2. When the Air passage/dust cup blocked, the Air passage blocked Indicator flashes slowly to remind that the telescopic tube/dust cupis clogged and needs to be cleaned.

3. When the telescopic tube/dust is blocked to the limit, the screen display goes out and the vacuum is turned off.


Charging

Tips:
In order to better protect the battery life, lt's important to fully charge your new machine before using it for the first time, and after every clean.

Charging with Main Body

• Plug the adapter directly into the main body to start charging.

• Recharging: when the battery was installed in the main body, start charging, the value on the display changes.
• Charged Full: when charging is complete, the display value is 100.

Charging the Battery Directly

Press the battery pack release button to the left, and then pull down to remove the battery pack (indicated by the arrow), and plug in the charger to charge directly.

Three blue lights (Fully charged)
Two blue lights(Battery charges to 60%)
One blue lights(Battery charges to 50%)

Tips:

• Recharging: Light will flash blue cyclically and indicate the remaining power.
• Charged Full: Light will always on.

Maintenance

PRECAUTIONS

1. Be sure to use original parts, otherwise the warranty service may not be available.
2. Please charge it for 4-5 hours before the first use to ensure the normal operation.
3. After the battery pack voltage drops, the charge indicator on the front of the power switch will be flashing, indicating that the battery is low and needs to be charged.
4. If left unused for a long period, please fully charge the vacuum cleaner and place the power adapter plug in cool and dry place. Charging it at least every 1 months to avoid over-discharge of the battery.

Main Body Cleaning

1. Please turn off the power before cleaning the body.
2. Please use a neutral detergent, wipe the body with dry cloth.
3. Please avoid sun exposure and store in cool and dry place.

Dust Cup Cleaning

1. Press the release button to empty the dust cup as shown below in the picture.

2. Press and hold the dust cup release button with your right hand, and pull out the dust cup to the upper eft corner with left hand.

3. Using the cleaning tool to clean the dust cup.


Filter Cleaning

1. Pull up the inlet hepa filter from the top of the dust cup. Rotate the stainless steel filter to remove it from underneath the dust cup.

2. Press and take out of the outlet hepa filter.

3. Thoroughly wash the filter and filter case in warm water.

4. Leave the filter to dry for at least 24 hours in a well-ventilated and warm place.
   Don't dry your filter in a tumble dryer, microwave or near a naked flame.


Tips:
In order not to affect the suction effect of the vacuum cleaner, it is necessary to clean up HEPA at least once every two weeks and change it once every two months.

Brush Roller Cleaning

To maintain optimum performance, check your brush bar regularly and clear any obstructions.

1. Press the release button upwards to remove the brush roller.

2. To take out the brush roller, and to remove any hair or fibers that have been wrapped around the brush roller. Using the brush cleaning tool to sweep away the trash on the roller.

3. The brush roller is washable. Before replacing, check that the brush roller is completely dry.

4. Press the brush roller to the brush head and hearing the sounds of locking.


Troubleshooting

To reduce the risk of shock and unintended operation, turn off power and remove the battery before servicing.

Note: If vacuum still does not operate properly, contact Customer Service.

Specification

Safety Warning

ATTENTION: Please read the following safety warning before using this product and take safety protection measures to avoid malfunctions caused by wrong operation of the instructions.

1. People with physical, sensory or intellectual disabilities as well as the elderly and inexperienced people (including children) should not use this product. (Unless there is a person responsible for their safety, for the supervision and guidance of the use of the machine)
2. When disassembling or replacing the motorized brush strip, be careful not to pulI the power button until the vacuum cleaner head has been reassembled; aso do not use without the dust collection cup and filter in place.
3. Do not touch the plug or any part of the product with wet hands and avoid getting the product wet or wet; do not install outdoors, in the bathroom or 10 inches (5 meters) from the pool.
4. To prevent fire, explosion or personal injury, please check if the battery and charger are damaged before use, it is forbidden to use the vacuum cleaner when the battery or charger is damaged.
5. Please keep this product away from alcohol, gasoline and other flammable and explosive liquids, and prohibit the inhalation of toxic solutions or corrosive solutions.
6. Do not use the vacuum cleaner to clean lime, cement, toner, etc. Do not inhale smoke or burning materials; do not use to pick up hard objects, such as glass slag, needles, nails, etc.
7. Only use original charger, please do not use unofficial adapter, otherwise it will cause damage to the product, please unplug the charger after ful y charged to avoid overcharging to shorten the battery life and reduce the performance. Please do not buy other types of batteries, if necessary, please contact the seller for more information about the battery.
8. Do not place the vacuum cleaner on an unstable surface, such as a chair or dining table, to prevent damage to the product or injury if the user feels. When the vacuum cleaner is dropped, damaged or in other abnormal conditions, please contact the official authorized repair, do not disassemble it by yourself.
9. When using this machine, keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts. Do not point hoses, aluminum tubes or other accessories at your eyes or ears or put them in your mouth.
10. If the machine does not work properly, is hit hard, dropped, damaged, left outdoors or dropped in water, do not use it and contact the Honiture support team for assistance.

SAVE THESE INSTRUCTIONS

Do not use near open flames.

Do not store near heat sources.

Do not pick up water or liquids.

Do not pick up burning objects.

Do not put hands near the brush bar when the machine is in use.

Do not place on or near the cooker.

Warranty Card

HONiTURE would always back on our products. If there are any problems or malfunctions during use, please fill in your information, question and order number on the warranty card, and contact us through email: support01@honiture.com, we will reply you within 24 hours and do our very help!
