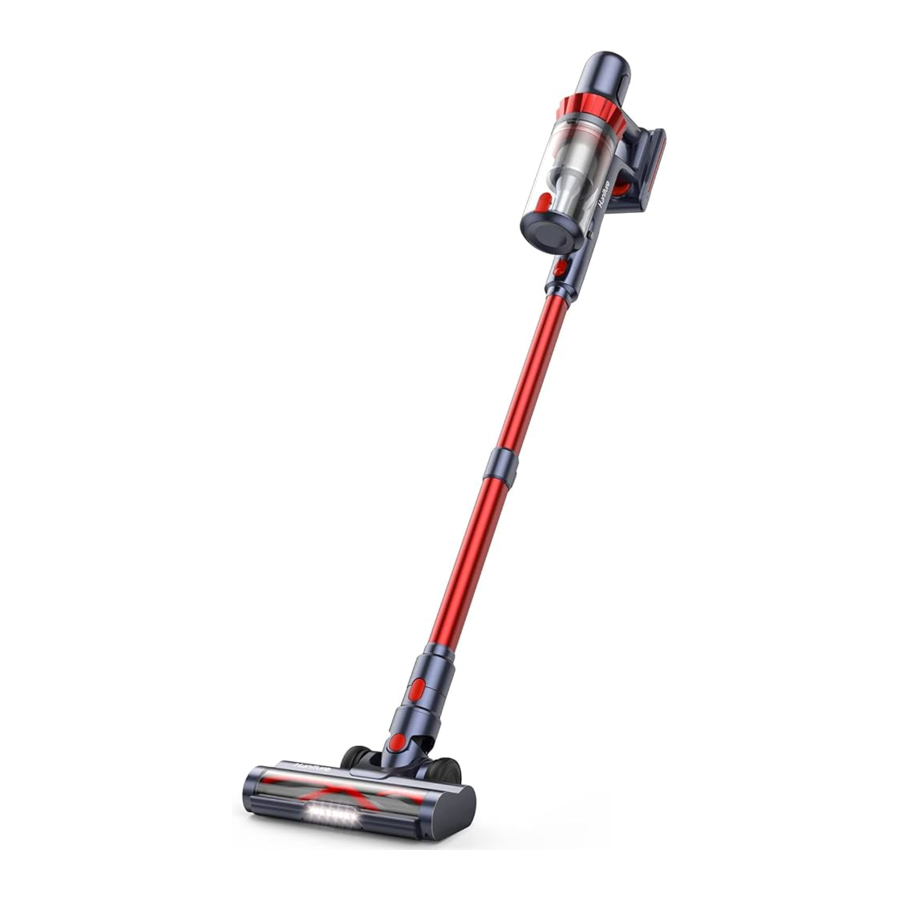

HONITURE S13 Pro Manual

Know Your Product

Charging

• Please turn off the power before charging.
• Please fully charge the battery before use.
• Please charge the battery at least once every three months.
• Please be sure to use the charger included in the box, other chargers may damage the battery.

Charging Method

1. Connect the main body to charge

2. Hang on the wall mount to charge

3. Charge the Battery Separately
   The screen stays on for one hour and then turns off.

   • Red light flashing (Charging)
   • Green light (Fully Charged)

Assembling

1. Install the Battery Pack

2. Assembling Cleaning Accessories

3. Install the Wall Mount


Operating

• Before first time use, ensure the vacuum cleaner has been charged 4-5 hours.
• Do not exceed the MAX dust collection capacity of the dust cup.
• Please keep the suction nozzle unobstructed and avoid blockage, otherwise the motor will overheat and cause danger.

Start to Work

Press once to switch on and again to switch off.
Note: It is not necessary to press all the time!

Adjusting Speed

• There are three suction modes: ECO<MID<MAX
• Press the " " to adjust suction mode
• Press the " " once to switch to MID mode, twice to switch to MAX mode

Abnormal Indicator

1. The battery level indicator blinks red indicating that the battery level is below 10%. The vacuum cleaner should be charged as soon as possible.

2. The LED on the motorized brush is off and the red brush roll indicator keeps flashing, indicating that the brush roll is locked. Please check and clean immediately.

3. The dust cup icon flashes, indicating a clogged main unit, dust cup or duct. Please check and clean immediately.


Cleaning

Clean the Main Body

Turn off the power before cleaning the body.

1. Exceed MAX line, clean in time

2. Please remove the rope tube

3. Please press the rubbish release button

4. Please use a neutral detergent, wipe the body with half-wet cloth.


Tips: Avoid sun exposure and store in a cool and dry place.

Clean the Filter

1. Remove the dust cup by pressing and holding the dust cup release button.

2. Lift the sponge filter and rotate the multi-cone filter counterclockwise to separate it from the cyclone filter.

3. Remove the HEPA filter from the air inlet from the main unit.


Hepa filter and dust cup are washable. Make sure they are thoroughly dry before use.

Clean the Brush Roller

1. Take out the roller brush.

2. Remove any hair of fibers that have been wrapped around it. Using the mini cleaning brush to clean it.


You can clean it with or without water. Please remember to use the roller after it is completely dry.

3. lnstall the roller brush


Maintenance

• Clean the appliance only with a soft, slight damp cloth. Do not allow any liquid substances to enter the appliance.
• The filter can be cleaned with warm water. It must be completely dried before putting it back into use. Do not immerse the main unit in water or any liquid.
• Do not use ant corrosive chemicals or abrasives.
• It is recommended to change the HEPA filter every 2 months to ensure optimum performance. Do not use the filter when it is damaged or worn out.
• Only the original charger and battery can be used to the appliance.

Warranty

If there is any problems or malfunction during use, please send your question and order number to our email. We will provide you a good after-sales service within 24 hours.
Email:

support-US@honiture.com

support-UK@honiture.com

support-CA@honiture.com

support-AU@honiture.com

https://www.honiture.com/
