Uniden D1660 User Manual

Uniden D1660 User Manual

D1660 series
Hide thumbs Also See for D1660:
Table of Contents

Advertisement

Quick Links

What's in the box?
Battery
cover
♦ If any items are missing or damaged, contact our Customer Care Line
immediately. Never use damaged products!
♦ Need help? Get answers 24/7 at our website: www.uniden.com.
If You...
have a question or problem
need a replacement part or an
accessory
need special assistance due to
a disability
* During regular business hours, Central Standard Time; see our website for de-
tailed business hours.
© 2010 Uniden America Corp.
Ft. Worth, Texas

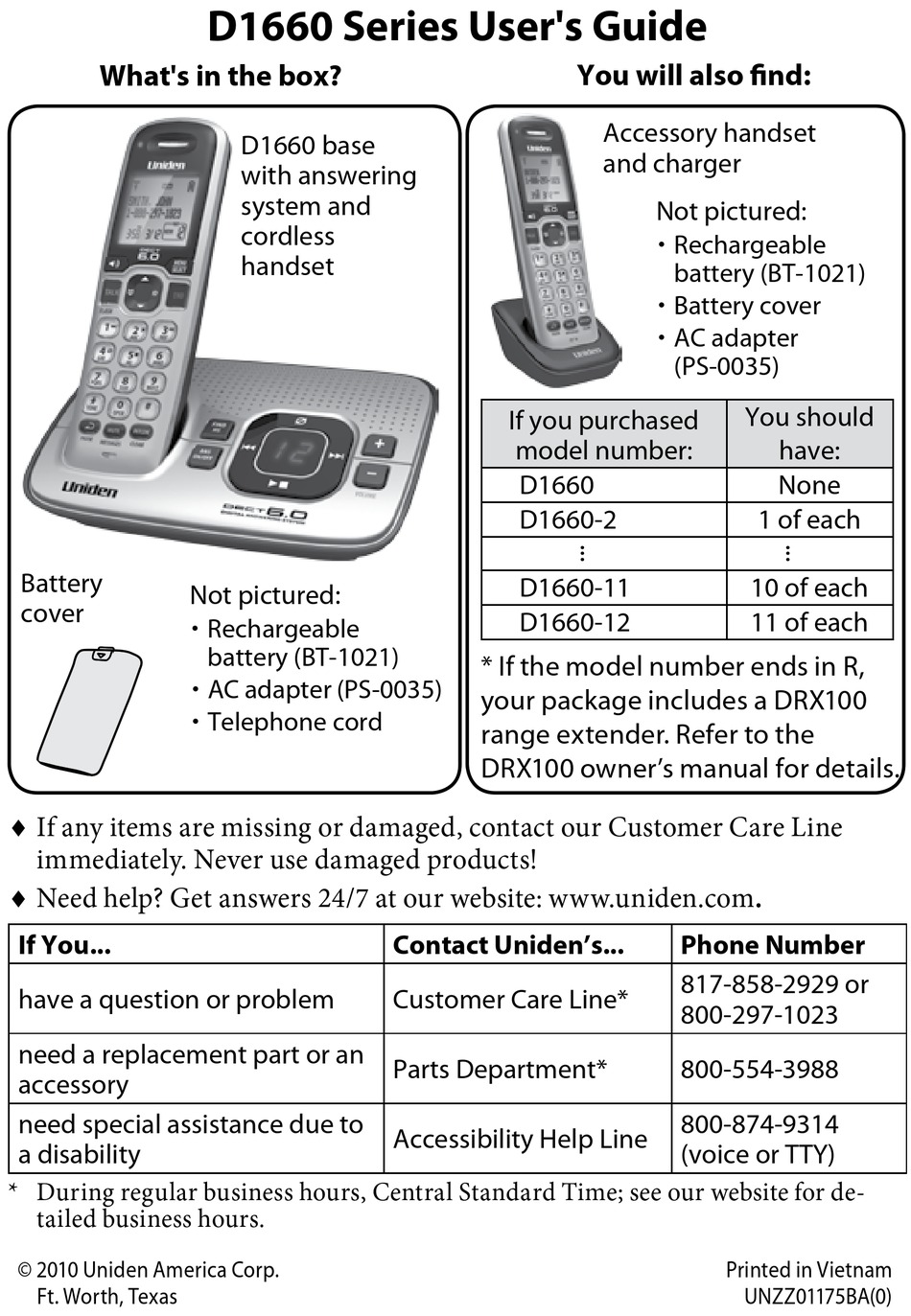

D1660 Series User's Guide
D1660 base
with answering
system and
cordless
handset
Not pictured:
x Rechargeable
battery (BT-1021)
x AC adapter (PS-0035)
x Telephone cord
If you purchased
model number:
D1660
D1660-2
D1660-11
D1660-12
* If the model number ends in R,
your package includes a DRX100
range extender. Refer to the
DRX100 owner's manual for details.
Contact Uniden's...
Customer Care Line*
Parts Department*
Accessibility Help Line
You will also find:
Accessory handset
and charger
Not pictured:
x Rechargeable
battery (BT-1021)
x Battery cover
x AC adapter
(PS-0035)
You should
Phone Number
817-858-2929 or
800-297-1023
800-554-3988
800-874-9314
(voice or TTY)
Printed in Vietnam
UNZZ01175BA(0)
have:
None
1 of each
10 of each
11 of each

Advertisement

Table of Contents
loading

Related Manuals for Uniden D1660

Summary of Contents for Uniden D1660

  • Page 1 Refer to the DRX100 owner’s manual for details. ♦ If any items are missing or damaged, contact our Customer Care Line immediately. Never use damaged products! ♦ Need help? Get answers 24/7 at our website: www.uniden.com. If You... Contact Uniden’s... Phone Number...

  • Page 2: Table Of Contents

    What’s in the manual? Getting Started ........ 3 Personalizing the Greeting.....13 Accessing the Answering System ..14 Installing Your Phone .........3 Getting Your Messages ......14 Getting to Know Your Phone ....4 Using the System While You're Away Using the Handset Menu ......6 from Home ..........15 Using Your Phone ......

  • Page 3: Getting Started

    GETTING STARTED Installing Your Phone Connect the Telephone Cord Use the telephone cord to connect Charge the Battery jack on the base to a TEL LINE 1. Unpack all handsets, standard telephone wall jack. battery Test the Connection packs, and battery 1.

  • Page 4: Getting To Know Your Phone

    Getting to Know Your Phone Parts of the Base Find FIND HS FIND HS FIND HS Charging Handset Contacts Key (icon) What it does Find hs x In standby: page all handsets. Visual ringer Earpiece Parts of the Handset Display PHONEBOOK SPEAKER MENU/SELECT...
  • Page 5 Key (icon) What it does x In standby or during a call: open the phonebook. PhonEbook x In the menu: go back to the previous screen. x When entering text: move the cursor to the left. ) x Switch a normal call to the speakerphone (and back). sPEakEr x In standby: start a telephone call (get a dial tone).

  • Page 6: Using The Handset Menu

    Reading the Display Status The table shows the possible icons status icons & what they mean. Since the icons appear Current based on what the phone is call info doing, you won't see all the Answering icons at the same time. Time &...
  • Page 7 Turn on T-coil mode to reduce noise on hearing aids T-coil equipped with a telecoil (T-coil) feature. T-coil mode shortens talk time, so keep your battery fully charged. Choose this handset's ring tone. As you highlight each Ringer Tones ring tone, the phone plays a sample. When you hear the tone you want, press MEnu/sElEcT Turn on personal ring so you can assign a special ring...

  • Page 8: Using Your Phone

    move the cursor left PhonEbook move the cursor right erase the character at the cursor inTErcoM/clEar erase the entire entry and hold inTErcoM/clEar enter a blank space switch between upper and lower case letters rotate through the punctuation and symbols USING YOUR PHONE This section explains the most common functions on the phone.
  • Page 9 Using the Caller ID and Redial Lists Caller ID (CID) is a service available from your telephone provider that shows the phone number (and sometimes the caller’s name) of incoming calls. Contact your telephone provider for more information. Caller ID list Redial list x The phone saves the information for the last 50 x Each handset...

  • Page 10: Using The Phonebook

    Using the Phonebook The phone can store up to 100 entries in its phonebook. All handsets share the same phonebook, so only one handset can access it at a time. To... Press... open/close the phonebook PhonEbook down to scroll through the entries from A to Z. scroll through the entries to scroll from Z to A.

  • Page 11: Multihandset Features

    3. After the selected number of hours, the phone automatically exits silent # again. mode. To exit silent mode manually, press and hold If the phone is in silent mode and you turn off the answering system, the phone exits silent mode. Multihandset Features To use the features in this section, you need at least 2 handsets.

  • Page 12: Chain Dialing

    Handset to Handset Intercom ♦ Whenever the phone is in standby, you can make an intercom call between handsets without using the phone line. ♦ You can make an intercom call from any handset, but only two handsets can be in an intercom call at any time. ♦...

  • Page 13: Using The Answering System

    USING THE ANSWERING SYSTEM Answering System Options (Ans. Setup) You can set or change the answering system options from any handset. Just Ans. Setup. Select one of the following: open the menu and select Enter a 2-digit PIN so you can access your answering Security Code system from any touch-tone phone (see p.

  • Page 14: Accessing The Answering System

    To... Follow these steps: 1. Open the menu with the phone in standby. Select Ans. Switch Setup, then Greeting Options. between 2. The system plays back the current greeting. Press MEnu/ greetings sElEcT to switch greetings. Delete your Switch to your personal greeting, then press inTErcoM/clEar greeting Accessing the Answering System...

  • Page 15: Using The System While You're Away From Home

    To... From the base From a handset delete a While a message is playing, press While a message is message dElETE playing, select 4:Delete. With the phone in standby, delete all press dElETE ; press dElETE again to Not available. messages confirm.

  • Page 16: Important Information

    0 and immediately enter your 2. During the greeting or beeps, press security code. If you enter it incorrectly 3 times, the system hangs up and returns to standby. 01 Repeat message 3. The system announces the time, the number 02 Play message of messages in memory, and a help prompt.
  • Page 17 Audio issues Possible solutions x Check for interference from appliances (microwave ovens, TVs, etc.) or wireless devices (baby monitors, WiFi equipment, etc.). Move the handset or base away There’s a lot of from the interference source. noise or static on x If you use a telecoil hearing aid, turn on T-coil mode the line (see p.

  • Page 18: Resetting Handsets

    Installing a Line Filter or DSL 3. To confirm, select Yes. The handset Handset not registered. displays Filter Registering Handsets A telephone line filter or DSL filter prevents services that use the phone If you see a “not registered” message on line from causing interference on your a handset, you must register it to a base phone.

  • Page 19: Compliance Information

    REN for this product is part of the product identifier that has the format after handling. US:AAAEQ##TXXXX. The digits rep- Uniden works to reduce lead resented by ## are the REN without a content in our products & decimal point (e.g., 03 is a REN of 0.3).
  • Page 20 may be required. But if advance notice NOTICE: According to telephone com- isn't practical, the telephone company pany reports, AC electrical surges, typi- will notify the customer as soon as pos- cally resulting from lightning strikes, sible. Also, you will be advised of your are very destructive to telephone right to file a complaint with the FCC equipment connected to AC power...

  • Page 21: 1-Year Limited Warranty

    ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original Industry Canada (I.C.) Notice retail owner, this Uniden Product to Terminal equipment be free from defects in materials and NOTICE: This equipment meets the craftsmanship with only the limitations applicable Industry Canada Terminal or exclusions set out below.
  • Page 22 TIES OF ANY NATURE WHATSO- Star® is a U.S. registered mark. EVER, WHETHER EXPRESS, IM- PLIED OR ARISING BY OPERATION x Uniden® is a registered trademark of OF LAW, INCLUDING, BUT NOT Uniden America Corporation. LIMITED TO ANY IMPLIED WAR-...
