3 Installation
3.6

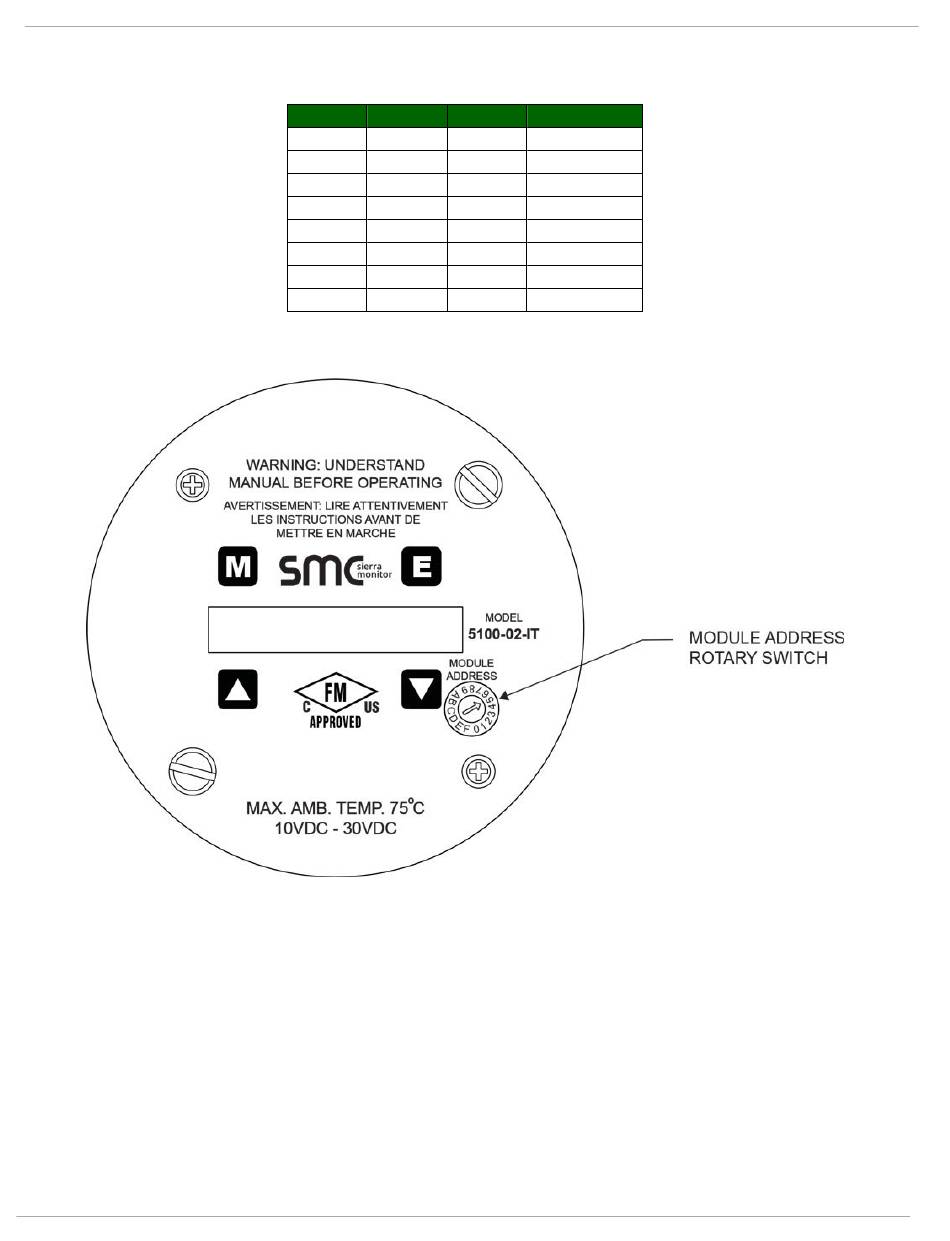

Module Address Switch

For digital interface applications the module address switch (or Modbus node) must be set per the table below.
NOTE: Use selector switch to pick Sentry PSG addresses 1 through 8 only. If using Modbus output sensor,
addresses 1-15 are available. Position 0 enables setting Modbus Address by software menu, in range 16-254.
16
Position Address Position
1 Sensor 1
2 Sensor 2
3 Sensor 3
4 Sensor 4
5 Sensor 5
6 Sensor 6
7 Sensor 7
8 Sensor 8
SMC 5100-02-IT Gas Sensor
Address
9 Sensor 09
A Sensor 10
B Sensor 11
C Sensor 12
D Sensor 13
E Sensor 14
F Sensor 15
0 Software Menu
