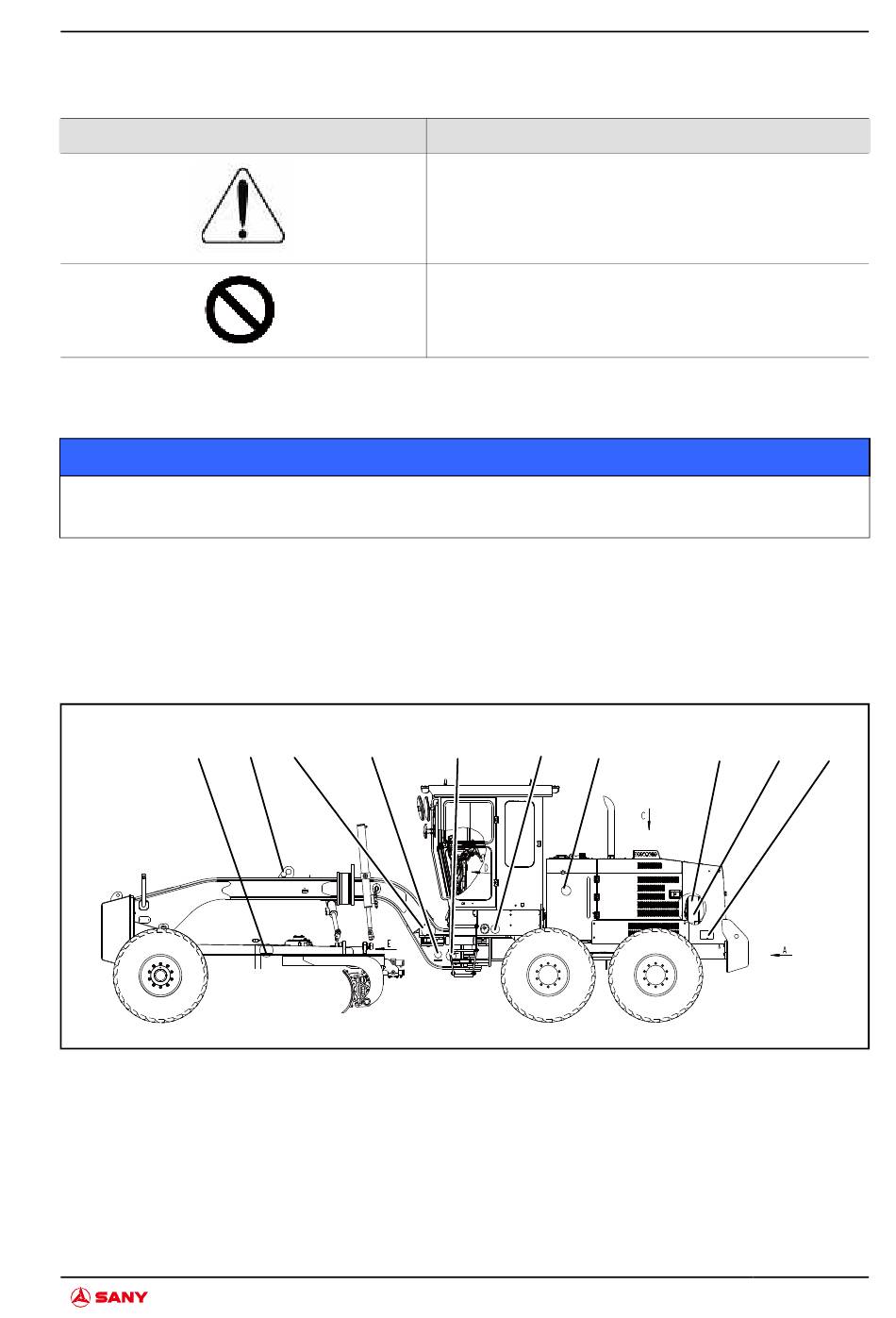

2.2.4 An Example of Safety Alerts
If the hydraulic oil level is found to have dropped during the daily check, check all lines and hy-
draulic elements for leaks, or it may cause failure in operation and environment pollution.
2.2.5 Decals
The equipment uses "safety alerts" and "safety message" to indicate safety measures.
See below figure.
1
Fig 2-3
1. Caution for danger
2. Hook point
3. Keep away
Table 2–1 Safety Decal and Explanation (continue)
2
3
4
4. Fixed points
5. Indication of articula-
tion lock
Safety, Operation and Maintenance Manual-March 2021
This hazard alert symbol appears with most hazard
alerts. It means attention, become alert, your safety
is involved! Please read and abide by the message
that follows the hazard alert symbol.
Indicate the operation disobeys the safety regula-
tions, which may cause personal injury or death
and is prohibited.
NOTICE
5
6
6. Power switch notice
7. Hydraulic oil tank
decal
Explanation
7
8
8. Caution for drive belt
9. Fan danger
10.Lifting indication
Safety
9
10
2-7
