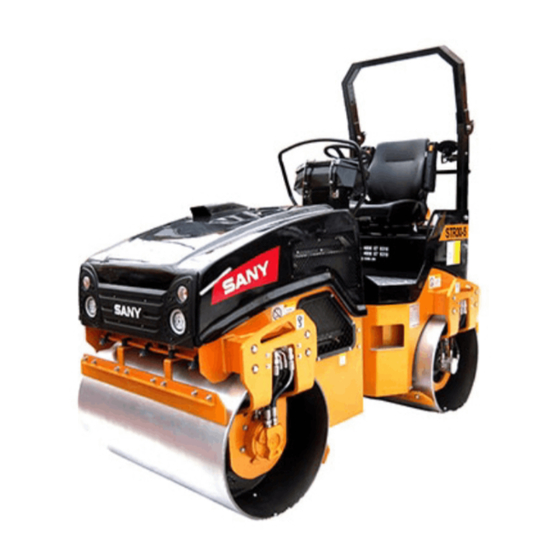

- Page 1 Quality Changes the World Tandem Roller STR30C-8 Safety, Operation & Maintenance Manual...
- Page 2 Find manuals at https://best-manuals.com...
- Page 3 STR30C-8 Tandem Roller STR30C-8 Tandem Roller Safe, Operation and Maintenance Manual WARNING Read and follow the safety precautions and instructions in this manual and on the machine decals. Failure to do can cause serious injury, death or property damage. Keep this manual with the machine for reading and future reference.
- Page 4 All information included within this publication was accurate at the time of publication. Product improvements, revisions, etc., may result in differences between your machine and what is presented here. SANY Group assumes no liability. For more information,contact SANY Group.
- Page 5 Information on this manual is used to guide qualified operators to operate and maintain rollers correctly. Sany expressly bears no liability for any consequence due to any use not observing the information on this manual. It is forbidden to convert the roller without authorization.Sany expressly bears no liability for any consequence.
- Page 6 Duty of managers • Ensure the operators are trained and fully understand the Operation and Maintenance Manual supplied by Sany. Ensure they are in physical fitness and have the certification of operation. Otherwise, it is forbidden to operate the roller. •...
- Page 7 STR30C-8 Tandem Roller Contents CONTENTS Introduction ......................1-3 About This Manual ......................1-3 Contact Information ...................1-4 Your Documentation Package ..............1-4 Safety, Operation & Maintenance Manual ........................1-4 Parts Book .....................1-5 Organization Of This Manual .......................1-5 Table of Contents .......................1-5 Introduction ........................1-5 Safety ......................1-5 System Functions ........................1-5...
- Page 8 STR30C-8 Tandem Roller Contents ......................2-11 Job Site Safety ................2-12 Surface and Underground Hazards ....................2-12 High Voltage Areas .....................2-13 Pre-Start Checks ......................2-13 Start-Up Safety .................2-14 Personal Protective Equipment .......................2-16 Fire Safety ......................2-16 Fluid Fires ....................2-17 Electrical Fires ................2-17 Fire Extinguisher and First Aid Kit ....................2-17...
- Page 9 STR30C-8 Tandem Roller Contents .......................2-27 Machine Decals ......................2-28 Location .....................2-29 Type and Meaning .................2-36 Authorized Use of the Machine ................2-36 Unauthorized Use of the Machine ....................2-37 Job Site Precautions ..............2-37 Surface and Underground Hazards ................2-38 Job Site Working Clearances ..................2-38 Precautions before working ....................2-39...
- Page 10 STR30C-8 Tandem Roller Contents ........................4-5 Operator ........................4-5 Welder .........................4-5 Electrician ....................4-5 After-sales engineer ......................4-6 Pre-Start Checks ..............4-6 Safety, Operation & Maintenance Manual ...................4-7 Inspection (Walk-Around) ....................4-8 Control device and console ......................4-9 Control device ........................4-15 Display ........................4-16 Icons ......................4-21 Startup of the roller ....................4-21...
- Page 11 STR30C-8 Tandem Roller Contents ....................5-6 Hour Meter Reading ................5-6 Genuine Sany Replacement Parts ..................5-6 Sany-Approved Lubricants ..............5-7 Weld, Drill, Cut or Grind on the Machine ..................5-7 Clean Parts or the Machine ......................5-7 Covers and Locks ...................5-8 Hydraulic Fluid Inspection ..........5-8 Inspection and Maintenance in Adverse Environments ................5-8...
- Page 12 STR30C-8 Tandem Roller Contents ........................5-20 Roller .......................5-21 Check .............5-21 Safety, Operation & Maintenance Manual ....................5-21 Operating functions ................5-21 Signal, running lights and horn ................5-21 Brakes (Service and parking) ....................5-21 Level indicator ......................5-22 Hourmeter ......................5-22 Damper ....................5-22 Engine oil level ......................5-22 Fuel level ....................5-24...
- Page 13 STR30C-8 Tandem Roller Contents ..................5-38 Every 1000 Hour Maintenance ............5-38 Secure the Machine for Maintenance (Power Off) .....................5-38 Securing Machine ........................5-39 Change .....................5-39 Oil water separator ....................5-40 Air filter elemen ..................5-43 Every 2000 Hour Maintenance ............5-43 Secure the Machine for Maintenance (Power Off) .....................5-43...
- Page 14 STR30C-8 Tandem Roller Contents Troubleshooting .......................6-3 Mechanical Part ........................6-3 Engine ......................6-5 Vibratory drum ......................6-6 Traveling system ........................6-7 Brake ....................6-8 Typical Hydraulic Elements ....................6-8 Axial plunger pump ......................6-10 Gear pump ....................6-12 Axial plunger motor ......................6-14 Change valve ......................6-18 Overflow valv ......................6-21 Steering cylinder ........................6-26...
- Page 15 STR30C-8 Tandem Roller Contents Safety, Operation & Maintenance Manual - October 2019...
- Page 16 STR30C-8 Tandem Roller Contents Safety, Operation & Maintenance Manual - October 2019...
- Page 17 Introduction STR30C-8 Tandem Roller Introduction About This Manual ........................1-3 Contact Information ........................1-3 Your Documentation Package ....................1-4 Safety, Operation & Maintenance Manual ................1-4 Parts Book .......................... 1-4 Organization Of This Manual ..................... 1-5 Table of Contents ........................ 1-5 Introduction .........................
- Page 18 Introduction STR30C-8 Tandem Roller WARNING Read and understand all safety precautions and instructions in this manual bef or e r eading any o ther manu als p r o v i de d w i th th i s m a c hi n e a n d be fo re operating or maintaining it.
- Page 19 CONTACT INFORMATION Thank you for purchasing a SANY product. If you need to contact us for any reason, you can reach us as follows: ● Address: SANY Industry Town, Economic and Technological Development Zone, Changsha, Hunan, China ●...
- Page 20 Your Documentation Package STR30C-8 Tandem Roller YOUR DOCUMENTATION PACKAGE This documentation applies only to this machine and should not be used with any other machines. The documentation for this machine includes the following items: Safety, Operation & Maintenance Manual A copy of this manual should be made available to maintenance personnel when maintaining the machine.
- Page 21 Organization Of This Manual STR30C-8 Tandem Roller ORGANIZATION OF THIS MANUAL Table of Contents List of the general topics that are contained in this manual along with the page number each starts on. NOTE: There is also a table of contents at the start of each section in this manual.
- Page 22 STR30C-8 Tandem Roller SERIAL NUMBER LOCATION The serial number is on the nameplate (a) of the machine, which will be needed by your Sany dealer when ordering replacement parts or providing assistance for your machine. Record this information in this manual for future use.
- Page 23 If you find a problem with this manual, make a copy of this page, complete the form below and send it to us, attention Technical Publications. You can also email us at crd@sany.com.cn. NOTE: See “Contact Information” on page 1-3 .
- Page 24 STR30C-8 Tandem Roller Correction Request Form Safety, Operation & Maintenance Manual - October 2019...
- Page 25 STR30C-8 Tandem Roller Safety Safety Safety- General ......................... 2-5 Hazard Alerts In This Manual ....................2-6 Diesel Engine Exhaust ......................2-7 Battery Posts, Terminals and Related Accessories ............. 2-7 Operator Safety Information ....................2-8 Operator is Important ......................2-8 Operator Qualification ....................... 2-9 Machine Safety .........................
- Page 26 STR30C-8 Tandem Roller Safety Dust Hazards ......................2-18 Safety Data Sheets (SDS) ..................2-18 Maintenance Safety ......................2-19 Clean the Machine ...................... 2-19 Use the Correct Tools ....................2-19 Jack Up the Machine ......................2-20 Rotating Parts ......................2-21 Remove Attachments ....................2-21 Weld, Drill, Cut or Grind on the Machine ..............
- Page 27 STR30C-8 Tandem Roller Safety Safe vibration ......................2-41 Parking Precautions ......................2-41 Transportation Precautions ....................2-42 Load/Unload the Machine..................2-42 Tow or Lift the Machine ....................2-43 Safety, Operation & Maintenance Manual - October 2019...
- Page 28 STR30C-8 Tandem Roller Safety WARNING Read and understand all safety precautions and instructions in this manual bef or e r eading any o ther manu als p r o v i de d w i th th i s m a c hi n e a n d be fo re operating or maintaining it.
- Page 29 The safety information in this manual provides basic guidelines for safe operation for all authorized personnel. Sany is unable to foresee all risks on work sites, so workers, operators and owners must consider if there are other safety concerns that must be addressed for specific job situations.
- Page 30 STR30C-8 Tandem Roller Safety- General Hazard Alerts In This Manual Most accidents are usually caused by the failure to follow fundamental safety rules for the operation and maintenance of the machine. To avoid accidents, it is important that all personnel involved with the operation or maintenance of this machine must read this manual before operating or performing maintenance on this machine.
