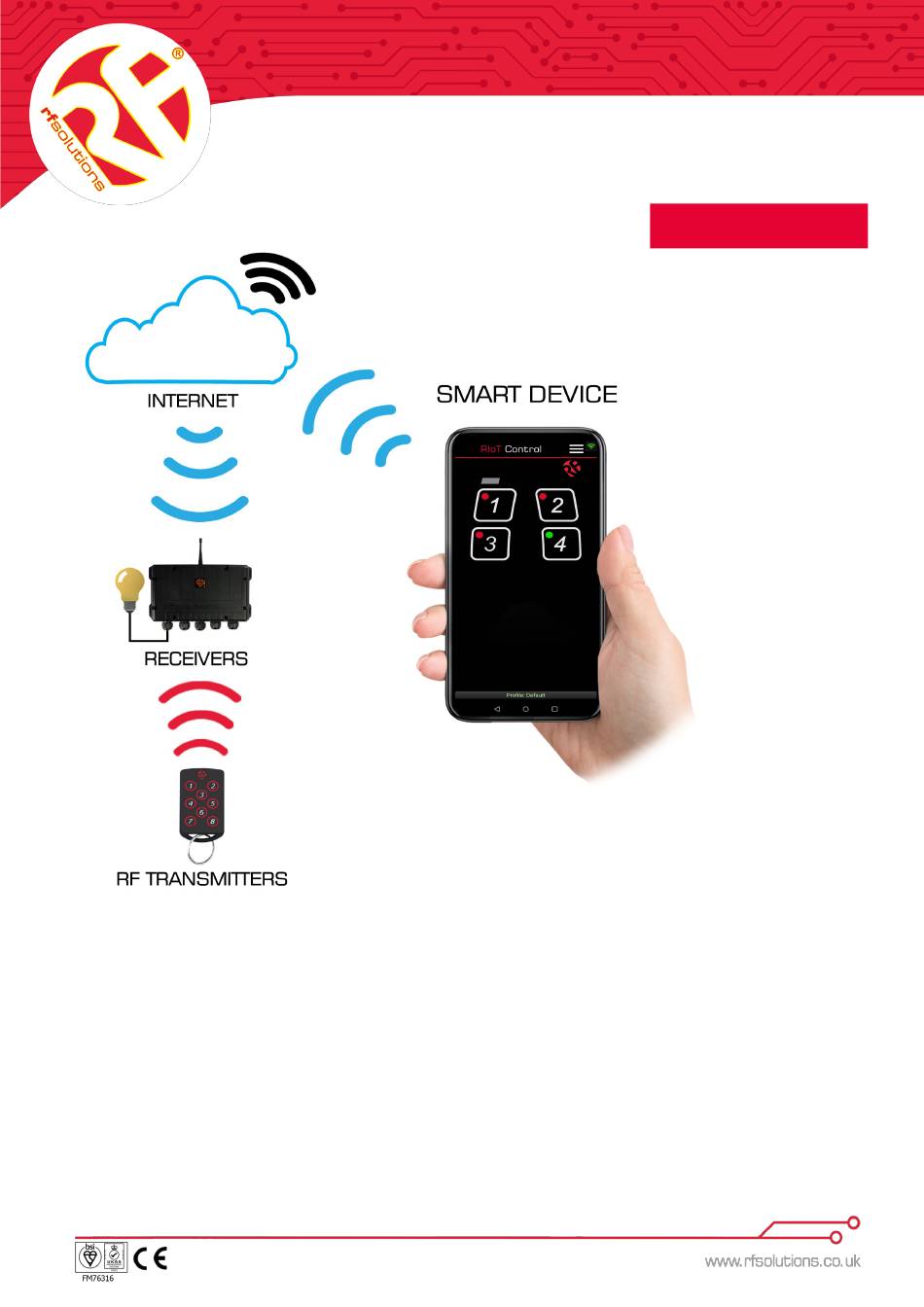

- Page 1 RIoT System Wi-Fi Quick Start Guide PART No RIOT-RX-8R4 RIOT11-RX-9R4 RIOT23-RX-9R4 Control RIoT Systems via Wi-Fi using RIoT System App Follow this procedure to: Configure RIoT System from your Smart Device. • Configure optional Events / Functions and Features •...
-
Page 2: Safety Information
Safety Information Carefully read the following safety information before proceeding with installation, operation, or maintenance of RF Solutions product. Failure to follow these warnings could result in death or serious injury • This radio system must not be used in areas where there is a risk of explosion. -
Page 3: Information Sur La Sécurité
Configuring RIoT System to Wi-Fi Information sur la sécurité Lisez attentivement les informations de sécurité suivantes avant de procéder à l'installation, l'utilisation ou la mainte- nance du produit RF Solutions. Le non-respect de ces avertissements peut entraîner la mort ou des blessures graves •... - Page 4 Configuring RIoT System to Wi-Fi Veiligheidsinformatie Lees de volgende veiligheidsinformatie zorgvuldig door voordat u doorgaat met de installatie, bediening of het onder- houd van het RF Solutions-product. Het niet opvolgen van deze waarschuwingen kan de dood of ernstig letsel tot ge- volg hebben •...
-
Page 5: Elektrische Sicherheit
Sicherheitsinformation Lesen Sie die folgenden Sicherheitsinformationen sorgfältig durch, bevor Sie mit der Installation, dem Be- trieb oder der Wartung des RF Solutions-Produkts fortfahren. Die Nichtbeachtung dieser Warnungen kann zum Tod oder zu schweren Verletzungen führen. • Dieses Funksystem darf nicht in explosionsgefährdeten Bereichen eingesetzt werden. -
Page 6: Información De Seguridad
Configuring RIoT System to Wi-Fi Información de seguridad Lea atentamente la siguiente información de seguridad antes de continuar con la instalación, operación o mantenimiento del producto de RF Solutions. El incumplimiento de estas advertencias podría provocar la muerte o lesiones graves. •... -
Page 7: Informazioni Sulla Sicurezza
Configuring RIoT System to Wi-Fi Informazioni sulla sicurezza Leggere attentamente le seguenti informazioni sulla sicurezza prima di procedere con l'installazione, il funzionamento o la manutenzione del prodotto RF Solutions. La mancata osservanza di queste avvertenze può provocare morte o lesioni gravi •... - Page 8 Configuring RIoT System to Wi-Fi Setup Procedure: Before you Start You need a Smartphone / Tablet or Smart device connected to your local Wi-Fi Download and run the RIoT System App RIOT-RX System Status : The WHITE LED provides status information. Net LED (WHITE) Flashing 4x:...
- Page 9 Configuring RIoT System to Wi-Fi Follow these steps to Get your RIOT-RX started Section Description Configure RIoT Receiver System to your local Wi-Fi Getting to Know the RIOT-SYSTEM APP Optional Advanced Features Stage Description Event Timers Configure outputs to automatically operate. Additional Features / Information Copy your App setup to another Smart device User Controlling Multiple RIoT Receivers from the App...
- Page 10 Configuring RIoT System to Wi-Fi Configure RIoT SYSTEM to your local Wi-Fi Stage IOS Version 1. Run the RIoT System App (Note: you must allow device location) 2. Press “+” 3. Enter a System Name for this RIoT System. Apply Power to the RIoT System. Switch Press and hold the LEARN button on the PCB until the Net LED...
- Page 11 Configuring RIoT System to Wi-Fi Once selected, then select ‘RIoT System’ in the top left corner of your device which will return you to the RIoT System app. Select ‘Create System & Finish’. 10. Select Wi-Fi setup. 11. Enter your local Wi-Fi SSID &, Password. 12.
- Page 12 Configuring RIoT System to Wi-Fi Configure RIoT System to your to local Wi-Fi Stage ANDROID version 1. Run the RIOT System App (Note: You must allow device location) 2. Press “+” 3. Enter a System Name for this RIoT System. Apply Power to the RIoT System.
- Page 13 Configuring RIoT System to Wi-Fi Select ‘Create System & Finish’. Click on “WiFi Setup”. 10. Then, connect to device. 10. Enter your local Wi-Fi SSID &, Password. 11. Select “Location”, then “Detect”. After you will see “Location Found”. Click on “OK”. You may also require: “Daylight Saving”.
- Page 14 Configuring RIoT System to Wi-Fi Getting to Know the RIOT SYSTEM APP RIoT System Operation This App provides a ready to go handset as below; Pressing the buttons operates the Receiver output relays. Click this to Update the RIOT-RX Outputs Status Online Service = Service OK = No RX Connection...
- Page 15 Configuring RIoT System to Wi-Fi Getting to Know the RIOT SYSTEM APP Create Custom Buttons / Monitor / Control Customise your App to create custom remote control Add custom Button Names • Set as On/Off, All On/Off, Timed or Mood Outputs •...
- Page 16 Configuring RIoT System to Wi-Fi Event Timers RIoT System can be programmed to automatically switch its output circuits based on an event. Up to 16 Timers can be set based on the following: Time Events Dusk Events Dawn Events Time ON to Time OFF Dusk to Dawn Dawn to Dusk ON for a set Time...
- Page 17 Configuring RIoT System to Wi-Fi Event Timers Dusk / Dawn Offset (Advanced Option) This optional feature adds a time offset to an Event timer so that it operates before, or after, the actual time of Dawn or Dusk You can enter a positive or negative offset number. (In minutes) The effect is shown below +ve Offset Time...
- Page 18 Configuring RIoT System to Wi-Fi Additional Features / Information Copy your App setup to another Smart device Use this feature to copy the RIoT System APP setup to another Smart Device. This creates a copy of the App on the receiving Smart Device. (NOTE: This can be from any Android to Apple to Android) On The recipient Smart Device download the RIoT System App 1.
- Page 19 Configuring RIoT System to Wi-Fi Additional Information / Features Control Many RIoT Systems from one App RIoT System App can control Multiple RIOT-RX Receivers. Each RIOT-RX is set as a “System”. For Example the user may have; A RIoT–RX in multiple locations, with each RIoT-RX named as a separate “Profile”: System Chelsea System Knightsbridge...
- Page 20 Configuring RIoT System to Wi-Fi Additional Information / Features App Setup Menu Descriptions There are various user setting from the Menu/App Setup which are described below: Keep App Awake This keeps the app displayed on your screen at all times. Any changes to the output circuits (from other transmitters) are shown in real time.
-
Page 21: Configuring Encryption
Configuring RIoT System to Wi-Fi Additional Information / Features Configuring Encryption Data sent between a smart device and the RIoT-RX uses an Encryption key. Default key is: 0123456789ABCDEF This can be customised in the RIOT-RX and the RIoT System APP to any 16 digit string. The encryption keys must match for the system to work! To Set the Encryption Key within the RIoT Receiver Firstly ensure your smart device is on the same Wi-Fi as the RIoT Receiver. - Page 22 Configuring RIoT System to Wi-Fi Stage 6 Additional Information / Features Application Drawing - Switching a Light RELAY 3 RELAY 4 RELAY 1 FUSE NO COM NC NO COM NC NO COM NC NO COM NC 230V INPUT SUPPLY Wi-Fi Factory Reset 1.
- Page 23 Configuring RIoT System to Wi-Fi Page: 23 QS-RIOT-RX-WIFI-3...
- Page 24 Disclaimer: Whilst the information in this document is believed to be correct at the time of issue, RF Solutions Ltd does not accept any liability whatsoever for its accuracy, adequacy or completeness. No express or implied warranty or representation is given relating to the information contained in this document. RF Solutions Ltd reserves the right to make changes and improvements to the product(s) described herein without notice.
