Summary of Contents for Racing RAC220ES-1

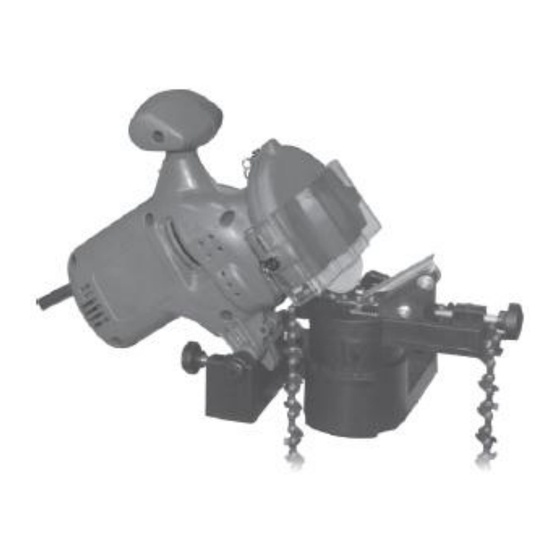

- Page 1 ORIGINAL INSTRUCTIONS CHAIN SHARPENER RAC220ES-1 READ THIS INSTRUCTIONS BEFORE USE THE TOOL RACING 32, rue Aristide Bergès - ZI 31270 Cugnaux – France...
-
Page 2: Safety Warnings
1. SAFETY WARNINGS Special safety instructions for the sharpener WARNING! When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Read all these instructions before attempting to operate this product and save these instructions. - Page 3 16. Remove adjusting keys and wrenches Form the habit of checking to see that keys and adjusting wrenches are removed from the tool before turning it on. 17. Avoid unintentional starting Ensure switch is in "off" position when plugging in. ...
- Page 4 Do not use the tool if you are not in a suitable physical condition. Do not use the machine when you are tired, under the influence of alcohol or drugs or sick. Do not disconnect the plug by pulling on the power supply lead. Keep the power supply lead well away from heat sources, oil and sharp objects ...
- Page 5 Residual risks Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the tool’s construction and design Damage to lungs if an effective dust mask is not worn. Damage to hearing if effective hearing protection is not worn.
-
Page 6: Your Product
2. YOUR PRODUCT a. Description 1. ON/OFF switch 2. Handle 3. Sharpen wheel Fork wrench 5. Carter of protection 6. Cover of the carter of protection 7. Guide chain 8. Locking screw of the chain 9. Chain position adjuster screw 10. - Page 7 b. Technical data Rated power input (W) 220 W Rated voltage (V) 230 V˜ Rated frequency (Hz) 50Hz Mass of machine (kg) 1,65 kg Sound power level L in dB(A） Lwa: 91,7 dB(A) K=3 dB(A) Sound pressure level in dB(A) Lpa: 78,7 dB(A) K=3 dB(A) Vibration total value 2,753m/s²...
- Page 8 ASSEMBLY Install the pivoting table in the sharpen base (1). Screw it with the provided nut (2). - Fix the sharpen base on an appropriate bench with two screws (the screws are not provided). Install the cover of the carter of the protection on the carter and screw it with the two provided screws.
- Page 9 4.USE Installation of a chain Unscrew the fixation screw. Install the chain in the guide rail the sharp edges must be directed to the sharpen wheel. Tilt the abutment, pull the chain rearward until the teeth of the chain comes the abutment Screw the fixation screw.
- Page 10 Adjustment of the abutment Move down the sharpening head. With the adjustment screw, bring the sharped teeth towards the sharpen wheel until that the teeth comes against the wheel. Fix the link of the chain by using the fixation screw. Adjust the depth abutment by using the adjusting screw in a way that the wheel touches the teeth.
-
Page 11: Maintenance And Storage
5.MAINTENANCE AND STORAGE a.Maintenance Regular maintenance is essential for the best performance, a safe operation and a long machine working life. Remove the plug before carrying out any adjustment, servicing or maintenance. Do not make modifications to the machine's electrical system. Never carry out maintenance with the motor running. - Page 12 c.0Storage After use and cleaning, please store your tool. Store the tool in a clean, dry place, preferably in its box. The tool must be stored away from children and pets. Avoid exposing the tool to direct sunlight. 6.DISPOSAL Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection...
-
Page 13: Declaration Of Conformity
7.DECLARATION OF CONFORMITY RACING ZI, 32, rue Aristide Bergès – 31270 Cugnaux - France Declares that the machine CHAIN SHARPENER RAC220ES-1 Serial number: 20200335944-20200336447 Are in conformity with the applicable EU directives Directive Machine 2006/42/EC Directive EMC 2014/30/EU ROHS directive (EU)2015/863 amending 2011/65/EU...
