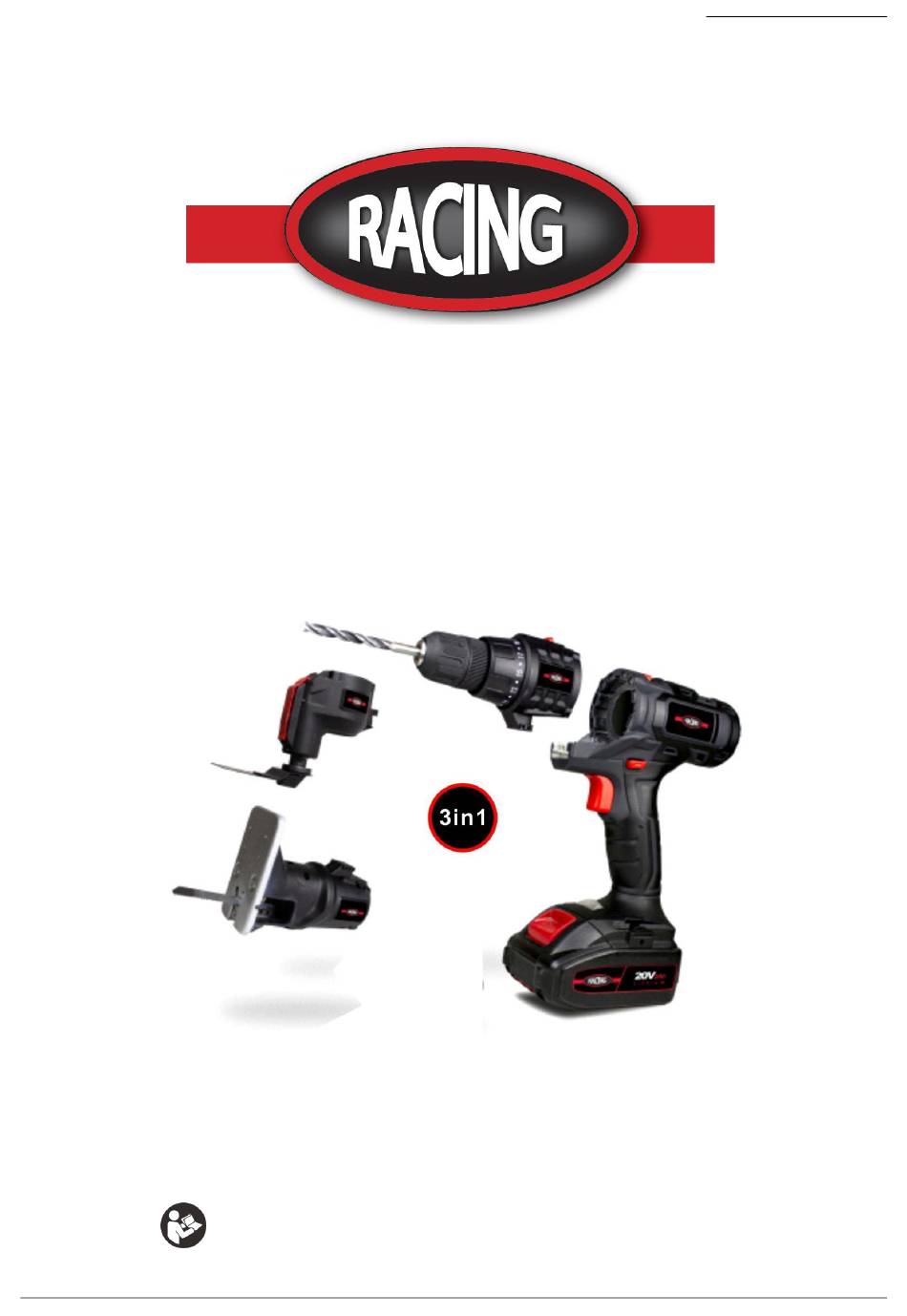

- Page 1 ORIGINAL INSTRUCTIONS >EN INSTRUCTION MANUAL CORDLESS TOOL 18V 3 IN 1 RACPV18V3IN1-2B BUILDER SAS 32, rue Aristide Bergès -ZI 31270 Cugnaux –France IMPORTANT: Please read the instruction manual before using.
-
Page 2: General Power Tool Safety Warnings
ORIGINAL INSTRUCTIONS >EN 1. APPLICATION The cordless tool of 18 V 3 in 1 is intended for Screwing screws in and out and for drilling holes in wood, metal or plastic. Sawing wood, metal and plastics Dry sanding of wood, plastic, putty and painting surfaces or varnished. This product is not suitable for sanding plaster-based substrates. - Page 3 ORIGINAL INSTRUCTIONS >EN a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 4 ORIGINAL INSTRUCTIONS >EN d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified.
- Page 5 ORIGINAL INSTRUCTIONS >EN Charger Use the charger provided with the tool only to charge the battery. Never attempt to charge non-rechargeable batteries. Have defective cords replaced immediately. Do not expose to water. Do not open the charger. ...
-
Page 6: Additional Safety Instructions
ORIGINAL INSTRUCTIONS >EN ADDITIONAL SAFETY INSTRUCTIONS Warning! Sawing or sanding can result in the formation of hazardous dusts (e.g. arising from materials with paints containing lead, materials containing asbestos, metals or some wood types) which can present a hazard to the operator or persons in the vicinity. Make sure that the workplace is well ventilated. Always wear safety goggles, safety gloves and respiratory protection. - Page 7 ORIGINAL INSTRUCTIONS >EN securely than with your hand. Be very careful when handling tools such as saws, scraper blades and drills. These are sharp and present an injury hazard. Wear safety gloves when changing attachments. This enables you to avoid injuries if the appliance ...
-
Page 8: Residual Risks
ORIGINAL INSTRUCTIONS >EN mixed with paint, polyurethane residues or other chemical substances, or if the sanded object is hot after long working periods. RESIDUAL RISKS Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards: a) Lung damage, if suitable respiratory protection is not worn;... -
Page 9: Your Product

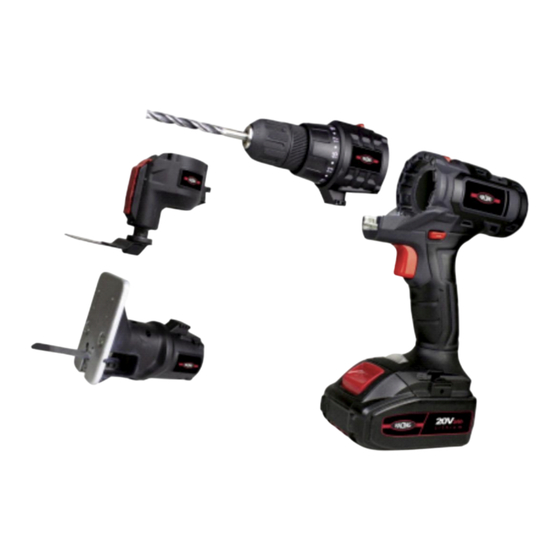

ORIGINAL INSTRUCTIONS >EN 3. YOUR PRODUCT 1 Keyless chuck 10 Unlock button for battery 2 Torque adjustment ring 11 On/off switch 3 Gear selection switch 12 Jig saw attachment 4 Drill attachment 13 Footplate 5 Unlocking lever for appliance attachment 14 sawblade 6 Motor unit 15 Lever for unlocking sawblade... -
Page 10: Package Content List
ORIGINAL INSTRUCTIONS >EN 4. PACKAGE CONTENT LIST Remove all packaging materials. Remove remaining packaging and packing inserts (if included). Check that the package contents are complete. Check the appliance, the power cord, the power plug of charger and all accessories for transportation ... -
Page 11: Operation
ORIGINAL INSTRUCTIONS >EN With multifonction head: 4.1m/s (straight saw) 4.0m/s (sanding pad) 3.9m/s (segmented saw) 4.1m/s (scraping blade) With mouse sander pad:4.8m/s K=1.5 m/s 18V d.c. 2Ah Lithium-ion Battery type Input 110-240V~ 50/60Hz,0.8A; Output 21.6V d.c., 1500mA Charger type 1.5 hours Charging time Information The declared vibration total value(s) and the declared noise emission value(s) have been measured... - Page 12 ORIGINAL INSTRUCTIONS >EN 6).Frequently monitor the charger and battery pack while connected. 7).Unplug the charger and disconnect it from the battery pack when finished. 8).Allow the battery pack to cool completely before using it. 9).Store the charger and battery pack indoors, out of reach of children. Note: If the battery does not fit properly, disconnect it and confirm that the battery pack is the correct model for this charger as shown on the specification chart.
- Page 13 ORIGINAL INSTRUCTIONS >EN accommodate the tool. 2). Insert the tool as far as possible into the keyless chuck (1). 3. Rotate the keyless chuck (1) clockwise in order to clamp the tool. 4. To remove the tool again, rotate the keyless chuck (1) and pull out the tool. Choice of gear WARNING! Stop appliance before changing gear to avoid the tool damage.
- Page 14 ORIGINAL INSTRUCTIONS >EN sawblade mounting slot. 2). To unlock, release the lever, it will return to the initial position. 3). Check that the sawblade is secure by pulling on it. Removing the sawblade: 4). Press the lever (15) for sawblade unlocking upwards as far as the stop and then pull the sawblade out of the sawblade mounting.
-
Page 15: Battery Pack
ORIGINAL INSTRUCTIONS >EN • Clean the sanding plate before you attach a sanding sheet. • Only work with sanding sheets in perfect condition to achieve good sanding results. • Work using low and even pressure. This protects the appliance and the sanding sheet. •... -
Page 16: Declaration Of Conformity
10. DECLARATION OF CONFORMITY BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that, Product: CORDLESS TOOL 18V 3 IN 1 Trade mark: RACING Model: RACPV18V3IN1-2B Serial number: 20221008170-20221009369 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. -
Page 17: Warranty
ORIGINAL INSTRUCTIONS >EN 11. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. It can be extended by one year if the user subscribes to website of myswap. -
Page 18: Product Failure
ORIGINAL INSTRUCTIONS >EN 11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 19: Warranty Exclusions
ORIGINAL INSTRUCTIONS >EN 12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. - Page 20 ORIGINAL INSTRUCTIONS >EN BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France MADE IN PRC 2022...
