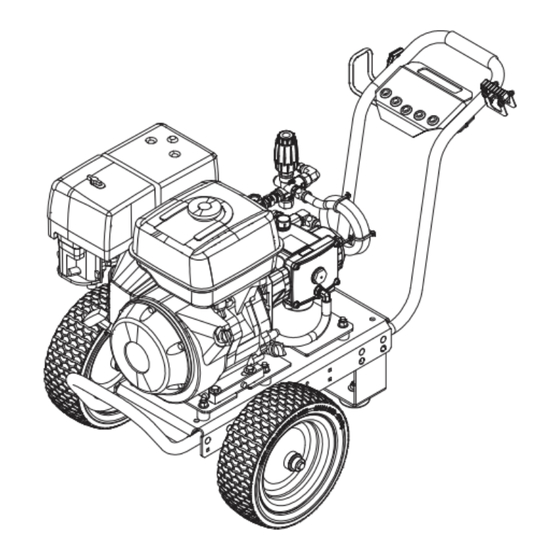

Kärcher HD 3.0/27 Operator's Manual

Hide thumbs

Table Of Contents

Quick Links

Download this manual

OPERATOR'S MANUAL

HD Gas +

9.808-441.0-B

01/23/25

Table of Contents

Troubleshooting

Need help?

Do you have a question about the HD 3.0/27 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kärcher HD 3.0/27

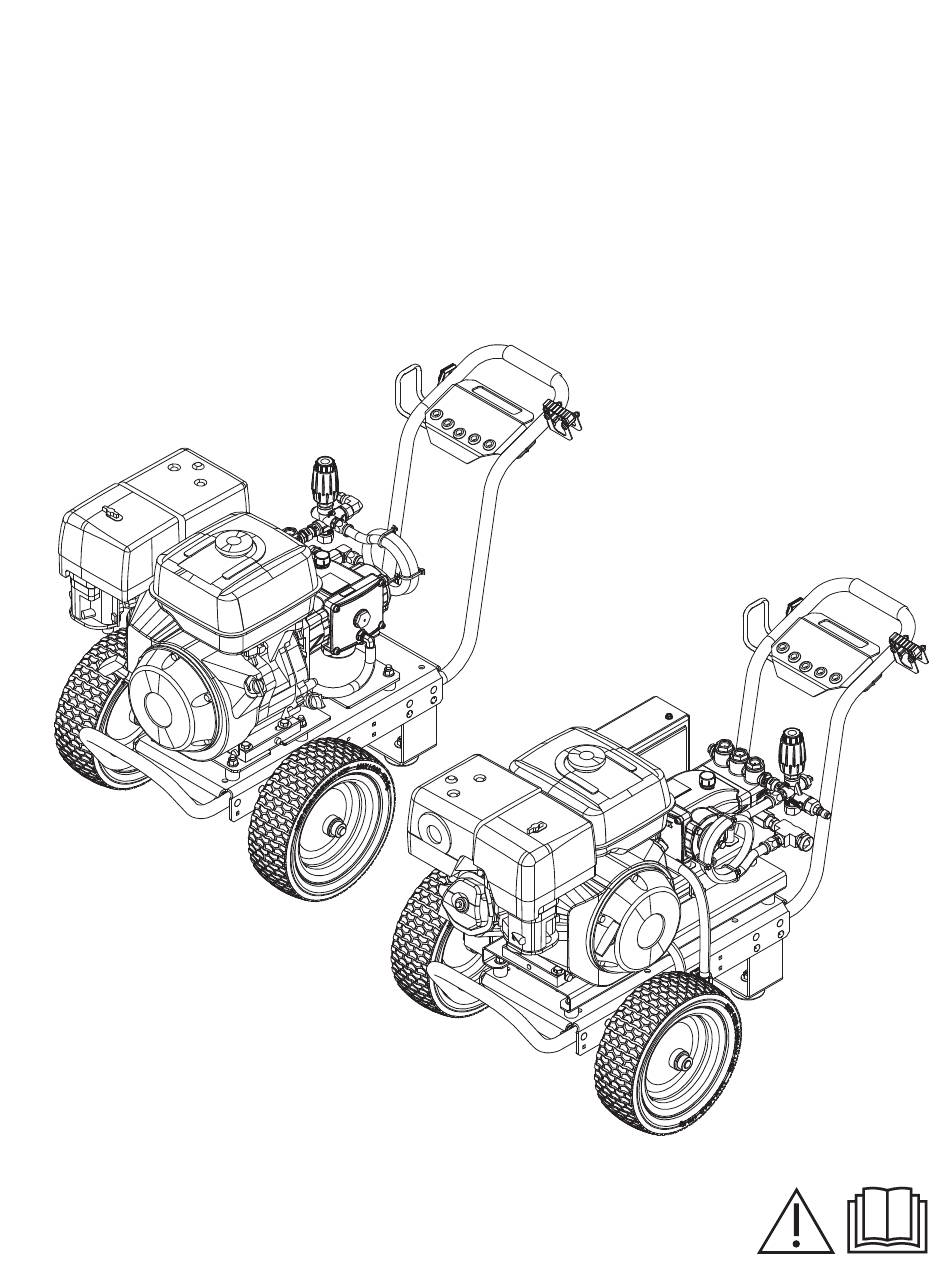

Page 1 OPERATOR’S MANUAL HD Gas + 9.808-441.0-B 01/23/25...
Page 2 HD 4.0/40 GB 1.107-509.0 HD 4.0/40 GeB 1.107-510.0 HD 5.0/30 GB 1.107-511.0 HD 5.0/30 GeB 1.107-512.0 HD 3.0/27 G AR 1.107-513.0 HD 3.5/35 G AR 1.107-514.0 HD 4.0/40 G AR 1.107-515.0 HD 4.0/40 Ge AR 1.107-516.0 HD 3.0/27 GB AR 1.107-517.0...
Page 3: Table Of Contents
CONTENTS CONTENTS Introduction & Important Safety Information ..........4 Component Identification ................9 Assembly & Installation Instructions ............11 Troubleshooting For all direct driven models ...............19 Troubleshooting For all belt driven models ................22 Technical Specifications ................25 QR Codes to Product Pages ..............27 Model Number ______________________________ Serial Number ______________________________ Date of Purchase ____________________________...
Page 4: Introduction & Important Safety Information
INTRODUCTION & IMPORTANT SAFETY INFORMATION Thank you for purchasing this Pressure Washer. Indicación de una situación potencialmente We reserve the right to make changes at any time peligrosa que puede provocar lesiones graves o without incurring any obligation. incluso la muerte. Owner/User Responsibility: CAUTION/ MISE EN GARDE/ PRECAUCIÓN Indication of a potentially dangerous situation...
Page 5 IMPORTANT SAFETY INFORMATION ADVERTENCIA: No utilice el drenaje del cárter ADVERTENCIA: Mantenga la varilla, la manguera de gasolina ni aceite que contenga gasolina, y el rocío de agua lejos del cableado eléctrico, solventes o alcohol. Hacerlo resultará en ya que podrían producirse descargas eléctricas incendio y/o explosión.
Page 6 IMPORTANT SAFETY INFORMATION 8. Eye, hand, and foot protection must be worn La operación de este equipo puede generar when using this equipment. chispas que pueden iniciar incendios en vegetación seca. Es posible que se requiera un parachispas. El operador debe ponerse WARNING: This machine en contacto con las agencias de bomberos exceeds 85 db appropriate ear...
Page 7 IMPORTANT SAFETY INFORMATION 9. To reduce the risk of injury, close supervision is 19. Inlet water must be clean fresh water and no necessary when a machine is used near children. hotter then 90°F. Do not allow children to operate the unit. This WARNING: Risk of asphyxiation.
Page 8: Symbols On The Machine
IMPORTANT SAFETY INFORMATION 27. Machines with shut-off spray gun should not be WARNING: Grip cleaning wand operated with the spray gun in the off position securely with both hands before for extensive periods of time as this may cause starting. Failure to do this could damage to the pump.
Page 9: Component Identification
COMPONENT IDENTIFICATION WAND HOLDER HANDLE ENGINE / PUMP OIL DRAIN HOSE HOLDER BUMPER CHASIS BY - PASS HOSE NAME PLATE / NOZZLE HOLDERS WHEELS PUMP ENGINE BELT GUARDS FRAME FOOT Operation Manual HD Gas + 9.808-441.0...
Page 10: Operating Controls
COMPONENT IDENTIFICATION 1. Switch on/off 2. Pull starter 3. Air filter 4. Gasoline tank 5. Oil fill port 6. Oil drain 7. Pump suction port 8. Pump discharge port OPERATING CONTROLS Engine Switch Throttle Lever Engine switch: On / off Choke Choke Throttle lever: Engine speed...
Page 11: Assembly & Installation Instructions
ASSEMBLY & INSTALLATION INSTRUCTIONS ASSEMBLY ATTENTION : Toute ventilation doit être conforme aux lois fédérales et nationales en vigueur, ainsi qu'aux ordonnances locales. Consultez les Unpacking chauffagistes locaux. Unpack carefully. Wear safety glasses or goggles PRECAUCIÓN: Toda ventilación debe realizarse while unpacking, assembling or operating the de acuerdo con las leyes federales y estatales pressure washer.
Page 12: Setting Up The Unit
ASSEMBLY & INSTALLATION INSTRUCTIONS Setting up the unit Spray Spray Pressure Gun/Wand Nozzle Safety Wand Latch Coupler Wand High Pressure Hose STEP 1: Attach the high pressure STEP 2: Attach wand to spray gun STEP 3: Pull spring-loaded collar hose to the spray gun using teflon using teflon tape on wand threads.
Page 13 ASSEMBLY & INSTALLATION INSTRUCTIONS WARNING: Ensure that no person, animal nor 4. Fill the gas tank with unleaded gasoline. Do not object that can be damaefed is on front of the use leaded gaso line. discharge hose end. AVERTISSEMENT: Assurez-vous qu'aucune personne, aucun animal ni aucun objet pouvant Tank être endommagé...
Page 14: Shutting Down In An Emergency
ASSEMBLY & INSTALLATION INSTRUCTIONS prise ferme et à tirer doucement sur la poignée 8. Set the choke control level to the left or "choke" du lanceur pour éviter toute blessure. Évitez les position. mouvements rapides ou saccadés pour réduire ATTENTION: A warm engine require less choking le risque de blessures liées au lanceur à...
Page 15: Shutting Down
ASSEMBLY & INSTALLATION INSTRUCTIONS Shutting down On-Off Switch STEP 2: Move the throttle level fully to STEP 6: Turn off the water STEP 1: Remove detergent the right or slow position. supply. suc tion tube from container and STEP 3: Turn the switch to the "off" insert into one gallon of fresh position.
Page 16: Oil Change
ASSEMBLY & INSTALLATION INSTRUCTIONS 7. The device must be cleaned before storage. ATTENTION : Éliminez la solution de lavage contaminée par l’huile de manière respectueuse If storage duration is 1-2 months de l’environnement. 1. Add fuel stabilizer to the fuel tank. ATENCIÓN: Deseche la solución de lavado 2.
Page 17: Spark Plug
ASSEMBLY & INSTALLATION INSTRUCTIONS 5. Install the spark plug carefully, by hand, to avoid Fuel Valve crossthreading. Lever 6. After the spark plug is seated, tighten with a 13/16-inch spark plug wrench to compress the sealing washer. 7. When installing a new spark plug, tighten 1/2 turn after the spark plug seats to compress the O-Ring washer...
Page 18 ASSEMBLY & INSTALLATION INSTRUCTIONS 1. Place an approved gasoline container below the 5 mm Screws carburetor, and use a funnel to avoid spilling fuel. Muffler Exhaust 2. Remove the carburetor drain bolt and gasket. Protector Deflector Remove the sediment cup and O-ring, then move 4mm Screw the fuel valve lever to the ON position.
Page 19: Troubleshooting
TROUBLESHOOTING For all direct driven models PROBLEM POSSIBLE CAUSE SOLUTION LOW OPERATING Insufficient water supply. Closed Use larger garden hose; clean inlet water PRESSURE faucet. Inlet hose kinked screen. Open faucet. Clogged inlet hose strainer Check plumbing system for leaks. Retape leaks with teflon tape.
Page 20: Troubleshooting
TROUBLESHOOTING For all direct driven models PROBLEM POSSIBLE CAUSE SOLUTION ENGINE OPERATES Not enough gas or engine oil Fill tank with gas. Check oil level. FOR 15 MINUTES Vapor lock developed by heat of Keep gas tank full to avoid vapor locking. THEN STOPS Obstruction in fuel filter Clean or replace fuel filter.
Page 21: Preventative Maintenance
PREVENTATIVE MAINTENANCE For all direct driven models This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance.
Page 22: For All Belt Driven Models
TROUBLESHOOTING For all belt driven models PROBLEM POSSIBLE CAUSE SOLUTION LOW OPERATING Faulty pressure gauge Install new gauge. PRESSURE Use larger supply hose; clean filter at water Insufficient water supply inlet. Match nozzle number to machine and/or Old, worn or incorrect spray nozzle replace with new nozzle.
Page 23 TROUBLESHOOTING For all belt driven models PROBLEM POSSIBLE CAUSE SOLUTION WATER OR OIL A small amount of leaking is If excessive leaking occurs, call local LEAKING FROM normal distributor. BOTTOM OF PUMP PRESENCE OF Water sprayed at machine Change oil. Direct spray away from WATER IN PUMP machine.
Page 24 TROUBLESHOOTING For all belt driven models PROBLEM POSSIBLE CAUSE SOLUTION SPRAY WAND Spray wand not properly attached Slide the spray wand into the gun. Turn the LEAKS wand collar clockwise onto the spray gun threads until tight. Broken o-ring Call local distributor and order an o-ring. PUMP IS NOISY Pump is sucking air Check that hoses and fittings are air tight.
Page 25: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL HD 3.0/27 HD 3.5/35 HD 4.0/40 HD 5.0/30 1.107-505.0 1.107-509.0 1.107-511.0 1.107-506.0 1.107-510.0 1.107-512.0 1.107-503.0 1.107-513.0 1.107-504.0 1.107-508.0 1.107-515.0 1.107-519.0 1.107-521.0 1.107-507.0 1.107-517.0 1.107-514.0 1.107-518.0 1.107-516.0 1.107-520.0 1.107-522.0 1.107-523.0 1.107-527.0 1.107-524.0 1.107-528.0 1.107-525.0 1.107-529.0 1.107-531.0 1.107-526.0 1.107-530.0 1.107-532.0...
Page 26 Operation Manual HD Gas + 9.808-441.0...
Page 27: Qr Codes To Product
Karcher Hotsy Landa Operation Manual HD Gas + 9.808-441.0...
Page 28 KÄRCHER Pressure Washer Warranty Policy Karcher North America 6398 N Kärcher Way, Aurora, CO 80019 Form #9.808-441.0 • Revised 01/25 • Printed in U.S.A. or Mexico...
