prohibited w ithout prior written permission from Invacare.

Trademarks are identified by ™ and ® . All trademarks a re owned by or licensed to

Invacare International GmbH or its subsidiaries unless otherwise noted.

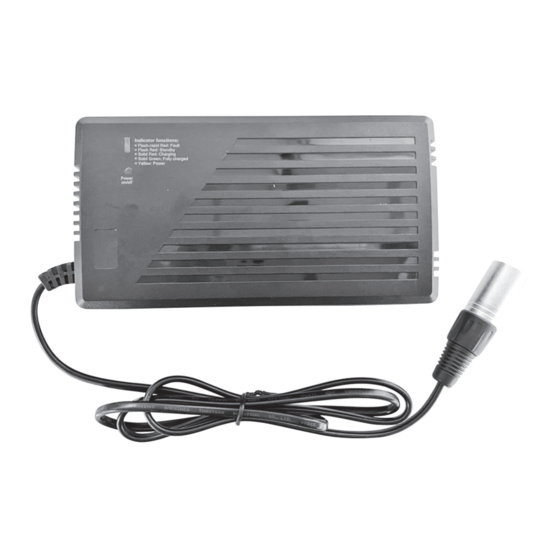

Battery Charger

5A / 2A

Lead Acid Battery Charger

User Manual

Need help?

Do you have a question about the PF2405SL and is the answer not in the manual?

Questions and answers

Summary of Contents for Invacare PF2405SL

Page 1 All rights reserved. Republication, duplication or modification in whole or in part is prohibited w ithout prior written permission from Invacare. Trademarks are identified by ™ and ® . All trademarks a re owned by or licensed to...
Page 2 1 Symbols on Products This manual MUST be given to the user of the product. BEFORE using this 2 Features product, this manual MUST be read and saved for future reference. 1 Symbols on Products Indicates a hazardous situation that could result in serious injury or death if it is not avoided. Read the user manual. For indoor use only. Service and repairs may only be carried out by an authorised person. Avoid naked flames and sparks. A POWER LED indication Caution, hot surface. B CHARGING LED indication Alternating current. 3 LED Display Direct current. POWER LED This product bears the CE declaration of conformity. Yellow Power CHARGING LED UK Conformity Assessed Red rapid flash Fault C-Tick (Australian EMC) Red flash Standby TÜV SÜD certified compliance with EN60601. Red solid Charging Green solid Fully charged 1664034-D...
Page 3 Battery Charger Before each use of the charger, check that there is no 4 Caution sign of damage to the case, cables and socket. Contact your provider in the event of any damage. Do not open Before using the battery charger, read all instructions and the charger yourself. Have repairs performed only by a cautionary markings. qualified technician. This charger is not intended for use by persons (including Contact your provider if you are unsure of how to children) with reduced physical, sensory or mental capabilities operate the charger. or lack of experience and knowledge, unless they have been Keep the charger out of children’s reach. Children should given supervision or instruction concerning use of the charger be supervised to ensure that they do not play with the by a person responsible for their safety. charger. Only use the charger for gel or AGM batteries. WARNING! Risk of Electric Shock! Disconnect the AC Input supply before plugging or — Do not attempt to open or modify this charger i n unplugging the connections to the battery. any way. No user serviceable parts inside. Unplug both of the DC output and the AC Input power cord of the charger when the batteries are fully charged.
Page 4 5 Operational Instructions 7 Technical Specifications Make sure the battery charger output voltage is the Item Battery charger same as the output voltage of the connecting battery. PF2405SL (5A charger) Model 1. Connect the battery charger to the charging socket of PF2402SL (2A charger) the mobility device. 2. Connect the power cord. The yellow POWER LED Output current (DC) indicates that AC power is on. For more information about charging status, refer to 3 LED Floating voltage (DC) 24 V Rated Display, page 2. 2.2 – 1.1 A (5A charger) Input current (AC) 1.2 - 0.4 A (2A charger) 6 Troubleshooting Input voltage (AC) 100 – 240 V, 50 – 60 Hz If the POWER LED is off: Check that the charging cable is correctly Operating temperature 0 °C - 40 °C connected. 24 V gel or AGM batteries If the LED still does not light, the battery charger 16 Ah - 60 Ah (5A may be faulty. Contact your provider. Battery application charger) If the CHARGING LED is off:...

This manual is also suitable for:

Pf2402sl
