Sonoff S31 / S31 Lite Manual

Operating Instruction

  1. Download the eWeLink APP

play.google.com

www.apple.com

  1. Power on
    After powering on, the device will enter the quick pairing mode (Touch) during the first use. The Wi-Fi LED indicator changes in a cycle of two short and one long flash.
    Operation - Step 1 - Power on
    caution The device Will exit the quick pairing mode (Tauch), if not paired within 3mins. If you want to enter this made, please long press the pairing button for about 5s until the Wi•Fi LED indicator changes in a cycle of two short and one long flash and release.
  2. Add the device
    Tap "+" and select "Quick Pairing", then operate fallowing the prompt on the APP.
    Operation - Step 2 - Add the device

Compatible Pairing Mode

If you fail to enter Quick Pairing Mode (Touch), please try "Compatible Pairing Mode" to pair.

  1. Long press pairing button for 5s until the Wi-Fi LED indicator changes in a cycle of two short flashes and one long flash and release. Long press pairing button for 5s again until the Wi-Fi LED indicator flashes quickly, then the device enters Compatible Pairing Mode.
  2. Tap "+" and select "Compatible Pairing Mode" on APP. Select Wi-Fi SSID with ITEAD-********** and enter the password 12345678, and then go back to eWeLink APP and tap "Next". Be patient until pairing completes.

Specifications

Model S31/S31 Lite
Input 120V AC 60Hz
Output 120V AC 60Hz
Max. current 15A
Operating temp. 0-30°C
Operating systems (Android 4.1 & iOS 9.0) or higher
Wi. Fi IEEE 802.11 b/g/n 2.4GHz
Material PC V0
Dimension 76x40x33mm

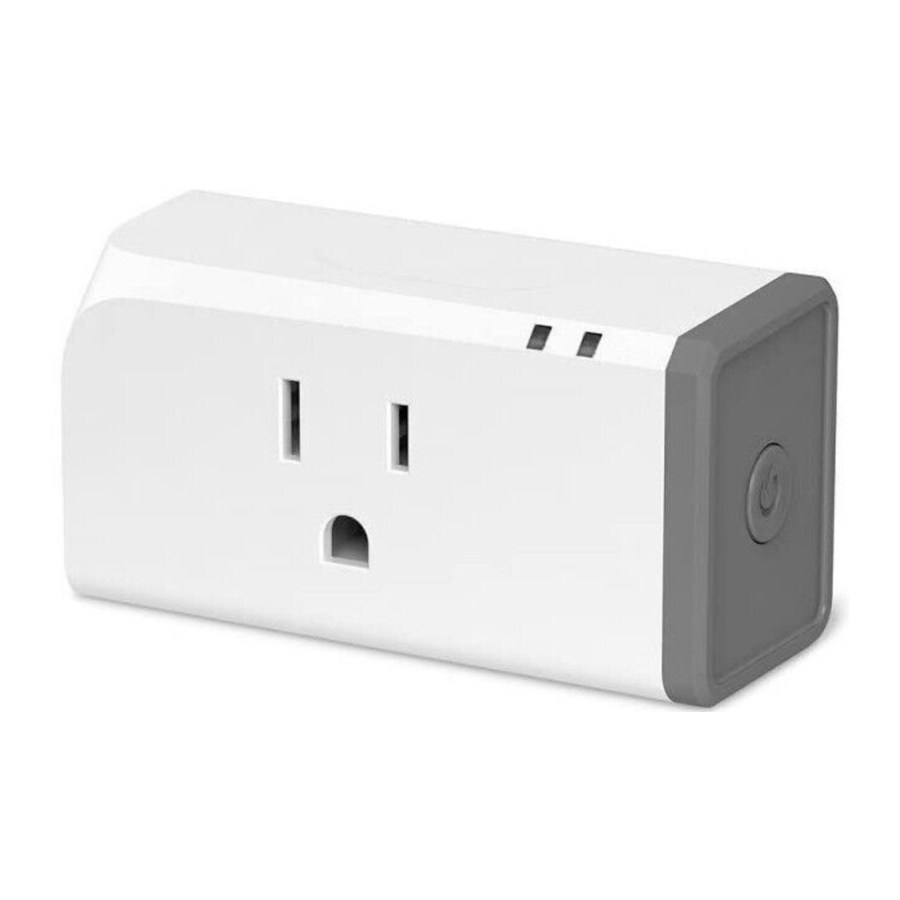

Product Introduction

Overview

Features

Turn on/off the devices from anywhere, schedule power on/off and share devices with your family to control.

caution Power monitoring is not available for S31 Lite.

Switch Network

If you need to change the network. long press the pairing button for 5s until the Wi-Fi LED indicator changes in a cycle of two short and one long flash and release, then the device enters quick pairing mode and you can pair again.

Factory Reset

Deleting the device on the eWeLink app indicates you restore it to factory setting.

Common Problems

Q: Why my device stays "Offline"?
A:
The newly added device needs 1 - 2mins to connect Wi-Fi and network. If it stays offline for a long time, please judge these problems by the blue Wi-Fi indicator status:

  1. The blue Wi-Fi indicator quickly flashes once per second, which means that the switch failed to connect your Wi-Fi:
    1. Maybe you have entered a wrong Wi-Fi password.
    2. Maybe there's too much distance between the switch your router or the environment causes interference, consider getting close to the router. If failed, please add it again.
    3. The 5G Wi-Fi network is not supported and only supports the 2.4GHz wireless network.
    4. Maybe the MAC address filtering is open. Please turn it off.

If none of the above methods solved the problem, you can open the mobile data network on your phone to create a Wi-Fi hotspot, then add the device again.

  1. Blue indicator quickly flashes twice per second, which means your device has connected to Wi-Fi but failed to connect to the server.
    Ensure a steady enough network. If double flash occurs frequently, which means you access an unsteady network, not the product problem. If the network is normal, try to turn off the power to restart the switch.
Shipping and Storage Temperature -40°C to 60°C
Use Method Plug and Play
Software Class A
Overvoltage Category II
Pollution Degree 2
Protection against Electric Shock Insulation-encased Class I
Environmental IP20 (NEMA 1)
Automatic Action Micro-disconnection
(Type 1.B)

Shenzhen Sonoff Technologies Co., Ltd.
1001, BLDG8, Lianhua Industrial Park, shenzhen, GD, China
ZIP code: 518000
Website: sonoff.tech
