S31
User manual V1.0
Wi-Fi Smart Plug with Power Monitoring

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S31 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sonoff S31

  • Page 1 User manual V1.0 Wi-Fi Smart Plug with Power Monitoring...

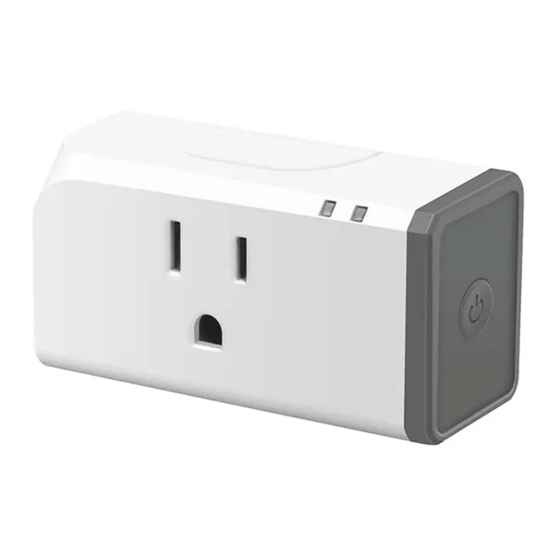

  • Page 2 Specifications Model Input 120V AC 60Hz Output 120V AC 60Hz 15A max. for general use Current Operating temps 0-30℃ (Android 4.1 & iOS 9.0) or higher Operating systems Wi-Fi IEEE 802.11 b/g/n 2.4GHz PC V0 Material 116mm(L)*70.4mm(W)*29.1mm(H) Dimension Product Introduction Configuration button/ Manual switch On/off LED indicator...
  • Page 3 Features S31 is a Wi-Fi smart plug with power monitoring that can be used to turn on/off devices from anywhere, schedule power on/off and share APP with your family to control. Timing Schedule Voice Control App Control Sync Status No Hub Required...
  • Page 4 Power on After powering on, the device will enter the quick pairing mode (Touch) during the rst use.the Wi-Fi LED indicator changes in a cycle of two short and one long flash. The device will exit the quick pairing mode (Touch) if not paired within 3mins.
  • Page 5 Factory Reset Long press the pairing button for about 5s until the Wi-Fi LED indicator changes in a cycle of two short and one long ash and release, then the reset is successful. The device enters quick pairing mode (Touch). Please reset the switch to factory defaults if you want to use other Wi-Fi networks, then reconnect the network.
  • Page 6 FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled e n v i r o n m e n t . T h i s e q u i p m e n t s h o u l d b e installed and operated with minimum distance 20cm between the radiator&...
  • Page 7 Temperature: Operating Temperature 0~30℃ Shipping and Storage Temperature: -40℃ to 60℃ Use Method: Plug and Play Software Class: A Overvoltage Category: II Pollution Degree: 2 Protection against Electric Shock: Insulation-encased Class I Environmental: IP20 (NEMA 1) Automatic Action: Micro-disconnection (Type 1.B)
