Sonoff S60TPG Manual

Introduction

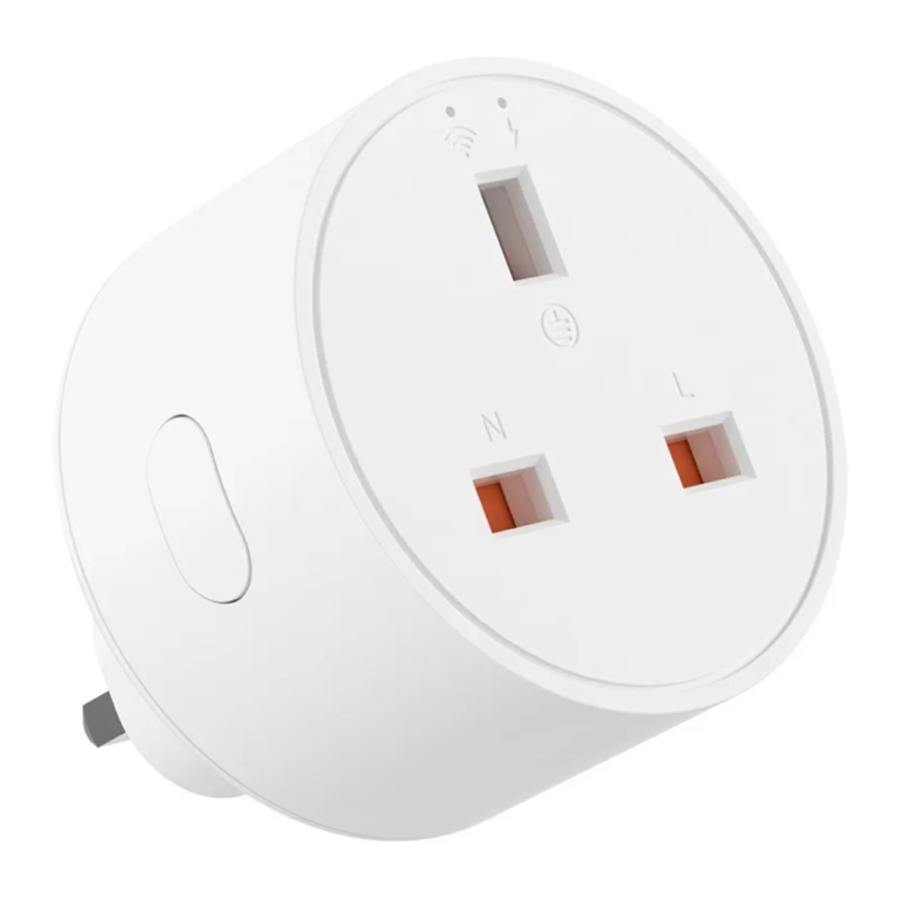

A "safe and reliable" Wi-Fi Smart Plug with main functions such as remote control, power monitoring, and voice control. You are able to check the daily/monthly power consumption on the energy overview page in the eWeLink App. Home automation can be achieved by the configuration of smart scenes, timers, schedules, etc.

  1. Button
    Press once: Turn on/off the smart plug 802432)
    Press and hold for 5 seconds: Device enters the pairing mode.
  2. Wi-Fi LED indicator (Blue)
    Keeps on: Device is online.
    Two short and one long flashes: Device is in pairing mode.
    Quick flash: Router not connected.
    Flash twice: Connected to the router, but not connected to the cloud.
    Flash three times: Firmware upgrade in progress.
  3. Power LED indicator (Red)
    Light on: The device is on.
    Light off: The device is off.

Compatible Voice Assistants

Specification

Model S60TPG
MCU ESP32-C3
Input 250V~, 50/60Hz, 13A
Max. Load 3250W
Wireless Connectivity Wi-Fi IEEE 802.11 b/g/n 2.4GHz
Net Weight 86g
Dimension 58x58x42mm
Color White
Casing Material PC VO
Applicable Place Indoor
Working Temperature -10°C-40°C
Working Humidity 5%~95% RH, non-condensing
Certified Compliance CE/RoHS

Note: To ensure the safety of your electrical installation, it's essential either a Miniature Circuit Breaker (MCB) or a Residual Current Operated Circuit Breaker (RCBO) with an electrical rating of 13A has been installed before the plug.

Please download the "eWeLink" App from Google Play Store or Apple App Store.

play.google.com

www.apple.com

Add Device

  1. Enter "Scan"
  2. Scan the QR code on the device
  3. Select "Add Device"
  4. Plug in
  5. Long press the button for 5 seconds
  6. Check Wi-Fi LED indicator flashing status
    (Two short and one long flashes)
  7. Search for the device and start connecting
  8. Select the "Wi-Fi" network and enter the password
  9. Device added completely

Manufacturer: Shenzhen Sonoff Technologies Co., Ltd.
Address: 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China
ZIP code: 518000
Service email: support@itead.cc
Website: sonoff.tech
