Sonoff iHost Manual

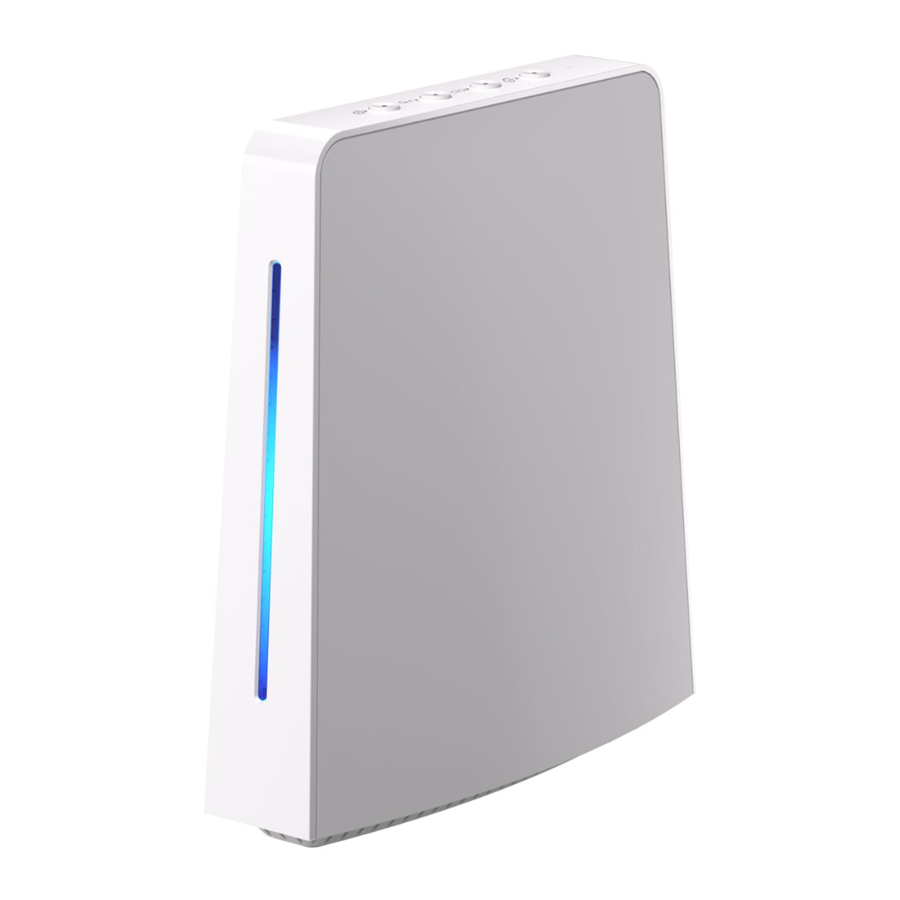

Product introduction

Overview

Instruction of LED indicator status

LED indicator status	Instruction
Flashes red	Powering on
Solid red	Powered on, no network connection
Solid blue	Network connection successfully
Breathing yellow	Sub-device
Flashes red quickly	Powering off
Double flashes blue (Twice)	Entered password reset status
Flashed yellow quickly	Upgrading

Instruction of buttons operation

Button	Instruction
Switch button	Press to power on and the LED indicator is on. Press and hold the button for 3s, LED indicator is off.
Zigbee device pairing button	Press to enter the device pairing status, the button indicator is on and the LED indicator is breathing yellow. * In pairing status, press again to exit the pairing status and the button indicator will be Off.
Security button	Press to enter the arm status and the button indicator is on. Press again to disarm and the button indicator is off. When the speaker is sounding and the button indicator is flashing during the arming or disarming status, press the button to silence and stop the LED indicator flashes. * Set the Arm and Disarm can be set In the centre admin console.
Reset button	Double press the reset button to reset the password (select "Forgot password" in iHost centre admin console to reset the password). Press for 10s to reset.

Features

iHost is a local smart home hub that controls the devices in the centre admin console through the LAN, enabling device adding, control and smart scene setting without connecting to the cloud, allowing to set smart security or set alarms for various smart scenes, and checking the Logs of devices or smart scenes.

Instruction

Power on
Plug in the Type-C charger cable and network cable, you will hear the beep and see the solid blue LED indicator when the iHost is powered on and connected to the network successfully.
Log in to iHost centre admin console
Enter the URL http://ihost.local/on the PC end, and set the password when you first log in.

iHost and the PC end are required to use the same LAN.
If the URL http://ihost.local/ cannot be accessed, please check the iHost IP address by visiting the backend of the router and then accessing the corresponding IP address on your browser.
Add Device
1. Add Zigbee Device
  Method 1: Add Zigbee sub-devices through iHost centre admin console
  1. Add Zigbee sub-devices on iHost centre admin console, the LED indicator flashes yellow slowly.
  2. Set Zigbee devices in pairing status (refer to the corresponding user manuals).
  3. iHost will make the voice prompt when adding completely.

Method 2: Add Zigbee devices quickly through the local button

Press "Zigbee device pairing button" on the device, then the LED indicator flashes breathing yellow.
Set Zigbee devices in pairing mode (refer to the corresponding user manuals).
iHost will make the voice prompt when adding completely.

caution If the device cannot be added within 180s, it will exit the pairing status.
caution Proposed max limit of 128 Zigbee sub-devices (Laboratory data).

Add cameras

Supported cameras: ONVIF camera/RTSP camera/ESP32-CAM
Support viewing the same camera on multiple devices at the same time temporarily.

Specifications

Model	AIBridge, AIBridge-26
Input	5v ⎓ 2A
Power interface	Type-C
Antenne interface	RJ45
Wireless connection	Wi-Fi IEEE 802.11 b/g/n 2.4GHz, Zigbee 3.0
Storage method	TF card (TF card supports up to 256GB)
Working temperature	-10°C ~ 40°C
Working humidity	5% ~ 95% RH, non-condensing
Casing material	ABS
Product dimension	120x135.5x41mm
