Sonoff B02 / B05-BL Manual

Product Introduction

Overview

Features

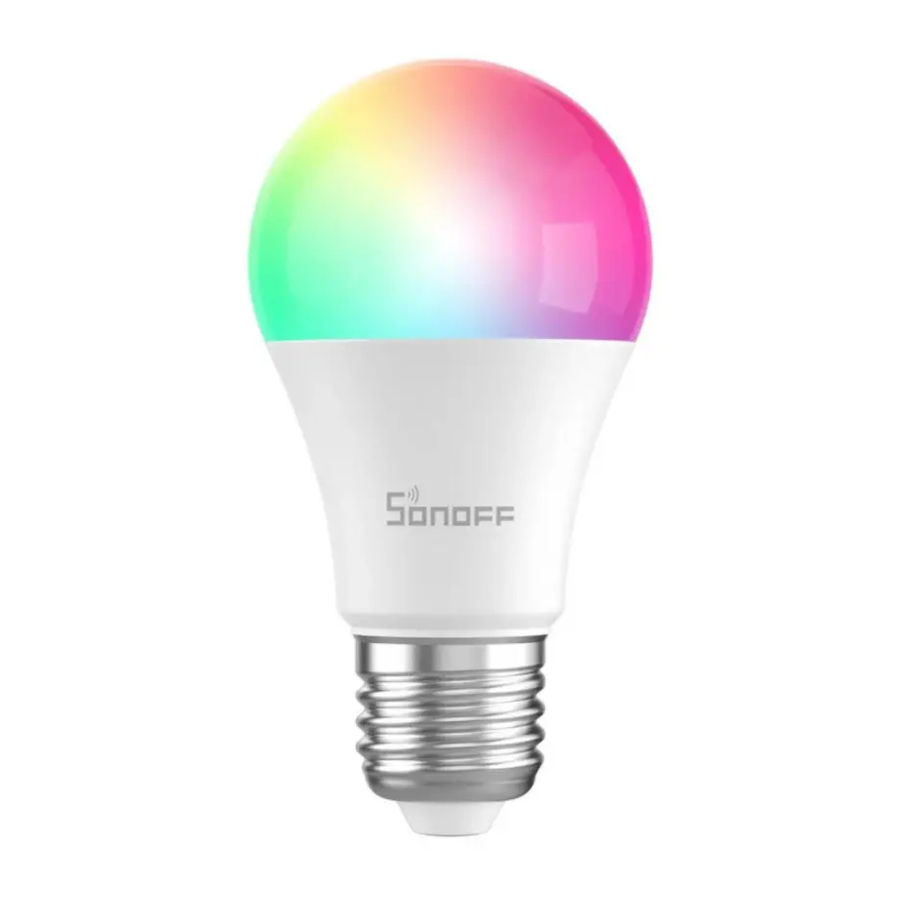

SONOFF LED is a LED smart bulb that allows users to adjust the brightness and color, and remotely turn on/off the connected devices via your smartphone, schedule it on/off and share it to your family to control together.

Operating Instruction

  1. Install the device
    Operation - Step 1 - Install the device
    shock hazard To avoid electric shock, please turn off the power before installing the device.
  2. Download APP

    Android™ & iOS

play.google.com

www.apple.com

  1. Power on
    After powering on, the device will enter the Bluetooth Pairing mode during the first use. The device enters the "breathing mode".

    caution The device will exit the Bluetooth Pairing mode if not paired within 3mins. If you want to enter this mode, please press the manual switch three times repeatedly at an interval of every 1s (Off-ON-Off-ON-Off-ON). The "breathing mode" indicates the light enters Bluetooth pairing mode.
    Operation - Step 2 - Power on
  2. Add the device
    Tap "+" and select "Bluetooth Pairing", then operate following the prompt on the app.
    Operation - Step 3 - Add the device

Compatible Pairing Mode

If you fail to enter Bluetooth Pairing Mode, please try "Compatible Pairing Mode" to pair.

  1. Press the light switch 5 times repeatedly at an interval of every 1s (Off-ON-Off-ON-Off-ON-Off-ON-Off-ON) when the light is on. The "quick flash" indicates the device enters the compatible pairing mode.
  2. Tap "+" and select "Compatible Pairing Mode" on APP.
    For Android system:
    Enter Wi-Fi password and tap "Next". Be patient until pairing completes.
    For iOS system:
    Enter Wi-Fi password, tap "Next" and then "Connect". Select Wi-Fi SSID with ITEAD-****** and enter the password 12345678, and then go back to eWeLink app and tap "Next". Be patient until pairing completes.

Usage of being an ordinary bulb

Power on the bulb, it will enter quick pairing mode (The bulb change from bright to dim and cycle the mode), after 10s, if power off, it will go solid and keep warm light at the highest brightness.

Specifications

Model B02-BL-A60, B05-BL-A19, B05-BL-A60
Input A19: 120V AC 60Hz
A60: 230V AC 50Hz
Luminous Flux 806Lm
CCT 2700K-6500K
Rated power 9W
Lamp base A60: E27
A19: E26
CRI ≥Ra80
Life Expectancy 15000h
Wi-Fi IEEE 802.11 b/g/n 2.4GHz
Bluetooth Standard 4.2BLE
App operating systems Android & iOS
Dimension 60x60x112mm

caution B02-BL-A60 is bi-colour LED smart bulb.
B05-BL-A19/B05-BL-A60 is RGBCW LED smart bulb.

Switch Network

If you need to change the network, Press the light switch 3 times repeatedly at an interval of every 1s (Off-ON-Off-ON-Off-ON) when the light is on. The "breathing mode" indicates the device enters Bluetooth pairing mode and you can pair again.

Factory Reset

Deleting the device on the eWeLink app indicates you restore it to factory setting.

Common Problems

Q: Why this device always failed to add?
A:
Please solve this problem according to the following methods:

  1. Maybe you have entered a wrong Wi-Fi password.
  2. Maybe there's too much distance between the switch your router or the environment causes interference, consider getting close to the router. If failed, please add it again.
  3. The 5G Wi-Fi network is not supported and only supports the 2.4GHz wireless network.
  4. Maybe the MAC address filtering is open. Please turn it off.
  5. Ensure steady enough network.

Q: How many control methods are available for this device?
A:
3 control methods available, including Wi-Fi & LAN control and "eWeLink Remote" Control.

Q: How to check whether this device is offline?
A:
There is a prompt of offline devices in the device home page in eWeLink app when this device is is offline.

Q: What new features can be accessed during this device is in "eWeLink Remote" remote control?
A:
In this mode, it is available to adjust the brightness, color temperature and color, even you can control this device via Bluetooth or "eWeLink Remote" remote control.

Shenzhen Sonoff Technologies Co., Ltd.
1001, BLDG8, Lianhua Industrial Park, shenzhen, GD, China
ZIP code: 518000
Website: sonoff.tech
