Sonoff DW2-Wi-Fi Manual

Operation instruction

1. Download the "eWeLink"APP



   Android™ & iOS

2. Install batteries
   1. Remove the back cover of the transmitter.

   2. Insert batteries into the battery compartment based on identifiers of positive and negative poles.

   3. Close the back cover.
      The battery is not included, please purchase it separately.
3. Enter pairing mode
   Long press the pairing button on the transmitter for 5s with the eject pin until the LED indicator flashes, then the device enters the pairing mode.

4. Add the device
   Tap "+" and select "Bluetooth connect", then operate following the prompt on the APP.


Install the device

1. Tear off the protective film of the 3M adhesive.

2. Try to align the mark line on the magnet with that on the transmitter during installation.

3. Install them in the opening and closing area separately.
   Make sure the installation gap is less than 5mm when the door or the window is closed.


Specifications

Product Introduction

The device weight is less than 1 kg.
The installation height of less than 2 m is recommended.

LED indicator status instruction

Features

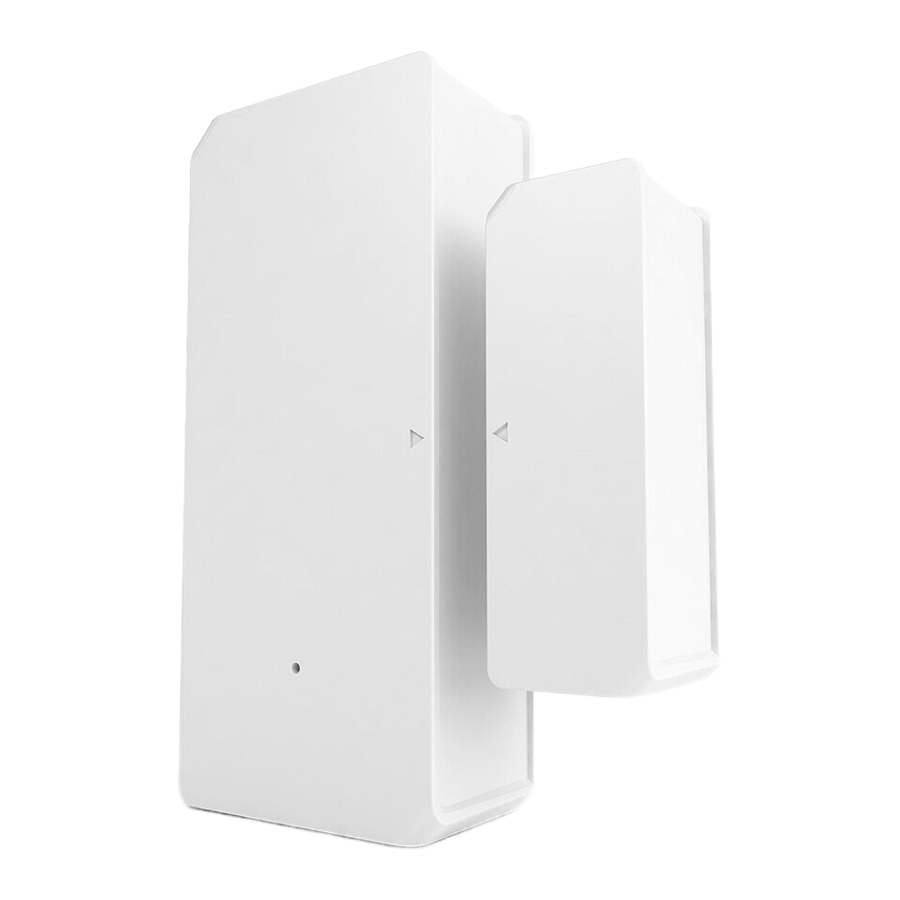

DW2-Wi-Fi is a Wi-Fi wireless door/window transmitter which triggers the transmitter by separating the magnet for more than 20mm from the transmitter, then the transmitter will send an alarm message and pushes it to APP. You can share the device with your family to check the door/window status together.

Application

Note:

• Do not install outside the door/window.
• Do not install in the unstable position or in the place exposed to rain or moisture.
• Do not install near wiring or magnetic object.

Replace batteries
