Sonoff SNZB-04P Manual

Introduction

SNZB-04P is a Zigbee 3.0 protocol-based door/window sensor equipped with a tamper-proof feature. It senses the open and close status of doors and windows by detecting the proximity of the transmitter and magnet. This sensor seamlessly interacts with other smart devices to easily create various scenarios, such as automatically turning on lights when a door is opened,
triggering audible and visual alarms in case of unauthorized entry, and sending app notifications to keep you informed.

Features:
Low battery notification
View history
Tamper alarm
Smart scene

*The functional characteristics depend on the functionality of Zigbee gateway.
*The equipment is only suitable for mounting at heights ≤ 2 m.

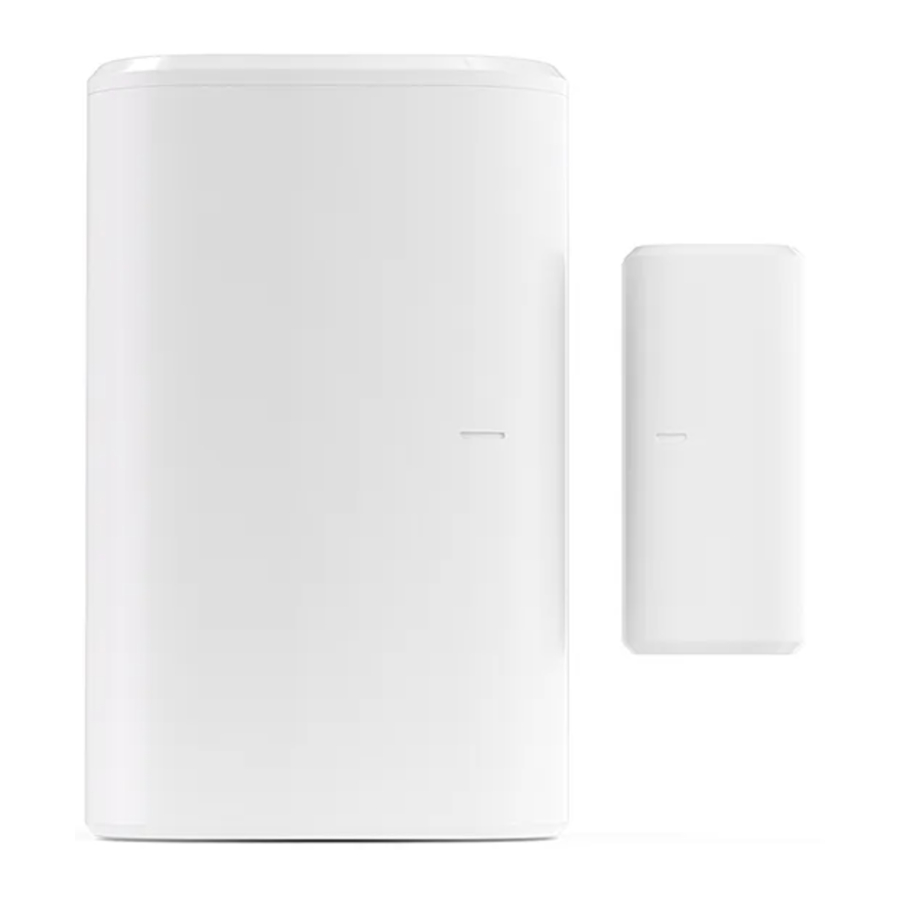

Product overview

Transmitter	Button	LED indicator (Red)
Battery cover	Alignment mark for installation	Magnet

Instruction of LED indicator status

LED indicator status	Status instruction
Flash slowly for 180 seconds	First-time power on/press and hold button for 5s to enter pairing mode
Keep on for 3s and the keep off	Paired successfully
Exit flashing slowly and keep off	Distribution failure/timeout
Flash once quickly	Not added to the gateway, and short press the button
Flash twice quickly	Added to the gateway and online, and short press the button
Flash slowly for 30 seconds	Abnormal communication

Specification

Model	SNZB-04P
MCU	EFR32MG22
Input	CR2477 (3V)
Colour	White
Product dimension	Transmitter (50.5x32x21.9mm) Magnet (27x12.12.4mm)
Net weight	33g
Casing materials	PC
Wireless connection	Zigbee 3.0 IEEE802.15.4
Pairing time	180s
Communication distance	Indoor Environment 30m
Applicable place	Indoor
Installation distance	≤ 20 mm
Working temperature	-10°C~60°C
Working humidity	5-95% RH, less-condencing
Working height	Less than 5000m
Certification	CE/FCC/ISED/RoHS
Executive standard	EN IEC 62368-1

Download the eWeLink App & Add the Device

Downloading the eWeLink App
Please download the "eWeLink" App from Google Play Store or Apple App Store

Scan QR Code to Add Device

Take out the battery insulation sheet to power on the device
Enter "scan QR code" mode
Scan the QR cod on the device
Select "Add Device"
Long press the button for 5 seconds
The LED indicator flashes slowly for 180s
Select Zigbee gateway
Wait until the addition is done

Matched gateways

SONOFF ZBBridge, ZBBridge-P, NSPanel PRO, AIBridge, ZBDongle-P, ZBDongle-E
Third-party compatible gateway models:
Amazon Gateway Model: Echo Plus 2nd, Echo Show 2nd, Echo 4th Gen
SmartThings Gateway Model: SmartThings hub V3, AeoTec Smart Home Hub V3
Other gateways supporting ZigBee3.0 wireless protocol. Detailed information is in accordance with the final product.

Effective Communication Distance Verification

Install the device in the desired place, then press the Pairing button on the device. The LED indicator flashes twice means the device and the device under the Zigbee network (the router device or hub) are in the effective communication distance.

Installation

Tear off the protective film of the 3M adhesive.
Try to align the mark line on the magnet with that on the transmitter during installation.
Install them in the opening and closing area separately (such as windows).

Cautions

Make sure the installation gap is less than 20mm when the door or the window is closed

Manufacturer: Shenzhen Sonoff Technologies Co.,Ltd.
Address: 3F&6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China
ZIP code: 518000
Website: sonoff.tech
Service email: support@itead.cc
