Sonoff SNZB-06P Manual

Introduction

SNZB-06P is a human-presence sensor based on 5.8G microwave technology, which realizes the human-presence sensing function by actively detecting ambient motion and human breath. It effectively avoids the embarrassing scene where the light automatically off when people are on the spot, making your home life smarter.

* The functional characteristics depend on the functionality of Zigbee gateway.
* The equipment is only suitable for mounting at heights ≤ 2 m.

Overview

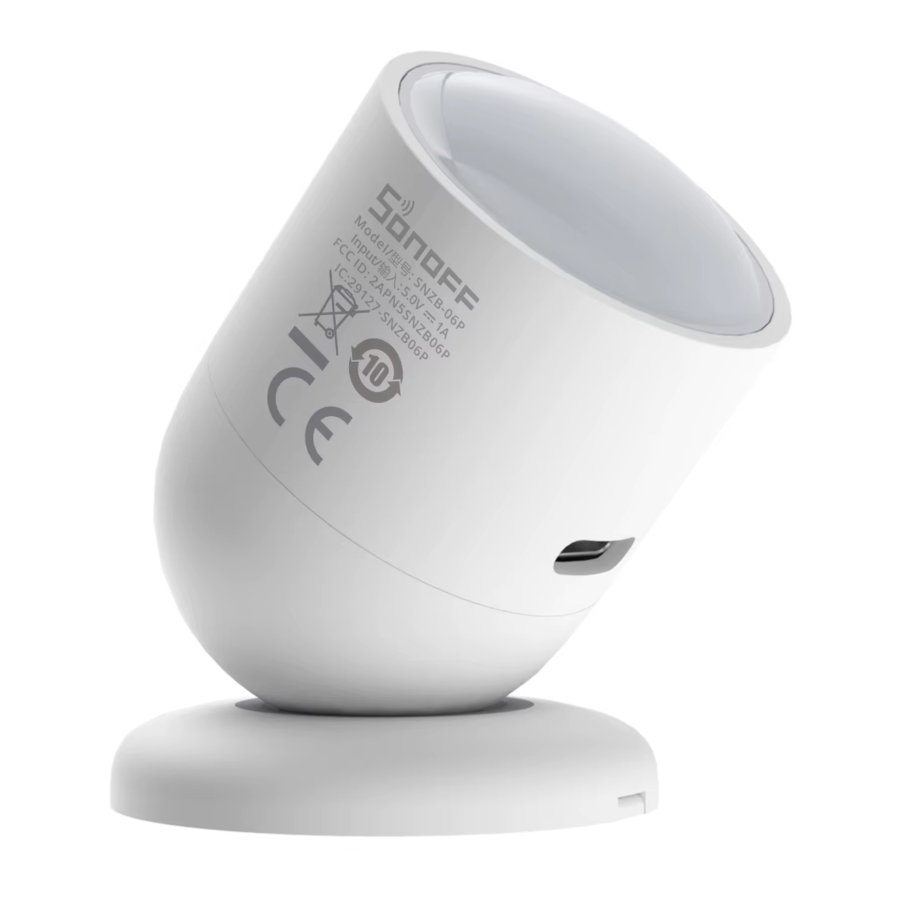

Human presence sensor
Magnetic base
Button
LED indicator (Red)
Power input interface (Type-C)

Instruction of LED indicator status

LED indicator status	Status instruction
Flash slowly for 180 seconds	First-time power on/press and hold button for 5s to enter pairing mode
Keep on for 3s and then keep off	Paired successfully
Exit flashing slowly and keep off	Distribution failure/timeout
Flash once quickly	Not added to the gateway, and short press the button
Flash twice quickly	Added to the gateway and online, and short press the button
Flash slowly for 30 seconds	Abnormal communication

Specification

Model	SNZB-06P
MCU	EFR32MG22
Input	5V ⎓ 1A
Interface type	Туpe-С
Colour	White
Product dimension	44.2x44.2x59mm
Net weight	31g
Casing materials	PC+ABS
Wireless connection	Zigbee 3.0 IEEE802.15.4
Pairing time	180s
Communication distance	Indoor environment 30m
Applicable place	Indoor
Working temperature	-10°C ~ 60°C
Working humidity	0-90%RH, non-condensing
Working height	Less than 5000m
Certification	CE/FCC/ISED/RoHS
Executive standard	EN IEC 62368-1

Download the eWeLink App & Add SONOFF Zigbee gateway

Please download the "eWeLink" App from Google Play Store or Apple App Store.

Scan QR Code to Add Device

Power on the device
Enter "scan QR code" mode
Scan the QR code on the device
Select "Add Device"
Long press the button for 5 seconds
The LED indicator flashes slowly for 180s
Select Zigbee gateway
Wait until the addition is done

Matched gateways

SONOFF ZBBridge, ZBBridge-P, NSPanel PRO, AIBridge, ZBDongle-P, ZBDongle-E Third-party compatible gateway models:
Amazon Gateway Model: Echo Plus 2nd, Echo Show 2nd
Other gateways supporting ZigBee3.0 wireless protocol. Detailed information is in accordance with the final product.
* Displays as a human motion sensor under some gateways.

Effective Communication Distance Verification

Install the device in the desired place, then press the Pairing button on the device. The LED indicator flashes twice means the device and the device under the same Zigbee network (the router device or hub) are in the effective communication distance.

Installation

Place on the desktop
Attached to the metal surface with the magnetic base
Stick to the wall with 3M adhesive of the base
Base screws fixed to the wall

Detection zone

The radar's radial detection distance is approximately 4 meters.

Keep off moving objects including such as curtains, greenery, fans and pets during installation to avoid the device's misjudgment that there are persons nearby.
Non-metallic materials including such as glass, plastic, ceramics and plank can be pierced through.
Multiple sensors should be installed in the same direction or back-to-back, avoiding front-to-front irradiation, and each sensor should be more than 1.5 meter away from others.
