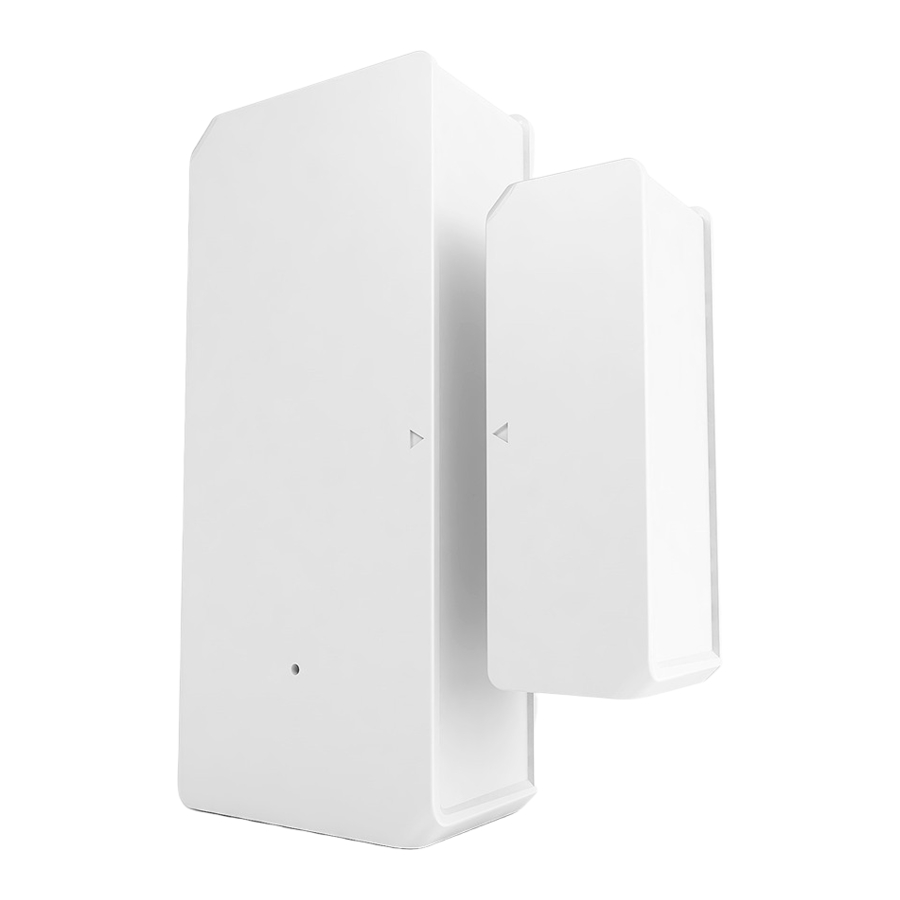

Wi-fi wireless door/window sensor
Hide thumbs Also See for DW2-Wi-Fi:
1
2
3
4
5
6
7
Table of Contents

Advertisement

Quick Links

Download this manual
DW2-Wi-Fi
User manual V1.1
Wi-Fi Wireless Door/Window Sensor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW2-Wi-Fi and is the answer not in the manual?

Questions and answers

Related Manuals for Sonoff DW2-Wi-Fi

Summary of Contents for Sonoff DW2-Wi-Fi

  • Page 1 DW2-Wi-Fi User manual V1.1 Wi-Fi Wireless Door/Window Sensor...
  • Page 2 English SONOFF TECHNOLOGIES CO., LTD. Operation instruction 1. Download the “eWeLink”APP eWeLink eWeLink Android™ & iOS 2. Install batteries 2-1. Remove the back cover of the transmitter. 2-2. Insert batteries into the battery compartment based on identifiers of positive and negative poles.
  • Page 3 English SONOFF TECHNOLOGIES CO., LTD. 3.Enter pairing mode Long press the pairing button on the transmitter for 5s with the eject pin until the LED indicator flashes, then the device enters the pairing mode. 4.Add the device Add Device Quick Pairing...
  • Page 4 English SONOFF TECHNOLOGIES CO., LTD. 2. Try to align the mark line on the magnet with that on the transmitter during installation. 3. Install them in the opening and closing area separately. <5mm Make sure the installation gap is less than 5mm when the door or the window is closed.
  • Page 5 Connect to the router but fail to connect to Wi-Fi Features DW2-Wi-Fi is a Wi-Fi wireless door/window transmitter which triggers the transmitter by separating the magnet for more than 20mm from the transmitter, then the transmitter will send an alarm message and pushes it to APP. You can share the device with your family to check the door/window status together.
  • Page 6 English SONOFF TECHNOLOGIES CO., LTD. Application Door Window Note: ● Do not install outside the door/window. ● Do not install in the unstable position or in the place exposed to rain or moisture. ● Do not install near wiring or magnetic object.
  • Page 7 Hereby, Shenzhen Sonoff Technologies Co., Ltd. declares that the radio equipment type DW2-Wi-Fi is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following internet address: https://sonoff.tech/usermanuals TX Frequency: WiFi: 2412-2472MHz RX Frequency:...
