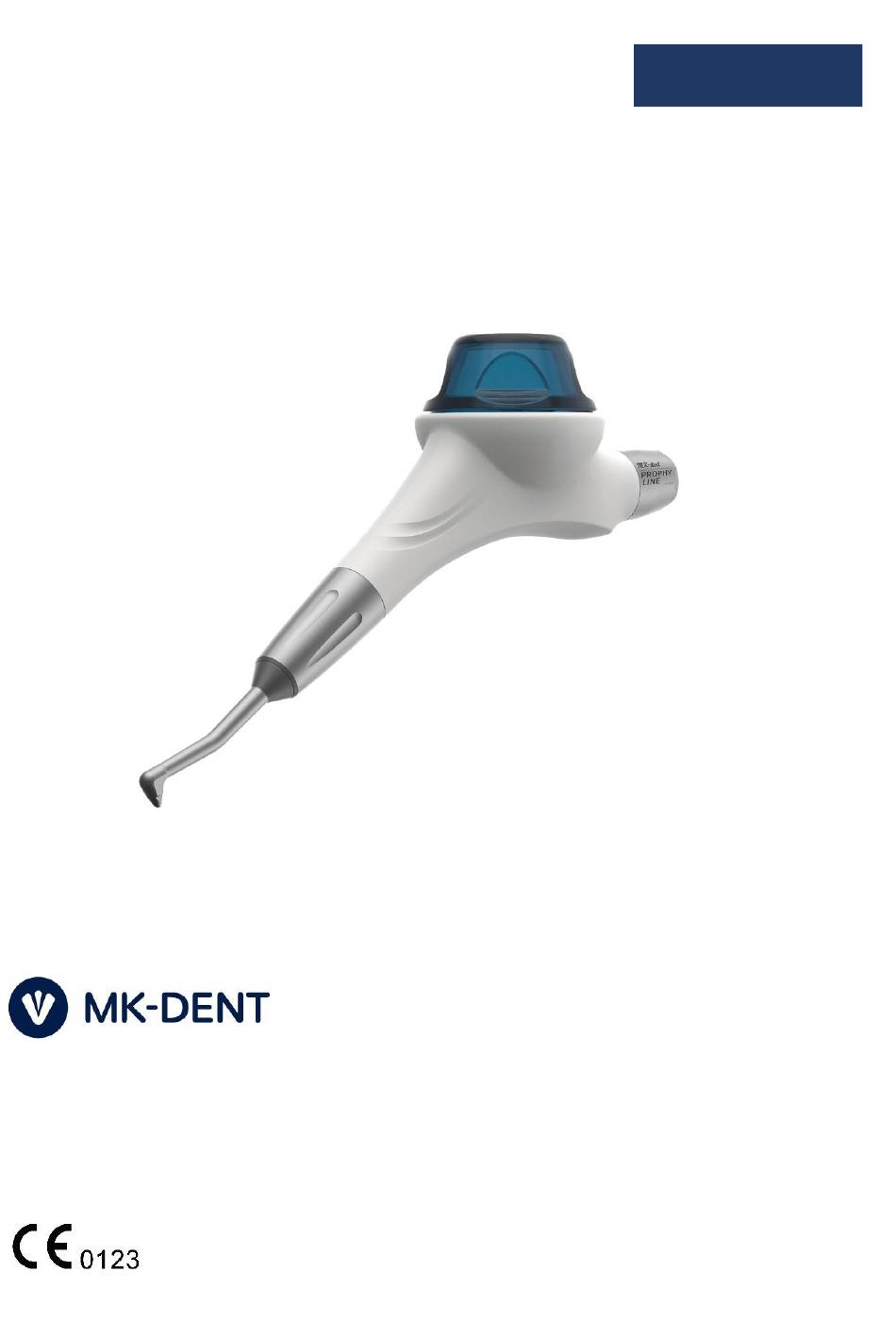

- Page 1 English Instructions for Use MK-dent Prophy Line Air Polishing Device Version: 2025-01-06-RevH...
-
Page 2: Table Of Contents
Unpacking ................................12 Assembly ................................12 Preparation for use ............................... 13 6.4.1 Check and setting of the compressed air ....................14 6.4.2 Connection to the coupling system ......................14 Startup and operation ............................15 6.5.1 Operator protection ............................ 15 MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... - Page 3 Regular maintenance and checks ......................... 29 Cleaning in case of problems ..........................29 Transport and disposal ....................29 Trouble shooting ......................30 Repair ..........................31 12.1 Replacing the head ............................31 12.2 Replacing the head O-ring ..........................32 MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH...
- Page 4 Technical data ......................... 33 Explanation of symbols ....................34 Guarantee and warranty ....................35 15.1 Guarantee ................................ 35 15.2 Legal warranty ..............................35 15.3 Conditions ................................ 35 15.4 Utilization ................................. 36 15.5 Exclusion of liability ............................36 MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH...
-
Page 5: About These Instructions For Use
About these instructions for use These instructions for use apply to all MK-dent air polishing devices (see section 4 Product description). All products listed here are only intended for dental treatment in the field of dentistry. Any kind of misuse or modification of the product is not permitted and may lead to hazards. -
Page 6: Intended Purpose
Secondary users are the practice staff who are responsible for transport, processing and cleaning. User environment Application takes place in dental practices or dental facilities. Users wear protective gloves. The peripherals used fulfil the requirements of ISO 7494. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 7: Safety And Requirements
Never disassemble or modify this product. This instrument must not be repaired by the user in the event of a malfunction. Contact your dealer or the MK-dent repair service. Please do not use the product if the performance of the product deteriorates or in case of malfunctions. -
Page 8: Reporting Obligation
Avoid using this product on patients with: an intraoral injury or disease, hyperemia, inflammation or bleeding in the intraoral cavity, oral mucosa inflammation or bleeding, allergies, contact lenses MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 9: Product Description
Product description Description The MK-dent air polishing device is a dental powder jet device to clean tooth surfaces. The compact form of the air polishing device handpiece allows easy movement between dental units and takes up little space for storage. -
Page 10: Scope Of Delivery
The different connections are described as follows: REF MK-dent PR1011K PR1011S PR1011W PR1011N PR1011B air polishing device Connection KaVo Sirona W&H BienAir KaVo, Sirona, W&H, NSK and BienAir are registered trademarks. MK-dent does not have any economical connection to the companies mentioned above. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 11: Accessories, Consumables And Spare Parts
The use of unauthorized accessories or unauthorized modifications to the product can lead to injuries or instrument malfunctions. CAUTION → Only use spare parts and components that have been approved by MK-dent for combination with the product. Powder seal (SP3021) -
Page 12: Installation
Confirm that the powder seal (blue) is Attaching fully engaged in the groove of the the powder chamber unit shown in the illustration. Turn the powder cap in the direction of the arrow in the illustration. Confirm that it is attached securely. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 13: Preparation For Use
If there is any residue left, remove it with a dry cloth. Make sure that no water or oil remains in the joint of the air polishing device. Remove with a cotton swab if any remains. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 14: Check And Setting Of The Compressed Air
→ Check that the instrument is securely attached to the hose coupling by gently pulling on it before each treatment. Connect a coupling (sold separately) compatible with your air polishing device to your turbine hose. Confirm that the connection is secure. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 15: Startup And Operation
Direct the nozzle toward your cuspidor. Depress your foot control without any water supplied from the dental unit. Run for 1 minute to remove the water remaining in the channels of the air polishing device. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 16: Powder Filling
Hold the chamber unit downward and the powder cap upward as shown in the illustration. Turn the powder cap in the direction of the arrow as far as it will go. Confirm that the powder cap is screwed securely in place. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 17: Checking For Correct Operation
When using the device for the first time, test the spray area and the cleaning effect with an extracted tooth or a tarnished coin. If you have problems, read section 11 Troubleshooting. Use the water volume regulator on your treatment centre to set the water supply. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 18: Treatment
Collect the powder with your vacuum suction system to avoid damaging soft tissues. Take care to prevent the patient from swallowing powder. Avoid prolonged continuous use. Have the patient rinse out his/her mouth as much as necessary. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... - Page 19 Never spray into subgingival areas, root canals or extraction sockets. This can have undesirable consequences such as emphysema. Never spray directly into the intraoral soft tissues (gingiva, mucosa), as this can trigger symptoms such as surface damage. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH...
-
Page 20: Turning The Head
Detach the handpiece according to the coupling’s instructions for use. When reconnecting it, clean the coupling, turbine hose and inside of the chamber unit’s joint in advance according to 6.4.3 Connection to the coupling system. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 21: Processing According To Iso 17664-1
135°C (275 °F). Ultrasonic cleaning is not recommended for processing the instruments, as this could reduce the product’s service life. Assembly and disassembly are described in sections 6.3 Assembly, 8.1.1 Detaching the head and 8.1.2 Detaching the powder cap. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 22: Pre-Treatment At The Point Of Use
Turn the head in the opposite direction of the arrow as shown in 6.3 Assembly. Before reattaching it, clean the head and inside of the chamber unit‘s coupling in advance according to 6.3 Assembly. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 23: Detaching The Powder Cap
8.1.5 Draining water Attach the powder cap and head to the emptied chamber unit. Blow air Direct the nozzle toward your cuspidor. Blow air into the joint of the chamber unit to drain the water channels. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 24: Manual Processing
Blow air into the spraying orifice of the nozzle to remove powder remaining inside. If any water, oil or powder remains at the surface of the head, remove it with a dry cloth. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 25: Manual Cleaning Of The Powder Chamber
Make sure that the powder stirring cap is securely in place after cleaning. Improper attachment will reduce the cleaning efficiency. CAUTION 8.2.4 Manual drying Blow on the instrument with compressed air from the inside and the outside until no visible drops are left. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 26: Automatic Processing
NOTE NOTE MK-dent recommends thermal disinfection devices that satisfy the requirements of EN ISO 15883-1 and are approved by the manufacturer for dental handpieces and turbines. The cleaning should be performed at min. 55 °C (131 °F) for at least 6 minutes and disinfection at min. -
Page 27: Sterilization In An Autoclave
Do not use these in order to avoid mechanical problems or damage. Depending on the conditions of use of your sterilizer or your sterilization methods, this product may undergo discoloration. NOTE NOTE Pay close attention to the manufacturer’s instructions for use. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 28: Sterilization Parameters
Put the sealed head in the sterilization bag on a sterilization tray to avoid direct contact with the inner chamber surface of the sterilizer and then place it in the autoclave. MK-dent recommends the use of a sterilizer according to EN 13060, EN ISO 17665 or EN 285. -
Page 29: Maintenance
Process the instrument in accordance with section 8 Processing according to ISO 17664-1 and return it to us in the original packaging. We will take care of the professional disposal of the device and the original packaging for you. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 30: Trouble Shooting
This instrument must not be repaired by the user in the event of a malfunction. Please contact your dealer or the MK-dent repair service. If this instrument does not function as described in these instructions for use, check the list below for your problem. -
Page 31: Repair
Process this instrument in accordance with section 8 Processing according to ISO 17664-1 and send it to your dealer or directly to MK-dent if it is defective. Please contact MK-dent customer service to arrange for shipping or collection for factory repair. Questions about noise development, maintenance, preparation and functionality can often be clarified in a conversation, making it unnecessary to send in the product. -
Page 32: Replacing The Head O-Ring
(see illustration below). Do not damage the surface of the powder seal when replacing it. Insert the seal Powder seal (spare part) completely into Leak the groove of the chamber unit Groove Enlarged view MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 33: Technical Data
10 Nl / min (air pressure on coupler 0.4 MPa / 4 bar) Water flow volume 40 ml / min (water pressure on coolant 0.2 MPa / 2 bar) KaVo, Sirona, W&H, NSK and BienAir are registered trademarks. MK-dent does not have any economical connection to the companies mentioned above. MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH... -
Page 34: Explanation Of Symbols
Medical device (CE conformity assessment procedure) Catalog number Serial number Manufacturer Date of manufacture Unique product identification - UDI (Unique Device Identifier) – indicates a barcode as containing Unique Device Identification HIBC Code (Health Industry Bar Code) MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH... -
Page 35: Guarantee And Warranty
15.1 Guarantee MK-dent grants the end customer a guarantee of perfect function and freedom from defects in material and workmanship from the date of purchase for a period of 24 months. -
Page 36: Utilization
15.4 Utilization In the event of a warranty claim, please contact MK-dent customer service directly. In the event of a warranty claim, please contact your contractual partner. Contact MK-dent customer service Phone: +49 4532 40049-0 Email: service@mk-dent.com Please have the following information ready: •... - Page 37 MK-dent-Instructions-for-use-Prophy-Line-Air-polishing-device-EN-RevH Version: 2025-01-06-RevH...
