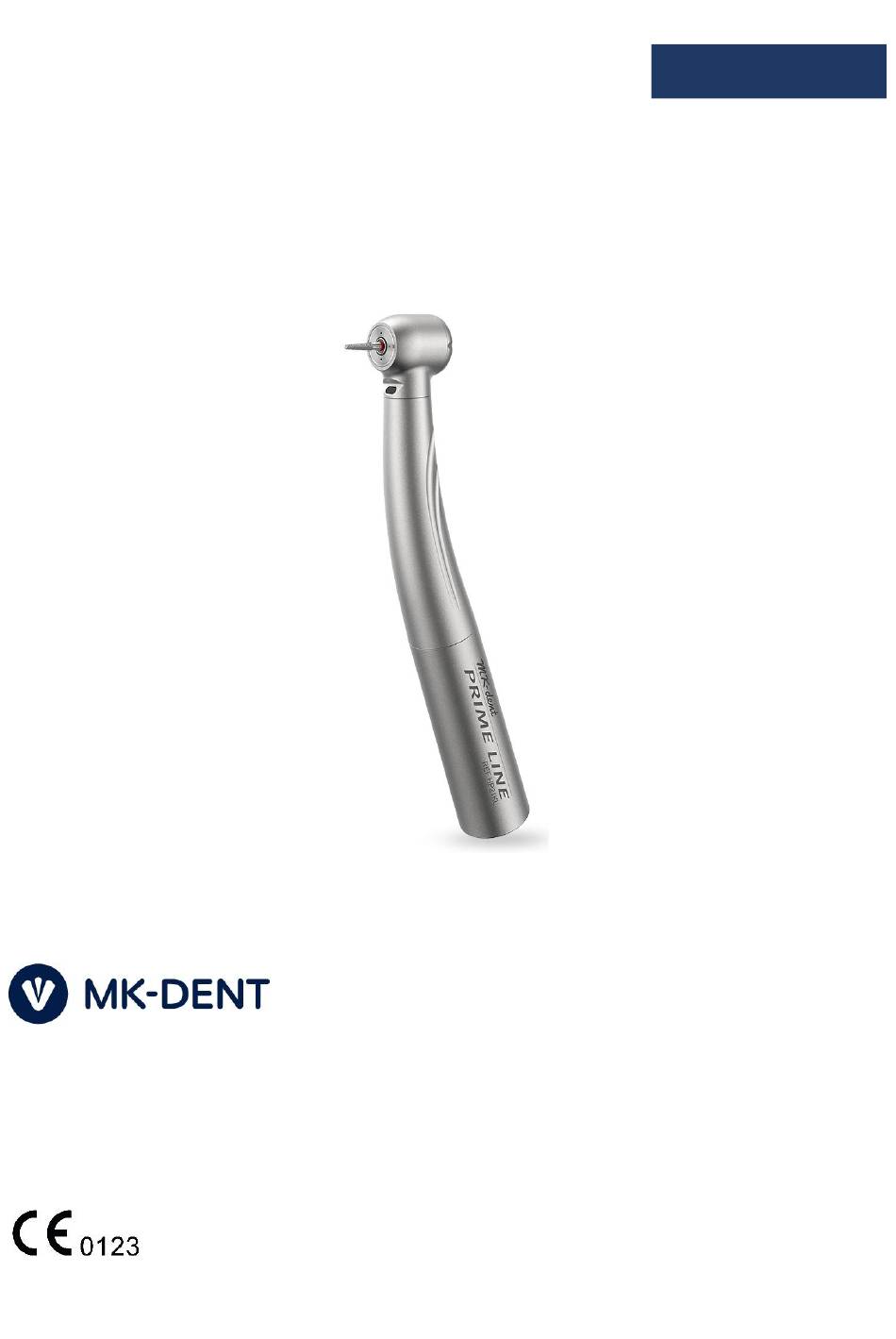

- Page 1 English Instructions for use MK-dent High-Speed Turbine Version: 2025-01-06-RevG...
-
Page 2: Table Of Contents
Check and setting of the compressed air ....................14 6.4.2 Connecting to the coupling system ......................14 6.4.2.1 Connecting the instrument – turbine with direct connection ............... 14 6.4.2.2 Connecting the instrument – turbine with coupling connection ............15 MK-dent-Instructions-for-use-high-speed-turbines-EN-RevG Version: 2025-01-06-RevG... - Page 3 Regular maintenance and checks ......................... 26 Cleaning in case of problems ..........................26 Transport and Disposal ....................27 Troubleshooting ......................27 Repair ..........................28 Technical data ......................... 29 Explanation of symbols ....................30 Guarantee and warranty ....................31 15.1 Guarantee ................................ 31 MK-dent-Instructions-for-use-high-speed-turbines-EN-RevG Version: 2025-01-06-RevG...
- Page 4 15.2 Legal warranty ..............................31 15.3 Conditions ................................ 32 15.4 Utilization ................................. 32 15.5 Exclusion of liability ............................32 MK-dent-Instructions-for-use-high-speed-turbines-EN-RevG Version: 2025-01-06-RevG...
-
Page 5: About These Instructions For Use
About these instructions for use These instructions for use apply to all MK-dent turbines (see section 4 Product description). All products listed here are only intended for dental treatment in the field of dentistry. Any kind of misuse or modification of the product is not permitted and may lead to hazards. All products listed here may only be used by qualified users in accordance with 2.5 Intended users for the intended purpose and in compliance with the... -
Page 6: Intended Purpose
Intended users MK-dent turbines are intended exclusively for use by accredited dentists. Secondary users are the practice staff who are responsible for transport, processing and cleaning. -
Page 7: Safety And Requirements
Never disassemble or modify this product. This instrument must not be repaired by the user in the event of a malfunction. Contact your dealer or the MK-dent repair. Please do not use the product if the performance of the product deteriorates or in case of malfunctions. -
Page 8: Product Description
Product description Description MK-dent turbines are available in the following variants: PRIME LINE, CLASSIC LINE, ECO LINE, BASIC LINE The compact shape of the turbine makes switching between treatment units easy and requires very little space for storage. Thanks to the quick-coupling system, swapping turbines is easy, enabling immediate use. No complicated installation is required, allowing for simple integration in your treatment system. -
Page 9: Combination With Other Products
QC6116KW Connection KaVo Sirona W&H KaVo, Sirona, W&H and NSK are registered trademarks. MK-dent does not have any economical connection to the companies mentioned above. Product components Not applicable Scope of delivery The scope of delivery of the following components and accessories is included in the delivery unit:... -
Page 10: Required Materials That Are Not Included
HE22W/WL, HE22N/NL, HP21NL, HE22K/KL, HC20K/KL, HP21WL, HP22WL HP22NL HC21K/KL, HC22K/KL, HC8021K, HP21KL, HP22KL Connection KaVo Sirona W&H KaVo, Sirona, W&H and NSK are registered trademarks. MK-dent does not have any economical connection to the companies mentioned above. MK-dent-Instructions-for-use-high-speed-turbines-EN-RevG Version: 2025-01-06-RevG... -
Page 11: Accessories, Consumables And Spare Parts
Accessories, consumables and spare parts Accessories Holding force measuring tool RT1020 Instrument holder RT2050 MK-dent Premium Service Oil LU1011 MK-dent-Instructions-for-use-high-speed-turbines-EN-RevG Version: 2025-01-06-RevG... -
Page 12: Consumables
The use of unauthorized accessories or unauthorized modifications to the CAUTION product can lead to injuries or instrument malfunctions. → Only use spare parts and components that have been approved by MK-dent for combination with the product. Turbine with direct connection... -
Page 13: Installation
Confirm that no water or oil remains in the coupling of your turbine hose. If there is still any residue left, remove it with a dry cloth. Make sure that no water or oil remains in the connection of the instrument. Remove residues with a cotton swab. MK-dent-Instructions-for-use-high-speed-turbines-EN-RevG Version: 2025-01-06-RevG... -
Page 14: Check And Setting Of The Compressed Air
Check that the instrument is securely attached to the hose by gently pulling on it. For removal, hold the instrument firmly and unscrew the hose sleeve in the direction opposite to the arrow. MK-dent-Instructions-for-use-high-speed-turbines-EN-RevG Version: 2025-01-06-RevG... -
Page 15: Connecting The Instrument - Turbine With Coupling Connection
Check the water quantity with a measuring cup. Check the spray water tubes. If the water output is too low or a nozzle is clogged, clean the spray nozzle with the enclosed nozzle needle. Also see 8.1.2 Manual pre-cleaning of the spray nozzle. MK-dent-Instructions-for-use-high-speed-turbines-EN-RevG Version: 2025-01-06-RevG... -
Page 16: Using Of Rotating Instruments
→ Pull on the drill to check that it sits firmly. → Check the holding force of the collet at least once a week, using the RT1020 MK-dent dynamometer or another suitable device according to ISO 8325. The holding force of the collet must not fall below 2.5 kg. -
Page 17: Treatment
MK-dent repair service. MK-dent recommends lubricating the instrument after a treatment duration of 30 minutes, using MK-dent Premium Service Oil; see section 8.3.3 Maintenance, checks and testing. If the instrument is to be used again directly after it is lubricated, it must run in idle for 15 - 20 seconds to remove excess oil. -
Page 18: Processing According To Iso 17664-1
The instruments can be sterilized. Do not use any sterilization temperatures above 135 °C (275 °F). Ultrasonic cleaning is not recommended for processing the instruments, as the ball bearings can be damaged, thereby reducing the product’s service life. MK-dent-Instructions-for-use-high-speed-turbines-EN-RevG Version: 2025-01-06-RevG... -
Page 19: Pre-Treatment At The Point Of Use
Take the drill out of the collet and pull off the instrument from the motor or quick coupling. Take off all removable parts (if any) and wash each part under running water. Manual pre-cleaning is also recommended in the case of automatic processing, such as for removing blockages in the spray channels. MK-dent-Instructions-for-use-high-speed-turbines-EN-RevG Version: 2025-01-06-RevG... -
Page 20: Manual Pre-Cleaning Of The Spray Nozzle
Malfunctions can occur if cleaning is done in the ultrasonic machine. → Clean the instrument only as described below Drinking water quality according to the EU Drinking Water Directive (total germ count max. 100 CfU/ml) MK-dent-Instructions-for-use-high-speed-turbines-EN-RevG Version: 2025-01-06-RevG... -
Page 21: Manual Pre-Cleaning Of The Glass Rod Of Turbines With Light
Conduct a visual inspection after each cleaning of the glass rod. Do not use the handpiece or angle handpiece if the glass rod is damaged and contact your dealer or the MK-dent repair service. Wash the glass rod with warm drinking water using a soft lint-free glass cleaning cloth. -
Page 22: Manual Processing
Alpro® WL-cid spray bottle for cleaning the rotor and insert it into the turbine on the coupling side and spray for 3 seconds. After 5 minutes of residence time, dry the instrument with Alpro® WL-dry spray. CAUTION The residence time after the last spray puff is 5 minutes. CAUTION MK-dent-Instructions-for-use-high-speed-turbines-EN-RevG Version: 2025-01-06-RevG... -
Page 23: Automatic Processing
8.3.1 Automatic cleaning, disinfection and rinsing NOTE NOTE MK-dent recommends thermal disinfection devices that satisfy the requirements of EN ISO 15883-1 and are approved by the manufacturer for dental handpieces and turbines. Cleaning should be performed at min. 55 °C (131 °F) for at least 6 minutes and disinfection at min. -
Page 24: Maintenance, Checks And Testing
NOTE The instrument requires maintenance after each processing and before each sterilization. Use MK-dent Premium Service Oil LU1011 for this purpose. The instrument must be maintained after each processing and before each sterilization. Carry out the following steps in the specified order: Screw the included oil adapter for maintenance of the spindle LT1014P onto the oil can. -
Page 25: Sterilization In A Steam Sterilizer According To En 13060 / En Iso 17665
After sealing it in the sterilization pouch, put the instrument on a sterilization tray to avoid direct contact with the inner chamber surface of the sterilizer and then place it into the autoclave. MK-dent recommends the use of a sterilizer in accordance with EN 13060, EN ISO 17665 or EN 285. -
Page 26: Storage
In case of problems with the air or water supply lines, clean each part of the instrument. The instrument must be disconnected from the hose coupling for cleaning. Instructions can be found in section 8.1 Pre-treatment at the point of use. MK-dent-Instructions-for-use-high-speed-turbines-EN-RevG Version: 2025-01-06-RevG... -
Page 27: Transport And Disposal
This instrument must not be repaired by the user in the event of a malfunction. Please contact your dealer or the MK-dent repair service. If this instrument does not function as described in these instructions for use, check the list below for your problem. -
Page 28: Repair
Process this instrument in accordance with section 8 Processing according to ISO 17664-1 and send it to your dealer or directly to MK-dent if it is defective. Please contact MK-dent customer service to arrange for shipping or collection for factory repair. Questions about noise development, maintenance, preparation and functionality can often be clarified in a conversation, making it unnecessary to send in the product. -
Page 29: Technical Data
2–3 > 50 < 60 440,000 HP22WL W&H Titanium 3.0-3.3 0.8-2.5 1.0-4.0 < 0.5 2–3 > 50 < 60 475,000 MK-dent recommends setting the spray air pressure at least 0.3 bar higher than the spray water pressure. MK-dent-Instructions-for-use-high-speed-turbines-EN-RevG Version: 2025-01-06-RevG... -
Page 30: Explanation Of Symbols
Medical device (CE conformity assessment procedure) Catalog number Serial number Legal manufacturer Date of manufacturing Unique product identification – UDI (Unique Device Identifier) – indicates a barcode as containing Unique Device Identification HIBC Code (Health Industry Bar Code) MK-dent-Instructions-for-use-high-speed-turbines-EN-RevG Version: 2025-01-06-RevG... -
Page 31: Guarantee And Warranty
(ISO 14457 Dentistry - Handpieces and motors). In addition, we offer you comprehensive warranty services to ensure your satisfaction. 15.1 Guarantee MK-dent grants the end customer a guarantee for perfect function and freedom from defects in material and workmanship from the date of purchase. Exclusions: •... -
Page 32: Exclusion Of Liability
MK-dent reserves the right to repair or replace defective instruments. 15.4 Utilization In the event of a warranty claim, please contact MK-dent customer service directly. In the event of a warranty claim, please contact your contractual partner. Contact MK-dent customer service... - Page 33 MK-dent-Instructions-for-use-high-speed-turbines-EN-RevG Version: 2025-01-06-RevG...
