Summary of Contents for Total TBS12001

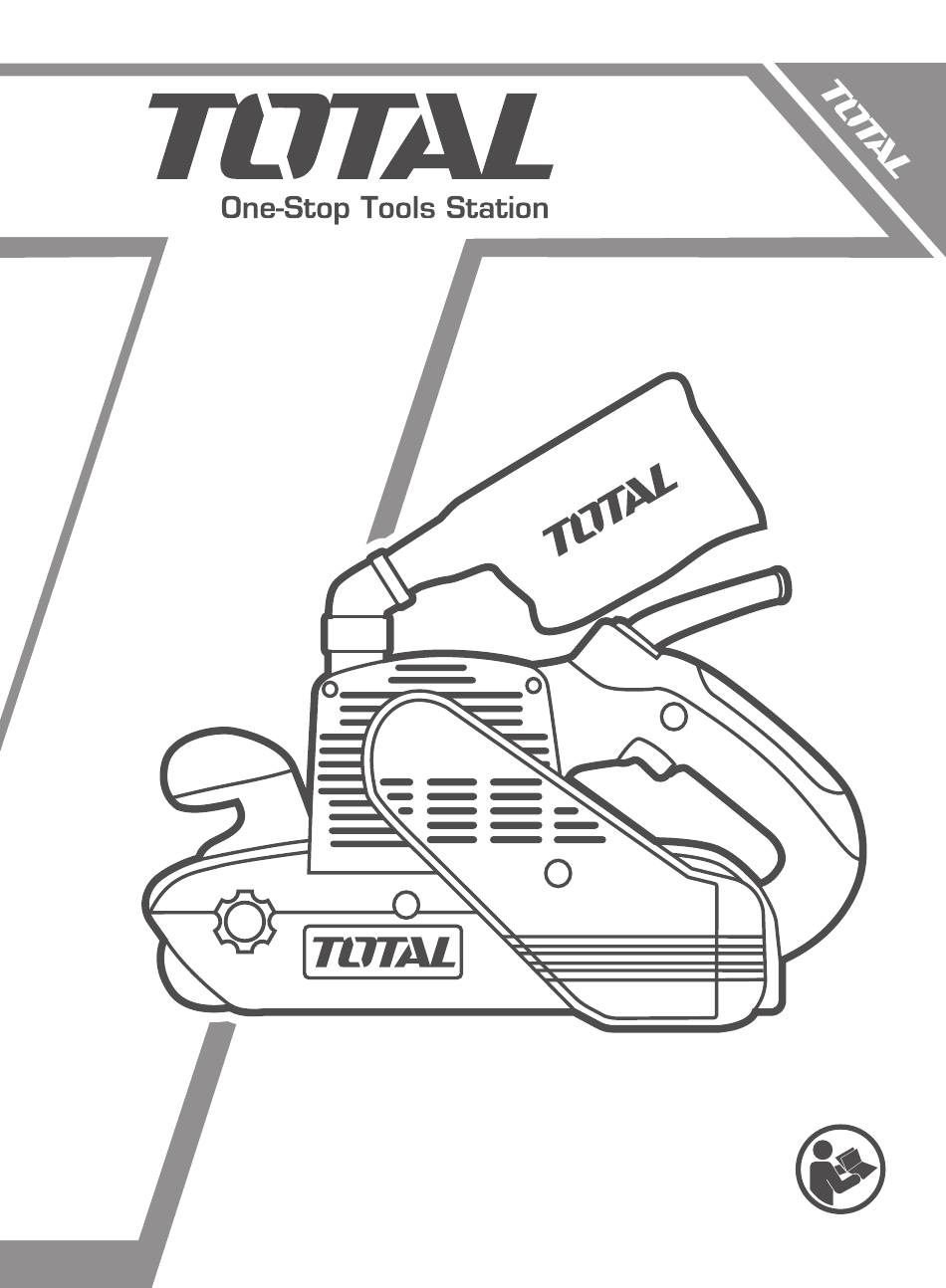

- Page 1 PRODUCT MANUAL BELT SANDER TBS12001 UTBS12001 TBS12001-6 TBS12001-8 TTBS12001-9 TBS12001S...
-
Page 2: General Power Tool Safety Warnings
| English Original Instructions GENERAL POWER TOOL SAFETY WARNINGS ⚠ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 3 | English 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 4 | English Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 5 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 6: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING ⚠ WARNING! Contact with or inhalation of dusts arising from sanding applications may endanger the health of the operator and possible bystanders. Wear a dust mask specifically designed for protection against toxic dust and fumes and ensure that persons within or entering the work area are also protected. -
Page 7: Specifications
| English SPECIFICATIONS On/Off -switch Belt centring knob Lock button Clamping lever Dust extraction outlet Dust bag Belt rollers... -
Page 8: Technical Specifications
| English Technical specifications TBS12001 TBS12001-6 (ISRAEL Plug) TBS12001-8 (BS Plug) Model No. UTBS12001 TBS12001S (SAA Plug) TBS12001-9 (INMENTRO Plug) Rated voltage 220-240V~50/60Hz 110-120V~50/60Hz Rated input power 1200W 1200W No-load speed 500m/min 500m/min Belt dimensions 610x100mm 24 ˝ x4 ˝... - Page 9 | English OPERATION PICTURE...
-
Page 10: Operation
| English OPERATION Changing the sanding belt (see Figure A) 1. Pull out the belt tension lever. 2. Slide the old belt away from the rollers. 3. Slide the new sanding belt into position over the front and rear rollers, ensuring that the arrows on the sanding belt and on the tool are pointing in the same direction. -
Page 11: Using The Sander
| English 5. If continuous operation is required, squeeze the trigger, and depress the lock-on button and release the trigger. 6. To stop the belt sander, squeeze the trigger to release the lock-on button, then release the trigger. Using the sander 1. -
Page 12: Troubleshooting
| English Changing the carbon brushes (see Figure E) 1. With a suitable screwdriver, remove the carbon brush caps on either side of the belt sander. 2. Remove the carbon brush/spring assembly. 3. If the carbon brushes are worn down to 4mm, or less, replace them with the new brushes (1 spare set supplied). - Page 13 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is Disconnect When the machine is turned broken, power cord plug machine from on, the electric motor does malfunction;...
- Page 14 TOTAL TOOLS WORLD MADE IN CHINA T1223.V04 NEWWAY TECHNOLOGY (SUZHOU) CO., LIMITED No. 20 Dagang Road, Fuqiao Town, Taicang City, China...
