Summary of Contents for Total TAT91512

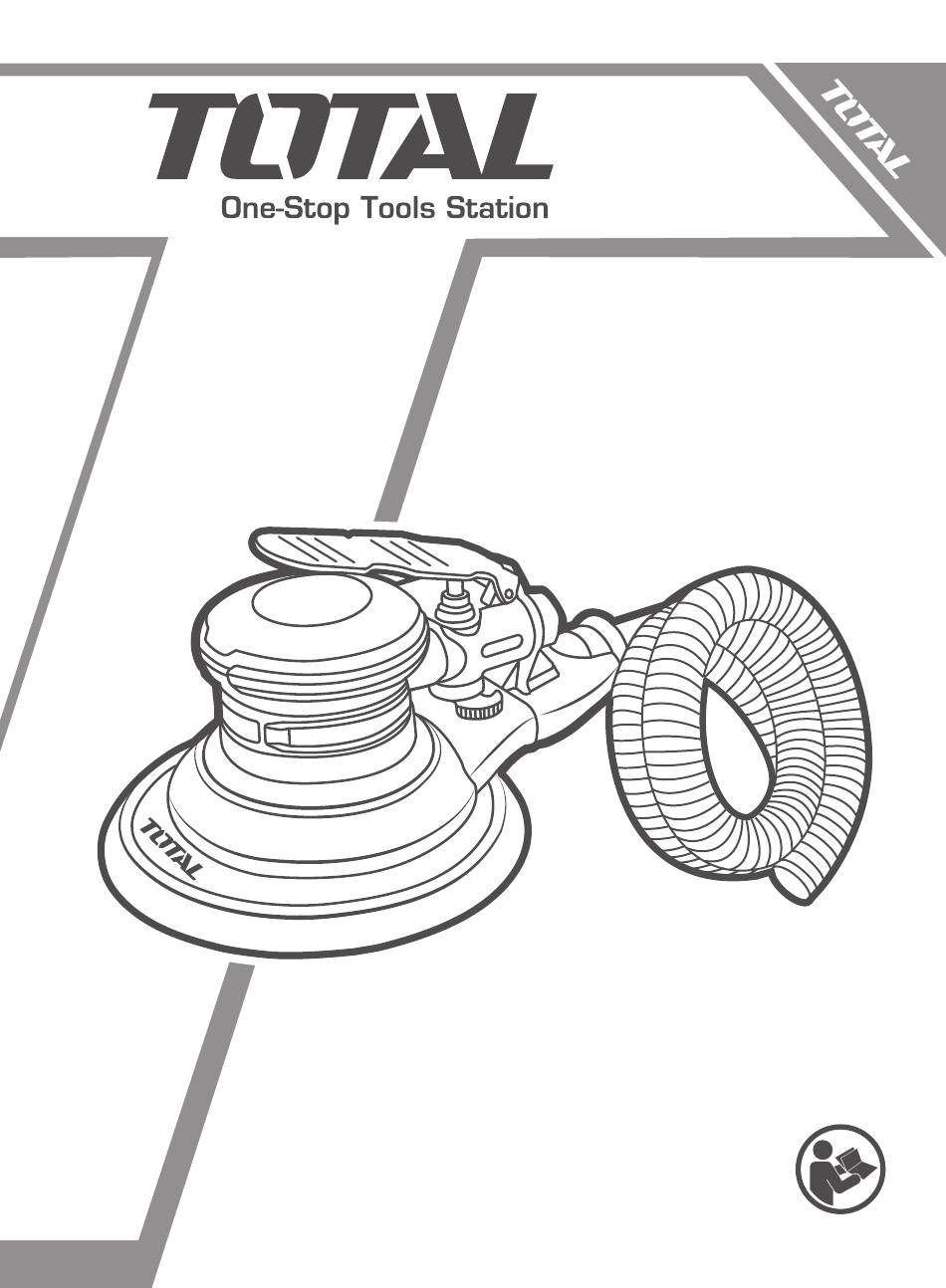

- Page 1 PRODUCT MANUAL SANDER TAT91512...
- Page 2 | English Original Instructions THE SYMBOLS IN INSTRUCTION MANUAL Read the instruction manual before using. CE conformity. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
-
Page 3: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING ⚠ WARNING Read this material before using this product. Failure to do so can result in serious injury. If customers do not obey the instruction thus cause serious Injury, neither the manufacturer nor the distributor should take any responsibilities. -
Page 4: Specific Safety Instructions
| English 15. Make daily inspection for free movement of trigger, safety mechanism and spring to ensure the tool can operate well. 16. Only use parts and accessories recommend by manufacturer. Specific safety instructions This product is a part of high-pressure system and the following safety precautions must be followed at all time along with any other existing safety rules. - Page 5 | English 12. Check air hoses for weak or worn condition before each use. Make sure all connections are secure. 13. Keep all nuts, bolts and screws tight and ensure equipment is in safe working condition. 14. Do not put hands near or under moving parts. ⚠...
-
Page 6: Technical Specifications
| English SPECIFICATIONS Technical specifications Model No. TAT91512 6˝(150mm) Sanding pad： 10500min No-load speed: 3cfm(84L/min) Air Consumption: 6.3bar(90psi) Air Pressure: 1/4˝ Air Inlet: Before each use Drain water from air compressor tank and condensation from air lines. (Please refer to air compressor’s operation manual.) Lubricate the tool. -
Page 7: Operation
| English OPERATION Turn on the air compressor and allow its tank to be filled. Set the air compressor regulator to 90 psi. This air impact wrench operates at a maximum of 90PSI air pressure. Depress the trigger to start operating the tool. Release the trigger in order to stop the tool. -
Page 8: Troubleshooting
| English Trouble shooting The following form lists the common operating system with problem and solutions. Please read the form carefully and follow it. ⚠ WARNING If any of the following symptoms appears during your operating, stop using the tool immediately, or serious personal injury could result. Only a qualified persons or an authorized service center can perform repairs or replacement of tool. - Page 9 | English Problems Possible causes Remedies • Lubricating clutch housing. • Check for excess clutch oil. Clutch cases need only be half full. Overfilling can cause drag on high- speed clutch parts, ie. a • Motor parts worn. Tool runs normal typical oiled/lubricated...
- Page 10 TOTAL TOOLS WORLD MADE IN CHINA T1223.V03 NEWWAY TECHNOLOGY (SUZHOU) CO., LIMITED No. 20 Dagang Road, Fuqiao Town, Taicang City, China...
