Summary of Contents for Total TRDSLI2001

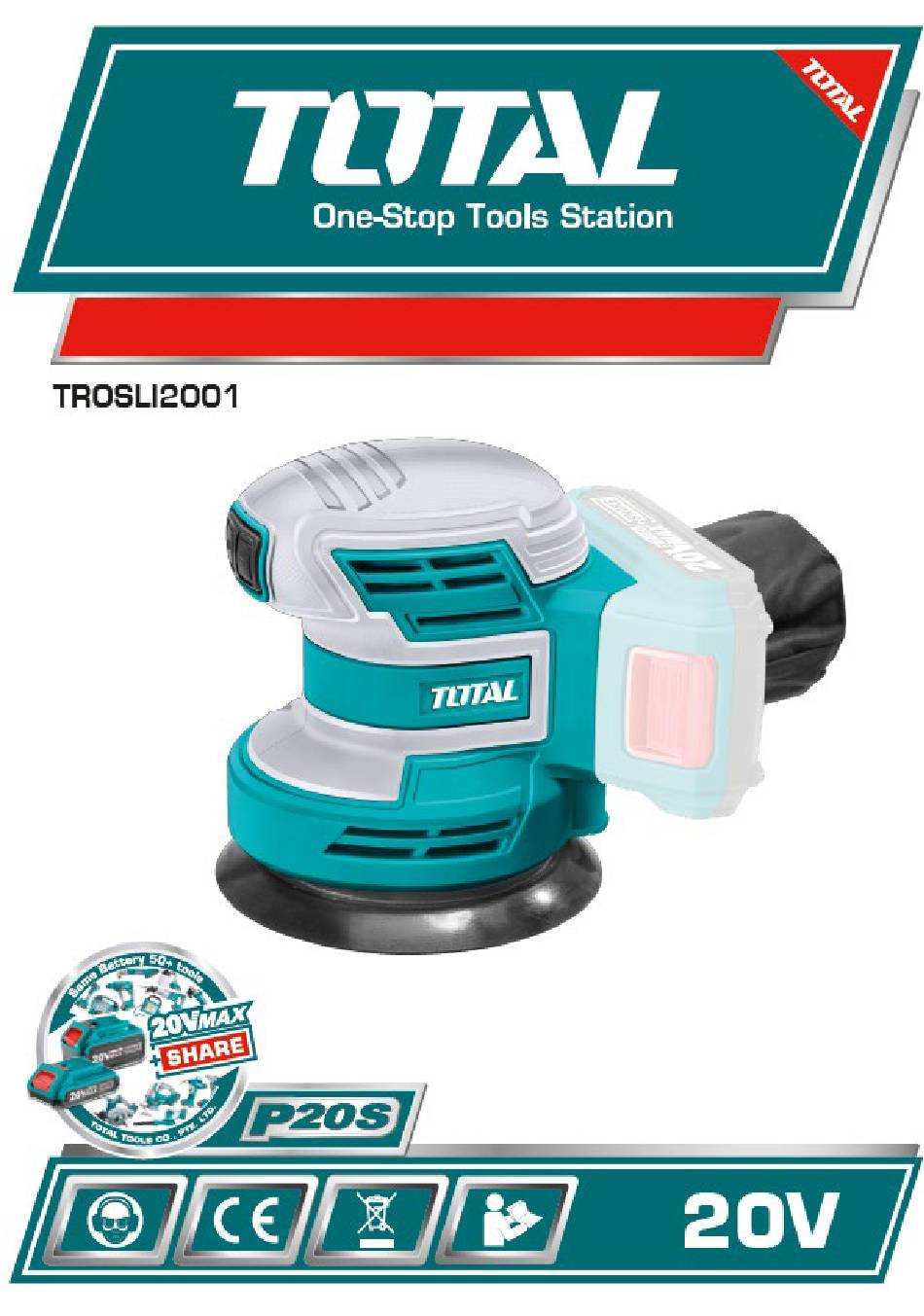

- Page 1 BATTERY ORBIT SANDER...
-
Page 2: Security Instructions
Security instructions Caution Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. Note: Save all warnings and instructions for future reference. Due to the continuous R+D+I development of the brand, this manual and the technical specifications may undergo changes without prior notice. - Page 3 related hazards. Contact or inhalation of these dusts can endanger the health of the operator and bystanders. 4) Use and care of battery tools a. Recharge the battery only with the charger specified by the manufacturer. An unsuitable charger can create a fire hazard. b.
- Page 4 Safety rules for correct use Double insulation for additional protection. Please read the instruction manual before use. CE conformity. Wear safety glasses, hearing protection and a dust mask. Waste from battery-powered products must not be disposed of with household waste. Please recycle at the appropriate facilities. Check with your local authority or retailer for recycling advice.
-
Page 5: Additional Security Warnings
Additional security warnings • Use the machine for dry sanding only. Never use this sander for wet sanding or liquid polishing. Failure to follow this rule may result in risk of electric shock. The penetration of water into the machine increases the risk of electric shock. •... -
Page 6: Technical Data
Attention Safe operation of this machine is only possible when the operating or safety information is fully read and the instructions contained therein are strictly followed. Technical data Data sheet Voltage No load speed 10000/min Orbital sanding base 125mm Product description ON/OFF switch Handle Dust collection bag... - Page 7 The sandpaper has dust extraction holes, you need to align them with the holes • on the sanding base, otherwise the dust extraction will not work. Dust Bag Assembly Attaching the dust bag (see fig. B) • Always use your sander with the dust bag attached. To attach, fit the dust bag onto the tool.
- Page 8 Set up ON/OFF switch (see fig. E) To turn on your sander, press the protective cover over the switch indicated by • the "I" mark. • To stop your sander, press the protective cover indicated by the "0" mark. Note: Before using the tool, please read the instruction book carefully. Surface sanding Place the machine with the full sandpaper on the surface to be worked on.
-
Page 9: Maintenance And Cleaning
Select the correct grit grade of sandpaper Different grits of sandpaper can be used differentiating between coarse, medium • and fine. Use coarse grits for rough finish sanding, medium grits for smooth work, and fine • grits for finishing. • The higher the grade number, the finer the grain. -
Page 10: Problem Solving
If the bottom of the sander does not move smoothly, the sandpaper may be loose, • damaged, or wrinkled. Replace and try again. • If after checking these recommendations it still does not work, take it to a Total Authorized Service Center. Environment Do not dispose of electrical appliances as unsorted municipal waste, use •... -
Page 11: Exploded View
The machine, accessories and packaging must be sorted for environmentally • friendly recycling. Plastic components are labeled for categorized recycling. • Exploded view... - Page 12 BATTERY ORBIT SANDER...
