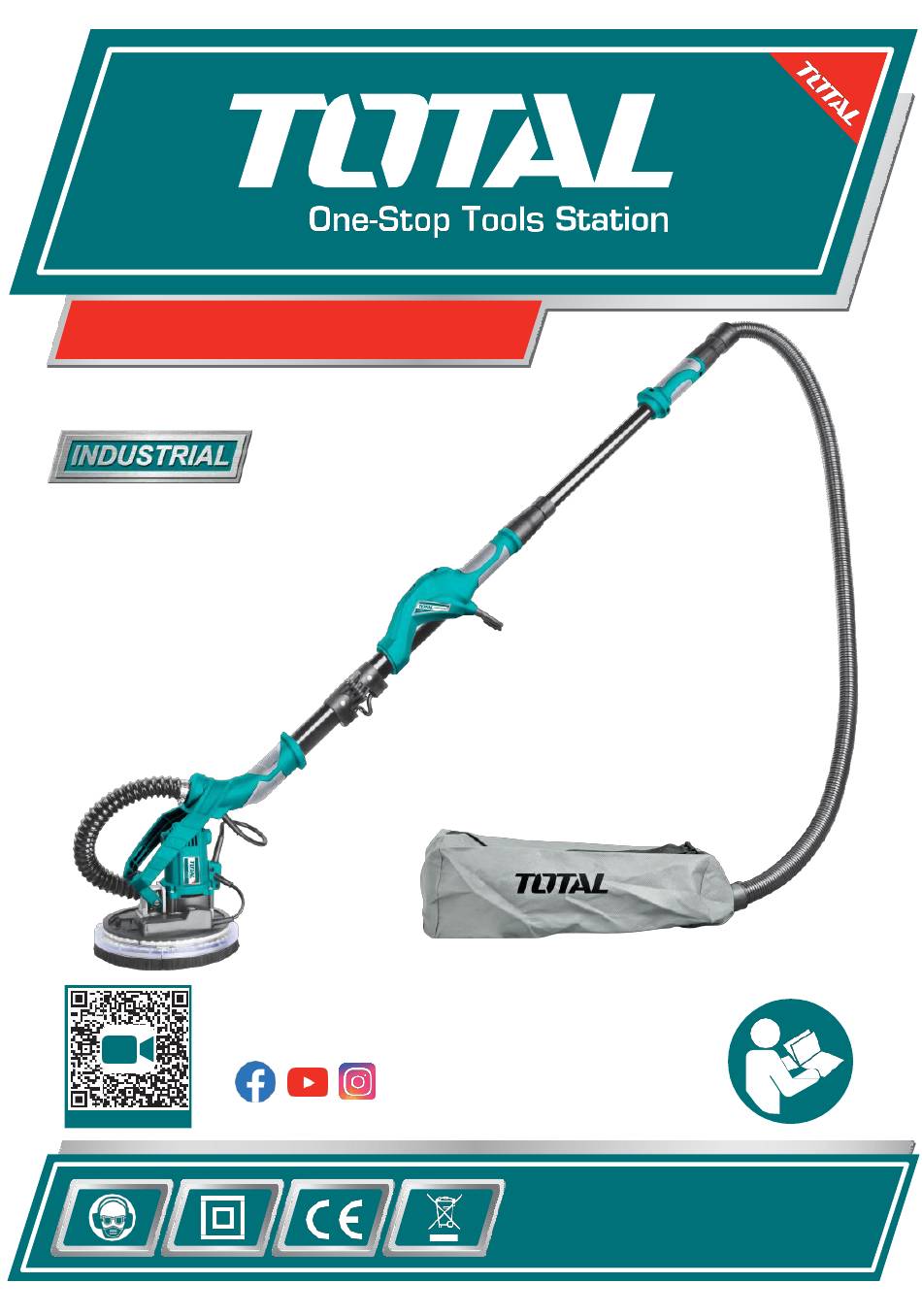

- Page 1 DRYWALL SANDER TWS10501 TOTAL TOOLS WORLD SCAN FOR VIDEO 1050W...
- Page 2 The symbols in instruction manual and the label on the tool Double insulated for additional protection. Read the instruction manual before using. CE conformity. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
- Page 3 WARNING Read all safety warnings and all instru ctions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future referenc . The term''power tool" in the warnings refers to your mams-operated (corded) power tool or battery-operated (cordless) power tool.
- Page 4 b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool.
- Page 5 f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account working conditions and the work to be performed.
- Page 6 A Round sanding head Extension shaft 1 Rear handle B Round sanding pad (hook & loop system) 2 Dust extraction outlet (with adjusting sleeve) C Motor Housing(self-suction) 3 Sleeve D Folding lock P Vacuum hose E Main handle 1 Stand F Shaft 2 Connector(pre-assembled)(38mm) G On/ Off switch...
-
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Model Number TWS10501 Voltage 220-240V~50/60Hz Power 1050W Rotation Speed 600-2300 /min Round Sanding Pad. 215mm Protection class... -
Page 9: Kickback And Related Warnings
workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation Prolonged exposure to high intensity noise may cause hearing loss. i) Keep bystanders a safe distance away from work area. -
Page 10: Before Use
• Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. -
Page 11: After Use
• Do not work materials containing asbestos (asbestos is considered carcinogenic) • Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable •... - Page 12 Extension shaft(optional) - use the extension shaft (0) according to the intended operation for higher work surface - loosen the sleeve on the dust extraction outlet (N) of the upper shaft (F).do not remove the sleeve from the outlet. - align the rear handle (0,) with the main handle (E) and insert the sleeve (0 3) on the extension shaft (0) into the outlet (N) with a twist motion all the way to the stop.
-
Page 13: Maintenance & Service
- The best technique is to use overlapping sweeps and keep the head in constant motion. Never stop too long in any one place or there will be swirl marks. With experience it will be very easy to create excellent results. Ensure that the sanding disc you are using is suited to the task, Overly coarse grit paper may remove material too quickly to control. - Page 14 Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations Familiarize yourself with them to reduce hazards like personal injuries and damage to property. Volt, (alternating voltage) mm Millimetre Hertz Kilogram Watt...
-
Page 15: Exploded View
TWS10501 Exploded view... -
Page 16: Spare Part List
TWS10501 Spare part list Part Description Part Description Cable right main handle cable sleeve Seal sleeve of sub-handle screw left sub-handle cable plate Sealing sleeve of sub-handle electric speed controller(soft start) aluminum tube sleeve switch button single channel aluminum tube... - Page 17 TWS10501 Spare part list Part Description Part Description big bearing cover bearing627 screw anti-wind metal plate output shaft rotor-220V bearing seal ring collar fan cover oil seal fan blade transparent turntable washer side circle wool cap light cover anti-wind metal plate...
- Page 18 DRYWALL SANDER www.totalbusiness.com TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road, Suzhou Industrial Park, China. MADE IN CHINA T0522.V02 1050W...
