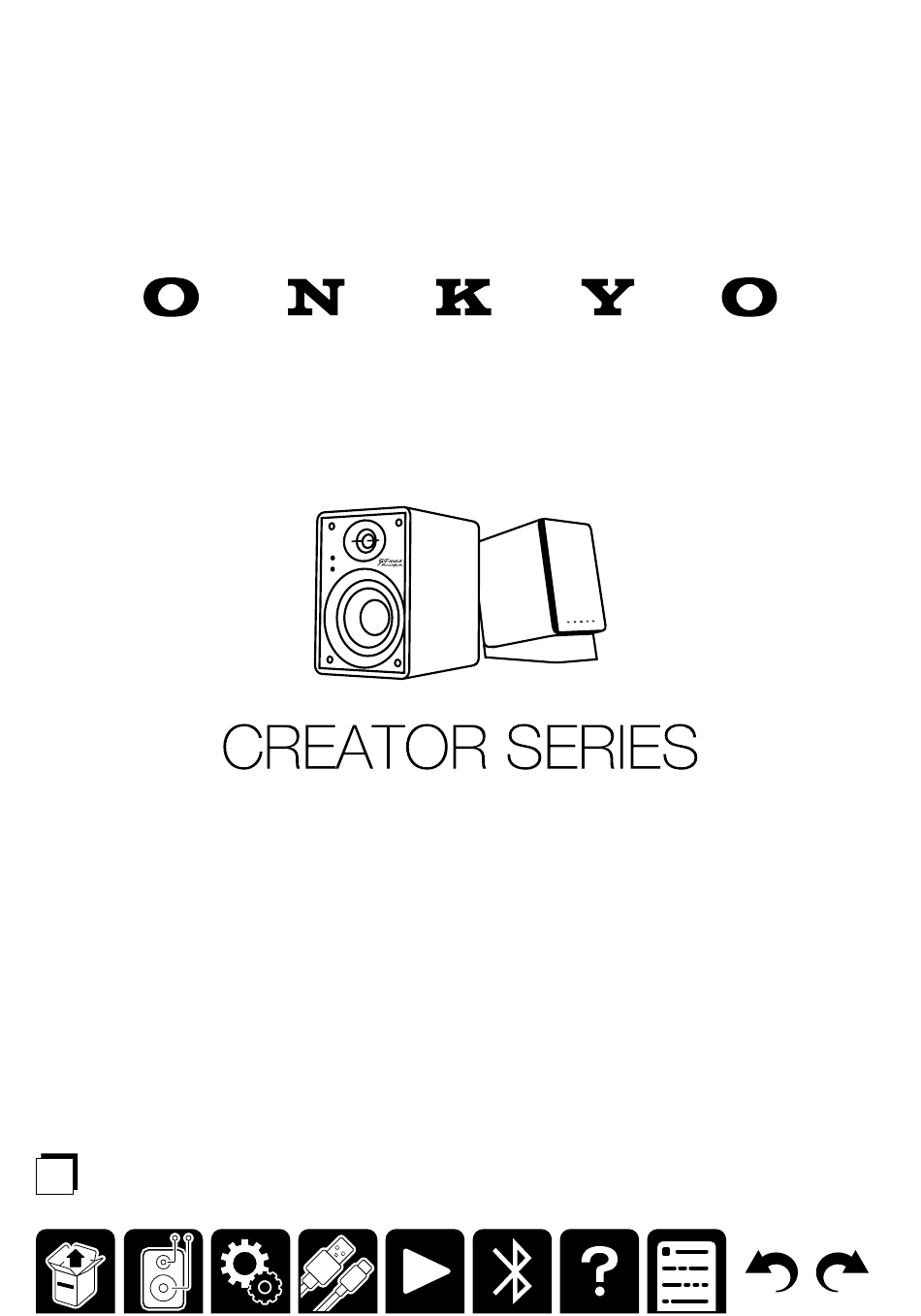

- Page 1 Instruction Manual POWERED SPEAKER GX-10DB...
-
Page 2: What's In The Box
What's in the box A Speakers (2) B Speaker stands (2) C Speaker cable (1) D USB cable (1) E Remote controller (RC-992S) (1) *Batteries (AAA/R03) (2) F AC adapter and plug adapter • Initial Setup Guide (1) • Safety Information (1) •... -
Page 3: Part Names
Part Names Front Panel LEFT RIGHT SPEAKER SPEAKER A LED Flat sound mode Indicator B LED Source Indicator C Remote control sensor D Speaker grill... -
Page 4: Rear Panel
Rear Panel LEFT RIGHT SPEAKER SPEAKER A PREOUT SUBWOOFER terminal B USB Type-C terminal C Optical digital input terminal D POWER/INPUT switch VOLUME dial E Speaker terminal(LEFT SPEAKER) F Speaker terminal(RIGHT SPEAKER) G LINE/PHONO selector switch H AUDIO IN LR terminals (RCA stereo terminals) I DC IN terminal J GND terminal... -
Page 5: Remote Controller
Remote Controller A ON/STANDBY button B Flat sound mode button C Volume UP/DOWN buttons D input selector buttons E Mute button F Play operation buttons G BLUETOOTH ® button... - Page 6 Setup ■ Connecting the speaker cable LEFT RIGHT SPEAKER SPEAKER...
- Page 7 ■ Assembling and connecting the AC adapter...
- Page 8 Connections Connecting a PC a USB cable *A USB storage device can be connected directly. Connection location This unit: AUDIO IN USB terminal (USB Type-C terminal) Tips Supported OS: Windows10 or later...
- Page 9 Connecting a TV DIGITAL OPTICAL a Digital optical cable Connection location This unit: AUDIO IN OPTICAL terminal TV: Optical digital output terminal Tips The AUDIO IN OPTICAL terminal of this unit supports 2-ch PCM signals only. Set the digital audio output setting of the TV to "PCM".
-
Page 10: Connecting A Turntable
Connecting a Turntable ＊ ＊ a Analog audio cable Connection location This unit: AUDIO IN LR terminals (RCA stereo terminals) When connecting a turntable that does not have a built-in phono equalizer, set the LINE/PHONO selector switch to "PHONO". When the turntable has a ground wire, connect it to the GND terminal. -
Page 11: Connect The Subwoofer
Connect the Subwoofer a Subwoofer cable Connection location This unit: PREOUT SUBWOOFER terminal (RCA monaural terminal) -
Page 12: Basic Operations
Playback Basic Operations ■ On/Standby When operating with the remote controller Press the ON/STANDBY button. When operating with the main unit : Press the POWER/INPUT switch. Standby : Press and hold the POWER/INPUT switch for three seconds. Tips When no signal is detected for 15 minutes or longer, the unit automatically enters the standby mode. - Page 13 ■ Switching the input source When operating with the remote controller Press any of the input selector buttons. When operating with the main unit Press the POWER/INPUT switch repeatedly. The color of the LED Source Indicator changes depending on the selected input source. BLUETOOTH : Blue : White OPTICAL...
- Page 14 ■ Adjusting the volume When operating with the remote controller Press the Volume UP/DOWN buttons. When operating with the main unit Turn the VOLUME dial. ■ Mute Press the Mute button. In the mute state, the LED Source Indicator blinks in red.
-
Page 15: Advanced Operations
Advanced Operations ■ Setting the flat sound mode to On/Off Off (default) : Bass and treble are enhanced to reproduce sound with inflection. : Flat sound is reproduced without enhancing bass and treble. -
Page 16: Bluetooth ® Playback
BLUETOOTH Playback ® Pairing 1. Press the ON/STANDBY button to turn on the unit. 2. Press the BLUETOOTH button. The LED Source Indicator blinks in blue, which shows the unit has entered the pairing standby mode. ・ When a BLUETOOTH-supported device has already been connected, cancel the connection, or press and hold the BLUETOOTH button of the remote controller for three seconds. - Page 17 3. Turn on the BLUETOOTH function of the BLUETOOTH-supported device. Bluetooth Bluetooth 4. Operate the BLUETOOTH-supported device, and select this unit. Bluetooth Bluetooth GX-10xxxx ・ When connecting multiple BLUETOOTH-supported devices, cancel the current connection, or press and hold the BLUETOOTH button of the remote controller for three seconds to let the unit enter the pairing standby mode.
-
Page 18: Playing Back
Playing Back 1. Press the ON/STANDBY button to turn on the unit. 2. Press the BLUETOOTH button. 3. Operate the BLUETOOTH-supported device, and play music. Tips ・ The unit automatically turns on by operating the BLUETOOTH-supported device in standby mode to play music, etc. -
Page 19: Troubleshooting
Troubleshooting ‰ Resetting the unit Turn on the unit. While pressing down the POWER/INPUT switch on the rear panel, press and hold the Mute button on the remote controller. The LED Source Indicator turns off, and turns on again. Then resetting is complete. ‰... - Page 20 ‰ Failure judgment: No sound is reproduced from PC. When the PC is connected using a USB cable According to the following procedure, confirm the PC settings. 1. While this unit is connected, right-click the speaker symbol at the bottom right of the PC screen, and select "Sound setting".
-
Page 21: General Specifications
General Specifications ■Type PRIMARY SPEAKER:2-way bass reflex type with built-in amplifier, detachable speaker grill SECONDARY SPEAKER:2-way bass reflex type, detachable speaker grill ■Speakers used Woofer：3inch(76.2 mm） , Tweeter : 3/4inch (19 mm) ■Amplifier configurations ■Power Output 17W×2ch 100 Hz THD 1% ■Input terminals Analog ・RCA stereo terminal(LINE/PHONO) ×1... - Page 22 ■USB Section USB Ver.2.0, Type-C Power Supply ・5V/1A Supported Formats ・FAT,FAT32,NTFS Audio Format ・WAV, MP3(32-320kbps/32,44.1,48kHz/VBR) ■General Power Supply ・AC 100 - 240 V, 50/60 Hz Power Consumption ・10 W Standby mode ・BLUETOOTH : 0.3 W ・USB : 0.3 W ・OPTICAL : 0.3 W ・RCA : 0.3 W...
- Page 23 SN 29404186_EN © Copyright 2025 Premium Audio Company Technology Center K.K. All rights reserved. © Copyright 2025 Premium Audio Company Technology Center K.K. Tous droits de reproduction et de traduction réservés. O2501-0...
