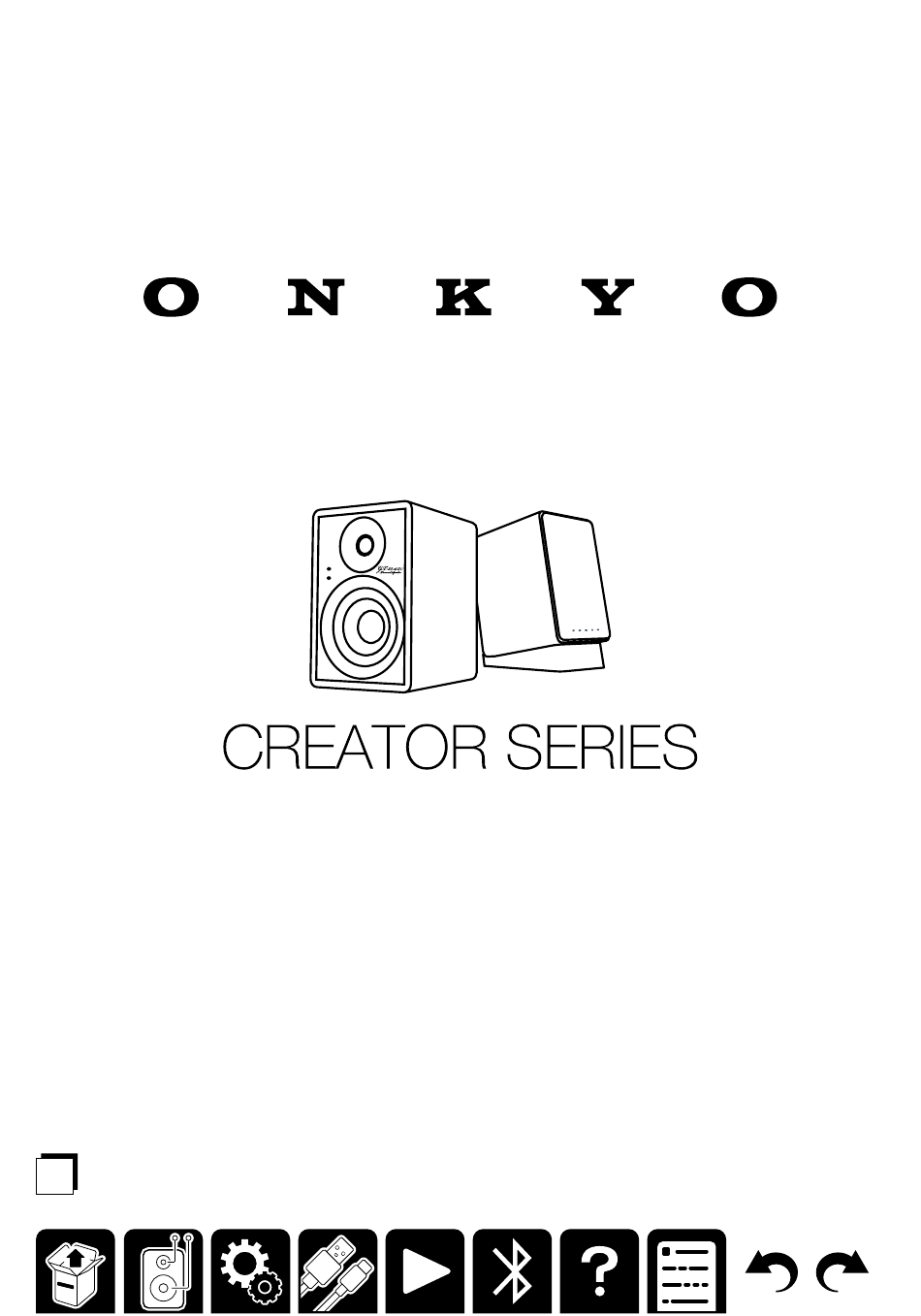

- Page 1 Instruction Manual POWERED SPEAKER GX-30ARC...
-
Page 2: What's In The Box
What's in the box A Speakers (2) B Speaker stands (2) C Speaker cable (1) D HDMI cable (1) E USB cable (1) F Remote controller (RC-993S) (1) *Batteries (AAA/R03) (2) G AC adapter and plug adapter • Initial Setup Guide (1) •... -
Page 3: Part Names
Part Names Front Panel SECONDARY PRIMARY SPEAKER SPEAKER A LED Flat sound mode Indicator B LED Source Indicator C Remote control sensor D Speaker grill... -
Page 4: Rear Panel
Rear Panel SECONDARY PRIMARY SPEAKER SPEAKER A 2 3 J K L M A PREOUT SUBWOOFER terminal B AUDIO IN AUX terminal (φ3.5mm stereo mini plug terminal) C USB Type-C terminal D HDMI terminal E Optical digital input terminal F Speaker terminal (SECONDARY) G GND terminal H AUDIO IN LR terminals (RCA stereo terminals) I Speaker terminal (PRIMARY) -
Page 5: Remote Controller
Remote Controller A ON/STANDBY button B Volume UP/DOWN buttons C Flat sound mode button D Input selector buttons E Mute button F Play operation buttons G BLUETOOTH ® button... - Page 6 Setup ■ Connecting the speaker cable SECONDARY PRIMARY SPEAKER SPEAKER...
- Page 7 ■ Assembling and connecting the AC adapter...
- Page 8 Connections Connecting a PC a USB cable *A USB storage device can be connected directly. Connection location This unit: AUDIO IN USB terminal (USB Type-C terminal) Tips Supported OS: Windows10 or later...
- Page 9 Connecting an ARC-supported TV HDMI IN ( ARC ) HDMI IN HDMI IN a HDMI cable *Be sure to insert the HDMI cable all the way in. Connection location This unit: HDMI (ARC) terminal TV: HDMI (ARC) terminal Tips The HDMI (ARC) terminal of this unit supports 2-ch PCM signals only. Set the digital audio output setting of the TV to "PCM".
- Page 10 Connecting an ARC-unsupported TV DIGITAL OPTICAL a Digital optical cable Connection location This unit: AUDIO IN OPTICAL terminal TV: Optical digital output terminal Tips The AUDIO IN OPTICAL terminal of this unit supports 2-ch PCM signals only. Set the digital audio output setting of the TV to "PCM".
-
Page 11: Connecting A Turntable
Connecting a Turntable ＊ ＊ a Analog audio cable Connection location This unit: AUDIO IN LR terminals (RCA stereo terminals) When the turntable has a ground wire, connect it to the GND terminal. When connecting a turntable that does not have a built-in phono equalizer, set the LINE/PHONO selector switch to "PHONO". - Page 12 Connecting Devices Using a Stereo Mini Plug Cable a Stereo mini plug cable *Use a stereo mini plug cable with no resistance. Connection location This unit: AUDIO IN AUX terminal (φ3.5mm stereo mini plug terminal) External devices: Headphone terminals of smartphone, PC, digital audio player, etc.
-
Page 13: Connecting A Subwoofer
Connecting a Subwoofer a Subwoofer cable Connection location This unit: PREOUT SUBWOOFER terminal (RCA monaural terminal) -
Page 14: Basic Operations
Playback Basic Operations ■ On/Standby When operating with the remote controller Press the ON/STANDBY button. When operating with the main unit : Press the POWER/INPUT switch. Standby : Press and hold the POWER/INPUT switch for three seconds. Tips When no signal is detected for 15 minutes or longer, the unit automatically enters the standby mode. - Page 15 ■ Switching the input source When operating with the remote controller Press any of the input selector buttons. When operating with the main unit Press the POWER/INPUT switch repeatedly. The color of the LED Source Indicator changes depending on the selected input source. BLUETOOTH : Blue HDMI : Green...
- Page 16 ■ Adjusting the volume When operating with the remote controller Press the Volume UP/DOWN buttons. When operating with the main unit Turn the VOLUME dial. ■ Mute Press the Mute button. In the mute state, the LED Source Indicator blinks in red.
-
Page 17: Advanced Operations
Advanced Operations ■ Setting the flat sound mode to On/Off Off (default) : Bass and treble are enhanced to reproduce sound with inflection. : Flat sound is reproduced without enhancing bass and treble. ■ Switching between right and left... -
Page 18: Bluetooth ® Playback
BLUETOOTH Playback ® Pairing 1. Press the ON/STANDBY button to turn on the unit. 2. Press the BLUETOOTH button. The LED Source Indicator blinks in blue, which shows the unit has entered the pairing standby mode. ・ When a BLUETOOTH-supported device has already been connected, cancel the connection, or press and hold the BLUETOOTH button of the remote controller for three seconds. - Page 19 3. Turn on the BLUETOOTH function of the BLUETOOTH-supported device. Bluetooth Bluetooth 4. Operate the BLUETOOTH-supported device, and select this unit. Bluetooth Bluetooth GX-30xxxx ・ When connecting multiple BLUETOOTH-supported devices, cancel the current connection, or press and hold the BLUETOOTH button of the remote controller for three seconds to let the unit enter the pairing standby mode.
-
Page 20: Playing Back
Playing Back 1. Press the ON/STANDBY button to turn on the unit. 2. Press the BLUETOOTH button. 3. Operate the BLUETOOTH-supported device, and play music. Tips ・ The unit automatically turns on by operating the BLUETOOTH-supported device in standby mode to play music, etc. -
Page 21: Troubleshooting
Troubleshooting ‰ Resetting the unit Turn on the unit. While pressing down the POWER/INPUT switch on the rear panel, press and hold the Mute button on the remote controller. The LED Source Indicator turns off, and turns on again. Then resetting is complete. ‰... - Page 22 ‰ Failure judgment: Pairing with a BLUETOOTH-supported device cannot be established. According to the following procedure, delete the information of the BLUETOOTH-supported device, and perform pairing again. 1. Turn on the unit, and press and hold the BLUETOOTH button on the remote controller at least 10 seconds. Pressing and holding the button for 10 seconds or longer will delete the information of the BLUETOOTH- supported device stored in the unit.
-
Page 23: General Specifications
General Specifications ■Type PRIMARY SPEAKER: Built-in amplifier, 2-way bass reflex type, detachable speaker grill SECONDARY SPEAKER: 2-way bass reflex type, detachable speaker grill ■Speakers used Woofer：4inch(101.60mm） , Tweeter : 3/4inch (19mm) ■Amplifier configurations Bi-Amplifier ■Power Output 2 ch × 25 W(HF:8W + LF:17W) at 8 ohms, HF:10 kHz, 2 ch driven of 1% THD, LF:100 Hz, 2 ch driven of 1% THD ■Input terminals Analog ・AUX terminal (φ3.5mm stereo mini plug) ×1... - Page 24 ■USB Section USB Ver.2.0, Type-C Power Supply ・5V/1A Supported Formats ・FAT,FAT32,NTFS Audio Format ・WAV, MP3(32-320kbps/32,44.1,48kHz/VBR) ■HDMI Section ARC compatible audio format: PCM ■General Power Supply ・AC 100 - 240 V, 50/60 Hz Power Consumption ・10 W Standby mode ・BLUETOOTH : 0.3 W ・HDMI : 0.3 W ・USB...
- Page 25 SN 29404187_EN © Copyright 2025 Premium Audio Company Technology Center K.K. All rights reserved. © Copyright 2025 Premium Audio Company Technology Center K.K. Tous droits de reproduction et de traduction réservés. O2501-0...
