Onkyo LS-B50 Instruction Manual

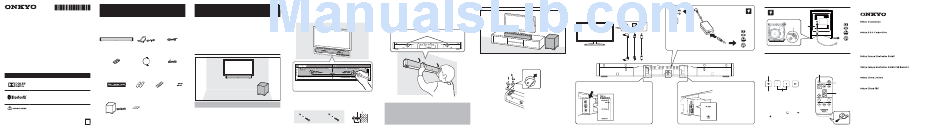

PACKAGE CONTENTS
* 2 9 4 0 1 5 3 7 A *

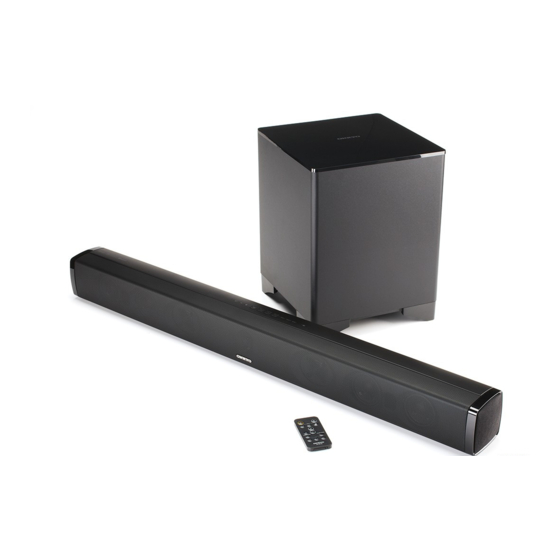

LS-B50
Make sure you have the following items before use.
‡
Soundbar System The number in parenthesis indicates the quantity.
‡
In catalogs and on packaging, the letter at the end of the product name
Instruction Manual
indicates the color.
Main unit (LB401) (1) AC adapter (1)/ IR flasher (1)
Power cord (1)
Thank you for purchasing an Onkyo product. Please read this manual thoroughly before
making connections and plugging in your new Onkyo product.
Following the instructions in this manual will enable you to obtain optimum performance and
listening enjoyment from your new product.
Remote controller (RC-877S) (1) Optical digital audio ф3.5 mm stereo mini
Please retain this manual for future reference.
A lithium-ion battery (CR2025) is supplied in
cable 5 ft. (1.5 m) (1) plug cable (1)
the remote control at the time of purchase.
Trademarks and Licensing
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
Wall mounting template (1) Stand (2)/Cushion (4)/
The Bluetooth® word mark and logos are registered
Mounting screws (3/8" (10 mm)) (4)
trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by Onkyo is under license. Other trademarks and trade
names are those of their respective owners.
AuraSphere™ is a trademark of Onkyo Corporation.
AuraSphere is a listening experience technology developed by Onkyo
Wireless subwoofer (SKW-B50) (1)/
Corporation and Sonic Emotion ag.
Power cord (Polarized plug) (1)/
E n
Cushion (4)
2
D1308-1
1. Attach the template to the position to mount.
‡
PREPARATION Be careful not to make a tape mark on the wall.
‡
Stand at a distance and check its position. Check if it is horizontal.
2. Mark the two screw points with a pen.
Placement
Select an appropriate placement for your environment.
Place the supplied wireless subwoofer in an appropriate place for your use
environment.
‡
To enjoy the best sound, do not place an object on both sides of the unit.
Place the supplied wireless subwoofer within the 33 feet (10 m) distance.
Mounting to Wall
‡
Leave 1" (25 mm) between the soundbar and your TV.
3. Remove the template and screw the screws into the wall.
‡
Use the screws with 3/16" (4 mm) diameter.
‡
Refer all servicing to qualified service personnel. Keep 5/16" (8.5 mm) of the screw protruding from the wall surface.
‡
Do not use the supplied mounting screws for stand.
Wall
Accessories to be prepared: Wall mounting template 3/16" (4 mm)
5/16" (8.5 mm)
3 4
4. Connect all cables to the soundbar. Mounting on Low Board or TV Stand
(o See 7 to 8 pages)
5. Insert the head of the screw into the keyhole slot of the soundbar and fix it
firmly.
‡
Please confirm that the head of the screw is at the top of the hole.
‡
Do not use the supplied stands.
Keyhole slot
Accessories to be prepared: Stands, Cushion, Mounting screws
Before placing the soundbar on the boards, attach the supplied stands to prevent
falling.
(Front side)
Please note:
‡ (Back side)
When preparing the screws used for wall mounting, ask qualified service personnel
and give careful consideration to their type, material and length so that they can
withstand the weight. If reinforcement is necessary, use reinforcing plates or anchors.
‡
Onkyo is not responsible for accidents or damage caused by improper installation,
insufficient wall strength, improper screw installation or natural calamity, etc.
5 6
Connections
‡
Connect the TV and this unit using one of the possible connection cables.
4
2
3
1
1
COAXIAL jack IR OUT terminal
Connect a separately sold cable to Connect the supplied IR flasher to
input the sound. allow the TV remote control signal
to pass through.
‡
OPTICAL jack Double-sided tape for
Connect the supplied optical mounting is attached to the
digital audio cable to input audio. supplied IR flasher side. Mount
to near the remote control
ANALOG jack signal sensor of TV with the
Connect the supplied stereo mini double-sided tape.
plug cable to input audio.
USB port
Connect a USB flash drive.
7 8
Wireless Subwoofer
1 Kitahama Chuo Bldg, 2-2-22 Kitahama, Chuo-ku, OSAKA 541-0041, JAPAN
Cushion
http://www.onkyo.com/
2 The Americas
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
For Dealer, Service, Order and all other Business Inquiries:
Tel: 201-785-2600 Fax: 201-785-2650
(Bottom) http://www.us.onkyo.com/
For Product Support Team Only:
1-800-229-1687
Listening to TV http://www.us.onkyo.com/
Europe
Turn on the TV.
‡
For details on operation, see the "BASIC OPERATION" (o P.11). Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY
‡ Tel: +49-8142-4401-0 Fax: +49-8142-4208-213
The unit can be operated with your existing TV remote controller. For details http://www.eu.onkyo.com/
on operation, see the "Using TV Remote Controller" (o P.17).
Meridien House, Ground floor, 69 - 71 Clarendon Road, Watford, Hertfordshire, WD17 1DS, United Kingdom
1 1
Tel: +44 (0)8712-00-19-96 Fax: +44 (0)8712-00-19-95
China
(Hong Kong)
Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.
2 Tel: 852-2429-3118 Fax: 852-2428-9039
http://www.hk.onkyo.com/
(Mainland)
1301, 555 Tower, No.555 West NanJing Road, Jing'an District, Shanghai, China 200041,
3
2 3 Tel: 86-21-52131366 Fax: 86-21-52130396
http://www.cn.onkyo.com/
Asia, Oceania, Middle East, Africa
1. Turn the power on. Please contact an Onkyo distributor referring to Onkyo SUPPORT site.
http://www.intl.onkyo.com/support/
2. Switch the input to TV.
The above-mentioned information is subject to change without prior notice.
(On the buttons of the unit, switches
Visit the Onkyo web site for the latest update.
in the order of TV o USB o
Bluetooth.)
3. Adjust the volume.
SN29401537A
9 (C) Copyright 2013 Onkyo Corporation Japan. All rights reserved.
