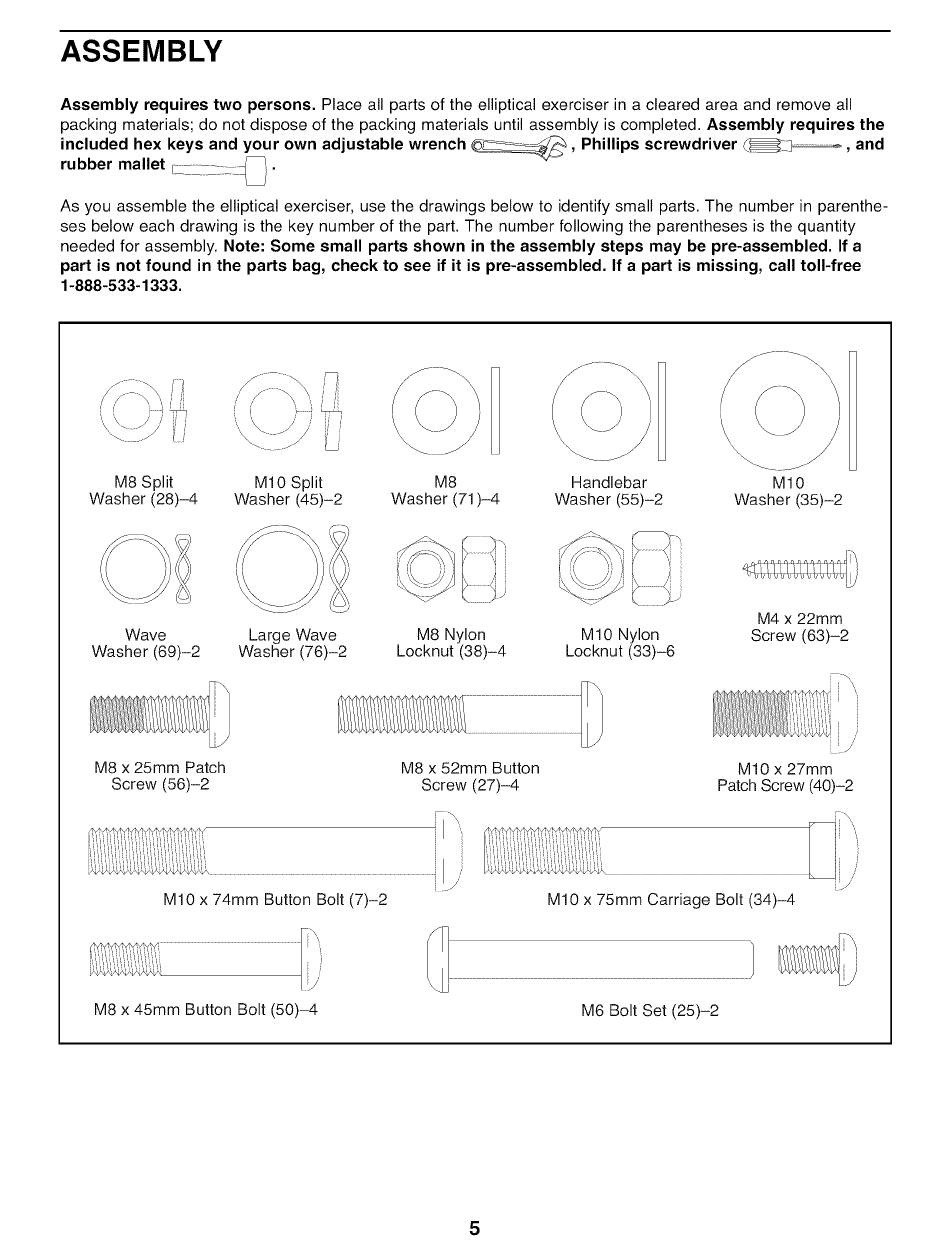

ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove all
packing materials; do not dispose of the packing materials until assembly is completed. Assembly requires the
included hex keys and your own adjustable wrench _, Phillips screwdriver _--_, and
rubber mallet/_ ....... _ •
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part. The number following the parentheses is the quantity
needed for assembly. Note: Some small parts shown in the assembly steps may be pre-assembled. If a
part is not found in the parts bag, check to see if it is pre-assembled. If a part is missing, call toll-free
1-888-533-1333.
/
'/ ' ) ! , (, i i
..... J
M8 Split MIO Split
Washer (28)-4 Washer (45)-2
\,
\
M8
Washer (71)-4
f" -_\\
Handlebar M10
Washer (55)-2 Washer (35)-2
Wave Large Wave M8 Nylon MIO Nylon
Washer (69)-2 Washer (76)-2 Locknut (38)-4 Locknut (33)-6
M4 x 22mm
Screw (63)-2
M8 x 25mm Patch
Screw (56)-2
M10 x 74mm Button Bolt (7)-2
M8 x 52mm Button
Screw (27)-4
M10 x 27mm
Patch Screw (40)-2
iJ
M10 x 75mm Carriage Bolt (34)-4
M8 x 45mm Button Bolt (50)-4
M6 Bolt Set (25)-2
