Karma KS-242 Owner's Manual

Hide thumbs Also See for KS-242:
Table of Contents

Advertisement

Quick Links

Download this manual
KS-242
KS-333
GMP
GMP
GMP
AS
AS
AS
KS-343

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS-242 and is the answer not in the manual?

Questions and answers

Related Manuals for Karma KS-242

Summary of Contents for Karma KS-242

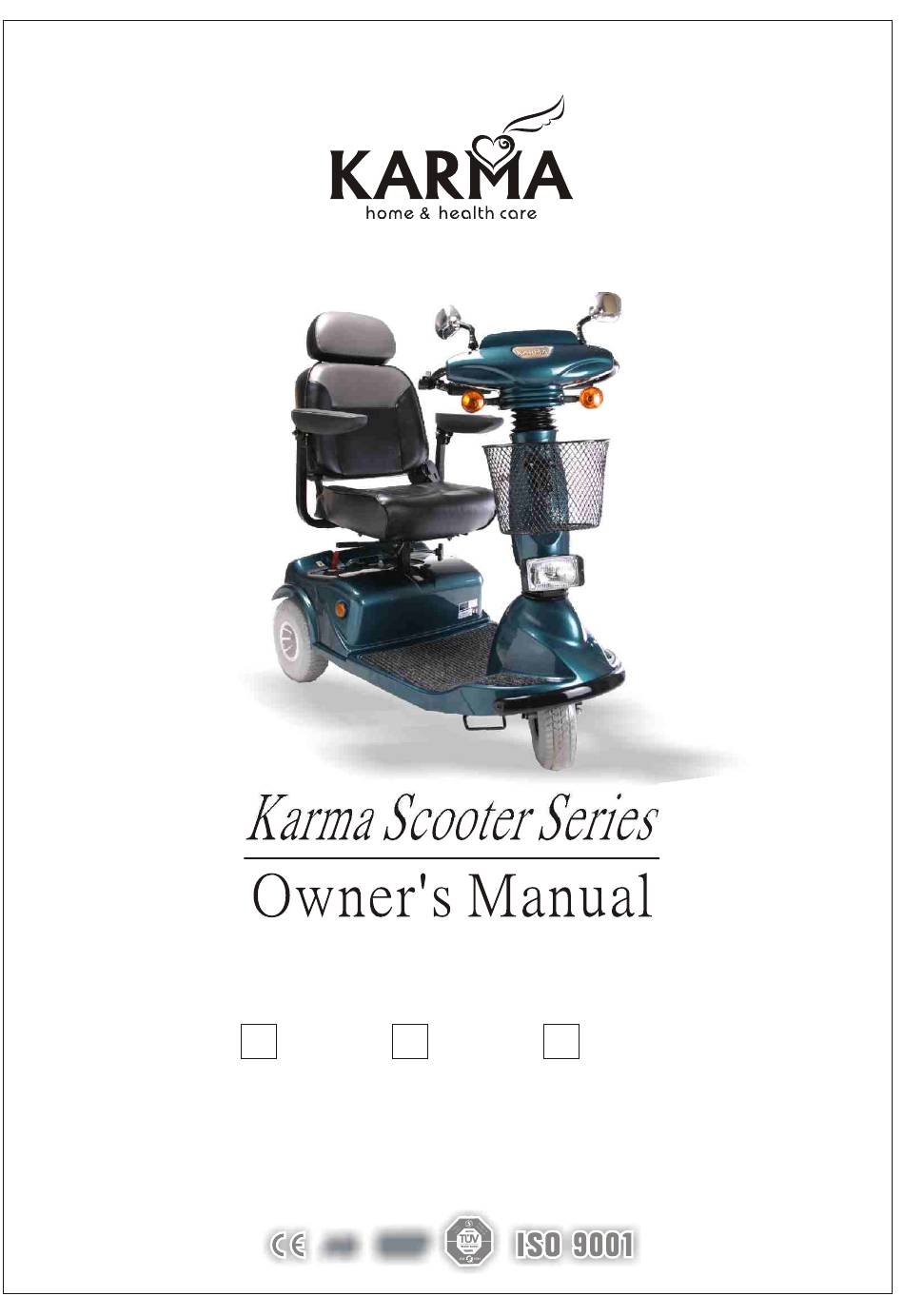

  • Page 1 KS-242 KS-333 KS-343...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. PREFACE 2. SAFETY 2.1 Before driving 2.2 While driving 2.3 Labelling 3. EMI 4. PARTS Parts description 5. OPERATION 5.1 Dash Board 5.2 How to operate your scooter 5.3 How to set the freewheel mode 6. BATTERY AND CHARGING 6.1 Charging the battery 6.2 Charger 6.3 Battery...

  • Page 4: Preface

    This owner's manual includes operation instructions for the aspects of the ve- hicle, assembly instructions, and instructions on how to deal with possible accidents. This owner's manual is written for Karma Scooter. The symbols used in this manual are explained below. Pay special attention to the parts marked with these symbols.

  • Page 5: Safety

    Be sure you are able to control and operate your scooter easily and confiden- tly, then you set to a higher speed. The KARMA Scooter is limited to one passenger Do not carry passenger (including children)on your scooter. Do not use this vehicle to carry or haul goods The maximum weight can be carried is (includes goods) is stated in "MAX-...

  • Page 6: While Driving

    2. SAFETY 2.2 While Driving Please carry out daily inspections. Refer to page 22 of DAILY CHECKING Do not stretch your body out of the vehicle Such an action may cause you to lose balance and fall.. Pay attention to avoid having your clothes tangled with the wheels. When Crossing The Train-Crossing Before entering the crossing please stop completely.
  • Page 7 2. SAFETY Ramps, incline and drops Do not drive onto steep ramp. Refer to page 27 "CLIMBING ANGLE" in section "10. SPECIFICATION" When climbing up to an inclined road, please drive slowly and you can set the speed dial to level high than "5". When going down an incline road, never reverse your scooter and you shall set the speed dial to lowest speed "1".

  • Page 8: Labelling

    4. Remember that the installation of non-genuine or property caused by impro- Karma parts makes it difficult to predict what effects per use of the scooter. radio waves will have on the vehicle. (Note: it is possible to make a direct calculation how radio wa- ves will influence the vehicle).

  • Page 9: Emi

    Caution: It is very important that you read this information regarding the possible effects of electromagnetic interference on your electric Karma Scooter. ELECTROMAGNETIC INTERFERENCE (EMI) FROM RADIO WAVE SOURCES Powered vehicle may be susceptible to electromagnetic interference (EMI),...
  • Page 10 3. EMI 1. Hand-held portable transceivers ( transmitter-receivers with the antenna mou- nted directly on the transmitting unit. Examples include: citizens band (CB) radios, "walkie talkie", security, fire, and police transceivers, cellular telepho- nes and other personal communication devices. NOTE: some cellular telephones or similar devices transmit signal while they are ON, even though they are not being in use.
  • Page 11 3. EMI WARNINGS Electromagnetic interference (EMI) from sources such as radio and TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones can affect powered vehicles and motorized scooter. Following the warnings listed below should reduce the chance of unintended brake release or powered vehicle movement which could result in serious injuries.

  • Page 12: Parts

    4. PARTS 4. PARTS PARTS DESCRIPTION 1. Rear view mirror 2. Dash board/control 3. Handlebars 4. Engager Levers 5. Dash windshield 6. Basket 7. Tiller adjustment 8. Headlight 9. Front bumper 10. Front wheels 11. Reflector 12. Headrest 13. Backrest 14.

  • Page 13: Operation

    5. OPERATION 5. OPERATION 5.1 DASH BOARD 1. Speed Dial 2. Horn Button 3. Engager Lever 4. Battery Indicator 5. Turn Signal Switch 6. Head Light / Rear Light Button 5.2 HOW TO OPERATE YOUR SCOOTER Power switch Turn the key to power ON or OFF Power is turned on Power is turned off Speed Dial...
  • Page 14 5. OPERATION Forward, Reverse, and Braking Push the right-hand side of the engager lever forward with your right thumb and the scooter will move forward. Push the left-hand side of the engager lever forward with your left thumb and the scooter will move backward. The horn will buzz when the vehicle is in reverse.
  • Page 15 5. OPERATION Chair/seat The chair can be rotated up to 90 degrees to the side. Push up the seat adjustment bar forward to rotate the chair. Caution Be sure to return the chair to the forward position before driving. Battery Indicator For KS 333/343/242 When the power switch is turned on, the battery indicator will light up.

  • Page 16: How To Set The Freewheel Mode

    1. It is recommended that you charge the battery immediately when the battery indicator gets close to "0"by 2 or 3 grids (KS333 / KS343) or indicator lamp becomes red (KS-242). 2. After charging or replacing a new battery, drive the vehicle for 2-3 minu- tes to make sure the battery is fully charged.
  • Page 17 (Figure 5.6). Figure 5.5 Figure 5.6 For KS-242 The Tiller can be adjusted in four positions . 1.Turn the knob counter-clock wise to loosen the bolt. (Figure 5.7) 2. Pull the knob out, adjust the tiller angle to a desired position.
  • Page 18 5. OPERATION Figure 5.7 Figure 5.8 Starting and Driving 1. Make sure the chair is installed properly. 2. Make sure the tiller has been secured properly. 3. Make sure the armrest has been returned to the proper position. 4. Turn the power switch to "ON" If necessary, turn on the headlights. 5.

  • Page 19: Charging Battery

    5. OPERATION Driving speed The speed scale is printed on the speed dial label, ranging from 1 to 10, with "10" being the maximum speed. Please refer to "MAX. SPEED" on page 27 in Section 10 (SPECIFICATION). Speed Scale Recommended Circumstances Speed equivalent to walking slowly by feet On an incline or decline Driving indoors or in a narrow space...

  • Page 20: Battery And Charging

    CAUTION Please follow the guidelines below to avoid accidents while charging. 1. Be sure to use the KARMA Scooter charger only, and charge the battery completely every time. The battery can be damaged if a non-genuine charger is used. Karma is not responsible for any injury or damage from such action.

  • Page 21: Charger

    6.BATTERY AND CHARGING 5. Do not set charger on or near anything flammable(e.g., Gasoline, footrest, seat) while battery is charging. WARNING: 1. Keep away from flammable objects while charging, as it may lead to fire or explosion of the battery. 2.
  • Page 22 6. Clean the battery with a clean cloth. If the terminal is covered by white powder, please clean it using warm water. SUGGESTION: If necessary, ask for help from your KARMA Scooter dealer for cleansing and replacing of the battery. SUGGESTION: 1 .Make sure the terminal is installed properly and put the cover back on.

  • Page 23: Assemble And Disassemble

    ASSEMBLE AND DISASSEMBLY 7. Assemble and Disassembly 7.1 Disassemble 1. Under the front side of the seat you will find a knob. Turn the knob completely off (counter-clockwise). Remove the seat by pulling it straight up until the seat post separates from the frame post. Next, on top of the shroud (casing) are two smaller knobs.
  • Page 24 ASSEMBLE AND DISASSEMBLY Figure 7.4 Figure 7.3 7.2 Assemble 1. Pull up the front and rear frame together until the couplings on both sides match up (Figure 7.5). 2. Push down and the lever will lock in place(Figure 7.6). 3. Your scooter should look like figure (7.7) below. Figure 7.5 Figure 7.6 Figure 7.7...

  • Page 25: Inspection And Maintenance

    Are there any cracks or other damage to the tires ? Tires Check the tire tread depth. Is there any abnormal noise ? Other Is there any oil leakage from the transmission box? CAUTION Visit a KARMA Scooter dealer for inspection and maintenance if you find anything abnormal.

  • Page 26: Regular Maintenance Record

    8. INSPECTION AND MAINTENANCE 8.2 REGULAR MAINTENANCE RECORD To make sure your scooter is in good condition, visit KARMA Scooter dealer reg- ularly for maintenance and keep the record accordingly every six months after purchasing.(Fee may apply) SUGGESTION: Even if you don't use the vehicle for a long time, the scooter should be still maintained regularly.

  • Page 27: Battery, Fuse And Tire

    If the power switch is turned ON and the battery indi- cator does not light up, check the fuse as it may be broken. SUGGESTION: Ask for help from your KARMA Scooter dealer for inspecting or replacing thefuse, since the tiller shroud has to be removed to replace fuse. Tire The condition of the tires is affected by the way you drive and use your scooter.

  • Page 28: Maintenance

    PC circuit board. Please clean the vehicle by wiping it with either dry or moist cloth. Please take the vehicle to authorized KARMA Scooter dealers for repairs and adjustments. Improper adjustments could lead to scooter malfunction or accid- ents.

  • Page 29: Trouble Shooting

    9. TROUBLE SHOOTING When you have trouble with your scooter You can inspect the followings before taking your scooter to the KARMA Scooter dealer. Problem Checking points and corrective action No start Is the power switch set OFF? Turn the power switch to ON...

  • Page 30: Specification

    10. SPECIFICATION Model KS-333 Dimension 1120*620*1190mm (L * W * H) 47 * 23 * 47 inch Weight w/ battery 90 Kg / 198 lbs w/o battery 66 Kg / 145 lbs Motor 350W* Battery 12V 36Ah*2 (sealed lead acid) Charger DC24V 5A Front Tire...
  • Page 31 10. SPECIFICATION Model KS-242 Dimension 990*505*895mm (L * W * H) 39 * 20 * 35 inch Weight w/ battery 46Kg / 101 lbs w/o battery 37.5 Kg /83 lbs Motor 270W* Battery 12V 12Ah*2 (sealed lead acid) Charger DC24V2A Front Tire 2.8"*2.5"*2...

  • Page 32: Recyclable / Cleaning

    11. RECYCLING / CLEANING 11. RECYCLABLE & CLEANING RECYCLING : Recycling plan should follow Environmental Protection Administration's regulation. The items listed below is for reference only as local law and regulation may vary. Part name Material Method Frame Steel Recyclable Seat/back upholstery Fabric, sponge Tire...

  • Page 33: Warranty

    Warranty repair). 2. The warranty can be performed by an authorized KARMA Scooter dealers only. 3. KARMA is not responsible for the transportation costs for repair and replacement. 4. Replaced parts will be the properties of KARMA.
  • Page 34 7. Damage or surface corrosion from environment factors such as airborne fallout (chemicals, tree sap, etc.), stones, hail, windstorm, lighting, flood, etc. 8. Change of any material or component parts not authorized by KARMA. ( Don't carry objects that may lead to unbalance of the scooter) 9.
  • Page 35 12. WARRANTY 12.2.4 Warranty effectiveness The Warranty Form must be completely filled out and stamped by the KARMA Scooter dealership where the scooter was purchased. 12.2.5Transfer of warranty rights If you purchase a second-hand KARMA Scooter while it is still within the warranty period, bring the Owner's Manual and the Vehicle to the dealership where the scooter was purchased for registration.
  • Page 36 NATIONAL AGENT: Karma reserv es the right to modify information herein without further notice 1 0 4 - 4 5 0 0 3 R e v .0 0 J U L . 2 0 0 4 Headquarters/ Factory in Taiwan Branch in U.K.

This manual is also suitable for:

Ks-333Ks-343
