Karma KS-242 Owner's Manual

Hide thumbs Also See for KS-242:
Table of Contents

Advertisement

Quick Links

Powered Scooter Owner's Manual
KS-242/ KS-333/ KS-343

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS-242 and is the answer not in the manual?

Questions and answers

Related Manuals for Karma KS-242

Summary of Contents for Karma KS-242

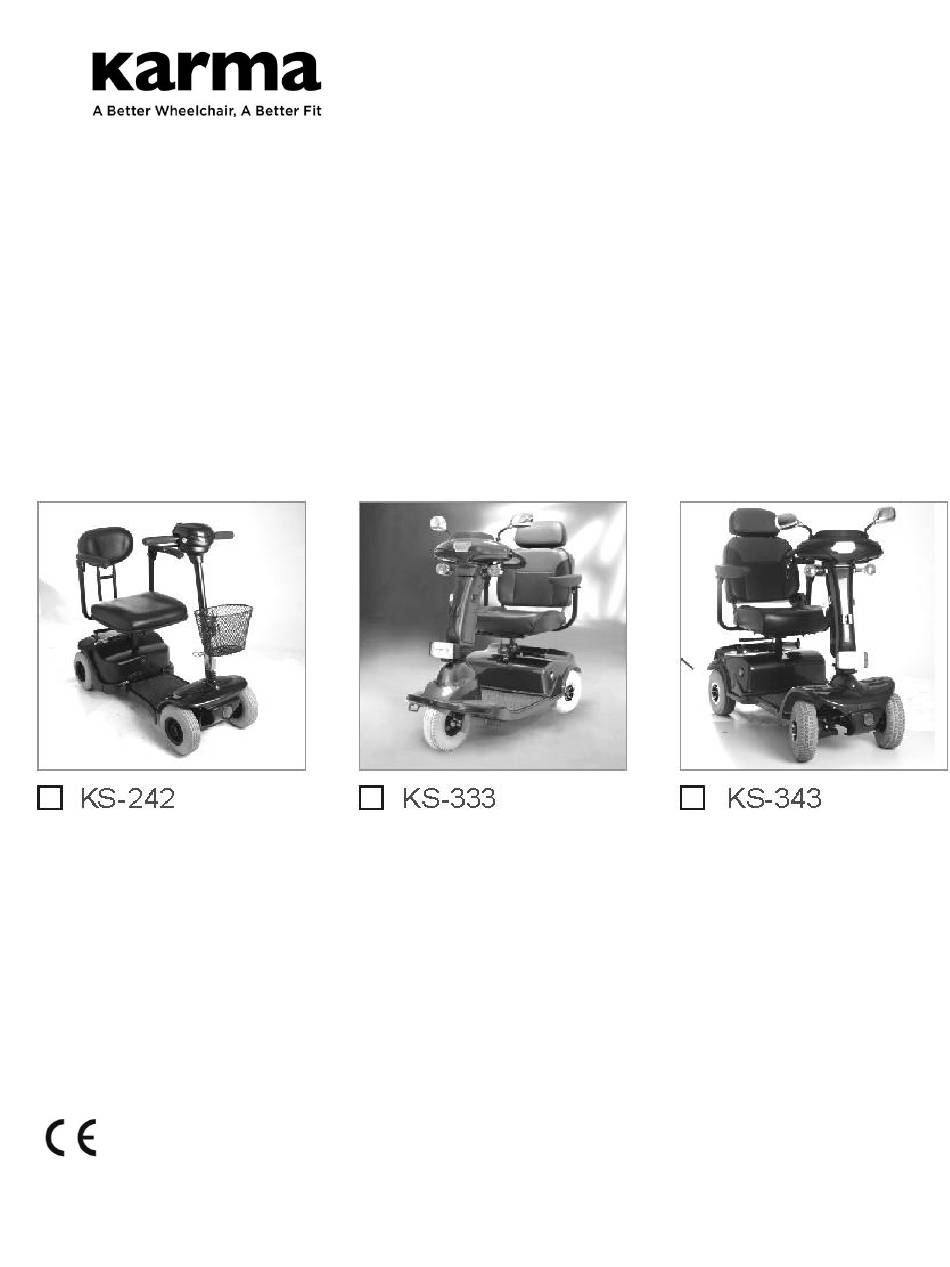

  • Page 1 Powered Scooter Owner's Manual KS-242/ KS-333/ KS-343...
  • Page 3 WITHOUT NOTICE. WARNNING As a manufacturer of power scooters, KARMA endeavors to supply a wide variety of power scooters to meet the many needs of the user. However, the responsibility of final selection of the type of power scooter to be used by an individual rests solely with the user and his/her healthcare professional capable of making such a selection.
  • Page 4 required to ensure the safe operation of this equipment by the user. Serious injury can occur in the event of a fall from a power scooter. Operating Information ● Performance adjustments should ONLY be carried out by professionals of the healthcare field or persons fully conversant with this process and the driver's capabilities.
  • Page 5 ● DO NOT use parts, accessories or adapters other than those authorized by Karma. Before attempting to sit in or exit the power scooter, REMOVE the key from the ignition.
  • Page 6  RAIN TEST ● KARMA has tested its power scooter in accordance with ISO 7176 Part 9 Rain Test. This test provides the end user or his/her attendant sufficient time to remove his/her power scooter from a rainstorm and retain operation.
  • Page 7 ● If you have any defective parts or lose any parts, please contact your dealer for repair and/or replacement. Please only use parts authorized by karma. Use of parts that are not authorized by Karma will void your warranty.
  • Page 8 ● Karma does not have an official list of service providers at this time. Please contact your dealer for service. If you cannot contact your dealer, please contact another authorized Karma dealer for service.

  • Page 9: Table Of Contents

    TABLEL OF CONTENTS 1. PREFACE ......................1 2. SAFETY......................1 2.1 Before Driving ................... 1 2.2 While Driving .................... 3 2.3 Labeling ....................6 3. EMI/RFI ......................7 4. PARTS ......................11 5. OPERATION ....................13 5.1 Control Panel ..................13 5.2 How to Operate Your Scooter ..............

  • Page 10: Preface

    This owner's manual includes operation instructions for the aspects of the vehicle, assembly instructions, and instructions on how to deal with possible accidents. This owner's manual is written for Karma Scooters: KS-242, KS 333 and KS-343. The symbols used in this manual are explained below. Pay special attention to the parts marked with these symbols.
  • Page 11 ● Be sure you are able to control and operate your scooter easily and confidently before you set the speed dial higher.  No Passengers ● KARMA Scooters are limited to one single driver. ● Do not carry passengers (including children) on your scooter.  No Hauling Heavy Goods ●...

  • Page 12: While Driving

    Figure 2.1 Figure 2.2 Figure 2.3 2.2 While Driving Please carry out daily inspections. Refer to Section 8.1 Daily Check.  General Warning ● Do not lean over the side of the vehicle as such an action may cause you to lose balance and fall.
  • Page 13 ● Do not make sudden turns when driving on gravel roads or ramps. ● The maximum surmountable obstacle height is 4 cm for KS-242 and 7 cm for KS-3 series scooters. Exceeding this obstacle height will damage your scooter and void your warranty.
  • Page 14 WARNNING Do not set the scooter in freewheel mode when on an incline or decline. If you breakdown on railroad tracks, first, check for an oncoming train. If a train is coming, get out of its way immediately! If no train is coming, set to freewheel mode and push the vehicle off the tracks.

  • Page 15: Labeling

    2.3 Labeling Please carefully read all the labeling on the scooter before driving it. Do not remove them. Protect them for future reference. WARNNING Do not operate the scooter unless the steering column is locked into position. Do not lean against or pull forward on the handlebars while mounting or dismounting the scooter.

  • Page 16: Emi/Rfi

    If the electric vehicle acts abnormally or the brake system fails, turn off the power source as soon as safely possible. Remember that the installation of non-genuine KARMA parts makes it difficult to predict what effects radio waves will have on the vehicle. (Note: it is not possible to make a direct calculation how radio waves will influence the vehicle).
  • Page 17 TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. The interference (from radio wave sources) can cause the powered vehicle to release its brakes, move by itself, or move in unintended directions. It can also permanently damage the powered vehicle's control system. The intensity of the interfering EM energy can be measured in volts per meter (V/m).
  • Page 18 5. Report all incidents of unintended movement or brake release to your powered vehicle dealer or KARMA, and note whether there was a source of EMI nearby.  Important Information 1. 20 Volts per meter (V/m) is a generally achievable and useful immunity level...
  • Page 19 against EMI (the higher the level, the greater the protection). 2. This product has an immunity level of 20 V/m without any accessories connected to it.

  • Page 20: Parts

    4. PARTS Parts Description 1. Headrest 7. Rear Casing 13. Nameplate Casing 2. Backrest 8. Rear Wheel 14. Turn Signals 3. Armrest Floorboard 15. Basket 4. Recline Lever 10. Front Wheel 16. Headlight 5.Driver's Seat 11. Handlebar 17. Front Bumper 6.
  • Page 21 18. Circuit Breaker 19. Freewheel Lever 20. Turn Signal/ Taillight 21. Anti-Tipper 22. Variable Speed Lever 23.Steering Column Adjustment Lever Figure 4.2...

  • Page 22: Operation

    5. OPERATION 5.1 Control Panel 1. Speed Dial 2. Horn Button 3. Variable Speed Levers 4. Battery Indicator 5. Turn Signal Buttons (Excluding KS-242) 6. Headlight/Taillight Button (Excluding KS-242) 7. Status Indicator 8. Battery & Diagnostics Indicator Figure 5.2 Figure 5.1 5.2 How to Operate Your Scooter...
  • Page 23 ● Pull the left variable speed lever backward with your left hand for the scooter to move backward. (KS-242: push the left variable speed lever forward with your right hand) ● A small speaker will "beep" when the vehicle is in reverse.
  • Page 24  Turn Signal Buttons (Excluding KS-242) ● The signal light will flash and a small speaker will make a "beep-beep" sound if you press either the right or left button. ● Press the button again to turn off the turn signal.
  • Page 25 WARNING While driving, recline angle could not exceed 105 degrees.  Headrest Adjustment 1. To raise the headrest, lift the headrest up to desired position. 2. To lower the headrest, push the release button and lower the headrest to desired position.
  • Page 26 For KS-242 ● When the ignition is turned on, the battery indicator will light up. The green light (with orange and red lights also lit) indicating the batteries are fully charged. Only the red light being lit indicates you batteries are out of (or nearly out of) power.
  • Page 27 ● It is recommended that you charge the batteries immediately when the battery indicator shows only three or less red lines (KS-333 and KS-343) or when only the red light is lit (KS-242). ● After charging or replacing new batteries, drive the vehicle for 2-3 minutes to make sure the batteries are fully charged.
  • Page 28 Figure 5.11 Drive Mode Figure 5.12 Freewheel Mode Figure 5.13 Drive Mode Figure 5.14 Freewheel Mode  Steering Column Adjustment For KS-333 / KS-343 ● Pull the steering column adjustment lever until its locking mechanism releases. (See Figure 5.15) ● While holding the adjustment lever in and holding on to the handlebars with both hands;...
  • Page 29 Figure 5.15 Figure 5.16 For KS-242 ● The steering column can be adjusted to four positions. ● Pull and hold the adjustment ring away from the adjustment plate. (See Figure 5.17) ● While holding the adjustment ring, adjust the steering column angle to the desired position.
  • Page 30 3. Make sure the armrests have been returned to the proper down position. 4. Turn the ignition ON. If necessary, turn on the headlight and taillight. (Excluding KS-242) 5. Check the battery indicator and make sure there is enough power for your trip(s).
  • Page 31 Speed equivalent to walking slowly on foot On an incline or decline Driving indoors or in a narrow space Equivalent to walking at a normal speed Driving outdoors on flat ground Speed equivalent to a brisk walk Over 7 Driving in an open space ATTENTION Pull the variable speed lever slowly.

  • Page 32: Batteries And Charger

    6. BATTERIES AND CHARGER 6.1 Charging the Batteries ● Charge your batteries if any of the following conditions occur. ● If you have used your scooter for more than an hour continuously. ● You've used more than one third of the total charge. ●...
  • Page 33 CAUTION Before charging, make sure to set the 115V 230V switch to match the local AC voltage. If the switch is improperly set to a lower or higher voltage position, it will cause damage to the charger, and battery, Change the 115V 230V switch settings only when charger is disconnected from AC line voltage.
  • Page 34 CAUTION ● Please follow the guidelines below to avoid accidents while charging. ● Be sure to only use a KARMA Scooter charger and charge the battery completely every time. The battery can be damaged if a non-genuine charger is used.

  • Page 35: Charger

    ● Both the charger's red and orange LEDs will be ON during charging. The orange LED will turn green when the charging is completed. ● Your Karma scooter comes with the following charger as standard: Model=HP, Type=8204B, DC24V 5A, off board, for 12V 36Ah x 2 on KS-300, Model=HP, Type=4C24040, DC24V 4A, off board, for 12V 22Ah x 2 on KS-200, series scooters.
  • Page 36 Model Battery Charger Power Cord KS-242 High power 4A Supplied KS-333 High power 5A Supplied KS-343 High power 5A Supplied NOTE: AC Power Cord (3-prong plug, 15 Ampere current rating) Figure 6.5 Charger Indicator and Status ON/OFF Indicator Status Solid Red...

  • Page 37: Batteries

    Front 1. Output Fuse 2. Output 3. Led Indicator (Power) 4. Led Indicator (Charge) Rear 5. Power Supply Switch 6. 115v/230v Switch 7. Ac Power Supply 8. Input Protection Fuse Figure 6.4 6.3 Batteries ● Do not expose the batteries to temperatures below -10 C (14 F) or above 50 C (122 F) when charging or storing the vehicle.
  • Page 38 When removing/installing batteries, keep all foreign objects, especially metal, away from battery terminals.  Removing/Installing the Batteries Always have a KARMA provider install new batteries, when moving a battery, ALWAYS use its handle. It is the most convenient method and also helps to prolong the life of the battery.
  • Page 39 The warranty and performance specifications contained in this manual are based on the use of deep cycle sealed lead acid batteries. Karma strongly recommends their use as the power source for this unit. We also recommend you go to an authorized Karma dealer to have a qualified technician perform this work.
  • Page 40 CAUTION When tightening the clamps, always use a box or crescent wrench. Pliers will round off (strip) the nuts. NEVER wiggle the terminal when tightening as the battery may be damaged. ● Remove the batteries and cable assemblies from the scooter. ●...
  • Page 41 1. Repeat steps 7-8 for the other battery. 2. Verify that all connections are correct and terminals are secure. 3. Install the new batteries with cable assemblies onto the scooter. 4. Charge the batteries. Figure 6.7 Figure 6.8  Cleaning the Batteries 1.
  • Page 42 6. Take out the battery; and 7. Clean the battery with a clean cloth. SUGGESTION If necessary, ask for help from your KARMA Scooter dealer for cleaning and replacing the batteries. Do not use the battery to charge telecom equipment or other items.
  • Page 43 powder; please clean it using warm water. WARNING If there are any cracks or leaks replace batteries IMMEDIATELY. 1. Clean the terminals and inside of the battery clamps by using a battery cleaning tool, wire brush or medium grade sandpaper. Upon completion, these areas should be shiny, not dull.

  • Page 44: Disassemble And Assemble

    7. Disassemble and Assemble 7.1 Disassemble ● Under the front side of the seat you will find a knob. Turn the knob completely off (counter-clockwise). Remove the seat by pulling it straight up until the seat post separates from the frame post. Next, on top of the casing are two smaller knobs. Again, turn them counter-clockwise until removed completely.

  • Page 45: Assembly

    Figure 7.3 Figure 7.4 7.2 Assembly 1. Pull up the front and rear frame together until the couplings on both sides match up. (See Figure 7.5) 2. Push down and the lever will lock in place. (See Figure 7.6) 3. Your scooter should look like Figure 7.7. Figure 7.5 Figure 7.6...
  • Page 46 Figure 7.7...

  • Page 47: Inspection And Maintenance

    8. INSPECTION AND MAINTENANCE 8.1 Daily Check Check the following items before driving. If you find anything abnormal, visit your KARMA Scooter dealer for further inspection before using it. Item Inspection Content ◎ Are they loose and/or making noise? Handlebars ◎...
  • Page 48 Visit a KARMA Scooter dealer for inspection and maintenance if you find anything abnormal. 8.2 Regular Maintenance Record To make sure your scooter is in good condition, visit your KARMA Scooter dealer regularly for maintenance (and keep records accordingly) every six months after purchasing. A maintenance/service fee may apply.
  • Page 49 Connection to the Electrical System Motor Operation and Noise Electromagnetic Brakes Connection to the I/△ Electrical System Transmission Freewheel Mode Lever Batteries Loose or Corroded Terminals Connection to the Electrical System Damage to the I/△ Electrical Cord/Cable Charger Charging Function and I/△...

  • Page 50: Batteries, Fuses And Tires

    (0.5A & 3A on PCBA); the other is near the batteries (5A). If the ignition is turned ON and the battery indicator does not work, the light bulbs do not light up or your scooter won’t work, have your KARMA dealer check the fuses, as one may be broken. CAUTION Ask for help from your KARMA Scooter dealer for inspecting or replacing the fuse(s), since the rear casing or control panel cover must be removed to replace a fuse.

  • Page 51: General Maintenance

    ● When the tread depth is below 0.5 mm, the tire does not have good traction. This may lead to vehicle slippage and makes braking distances much longer. Thus, go to your Karma dealer to replace the tire as soon as possible if it has less than 0.5 mm treads depth.

  • Page 52: Transporting And Storing

    SUGGESTION ● Do not directly spray water on your scooter to wash it as this could lead to a malfunction in the electric system. ● Do not use gasoline, solvents or other abrasive solutions; the casing may become deformed or damaged. WARNING After ANY adjustments, repair or service and BEFORE use, make sure that all hardware is tightened securely, otherwise injury or damage may occur.
  • Page 53 Please store the scooter in a location where it is out of direct sunlight, rain and dew. When stored for a long time, please charge the batteries to full and then disconnect the battery terminals. For more details, consult your KARMA Scooter dealer.  Removing/ Installing the Seat Please refer the components of the seat (see Figure 8.1) and follow the below...
  • Page 54 Contact your local government center for more information to ensure that you use your scooter within the laws of your region. 2. Figure 8.3 shows the location where a seat belt can be attached by your Karma service provider. They have all the tools, service manuals and technical know-how to assure your safety through a proper installation.
  • Page 55 Figure 8.4  Adjusting the Seat Height ● The seat post rests on a seat height adjustment pin that runs through the center of the frame post. There are three holes in the frame post that allow you to adjust the seat height to 17.5"(44.5 cm), 18.5"(47 cm) or 19.5"(49.5 cm).
  • Page 56 CAUTION The stability knob should not be used to adjust the seat height. Figure 8.5...

  • Page 57: Optional Accessories

    9.OPTIONAL ACCESSORIES  Folding Drink Holder - Attaches to all Karma scooters. - Collapses and adjusts to the size of the container (6-10 cm).  Cane Holder - Attaches to all Karma scooters. WARNING ● Don't use in strong winds to avoid tipping.

  • Page 58: Troubleshooting

     Status Indicator (LED) and Battery & Diagnostics Indicator ● The status indicator (KS-242 only) shows you that the scooter is switched on. It also indicates the operating status of the scooter. Turn on the ignition. A single bulb (LED) status indicator will turn on immediately.
  • Page 59 ● The Diagnostic Flash Code Feature is a factory programmed feature that allows a single status lamp or LED to display the TruCharge fault code (KS-242). This is done by pulsing/flashing the lamp on for a number of times equivalent to the number of TruCharge bars that would be flashing for a given fault.
  • Page 60 A variable speed lever fault/error is indicated. Make sure the variable speed lever is in the rest position before switching on the scooter. Possible Control System Trip 8 Bars A central relay box (controller) fault has been indicated. Contact you service agent. Electromagnetic Brake Trip 9 Bars There is a bad connection to the electromagnetic brake.

  • Page 61: Specifications

    11. SPECIFICATIONS Model KS-242 Overall Length 104.5 cm (41 inches) Overall Width 50 cm (19.6 inches) Overall Height 87 cm (34.2 inches) Total Weight 56.8 kg (125.2 lb) Weight W/O Batteries 42 kg (92.5 lb) Motor 250 W x1 pc...
  • Page 62 Max. User Weight 115 kg/253 lb (including goods) Model KS-333 Overall Length 112 cm (47 inches) Overall Width 62 cm (23 inches) Overall Height 119 cm (47 inches) Total Weight 90 kg (198 lb) Weight W/O Batteries 66 kg (145 lb) Motor 350 W x1 pc Batteries...
  • Page 63 Max. Cross Width 12.7 cm (5 inches) Max. User Weight 135 kg/300 lb (including goods) Model KS-343 Overall Length 112 cm (47 inches) Overall Width 62 cm (23 inches) Overall Height 119 cm (47 inches) Total Weight 92.2 kg (203 lb) Weight W/O Batteries 66.8 kg (147 lb) Motor...

  • Page 64: Cleaning & Recycling

    ※Drive Range (the maximum driving distance per complete charge) is estimated based on the following conditions: 20°C (68°F), an 80 kg (176 lb) driver, brand new fully charged batteries and a constant driving speed of 10 km/hr (6.2 mph). KS-242 Static stability test result: Test Requirement Min.
  • Page 65 periodically (if not daily), especially after it is used in the rain or snow. We suggest that you don't use your scooter in the rain or snow. If you are traveling and get caught in the rain, we suggest you try to find a shelter and turn OFF your scooter while waiting it out.

  • Page 66: Warranty

    2. The warranty repair can be performed by authorized KARMA Scooter dealers only. 3. KARMA is not responsible for the transportation costs for repair and replacement. 4. Replaced parts will be the property of KARMA.  Warranty Duration and Parts Covered by the Warranty...
  • Page 67 (chemicals, tree sap, et cetera), stones, hail, windstorms, lighting, floods and so on; 8. Change of any material or component parts not authorized by KARMA (Don't carry objects that may lead to the scooter being unbalanced); 9. The scooter shall not be pulled or pushed by another vehicle when there is a person on the scooter or the rear wheels are not set to the freewheel mode;...
  • Page 68 13.2.5 Transfer of Warranty Rights If you purchase a second-hand KARMA Scooter while it is still with in the warranty period, bring the Owner's Manual and the vehicle to the dealership where the scooter...
  • Page 69 Warranty Form (You may photocopy this from) Full Name Gender Date of Birth Address: □KS-242 □KS-333 □KS-343 Model Serial Number Date of Purchase Purchaser Signature Dealer's Data Name of the Store Phone Number and Address If you have any suggestions on how to improve our products, please don't hesitate contacting your local dealer to let us know what you think of your scooter.
  • Page 72 Karma: Leading the way, all the way. NATIONAL AGENT: SOLD AND SERVICED BY: KARMA MEDLCAL PRODUCTSCO.,LTD. www.karmamedical.com E-mail: globalsales@karma.com.tw Karma reserves the right to modify information herein without further notice. 110404050004 104-45003 Rev.10 2017.08...
