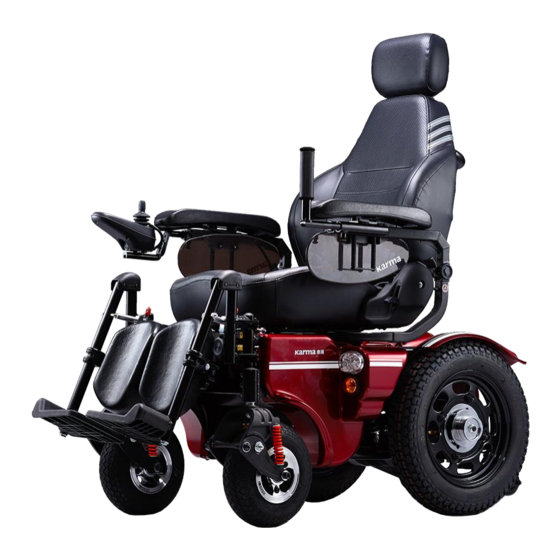

Karma Saber Series User Manual
  1. Manuals
  2. Brands
  3. Karma Manuals
  4. Scooter
  5. Saber Series
  6. User manual

Karma Saber Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

User manual
Saber Series
、
、
(KP-45.5
KP-45.5T
KP-45.5TR)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Saber Series and is the answer not in the manual?

Questions and answers

Related Manuals for Karma Saber Series

Summary of Contents for Karma Saber Series

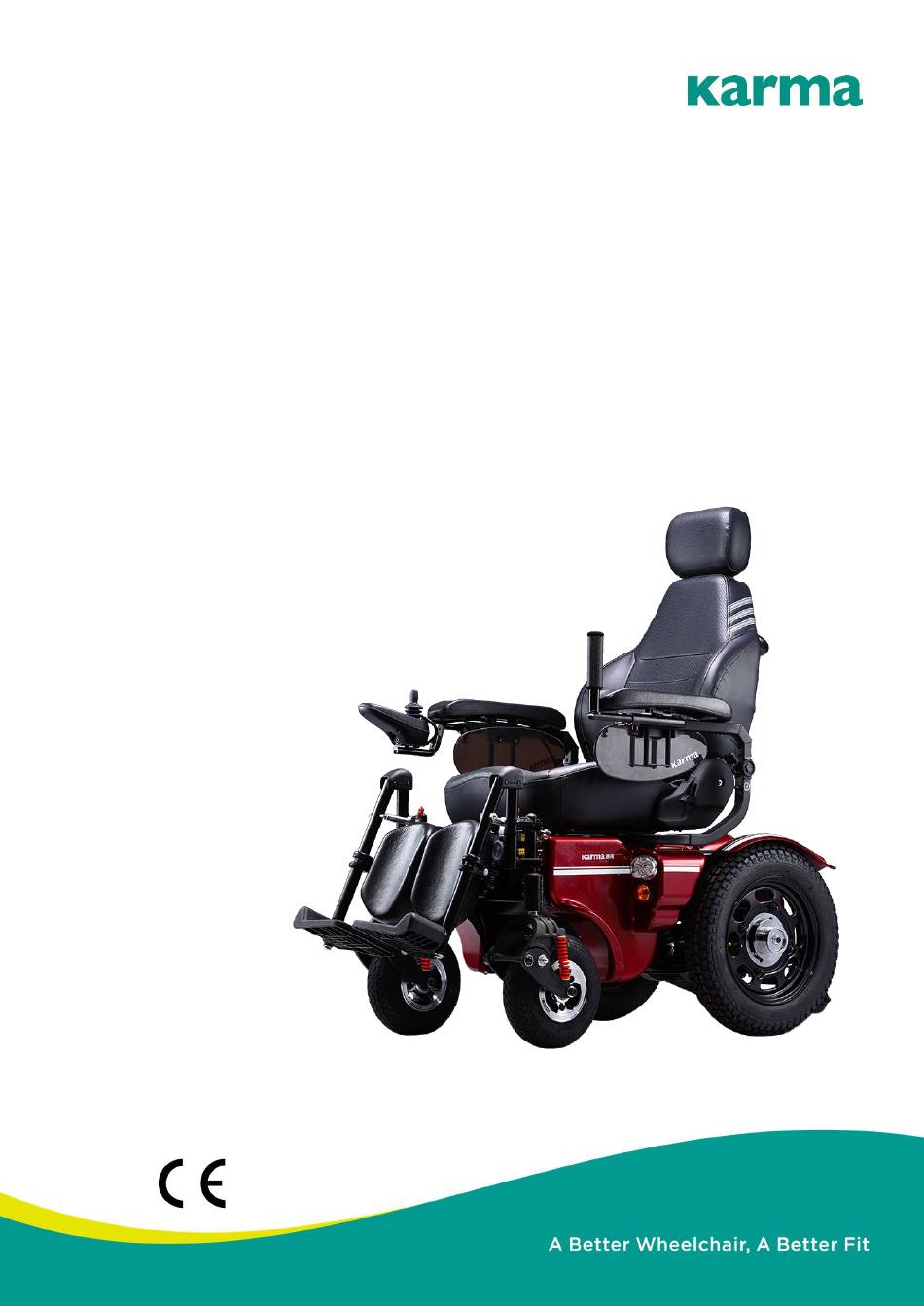

  • Page 1 User manual Saber Series 、 、 (KP-45.5 KP-45.5T KP-45.5TR)
  • Page 2 ● As of this date, the Saber Series has NOT been tested for safety in collisions according to ISO-7176-19:2001. Therefore, the Blazer series CAN NOT be used as seats in any vehicles.
  • Page 3 ● DO NOT use parts, accessories or adapters other than those authorized by Karma. Before attempting to sit in or exit the powered wheelchair, turn the power OFF.
  • Page 4 ● As of this date, the KP-45.5 series have NOT been tested for safety in collisions according to ISO 7176-19. Therefore, the KP-45.5 series cannot be used as seats in any vehicles. That is, KARMA recommends that users are NOT transported in any vehicle while seated in the wheelchair. In the case of accident or a sudden stop, the user could be thrown from the wheelchair and get injured.
  • Page 5 ● The warranty and performance specifications contained in this manual are based on the use of deep cycle sealed lead acid batteries. ● KARMA strongly recommends their use as the power source for this unit. (Refer to Section 6) ● Carefully read the battery and charger information prior to installing, servicing or operating your wheelchair.
  • Page 6 ● If you have any defective parts or lose any parts, please contact your dealer for repair and/or replacement. Please only use parts authorized by karma. Use of parts that are not authorized by Karma will void your warranty.
  • Page 7 ● Karma does not have an official list of service providers at this time. Please contact your dealer for service. If you cannot contact your dealer, please contact another authorized Karma dealer for service.

  • Page 8: Table Of Contents

    TABLE OF CONTENTS 1. PREFACE ................................1 2. SAFETY ..................................2 2.1 B ............................. 2 EFORE RIVING 2.2 T ..............................2 RAFFIC ULES 2.3 P ............................2 RACTICE RIVING 2.4 N ............................. 2 ASSENGERS 2.5 N ........................2 AULING EAVY OODS 2.6 R ..................................
  • Page 9 7. INSPECTION AND MAINTENANCE ....................33 7.1 D ..............................33 AILY HECK 7.2 R ......................34 EGULAR AINTENANCE ECORD 7.3 T ................................35 IRES 7.4 G ......................... 35 ENERAL AINTENANCE 7.5 S ..................36 UGGESTED AINTENANCE ROCEDURES 7.6 T ....................... 37 RANSPORTING AND TORING 7.7 KP-45.5T(R) I...

  • Page 10: Preface

    1.1 This owner's manual includes operation instructions for the aspects of the wheelchair, assembly instructions, and instructions on how to deal with possible accidents. This owner's manual is written for Karma powered wheelchair(s): Saber series. 1.2 The symbols used in this manual are explained below. Pay special attention to the parts marked with these symbols.

  • Page 11: Safety

    KARMA wheelchair is limited to one driver. Do not carry passengers (including children) on your wheelchair. 2.5 No Hauling Heavy Goods Do not use this wheelchair to carry or haul heavy goods. The maximum weight that the Saber series can carry, including any items carried on the powered wheelchair, is...

  • Page 12: Rain

    stated beside "Max. User Weight" in Section 10. SPECIFICATIONS. 2.6 Rain This product is not guaranteed to be water resistant. Please do not drive in the rain, through puddles or spray water to clean this product. (See Figure 2.1) 2.7 While Driving Please carry out daily inspections.

  • Page 13: Ramps, Inclines And Drops

    2.12.10 Again, descending obstacles should be done perpendicularly. (See Figure 2.6) 2.12.11 Karma does not design wheelchairs to take jumps over or off obstacles. Doing so will void your warranty. WARNING ●Do not set the wheelchair in freewheel mode when on an incline or...

  • Page 14: Maximum User Weight Limit

    2.13 Maximum User Weight Limit 2.13.1 Refer to "Max. User Weight" in Section 10. SPECIFICATIONS. 2.13.2 Loading exceeding maximum capacity can damage your wheelchair and cause malfunctions yielding a safety hazard. The warranty does not cover damage caused by improper operation of the wheelchair. (Figure 2.1) (Figure 2.2) (Figure 2.3)

  • Page 15: Saber Series Labeling

    2.15 Saber Series Labeling Please carefully read all the labeling on the wheelchair before driving it. Do not remove them. Protect them for future reference.

  • Page 16: Emi/Rfi

    CAUTION ●It is very important that you read this information regarding the possible effects of electromagnetic interference on your powered KARMA wheelchair. 3.1 Electromagnetic Interference From Radio Wave Sources 3.1.1 Powered vehicles may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations (Radio Frequency Interference), TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones.

  • Page 17: The Sources Of Radiated Emi Can Be Broadly Classified Into Three Types

    3.2 The sources of radiated EMI can be broadly classified into three types. 3.2.1 Hand-held portable transceivers (transmitter-receivers) with the antenna mounted directly on the transmitting unit, such as citizens band (CB) radios, walkie-talkies, security and fire or police transceivers, cellular telephones and other personal communication devices;...
  • Page 18 EMI. There is no easy way to evaluate their effect on the overall immunity of the powered vehicle. 3.4.5 Report all incidents of unintended movement or brake release to your powered vehicle dealer or KARMA, and note whether there was a source of EMI nearby.

  • Page 19: Parts

    4. PARTS 1. Headrest 9. Headlight 2. Backrest 10. Turn Signal 3. Armrest 17. Driver's Seat 11. Caster 4.Armrest Lock Joint 18. Footrest Assembly 12. Front Fork 5. Recline Lever 19. PU Calf Pad 13. Handle 6. Shock Absorbing 20. Footplate 14.
  • Page 20 1. Push Handle Bar 3. Taillights 2. Turn Signals 4. Circuit Breaker Recline Lever KP-45.5(T) Recline Actuator Tilt Actuator KP-45.5(TR) (KP-45.5TR)

  • Page 21: Operation

    5. OPERATION KP-45.5 Control Panel (Figure 5.1) KP-45.5T(R) Control Panel (Figure 5.2) 1. Battery Gauge 5. Headlight / 10. Hazards 15. Seat Function 2. ON/OFF Button Taillight Button Indicator Button 3. Horn Button 6. Speed Indicator 11. Hazards Button 16. Tilt Indicator 4.

  • Page 22: How To Operate Your Wheelchair

    5.1 How to Operate Your wheelchair Note: Before using the Saber series, make sure that the following parts are assembled as below. In the cases that the following parts are not assembled, do complete the assembly refering to the figures. Should you have any question about the assembly, please contact your authorized Karma dealer.
  • Page 23 as detailed below. 5.1.2.1 To lock the wheelchair. While the control system is switched on, depress and hold the on/off button. After 1 second the control system will beep. Now release the on/off button. Deflect the joystick forwards until the control system beeps. Deflect the joystick in reverse until the control system beeps.
  • Page 24 Speed Equivalencies and Speed Scale Recommended Circumstances Speed equivalent to walking slowly on foot On an decline Driving indoors or in a narrow space Equivalent to walking at a normal speed Driving outdoors on flat ground Speed equivalent to a brisk walk Driving in an open space On an incline 5.1.5 To Stop...
  • Page 25 5.1.9 Horn Button The horn will sound for as long as the button is pressed. 5.1.10 Battery Gauge 5.1.10.1The Battery Gauge is used to indicate power on and provides an estimate of the remaining battery capacity. Any green LEDs lit indicate well-charged batteries.
  • Page 26 And release the lever when you have set the angle. CAUTION ● For the models of the Saber series that has the function of manual reclining. Note that the gas strut is filled with high pressure gas. Avoid the things as follows: Do not operate it when the ambient temperature is higher than 60℃...
  • Page 27 ● The drive range will be shortened when driving frequently on slopes or uneven ground, as this consumes more battery power. 5.1.15 Freewheel Hubs The Saber series is equipped with a freewheel hub device to allow for manual pushing of the powered wheelchair if required. See Figure 5.3 for operation instructions.

  • Page 28: How To Adjust Your Wheelchair

    5.1.16 Auxiliary Brake system-hand brake system 5.1.16.1To stop the wheelchair in an emergency or when using the powerchair in freewheel, you can use the hand brake as auxiliary braking system (see Figure 5.4). Pull the brake lever tightly (see Figure 5.5). And then push the lock button to fix the brake (see Figure 5.6).
  • Page 29 Allen Wrench included in your KARMA Tool Kit to loosen the screws at the under the footplate. (See Figures 5.9) Then, adjust it to the desired length, and retighten the screws.
  • Page 30 (See Figure 5.20) 5.2.3.7 Use the largest Allen Wrench included in the KARMA Tool Kit to remove the hex bolt and adjust the armrest width. (See Figure 5.21) 5.2.3.8 There are three holes to adjust the armrest width between 16", 18"...
  • Page 31 (Figure 5.16) (Figure 5.17) (Figure 5.18) (Figure 5.19) (Figure 5.20) (Figure 5.21) 5.2.3. Flip Back Armrest 5.2.4.1 By pressing Armrest Lock Joint lever, the armrest can be lifted backwards. (Figure 5-22, Figure 5-23) 5.2.4.2 Use the #4 Allen key to loosen the screws. Adjust the armrest height and re-tighten the screws.
  • Page 32 ●Do not remove the driver's seat from the wheelchair without first detaching the controller from the armrest or detaching the controller with the armrest. KARMA is not responsible for damage to the cabling or connection points caused by trying to remove the seat while the...
  • Page 33 10 cm. 5.2.8.5 Re-tighten the bolts. 5.2.8.6 Tilt the seat down and relighted the knob bolt. 5.2.9 Suspension Anti-tippers Use the tool supplied in your KARMA Tool Kit to attach the suspension anti-tippers. (See Figure 5.19)
  • Page 34 (Figure 5.22) (Figure 5.23) CAUTION ●Do not remove the anti-tippers on your wheelchair to prevent injury. 5.2.10 Suspension System Your powered wheelchair comes with rear shock absorbers as well as shock absorbers on the anti-tippers. If the shock absorbers need to be adjusted, please go to your authorized service provider.

  • Page 35: Batteries And Charger

    6. BATTERIES AND CHARGER 6.1 Charging the Batteries Before you attempt charging, ensure you read and understand the instruction manual supplied with the battery charger, and you choose the correct input voltage for battery charger. 6.2 Charge your batteries if any of the following conditions occur 6.2.1 If you have used your scooter for more than an hour continuously.
  • Page 36 CAUTION ●Please follow the guidelines below to avoid accidents while charging. ●Be sure to only use a KARMA approved battery charger and charge the battery completely every time. The battery can be damaged if a non-genuine charger is used.

  • Page 37: Charger

    ● Do NOT attempt to recharge the batteries while the powered wheelchair is in operation. 6.4 Charger The battery charger supplied by Karma is for indoor use only, it must be protected from moisture and external heat source. CAUTION ●Before charging, make sure to set the 115V 230V switch to match the local AC voltage.

  • Page 38: Batteries

    Saber series NOTE: Charge batteries daily. It is critical not to let them run low at any time. NOTE: Karma recommends that both batteries be replaced if one battery is defective. WARNING ● NEVER allow any of your tools and/or battery cables to contact BOTH terminal posts at the same time.

  • Page 39: Cleaning The Batteries

    CAUTION ●When tightening the clamps, always use a box or crescent wrench. Pliers will round off (strip) the nuts. NEVER wiggle the terminal when tightening, as the battery may be damaged. 1. Battery Wiring Connector 2. Battery Cable 3. Battery Terminal Insulator 4.
  • Page 40 SUGGESTION ● If necessary, ask for help from your KARMA wheelchair dealer for cleaning and replacing the batteries. ● Do not use the battery to charge telecom equipment or other items.. ● Battery capacity will vary with outside conditions; the maximum drive range will decrease in the winter.
  • Page 41 WARNING ● There are many risks involved with improper disposal of batteries, whether damaged or not. Batteries may contain heavy metals and be considered hazardous waste. ● Many regions around the world now strictly enforce laws to help protect our environment. By not disposing of batteries properly, you may be liable for fines from your local through national government.

  • Page 42: Inspection And Maintenance

    Are there any cracks or other damage to the tires? Check the tire tread depth and air pressure. Other Is there any abnormal motor noise? CAUTION ●Visit a KARMA wheelchair dealer for inspection and maintenance if you find anything abnormal.

  • Page 43: Regular Maintenance Record

    7.2 Regular Maintenance Record In order to ensure that your wheelchair is in good condition, please contact Karma authorized dealers regularly and make further wheelchair inspection and maintenance records. We recommend that you inspect and maintain your wheelchair every six months. A maintenance/service fee may apply.

  • Page 44: Tires

    ● When the tread depth is below 0.5 mm, the tire does not have good traction. This may lead to vehicle slippage and makes braking distances much longer. Thus, go to your Karma dealer to replace the tire as soon as possible if it has less than a 0.5 mm tread depth.

  • Page 45: Suggested Maintenance Procedures

    or an accident. 7.4.5 Please use a soft and dry cloth to keep your wheelchair clean. Use moderate or mild detergent to clean the wheelchair, if necessary. CAUTION ●Before performing any maintenance, be sure to turn the power OFF and unplug the charger if connected.

  • Page 46: Transporting And Storing

    WARNING ● As of this date, Saber series can NOT be used as seats in any vehicles. That is, KARMA recommends that users are NOT transported in any vehicle while seated in the wheelchair. In the case of accident or a sudden stop, the user or passengers may be at risk of getting injury.
  • Page 47 (Figure 7.1) (Figure 7.2) (Figure 7.3) (Figure 7.4) (Figure 7.5) (Figure 7.6) CAUTION ● Before lubrication, do clean the area. ● When lubricating, use just 1-2 drops of oil(not grease), as extra oil will fall on the rug and pollution as a result of over-lubrication. ●...

  • Page 48: Optional Accessories

    8.1 Cushion Reduces pressure, lowers temperature, fits any shape and prevents bedsores. Suitable for: all wheelchair users, stroke patients, spinal cord injuries, office use and driving. 8.2 75Ah Batteries Larger capacity for longer driving distance. Only suitable for the Saber series.

  • Page 49: Troubleshooting

    9. TROUBLESHOOTING Trouble or Problems with Your Wheelchair You can inspect the following before taking your wheelchair to a KARMA wheelchair dealer. Problem Checking Points and Corrective Action Is the power turned OFF? Turn ON the power. Do the batteries still have power?
  • Page 50 9.1 VRII Controller, Battery & Diagnostics Indicator The following table indicates what the gauge will display for any given state. Indication Status Meaning What to do The battery needs charging Check the connections or there is a bad connection to the battery. If the 1signal to the battery.

  • Page 51: Specifications

    10. SPECIFICATIONS Product Model KP-45.5 Nominal seat width (mm) Front x Rear wheel size (in) 9 x 16 Maximum user weight (kg) Overall length with legrest (mm) 1100 ~ 1670 1085 ~ 1540 Overall width (mm) 670 ~ 750 705 ~ 730 Overall height (mm) 875 ~ 1265 895 ~ 1335...
  • Page 52 * The actual product specifications may vary according to different configurations. * Karma reserves the right to modify information herein without further notice. * If you want to know more about the measurement methods of wheelchair specifications, please scan the QR code to watch the instructions on the Karma website.
  • Page 53 Product Model KP-45.5T KP-45.5TR Nominal seat width (mm) Front x Rear wheel size (in) 9 x 16 Maximum user weight (kg) Overall length with legrest (mm) 1120 ~ 1430 1120 ~ 1600 Overall width (mm) 670 ~ 690 670 ~ 690 Overall height (mm) 1000 ~ 1340 990 ~ 1340...
  • Page 54 * The actual product specifications may vary according to different configurations. * Karma reserves the right to modify information herein without further notice. * If you want to know more about the measurement methods of wheelchair specifications, please scan the QR code to watch the instructions on the Karma website.

  • Page 55: Cleaning & Recycling

    11. CLEANING & RECYCLING 11.1 Cleaning 11.1.1 In order to lengthen the life of your wheelchair, it is suggested that you clean the wheelchair periodically (if not daily), especially after it is used in the rain or snow. 11.1.2 We suggest that you don't use your wheelchair in the rain or snow. 11.1.3 If you are traveling and get caught in the rain, we suggest you try to find shelter and turn OFF your wheelchair while waiting it out.
  • Page 56 11.2.3 There are many organizations in many countries you can find on the internet that will accept used goods for charity or disassemble electronic equipment and batteries to recycle them. 11.2.4 Please search the information highway to help less fortunate individuals and protect our planet for future generations.

  • Page 57: Warranty

    12.2.7 Warranty maintenance is the repair or replacement according to the condition of the parts, and replaced parts will be the property of KARMA. 12.2.8 KARMA reserves the right to modify product specifications without further notice; KARMA is not responsible for any changes to product specifications.

  • Page 58: The Responsibilities Of The User

    12.6 Transfer of Warranty Rights If you purchase a second-hand KARMA wheelchair while it is still within the warranty period, bring this user manual and the wheelchair to the authorized dealer and perform necessary product inspection, maintenance and warranty inheritance...
  • Page 59 □ □ Gender: Male Female Date of Birth: Year Month Address: Model: KARMA Saber Series Serial Number: Date of Purchase: Year Month Purchaser Signature: Dealer's Data Name of the Store: Phone No. and Address: If you have any suggestions on how to improve our products, please don't hesitate contacting your local dealer to let us know what you think of your wheelchair.
  • Page 60 (110404050022) Release Date: Jul. 2021 V.10...

This manual is also suitable for:

Saber kp-45.5Saber kp-45.5tSaber kp-45.5tr
