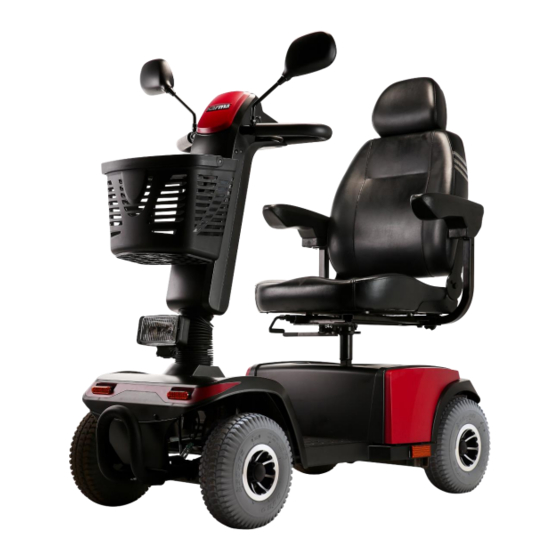

Karma KS-343.2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
KS-343.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS-343.2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Karma KS-343.2

Summary of Contents for Karma KS-343.2

  • Page 1 User manual KS-343.2...
  • Page 2 WARNING ● As a manufacturer of powered scooters, KARMA endeavors to supply a wide variety of powered scooters to meet the many needs of the user. However, the responsibility of final selection of the type of powered scooter to be used by an individual rests solely with the user and his/her healthcare professional capable of making such a selection.
  • Page 3 Operating Information ● Performance adjustments should ONLY be made by a dealer, healthcare professional, or technical personnel. Incorrect settings could cause injury to the driver or bystanders and damage to the powered scooter and surrounding property. ● To determine and establish your particular safety limits, practice bending, reaching, mounting and dismounting activities in several combinations in the presence of a qualified healthcare professional BEFORE attempting active use of the powered scooter.
  • Page 4 ● DO NOT sit in the powered scooter within a moving vehicle. WARNING ● KS-343.2 can NOT be used as seats in any vehicles. That is, KARMA recommends that users are NOT transported in any vehicle while seated in the scooter. In the case of accident or a sudden stop, the user or passengers may be at risk of getting injury.
  • Page 5 ● The warranty and performance specifications contained in this manual are based on the use of deep cycle sealed lead acid batteries. ● KARMA strongly recommends their use as the power source for this unit. (Refer to Section 6) ● Carefully read the battery and charger information prior to installing, servicing or operating your scooter.
  • Page 6 Karma service provider. Your Karma service provider has the necessary service manual for your scooter. ● If you have any defective parts or lose any parts, please contact your dealer for repair and/or replacement. Please only use parts authorized by karma. Use of parts...
  • Page 7 Karma scooter in top performance. ● Check the warranty section of this manual to find out what Karma guarantees and the maintenance service and parts that are not covered by the warranty.

  • Page 8: Table Of Contents

    TABLE OF CONTENTS 1. PREFACE ................................. 1 2. SAFETY................................... 2 2.1 Before Driving ............................2 2.2 Traffic Rules ..............................2 2.3 Practice Driving ............................2 2.4 No Passengers ............................2 2.5 No Hauling Heavy Goods ........................2 2.6 Rain/ Snow ..............................3 2.7 While Driving ..............................
  • Page 9 5.10 Headrest Adjustment ........................16 5.11 Battery Indicator ..........................16 5.12 How to Set the Freewheel Mode ..................... 18 5.13 Steering Column Adjustment ....................19 5.14 Starting and Driving ......................... 19 5.15 To Stop ..............................20 6. BATTERIES AND CHARGER ........................21 6.1 Charging the Batteries........................

  • Page 10: Preface

    1.1 This owner's manual includes operation instructions, assembly instructions, and instructions on how to deal with possible accidents. This owner's manual is written for Karma powered scooter. 1.2 The symbols used in this manual are explained below. Pay special attention to the parts marked with these symbols.

  • Page 11: Safety

    2.3.4 Be sure you are able to control and operate your scooter easily and confidently before you adjust the speed higher. 2.4 No Passengers KARMA scooter is limited to one driver. Do not carry passengers (including children) on your scooter. 2.5 No Hauling Heavy Goods Do not use this scooter to carry or haul heavy goods.

  • Page 12: Rain/ Snow

    kg (6.6 lb). 2.6 Rain/ Snow This product is not guaranteed to be water resistant. Do not drive in the rain, through puddles or spray water to clean this product. 2.7 While Driving Please carry out daily inspections. Refer to Section 7.1 DAILY CHECK. 2.8 General Warning Do not lean over the side of the scooter as such an action may cause you to lose balance and fall.

  • Page 13: Ramps, Inclines And Drops

    2.12.7 Please lower your speed when driving down a hill. 2.12.8 Do not make sudden turns when driving on gravel roads or ramps 2.12.9 The maximum surmountable obstacle height is 50 mm (2 in) for KS-343.2 scooters. Exceeding this obstacle height will damage your scooter and void your warranty.

  • Page 14: Maximum User Weight Limit

    WARNING ●Do not set the scooter in freewheel mode when on an incline or decline. ●If you breakdown on railroad tracks, first, check for an oncoming train. If a train is coming, get out of its way immediately! If no train is coming, set the scooter in freewheel mode and push the scooter off the tracks.

  • Page 15: Series Labeling

    2.15 Series Labeling Please carefully read all the labeling on the scooter before driving it. Do not remove them. Protect them for future reference. Please refer to Section 4. Parts for the name and the position of each parts. (ex. circuit breaker) And you can find the below labels at the position specified.
  • Page 16 ● If the electric vehicle acts abnormally or the brake system fails, turn off the power source as soon as safely possible. ● Remember that the installation of non-genuine KARMA parts makes it difficult to predict what effects radio waves will have on the vehicle.

  • Page 17: Emi/Rfi

    CAUTION ● It is very important that you read this information regarding the possible effects of electromagnetic interference on your electric KARMA Scooter 3.1 Electromagnetic Interference From Radio Wave Sources 3.1.1 Powered vehicles may be susceptible to electromagnetic interference (EMI),...

  • Page 18: The Three Sources Of Radiated Emi

    3.2 The three sources of radiated EMI 3.2.1 Hand-held portable transceivers (transmitter-receivers) with the antenna mounted directly on the transmitting unit, such as citizens band (CB) radios, walkie-talkies, security and fire or police transceivers, cellular telephones and other personal communication devices; SUGGESTION ●...

  • Page 19: Warnings

    3.5 Important Information 20 volts per meter (V/m) is a generally achievable and useful immunity level against EMI (the higher the level, the greater the protection). Karma KS-343.2 scooters have an immunity level of 20 V/m without any accessories connected to it.

  • Page 20: Parts

    4. PARTS Parts Description 13. Front Bumper 1. Headrest 7. Floorboard (Optional) 2. Backrest 8. Rear View Mirror 14. Front Caster 3. Armrests 9. Handlebar 4. Driver's Seat 10. Basket (Optional) 5. Slide Lever 11. Headlight 6. Drive Wheel 12. Turn Signal...
  • Page 21 15. Circuit Breaker 19. Adjustment lever for steering column 16. Turn Signal/ Taillight 20. Bag Hook (Optional) 17. Anti-Tippers 21. Freewheel Lever 18. Swivel Lever 22. Rear Bumper (Optional)

  • Page 22: Operation

    5. OPERATION Control Panel 1. Battery & Diagnostics Indicator 5. Turn Signal Button (Right) 2. Headlight/ Taillight Button 6. Horn Button 3. Turn Signal Button (Left) 7. Accelerator 4. Speed Dial 5.2 How to Operate Your Scooter 5.1.1 Ignition Insert the key and turn the key clockwise to switch your scooter ON.

  • Page 23: Speed Dial

    Please accelerate slowly while driving carefully ● Due to the higher speeds of KS-343.2 scooter, be careful not to make too tight of a turn. Hard turns at high speeds may cause your scooter to roll or tip.

  • Page 24: Horn Button

    5.5.2 Press the button again to turn off the turn signal. 5.6 Horn Button 5.6.1 The horn will sound for the duration of time when the button is pressed. 5.7 Headlight/Taillight Button 5.7.1 The headlight and taillight will be turned on when this button is pressed. Push the button again and the lights will turn off.

  • Page 25: Headrest Adjustment

    WARNING ● While driving, the recline angle could not exceed 105 degrees. CAUTION ●Be sure to rotate the seat to the forward position and the seat locks into place before driving. 5.10 Headrest Adjustment 5.10.1 To raise the headrest, lift the headrest up to the desired position. 5.10.2 To lower the headrest, push the release button and lower the headrest to the desired position.
  • Page 26 5.11.2 The remaining power shown by the battery indicator will vary according to the actual driving time and how you drive. Repeated starting, stopping and climbing will consume more power and drain your batteries faster than steady, conservative driving. Figure 5.6 SUGGESTION ●...

  • Page 27: How To Set The Freewheel Mode

    (See Figure 5.8) Figure 5.7 Drive Mode Figure 5.8 Freewheel Mode KS-343.2 with 4-wheel suspension system 5.12.3 Drive Mode: pull the lever completely towards the rear and the scooter can be driven by motor power. (See Figure 5.9) 5.12.4 Freewheel Mode: pull the lever completely towards the front of the scooter...

  • Page 28: Steering Column Adjustment

    5.13 Steering Column Adjustment 5.13.1 Pull down the lever until its locking mechanism releases. 5.13.2 While holding the adjustment lever, you can raise or lower the steering column to the desired position. (See Figure 5.11) 5.13.3 When you release the adjustment lever; the steering column will lock in place. (See Figure 5.12) Figure 5.11 Figure 5.12...

  • Page 29: To Stop

    ● Do not set the speed dial on high while driving indoors. ● Do not adjust the speed dial while driving. A sudden change to the highest speed may endanger you and cause failure to your scooter. ● Do not place magnetic devices near the control panel as this may affect the operation of your scooter.

  • Page 30: Batteries And Charger

    6. BATTERIES AND CHARGER 6.1 Charging the Batteries Before you attempt charging, ensure you read and understand the instruction manual supplied with the battery charger, and you choose the correct input voltage for battery charger. 6.2 The Conditions of Battery Charging 6.2.1 If you have used your scooter for more than an hour continuously.
  • Page 31 ● Please follow the guidelines below to avoid accidents while charging. 1. Be sure to only use a KARMA Scooter charger and charge the battery completely every time. The battery can be damaged if a non-genuine charger is used.

  • Page 32: Charger

    WARNING ● Keep your scooter away from flammable objects while charging, as it may lead to fire or explosion of the battery. ● Since the battery may produce hydrogen, do not smoke while charging and charge in a well-ventilated area. ●...

  • Page 33: Batteries

    Indicator Status LED (OFF) Abnormal Wiring Orange Charging Blinking Orange and Green Almost Fully Charged Solid Green Fully Charged Front 1. Output Plug 2. Power Indicator: Red: Power on 3. Led Indicator Orange Light On: Charging Green Light On: Fully Charged Rear 4.

  • Page 34: Removing/ Installing The Batteries

    6.6 Removing/ Installing the Batteries Always have a KARMA provider install new batteries, when moving a battery, ALWAYS hold it by its handle. It is the most convenient method and also helps to prolong the life of the battery. DO NOT tip the batteries. Keep the batteries in an upright position.
  • Page 35 WARNING ● The warranty and performance specifications contained in this manual are based on the use of deep cycle sealed lead acid batteries. Karma strongly recommends their use as the power source for this unit. We also recommend you go to an authorized Karma dealer to have a qualified technician perform this work ●...
  • Page 36 WARNING ● Always connect the black cable to the negative (-) terminal first. Otherwise, injury may occur. ● Dispose of unwanted batteries according to federal, state, and local regulations. Do not burn the batteries. Batteries should be recycled. Contact authorized dealers for more information. ●...

  • Page 37: Cleaning The Batteries

    6.7.5 Take out the battery 6.7.6 Clean the battery with a clean cloth SUGGESTION ● If necessary, ask for help from your KARMA scooter dealer for cleaning and replacing the batteries ● Do not use the battery to charge telecom equipment or other items..
  • Page 38 WARNING ● Do NOT allow conductive material such as a wrench to join the two battery terminals. This will result in a short that can cause burns to you and damage the battery. ● Most batteries are not sold with instructions. However, warnings are frequently noted on top of the batteries.
  • Page 39 streams and rivers destroying ecosystems and poisoning local water resources. ● Improper disposal of batteries may also cause injury to unsuspecting others that come in contact with them. If you come in contact with fluids or corroded powder from a battery, rinse with water and contact a physician if necessary.

  • Page 40: Inspection And Maintenance

    Tires Check the tire tread depth and air pressure. Is there any abnormal noise? Other Is there any oil leakage from the transmission box? CAUTION ● Visit a KARMA Scooter dealer for inspection and maintenance if you find anything abnormal.

  • Page 41: Regular Maintenance Record

    7.2 Regular Maintenance Record In order to ensure that your wheelchair is in good condition, please contact Karma authorized dealers regularly and make further wheelchair inspection and maintenance records. We recommend that you inspect and maintain your wheelchair every six months. A maintenance/service fee may apply.

  • Page 42: Batteries, Fuses And Tires

    7.3.2.3 If the ignition is turned ON and the battery indicator does not work, the light bulbs do not light up or your scooter won't work, have your KARMA dealer check the fuses as one of them may be broken.

  • Page 43: General Maintenance

    ● traction. This may lead to vehicle slippage and makes braking distances much longer. Go to your Karma dealer to replace the tire as soon as possible if it has less than a 0.5 mm treads depth. The tire pressure must be kept at between 40-50 PSI (approx. 1.8 kg/cm ●...

  • Page 44: Maintenance Procedures

    7.4.3 Please take the vehicle to an authorized KARMA Scooter dealer for repairs and adjustments. Improper adjustments could lead to scooter malfunction or an accident. 7.4.4 Please use a soft and dry cloth to keep your scooter clean. Use moderate or mild detergent to clean the scooter, if necessary.

  • Page 45: Transporting And Storing

    KARMA Scooter dealer. WARNING ● KS-343.2 can NOT be used as seats in any vehicles. The users are NOT transported in any vehicle while seated in the scooter. In the case of accident or a sudden stop, the user or passengers may be at risk of getting injury.

  • Page 46: Removing The Seat

    7.8.2 Figure 7.2 shows the location where a pelvic belt can be attached by your Karma service provider. They have all the tools, service manuals and technical know-how to assure your safety through a proper installation. Karma does...

  • Page 47: Adjusting The Seat Height

    Figure 7.2 7.9 Adjusting the Seat Height 7.9.1 The seat post rests on a seat height adjustment bolt that runs through the center of the frame post. There are three holes in the frame post that allow you to adjust the seat height to 17.5"(445 mm), 18.5"(470 mm) or 19.5"(495 mm).

  • Page 48: Optional Accessories

    8. OPTIONAL ACCESSORIES 8.1 Crutch Holder (Figure 8.1) 8.2 Oxegen Cylinder Holder (Figure 8.2) 8.3 Rollator Holder (Figure 8.3) 8.4 Sun Canopy (Figure 8.4) Figure 8.1 Figure 8.2 Figure 8.3 Figure 8.4 WARNING ● Don't use the sun canopy in strong winds to avoid tipping. ●...

  • Page 49: Trouble Shooting

    Is the charger plugged into the scooter? Unplug the charger and put it away. If you cannot solve the problem by yourself, contact your KARMA dealer for help. 9.1 Status Indicator (LED) and Battery & Diagnostics Indicator 9.1.1 During the first half-second after the scooter is switched on, the central relay box (controller) is performing important safety checks within itself and the rest of the scooter's electrical system.
  • Page 50 Number of Bars Battery & Diagnostics Indicator Battery Voltage The batteries need charging or there is a bad connection to the batteries. Check the connections between the central relay box and the batteries. If the connections are good, try charging the batteries Motor Disconnected There is a bad connection to the motor.

  • Page 51: Specifications

    10. SPECIFICATIONS KS-343.2 Product Model Nominal seat width (mm/in)* 425 / 17 430 / 18 Nominal seat depth (mm/in)** 420 / 17 435 / 18 10 / 10 10 / 10 Front caster / Drive wheel size (in) Backrest height (mm)
  • Page 52 - The actual product specifications may vary according to different configurations. - Karma reserves the right to modify information herein without further notice. - If you want to know more about the measurement methods of wheelchair specifications, please scan the QR code to watch the instructions on the Karma website.
  • Page 53 KS-343.2 Product Model Nominal seat width (mm/in)* 425 / 17 430 / 18 Nominal seat depth (mm/in)** 420 / 17 435 / 18 11 / 11 11 / 11 Front caster / Drive wheel size (in) Backrest height (mm) Headrest height above seat (mm)
  • Page 54 - The actual product specifications may vary according to different configurations. - Karma reserves the right to modify information herein without further notice. - If you want to know more about the measurement methods of wheelchair specifications, please scan the QR code to watch the instructions on the Karma website.

  • Page 55: Cleaning & Recycling

    11. CLEANING & RECYCLING 11.1 Cleaning 11.1.1 In order to lengthen the life of your scooter, it is suggested that you clean the scooter periodically (if not daily), especially after it is used in the rain or snow. 11.1.2 We suggest that you don't use your scooter in the rain or snow. 11.1.3 If you are traveling and get caught in the rain, we suggest you try to find shelter and turn OFF your scooter while waiting it out.

  • Page 56: Warranty

    (a repair of this kind will hereafter be called warranty repair). 12.2.2 The warranty repair can be performed by authorized KARMA scooter dealers only. 12.2.3 KARMA is not responsible for the transportation costs for repair and replacement.
  • Page 57 Problems caused by the following reasons are not covered: 12.5.1 Failure to carry out the regular inspection and maintenance recommended by this owner's manual; 12.5.2 Improper storage; 12.5.3 Tampering by changing or adding components to the vehicle, which are not approved by KARMA;...
  • Page 58 12.8 Transfer of Warranty Rights If you purchase a second-hand KARMA scooter while it is still with in the warranty period, bring the Owner's Manual and the vehicle to the dealership where the scooter was purchased for registration.
  • Page 59 Warranty Form (You may photocopy this from) Full Name Gender Date of Birth Year Month Address Model No. KS-343.2 Serial Number Date of Purchase Year Month Purchaser Signature Dealer's Data Name of the Store Phone No. and Address If you have any suggestions on how to improve our products, please don't hesitate contacting your local dealer to let us know what you think of your scooter.
  • Page 60 (110400001136) Release Date: Mar. 2022 V.00...
