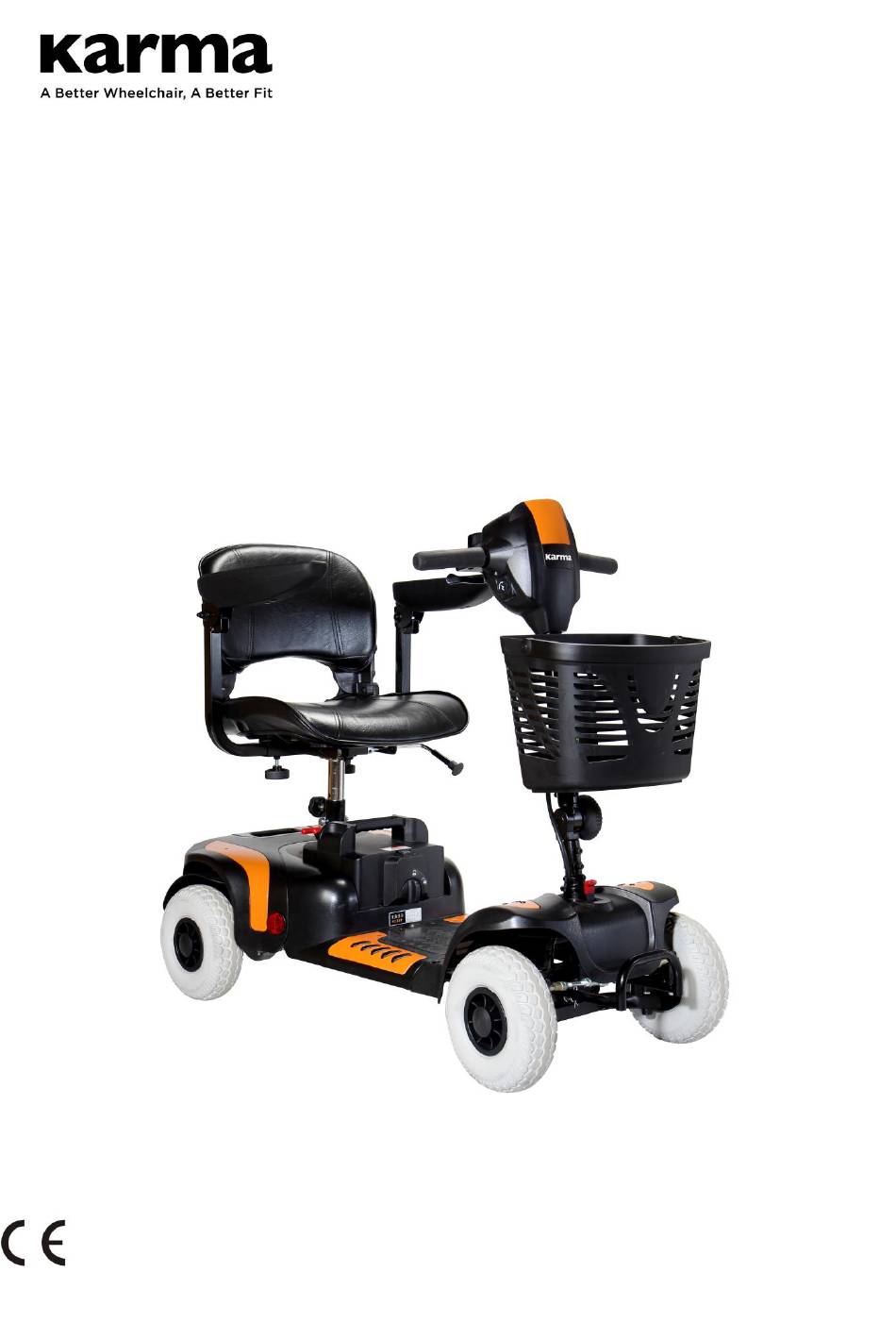

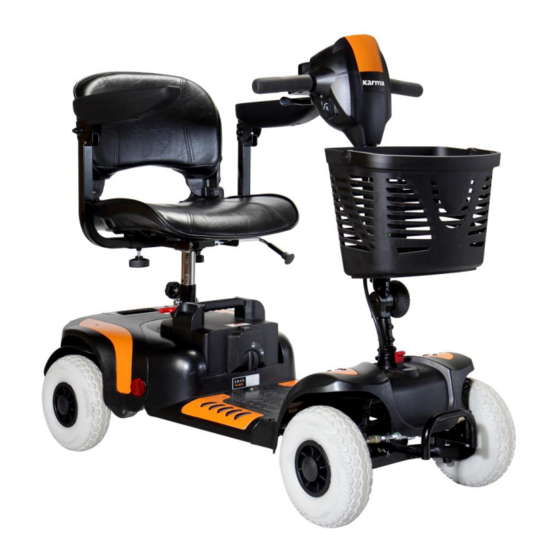

- Page 1 Powered Scooter Owner's Manual KS-200 Series...
-
Page 3: Table Of Contents
TABLE OF CONTENTS PREFACE AND INTRODUCTION ……..…………………………………… 3 SAFETY NOTICE…………………………………………………………...…. 2.1 Before driving 2.2 While driving 2.3 Labeling 2.4 EMI PARTS INTRODUCTION……………..……………….. ……………………. OPERATION…………………………………………………………………..1 Control panel 4.2 How to operate your scooter 4.3 How to set to freewheel mode DRIVING ON THE ROAD…………………………………………………….. -
Page 4: Preface And Introduction
1 . P R E FA C E A N D I N T R O D U C T I O N lease carefully read this owner’s manual before using the vehicle. Improper use of the vehicle could result in harm, injury or traffic accidents. To ensure that you get the most your scooter, please read this owner’s manual before using. -
Page 5: Safety Notice
2 . S A F E T Y N OT I C E 2.1 BEFORE DRIVING The user needs to be familiar with the usage and operation of this vehicle before driving. Therefore, please follow the commendations in this safety notice. ■... -
Page 6: While Driving
2 . S A F E T Y N OT I C E 2.2 WHILE DRIVING ■ Do not use your vehicle under the circumstances below. On surfaces that are muddy, gravelly, bumpy, narrow, snowed over, icy, or canal towpaths not guarded by any fence or hedge. -
Page 7: Labeling
2 . S A F E T Y N OT I C E 7° 6° 8° Figure 1. Maximum Recommended lncline Angles 2.3 Labeling Please carefully read all the labeling on the scooter before drive it. For your future reminding, do not remove them . -
Page 8: Emi
2 . S A F E T Y N OT I C E 2.4 EMI This portion of the content will provide the user with basic information that describes the problems with EMI, known sources of EMI, protective measures either to lessen the possibility or exposure or to minimize the degree of exposure, and suggested action should unexpected or erratic movement occur. - Page 9 2 . S A F E T Y N OT I C E 3. Long-range transmitters and transceivers, such as commercial broadcast transmitter (radio and TV broadcast antenna towers) and amateur (HAM) radios. Note: Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM radios, TV sets, CD player, and cassette players, and small appliances, such as electric shavers and hair dryers, so far as we know, are not likely to cause EMI problems to your powered scooter.
-
Page 10: Parts Introduction
3 . PA R T S I N T R O D U C T I O N PARTS DESCRIPTION . Control panel 2. Basket Holder 3. Charger Socket 4. Tiller Adjustment Knob 5. Seat 6. Seat Rotation Lever 7. Battery Pack 8. -
Page 11: Operation
4 . O P E R AT I O N 4.1 CONTROL PANEL 1. Speed Dial 2. Horn Button 3. Battery Indicator 4. Power Switch 4.2 HOW TO OPERATE YOUR SCOOTER ■ Power switch To switch the power on , turn the key clockwise in the ignition. - Page 12 4 . OP E R AT I ON Warning When on a gradient NEVER set the vehicle to the freewheel mode. The electromagnetic brakes will not be applied. This may result in injury or damage. ■ Seat The seat can be rotated and locked in position at 45 degrees intervals. ...
- Page 13 4 . O P E R AT I O N Suggestion 1. You should recharge the batteries after each time the vehicle is used to ensure maximum range. The batteries should be charged up at least once a week even if the scooter is not used.
-
Page 14: How To Set To Freewheel Mode
4 . O P E R AT I O N 4.3 How to set to freewheel mode Lever Lever Fig 4.1 Fig 4.2 ◆ Engaged mode (Fig. 4.1): Push the lever completely and the scooter can be driven by motor power. ◆... - Page 15 4 . O P E R AT I O N Warning ♦ Please hold the tiller before loosening the tiller adjustment knob. ♦ Before lifting or driving the scooter make certain the tiller adjustment knob is fully tightened. ♦ Never attempt to adjust the tiller while the scooter is motion.
-
Page 16: Driving On The Road
5 . D R I V I N G ON T H E R OA D ■ Starting and Driving 1. Make sure the seat is installed properly. 2. Make sure the tiller has been secured properly. 3. Fold down the armrests so you can rest your arms on them. 4. -
Page 17: Battery Charging And Care
6 . B AT T E RY C H A R G I N G A N D C A R E 6.1 CHARGING THE BATTERY ■ Method 1: On board Charging (see photograph overleaf) Follow the procedure below step by step: 1. -
Page 18: Battery
6 . B AT T E RY C H A R G I N G A N D C A R E ■ Charging Hours The charging duration is about 6 hours. To ensure optimum performance a 10-hour charge is recommended. But we do not recommend a charging more than 24 consecutive hours. -
Page 19: Replacing Batteries
6 . B AT T E RY C H A R G I N G A N D C A R E The batteries carry a eight-month of manufacturer's warranty. This warranty only covers issues relating to manufacturing faults, and not faults relating to failure to recharge the batteries as instructed above. - Page 20 6 . B AT T E RY C H A R G I N G A N D C A R E NOTE: If the battery pack is 20Ah version, please turn the battery pack remove switch to unlock before follow the step 1 of batteries replacement. ...
-
Page 21: Inspection And Maintenance
7 . I N S P E C T I O N A N D M A I N T E N A N C E 7.1 INSPECTION Clean the scooter with a damp cloth and dust down approximately once a week to preserve the appearance of the scooter. -
Page 22: Battery And Tire
7 . I N S P E C T I O N A N D M A I N T E N A N C E 7.3 BATTERY, FUSE AND TIRE ■ Battery Refer to the section entitled “6. BATTERY CHARGING AND CARE ”. ■... -
Page 23: Moving About
7 . I N S P E C T I O N A N D M A I N T E N A N C E 7.5 MOVING ABOUT Switch off the power with power key before moving. Always dismount from the scooter before moving. ... - Page 24 7 . I N S P E C T I O N A N D M A I N T E N A N C E Knob lock Warning Always unplug the rear section electrical connector before separating the two sections.
- Page 25 7 . I N S P E C T I O N A N D M A I N T E N A N C E 7 . I N S P E C T I O N A N D M A I N T E N A N C E 7.7 ASSEMBLING THE SCOOTER ...
-
Page 26: Troubleshooting
8 . T R O U B L E S H O OT I N G ■ TROUBLE SHOOTING If you have trouble with your scooter, you can inspect the following before taking you scooter to the dealer. If you cannot solve the problem, contact your dealer for assistance. Problem Symptom Remedy... -
Page 27: Specification
9 . S P E C I F I C AT I O N S P E C I F I C AT I O N S Model KS-200 Dimension (L x W x H mm) 1040x550x920 mm Weight(Kg),W/I battery 51.5 kg W/O battery 38.2kg... -
Page 28: Warranty
1 0 . W A R R A N T Y WARRANTY There is a comprehensive twelve-month warranty from the date on which your new scooter is delivered. The warranty covers the scooter for repairs or replacement during this period. For more detail, please see the Warranty Conditions below. - Page 29 1 0 . W A R R A N T Y 10.1 VIN (VEHICLE INDIFICATION NUMBER) To ensure the correct after sales service and warranty service support , please write down the vehicle identification number that is stuck on the back right-hand side of the frame.
- Page 32 Karma reserves the right to modify information herein without further notice. 110400000215 Rev.02 2019.08...
