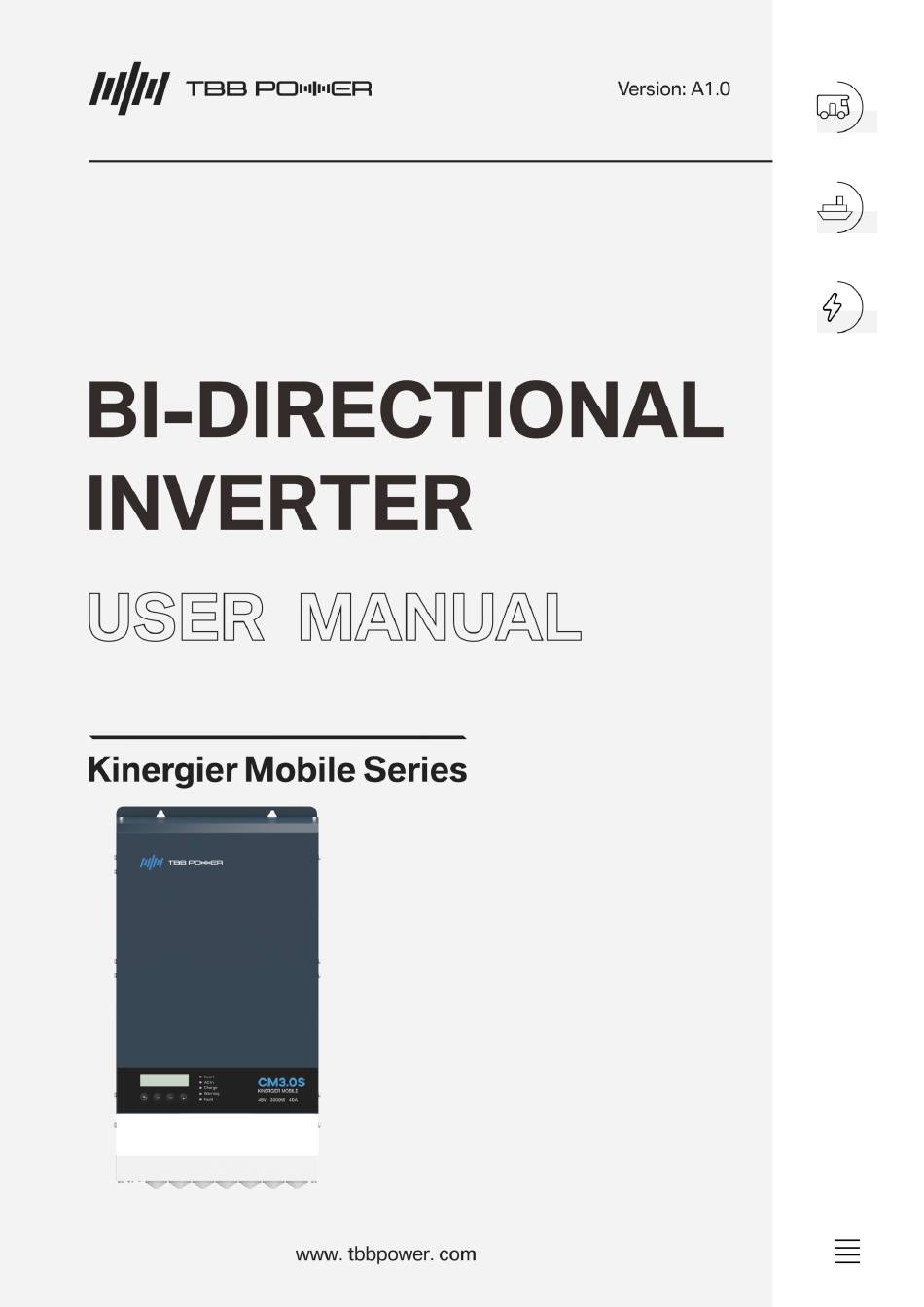

TBB power Kinergier CM2.0M User Manual

Bi-directional inverter
Hide thumbs Also See for Kinergier CM2.0M:

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kinergier CM2.0M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TBB power Kinergier CM2.0M

  • Page 2 Kinergier Mobile User Manual...
  • Page 3 Kinergier Mobile User Manual WARNING: HIGH VOLTAGE INSIDE CAUTION: THE DC FUSE MUST HAVE BEEN TURNED OFF BEFORE SERVICING MADE IN CHINA...
  • Page 4: About This Manual

    Kinergier Mobile User Manual Disclaimer Unless specially agreed in writing, TBB Power Co.,Ltd ➢ Take no warranty as to the accuracy, sufficiency of suitability of any technical or other information provided in this manual or other documentation. Assumes no responsibility or liability for loss or damage, whether direct, indirect, ➢...
  • Page 5: Table Of Contents

    Kinergier Mobile User Manual Contents 1. General Safety Instruction ....................1 1.1 Safety instruction....................1 1.2 General precaution ................... 1 1.3 Precaution regarding battery operation ............1 2. Instruction ......................... 2 2.1 Brief Instruction ....................2 2.1.1 General Description ................2 2.1.2 Naming Rules ..................
  • Page 6: General Safety Instruction

    Kinergier Mobile User Manual 1. General Safety Instruction Safety instruction As dangerous voltages and high temperature exist within the Kinergier Mobile bi-directional inverter, only qualified and authorized maintenance personnel are permitted to open and repair it. Please make sure Kinergier Mobile bi-directional inverter is turned off before opening and repairing it.
  • Page 7: Instruction

    Kinergier Mobile User Manual 2. Instruction Brief Instruction 2.1.1 General Description Kinergier Mobile is the new generation bi-directional inverter designed for various on-board power application such as for RV, Utility Vehicle, Marine etc. KinergierMobiledelivers high reliability, performance and industry leading efficiency for mission critical application.
  • Page 8: Structure

    Kinergier Mobile User Manual Structure 2.2.1 Front Figure 2-1 Bi-directional inverter structure in front view 2.2.2 Control panel Figure 2-2 Bi-directional inverter Control buttons...
  • Page 9: Remote Control And Monitor Mck

    Kinergier Mobile User Manual Table 2-1 LED directive function Function Invert ➢ It will illuminate when CM is inverting. AC In ➢ It will flash when CM detect any input, mains or generator. ➢ It will flash when CM is in float charging. Charge ➢...
  • Page 10: Connection Compartment

    Kinergier Mobile User Manual 2.2.4 Connection compartment Figure 2-4 Signal terminal Table 2-2 Signal terminal introduction Silk-screen Definition ① BAT Sample Battery temperature and voltage sample. ② Remote Dry contact input control, remote ON/OFF control. ③ ComMON RS485 port for external monitor such as MCK, SNMP etc. ④...
  • Page 11: Dimension

    Kinergier Mobile User Manual 2.2.5 Dimension CM2.0M, CM3.0M, CM3.0S CM5.0S Figure 2-5 Dimension of Bi-directional inverter...
  • Page 12: Function

    Kinergier Mobile User Manual Function 2.3.1 Power control and Power assist Kinergier Mobile offers a unique feature of power control & power assist, which is very useful upon you have a limited grid supply or working with generator. Kinergier Mobile will take control of energy flow automatically, using extra power to charge the battery or inverting as the supplement to the grid or generator.
  • Page 13: Lithium Battery Compatible

    Kinergier Mobile User Manual Float charging and recycle charging program guarantee your battery getting proper maintenance in case of long time connected and less aging in case of long time connected with no use. Battery Sample Cable (Temperature and voltage) Battery temperature is a key factor in correct charging for lead acid battery, the charging formula must be adjusted (automatically and in real time) according to the actual battery temperature to ensure that battery is fully charged but not overcharged or undercharged.
  • Page 14: Protect Function

    Kinergier Mobile User Manual Ground Relay The neutral output of Kinergier Mobile bi-directional inverter is automatically connected to earth upon no external AC sources is available. Once external AC sources present, the ground relay will open. You can disable this feature through TBB Link. AC in AC out FILTER...
  • Page 15: Communication

    Kinergier Mobile User Manual 2.3.7 Communication Dry contact input Kinergier Mobile is equipped with a dry contact input for remote on/off. Dry contact output Kinergier Mobile is equipped with two NO/NC relay type dry contact output, the user can set specific functions through the LCD.
  • Page 16: Installation And Wiring

    Kinergier Mobile User Manual 3. Installation and Wiring Keep away from fire, avoid direct sunlight and rain; do not store flammable, explosive or corrosive gases or liquids in the working environment. Don't install in a working environment with metal conductive dust. ➢...
  • Page 17 Kinergier Mobile User Manual 3.4 Power cable connection Before installation, please reconfirm that the voltage of the battery pack matches the DC input voltage of the installed inverter. If the DC input voltage does not match, no warranty will be given for damage to the inverter. Please reconfirm that the polarity of the DC input is correct, reversing the polarity will damage the inverter.
  • Page 18: Operation

    Kinergier Mobile User Manual 4. Operation Check before Operation Please check before Operation according to the following. ➢ Inverter is installed correctly and steady. ➢ Reasonable cable layout to meet customer requirements. ➢ Make sure the grounding is reliable. ➢ Make sure the ground wire is properly connected and firm and reliable. ➢...
  • Page 19: Configuration

    Kinergier Mobile User Manual 5. Configuration Settings may only be changed by a qualified electrical engineer. Read the instructions thoroughly before implementing changes. During setting of the charger, the AC input must be removed. Default Setting Table 5-1 CM series factory settings Rate AC Voltage 230VAC System...
  • Page 20: Tbb Link

    Kinergier Mobile User Manual 5.2.2 TBB Link The TBB Link is a powerful tool or CM series inverter configuration. The TBB Link can be installed on the computer, open the TBB Link and turn on the inverter, the inverter can be configured. Figure 5-2 TBBLink...
  • Page 21: Specification

    Kinergier Mobile User Manual 6. Specification CM3.0S CM5.0S Model CM2.0M CM3.0M Power Assist AC inputs Input voltage range:175~265 VAC, Input frequency:45~65Hz AC input Current 32A (transfer switch) 50A (transfer switch) Inverter Nominal battery voltage 24VDC 48VDC Input voltage range 21~34VDC 42~68VDC Output Voltage: 220/230/240 VAC ±...
  • Page 22 Kinergier Mobile User Manual...
  • Page 23 Kinergier Mobile User Manual...
