Summary of Contents for TBB power CG Series

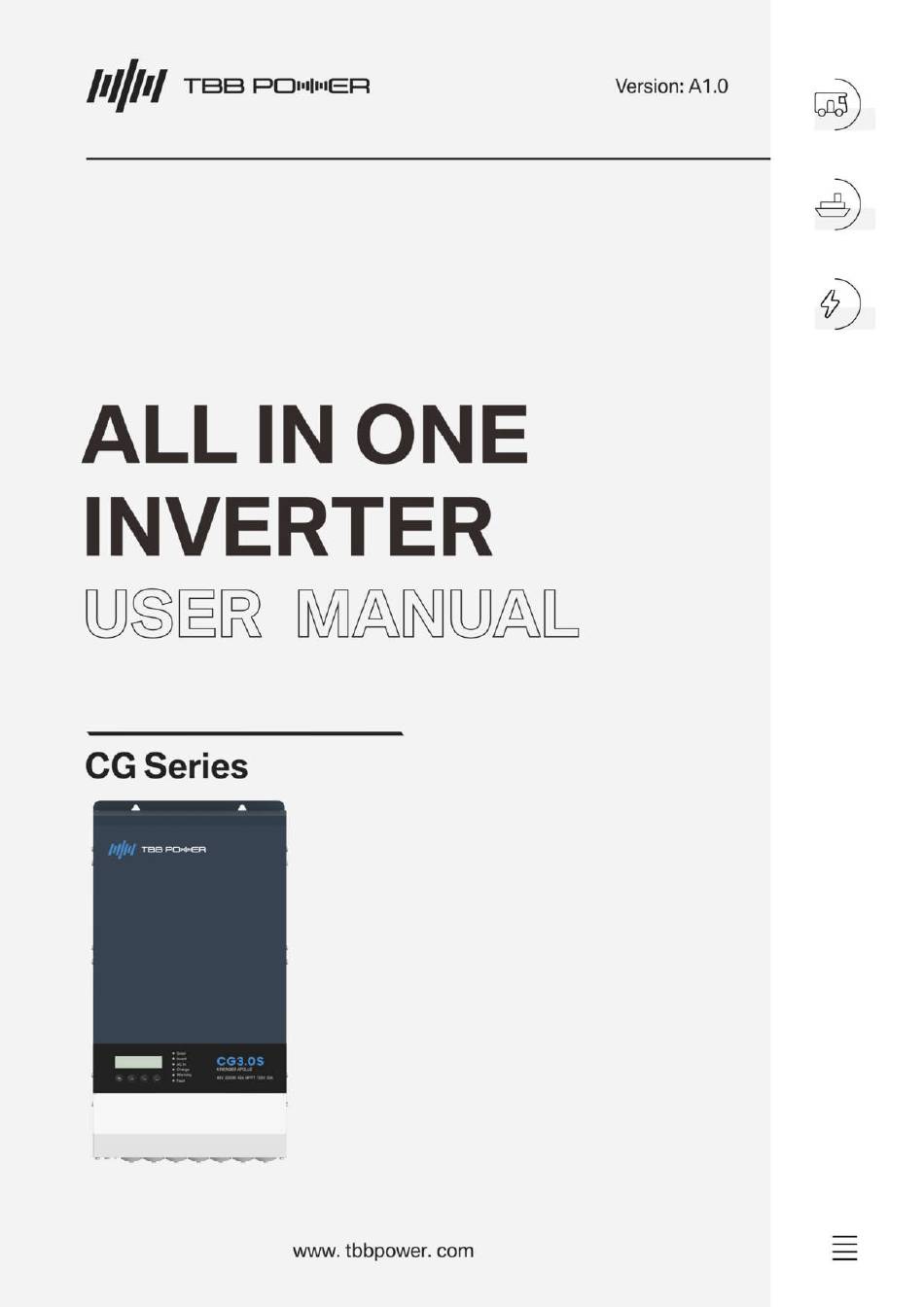

  • Page 2 CG Series All In One Inverter User Manual...
  • Page 3 CG Series All In One Inverter User Manual WARNING: HIGH VOLTAGE INSIDE CAUTION: THE DC FUSE MUST HAVE BEENTURNED OFF BEFORE SERVICING MADE IN CHINA...
  • Page 4 CG Series All In One Inverter User Manual Disclaimer Unless specially agreed in writing, TBB Power Co.,Ltd  Take no warranty as to the accuracy, sufficiency of suitability of any technical or other information provided in this manual or other documentation.
  • Page 5: Table Of Contents

    CG Series All In One Inverter User Manual Contents 1. General Safety Instruction ....................1 1.1 Safety instruction ....................1 1.2 General precaution ..................... 1 1.3 Precaution regarding battery operation .............. 1 2. Instruction ........................... 2 2.1 Brief Instruction ....................2 2.1.1 General Description ..................
  • Page 6: General Safety Instruction

    1. General Safety Instruction Safety instruction As dangerous voltages and high temperature exist within the CG series All in one inverter, only qualified and authorized maintenance personnel are permitted to open and repair it. Please make sure CG series All in one inverter is turned off before opening and repairing it.
  • Page 7: Instruction

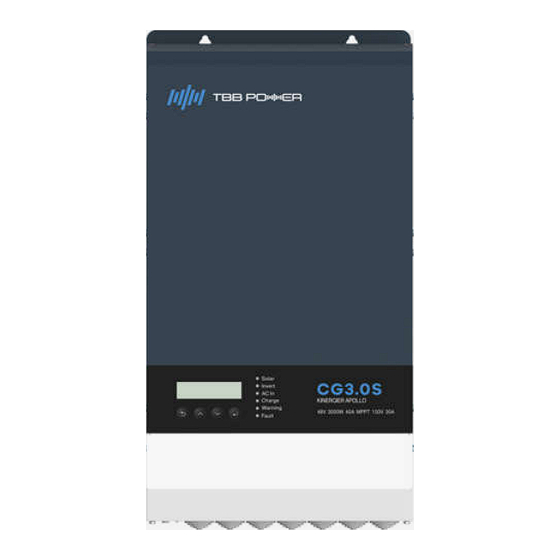

    Brief Instruction 2.1.1 General Description CG series is the new generation All in one inverter designed for various on-board power application such as for RV, Utility Vehicle, Marine etc. CG series delivers high reliability, performance and industry leading efficiency for mission critical application.
  • Page 8: Structure

    CG Series All In One Inverter User Manual Structure 2.2.1 Front Figure 2-1 All in one inverter structure in front view 2.2.2 Control panel Solar ON/OFF Cancel/Back Page up Page down Enter LCD Operation Button Figure 2-2 All in one inverter Control buttons...
  • Page 9: Remote Control And Monitor Mck

    CG Series All In One Inverter User Manual Table 2-1 Control Buttons Button Function  Cancel the selection  Display the previous level of menu  Display the previous page  Increase the value of the selected item  Press the button for more than 2 seconds to scroll the page up ...
  • Page 10: Connection Compartment

    CG Series All In One Inverter User Manual Figure 2-3 Remote control and monitor MCK More details of MCK about operation, installation and connection, please refers to the a dedicated user manual which is attached in the box of MCK.
  • Page 11 CG Series All In One Inverter User Manual Table 2-3 Signal terminal introduction Silk-screen Definition ① BAT Sample Battery temperature and voltage sample. ② Remote Dry contact input control, remote ON/OFF control. ③ ComMON RS485 port for external monitor such as MCK, SNMP etc.
  • Page 12: Dimension

    CG Series All In One Inverter User Manual 2.2.5 Dimension CG3.0M, CG3.0S CG5.0S Figure 2-5 Dimension of All in one inverter...
  • Page 13: Function

    2.3.1 Power control and Power assist The CG Series All in one inverter offers a unique feature of power control & power assist, which is very useful upon you have a limited grid supply or working with generator. CG Series will take control of energy flow automatically, using extra power to charge the battery or inverting as the supplement to the grid or generator.
  • Page 14: Professional Battery Charger For Lead Acid Battery

    At this time, the user needs to manually restart. Over temperature protection When the internal temperature is too high, CG series will enter into the over-temperature protection. After the internal temperature returns to normal, it can automatically resume normal operation.
  • Page 15: Communication

    CG series is equipped with a dry contact input for remote on/off. Dry contact output CG Series All in one inverter is equipped with two NO/NC relay type dry contact output, the user can set specific functions through the LCD.
  • Page 16: Installation And Wiring

    After unpacking, please make sure that the equipment has not been damaged during the transportation and that all accessories are available. This series contains the following components: main unit of CG series All in one inverter, user manual and certificate of conformity.
  • Page 17: Power Cable Connection

    CG Series All In One Inverter User Manual 3.4 Power cable connection Before installation, please reconfirm that the voltage of the battery pack matches the DC input voltage of the installed inverter. If the DC input voltage does not match, no warranty will be given for damage to the inverter.
  • Page 18: Operation

    CG Series All In One Inverter User Manual 4. Operation Check before Operation Please check before Operation according to the following.  Inverter is installed correctly and steady.  Reasonable cable layout to meet customer requirements.  Make sure the grounding is reliable.
  • Page 19: Configuration

    Connect the inverter to the computer requires a TBB Interface, which goes between the ComMON port on the inverter, and a USB port on the computer. Equipped with TBB Link, users can read the operating information and set the parameters of the CG series. Figure 5-1 TBB Interface...
  • Page 20: Tbb Link

    CG Series All In One Inverter User Manual 5.2.2 TBB Link The TBBLink is a powerful tool or CG series inverter configuration. The TBBLink can be installed on the computer, open the TBBLink and turn on the inverter, the inverter can be configured.
  • Page 21: Specification

    CG Series All In One Inverter User Manual 6. Specification Model CG3.0S CG5.0S Power Assist AC inputs Input voltage range:175~265 VAC, Input frequency:45~65Hz AC input Current 32A (transfer switch) 50A (transfer switch) Inverter Nominal battery voltage 48VDC Input voltage range...
  • Page 22 CG Series All In One Inverter User Manual...
  • Page 23 CG Series All In One Inverter User Manual...
  • Page 24 CG Series All In One Inverter User Manual...

This manual is also suitable for:

Cg3.0sCg5.0s
