- Page 1 CPI User Manual V1.2 Solar Max CPI series Off-grid Inverter USER MANUAL Version 1.2 Date: Nov. 2013 TBB Power Co.,Ltd...
- Page 2 CPI User Manual V1.2 TBB Power is a dedicated designer and manufacturer of sophisticated and environmentally rugged power electronics equipment. We are offering a wide range of power conversion product from battery charger, standalone inverter, inverter charger combination and solar charge controller.
- Page 3 6> Inverter will have high voltage inside. Only authorized electrician can open the case. 7> The inverter WAS NOT designed to use in any life retaining equipment. TBB Power Co.,Ltd...
- Page 4 General Precaution Precaution regarding battery operation Description Structure Setting Low Voltage disconnect (LVD) Output Voltage and Frequency Control and Communication Dry contact Installation Material List Location Wiring recommendation General Advice Installation and Connection Operation Trouble Shooting Specification TBB Power Co.,Ltd...
- Page 5 1.3.3. Do not put the metal tool on the battery, spark and short circuit might lead to explosion. 1.3.4. REMOVE all personal metal items such as rings, bracelets, necklaces, and watches while working with batteries. Batteries can cause short-circuit current high enough to make metal melt, and could cause severe burns. TBB Power Co.,Ltd...
- Page 6 Extremely low status consumption power Power save mode available Low voltage disconnect level settable High temperature design Built in auxiliary contact for battery low alarm Comprehensive Protection Remote control available TBB Power Co.,Ltd...

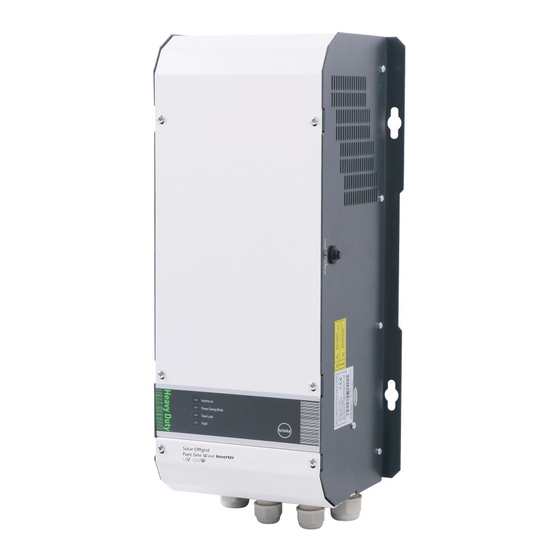

- Page 7 CPI User Manual V1.2 DC cable through hole Main switch Gland for remote control cable Gland for AC output DC cable through hole On Right side panel, there is a circuit breaker as a overload protection for inverter output. TBB Power Co.,Ltd...
- Page 8 CPI User Manual V1.2 Dry contact (battery low) Dip Switch RCC panel connector AC output terminal DC - DC + TBB Power Co.,Ltd...
- Page 9 It may vary according to discharge current, battery healthy etc. 11.7VDC 23.4VDC 46.8VDC ab. 60% solar or backup 10.5VDC 21VDC 42VDC >90% mobile The default setting was OFF, 11.7VDC (12V model) / 23.4VDC (24V model) / 46.8VDC (48V model) TBB Power Co.,Ltd...
- Page 10 (HV model) and low voltage model (LV model). 230VAC 110VAC 208VAC 100VAC 240VAC 127VAC 220VAC 120VAC Through the Dip Switch 4, you can configure the output frequency. 50HZ 60HZ 60HZ 50HZ Dip switch 5 was preserved without any function at present. TBB Power Co.,Ltd...
- Page 11 Optional RCC – remote control could be purchased and connected to the CPI on central panel to have following functions: Load percentage Battery SOC: battery LED, from bottom to top representing 25%-50%-75%-100% Working status Alarm info Main switch: set your equipment at ON / OFF / PS mode TBB Power Co.,Ltd...
- Page 12 2.5mm² 2.5mm² 4mm² 10mm² 16mm² 4mm² 2.5mm² 6mm² 16mm² 25mm² 1.5KW 4mm² 2.5mm² 10mm² 25mm² 35mm² 6mm² 2.5mm² 16mm² 25mm² 50mm² 8mm² 4mm² 25mm² 50mm² 70mm² 10mm² 4mm² 25mm² 50mm² 16mm² 6mm² 35mm² 70mm² 16mm² 6mm² 50mm² TBB Power Co.,Ltd...
- Page 13 Basically, CPI could be installed either vertically on wall or horizontally on floor Please choose a flat surface and with 4X M6 to fix the unit securely Please find following installation dimension. ? 12 Frame A, for unit up to 1200W TBB Power Co.,Ltd...
- Page 14 CPI User Manual V1.2 Frame B, for unit up to 3000W INVERTER OUTPUT PROTECT Power Save Inverter Fault Frame C, for unit up to 6000W TBB Power Co.,Ltd...
- Page 15 Please double check AC output was right after connection. Wrong connection will cause permanent damage of equipment and it is out of warranty. The neutral output of CPI is connected to earth once switch on. TBB Power Co.,Ltd...
- Page 16 Using the two cables supplied connecting the RCC to the port on the central panel. Please refer to left picture. RCC1 is a 6pin port and RCC2 is a 4pin port Pull through the cable through Gland and secure the installation afterwards. TBB Power Co.,Ltd...
- Page 17 RCC remote panel. It is marked PS Upon PS mode, Power Save mode LED on front panel will illuminate and the Inverter LED on RCC remote panel will flash. Under PS mode, the status consumption power can be dramatically reduced. TBB Power Co.,Ltd...
- Page 18 × × Shortcut × × 8.3 Percentage Bar on RCC remote panel percentage bar Load BAR from bottom to top representing 25%-50%-75%-100% load percentage of inverter SOC BAR from bottom to top representing 25%-50%-75%-100% of battery SOC TBB Power Co.,Ltd...
- Page 19 Other Data Dry contact Battery low Battery connector M8 x 2 Enclosure Steel with powder paint Dimension (mm) 460x228x135 487x228x180 487x396x180 Net Weight (kgs) Cooling Forced fan Protection IP21 Standard Safety EN60950-1 Emmission EN55022 Immunity EN55022 TBB Power Co.,Ltd...
- Page 20 Other Data Dry contact Battery low Battery connector M8 x 2 Enclosure Steel with powder paint Dimension (mm) 460x228x135 487x228x180 Net Weight (kgs) Cooling Forced fan Protection IP21 Standard Safety EN60950-1 Emmission EN55022 Immunity EN55022 TBB Power Co.,Ltd...
