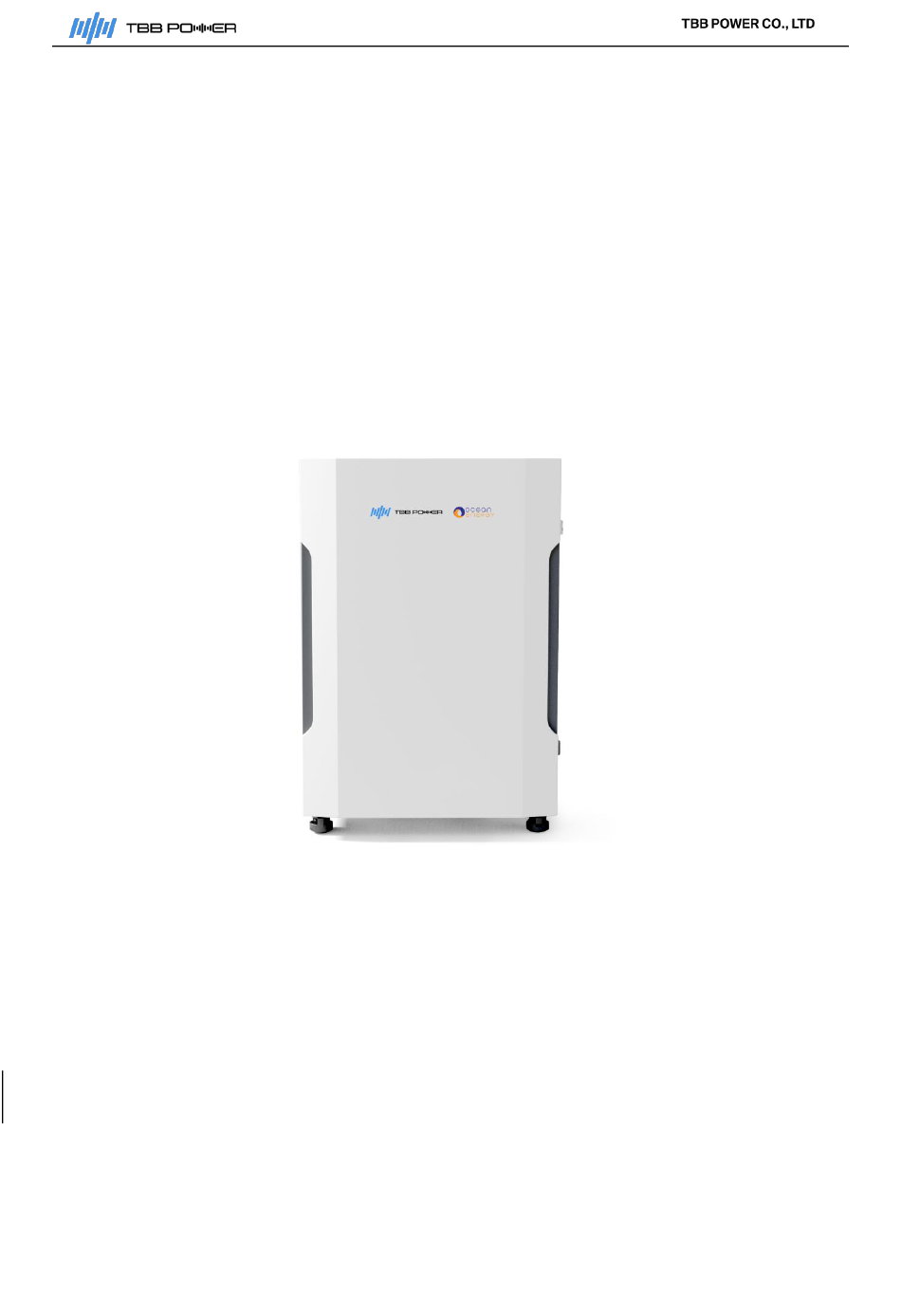

- Page 1 Raython series All-in-one Standalone Solar Power System Off Grid For Outdoor Use USER MANUAL Version 1.0 Date: DEC. 2021...
- Page 2 TBB Power is a dedicated designer and manufacturer of sophisticated and environmentally rugged power electronic equipment. We are offering a wide range of power conversion product from battery charger, standalone inverter, inverter charger combination and solar charge controller. We ensure consistent product quality by subjecting every product to strictly choice of superior quality components, rigorous testing and burn-in throughout the production process.
- Page 3 This chapter contains important safety and operation instructions. Read and keep this User Guide well for later reference. The RAYTHON series needs to be installed by professionals and please pay attention to the following points prior to installation: 1> Please check the DC input voltage or battery voltage is the same to the nominal input voltage of this inverter.
-
Page 4: Table Of Contents
1.0 General Safety Instruction ..........................- 4 - 1.1 Safety Instruction ..........................- 4 - 1.2 Symbols Used in the Documentation..................... - 4 - 1.3 General Precaution ........................... - 4 - 1.4 Precaution Regarding Battery Operation ..................- 5 - 2.0 System Description ............................ -
Page 5: General Safety Instruction
RAYTHON User Manual V1.0 1.0 General Safety Instruction 1.1 Safety Instruction As dangerous voltages and high temperature exist within the RAYTHON, only qualified and authorized maintenance personnel are permitted to open and repair it. This manual contains information concerning the installation and operation of the RAYTHON. All relevant parts of the manual should be read prior to commencing the installation. -
Page 6: Precaution Regarding Battery Operation
RAYTHON User Manual V1.0 1.4 Precaution Regarding Battery Operation Only authorized and trained person who should be familiar to battery installation, preparation, charging, and maintenance is permitted to the operation for battery. SHOCK HAZARD- DO NOT touch the uninsulated battery connectors or terminals. Be sure to discharge static electricity of tools and technicians by touching a grounded surface, but away from the cells and flame arresters. -
Page 7: System Description
RAYTHON User Manual V1.0 2.0 System Description The Raython system is an all-in-one standalone solar power system. It is an ideal solution designed for holiday houses or single-family houses that have no access to the grid power and the users often use generators as their power supply. -
Page 8: Raython Cabinet Dimensions
RAYTHON User Manual V1.0 2.1 Raython Cabinet Dimensions... -
Page 9: Apollo Matrix Solar Hybrid Inverter
RAYTHON User Manual V1.0 2.2 Apollo Matrix Solar Hybrid Inverter Apollo Matrix is the new generation solar hybrid inverter designed for various types of off-grid systems including the AC Couple system, DC Couple system, and generator hybrid system. It can provide UPS class switching speed and support parallel as well as composing three-phase system. -
Page 10: Kinergier Pro Inverter Charger
RAYTHON User Manual V1.0 2.3 Kinergier Pro Inverter Charger Kinergier Pro is the new generation inverter charger designed for various type of off grid system including AC Coupled PV System, DC Coupled PV System and generator hybrid system. It can provide UPS class switching speed and capability to support parallel as well as composing three phase system. -
Page 11: Kinergy Data Logging Stick
One Kinergy module can monitor up to 6 inverters, 6 Solar Mate MPPT solar charge controller and 2 IG PV inverter at the same time. It is widely applied with most inverter series of TBB Power, such as Kinergier Pro, Apollo maxx, Apollo Matrix, RiiO and RiiO Sun. - Page 12 RAYTHON User Manual V1.0 For more information about Kinergy, please refer to its manual.
-
Page 13: Functional Description
RAYTHON User Manual V1.0 3.0 Functional Description Raython is composed of Inverter, MPPT charge Controller, Kinergy, and Li-ion battery modules. As following diagram shows, through monitoring the real-time output power, energy consumption of the connected appliances and the battery SOC, Raython will automatically change the work mode to keep your loads being powered. -
Page 14: Installation
RAYTHON User Manual V1.0 4.0 Installation Prior to Installation ➢ Read the manual carefully and confirm the voltage and current input requirements of the load(s) are compatible with the unit’s output. ➢ Also see the line voltage and current is compatible with the unit’s input requirements. ➢... -
Page 15: Placement
RAYTHON User Manual V1.0 4.3 Placement Equipment should be installed on a flat surface. ⚫ Do not place the unit in an inclined position. ⚫ Do not store the unit on its side or up-side down to avoid the damage of the unit. Following minimum clearance are requested for the installation. -
Page 16: Fix The Castor
RAYTHON User Manual V1.0 4.4 Fix the castor After installation and moving the system to the correct place, the castor should be fixed to avoid any further movement. 1> Clockwise rotating the nut A shown on the below picture with a spanner or other proper tool. 4.4 Fix the Cabinet Fix the foot support to the bottom of the cabinet, and take a point at the screw hole of each foot support. -
Page 17: Wiring Recommendation
RAYTHON User Manual V1.0 4.5 Wiring Recommendation Please find the following minimum wire size. In case of DC cable longer than 1m, please increase the cross section of the cable to reduce the loss. Cable Size Circuit Breaker AC in input 10mm²... -
Page 18: Wiring Instruction
RAYTHON User Manual V1.0 protected by installed PV — Negative switch Ground Connection 4.7 Wiring Instruction All of the cables should be inserted into the cabinet through the holes at the bottom of the cabinet as below picture shows. Cut off the power before installation for safety. Please make sure the inverter is switched off and DC MCB is turn off at front panel before installation. -
Page 19: Connecting Ac Grid Cable
RAYTHON User Manual V1.0 4.7.2 Connecting AC Grid Cable For safety, please turn off the Main Input MCB before the installation Using correct cable gauge (refer to chapter 4.4), please connect the grid to the terminal labeled “AC IN”. Make sure the connection is correct and tightly screwed. -
Page 20: Connecting The Loads
RAYTHON User Manual V1.0 4.7.3 Connecting the Loads Do not connect the output of this equipment to the same line as other AC sources such as the 230V external mains or a generator. Two groups of output terminals are supplied with this RAYTHON system. The labeled terminal is supplied with protected MCB. -
Page 21: Connecting Pv In Cable
RAYTHON User Manual V1.0 4.7.4 Connecting PV in Cable For safety, please turn off the PV Input MCB before the installation. Using correct cable gauge (refer to chapter 4.4), please connect the PV to the terminal labeled “PV IN”. Ensure that the positive and negative poles are not reversed. Make sure the connection is correct and tightly screwed. -
Page 22: All Switches Of The Unit
RAYTHON User Manual V1.0 Two groups of AGS terminals are supplied with this RAYTHON system. Using correct cable gauge (refer to chapter 4.4), please connect the load to the terminal labeled “Relay1”“Relay2”. Make sure the connection is correct and tightly screwed. 4.8 All Switches of the unit Battery Switch... - Page 23 RAYTHON User Manual V1.0 PV isolate Switch AC MCB...
- Page 24 RAYTHON User Manual V1.0...
-
Page 25: Operation
RAYTHON User Manual V1.0 5.0 Operation 5.1 Double Checking ➢ The system is installed correctly and steady. ➢ Make sure the ground wire is properly connected firmly and reliably. ➢ Make sure the cables are properly connected firmly and reliably. ➢... -
Page 26: Power On Pv
RAYTHON User Manual V1.0 Apollo Matrix interface Kinergier Pro interface 5.4 Power on PV ➢ Close the PV IN Switch to power ➢ The MPPT Charge Controller will start to charge the battery. Apollo Matrix interface... -
Page 27: Power Off
RAYTHON User Manual V1.0 Solar Mate interface 5.5 Power OFF ➢ Step 1: When the inverter is in the inverting mode or charging mode, press the On/Off button for 2 seconds to turn off the inverter into the standby mode. ➢... -
Page 28: Connect To The Nova Monitoring Platform
RAYTHON User Manual V1.0 5.7 Connect to the NOVA Monitoring Platform Please refer to the User Manual of Kinergy and Quick Installation Guide more details, please visit www.tbbpower.com... -
Page 29: Configuration
RAYTHON User Manual V1.0 6.0 Configuration Standard Setting Setting Value Rated AC Voltage 230VAC Rated AC frequency 50Hz AC in source Selection Generator Input frequency range 45-55Hz Input voltage range 175-265VAC AC Wave Harmonic Adaption Weak AC Source Battery Type TBB Super-L SOC Low Protect SOC Low Warning... -
Page 30: Specification
RAYTHON User Manual V1.0 7.0 Specification Model Raython Model 1 Raython Model 2 AC input Generator compatible AC input voltage range(VAC) 175~265 AC input Frequency range(Hz) 45~65 AC input Current (transfer switch) Inverter Product Topology Transformer based Nominal battery voltage (VDC) Input voltage range (VDC) 42~68 AC output voltage(VAC) - Page 31 RAYTHON User Manual V1.0 Zero load power (W) Max AC charge current (A) Main Output (AC Out1) Current (A) Transfer time <2ms (<15ms in Weak AC source Mode) PV in Max output current(A) Maximum PV power(W) 6000 9000 PV open circuit voltage (V) Maximum PV short circuit Current(A) MPPT voltage range(V)
- Page 32 RAYTHON User Manual V1.0 Altitude (m) 2000 Mechanical Data Dimension（W*D*H） (mm) (max) 600*700*1100 Net Weight (kg) 120kg（without battery） 130kg（without battery） Cooling Forced fan Protection index IP54 Standards EN-IEC 62477-1, EN-IEC EN-IEC 60950-1，EN-IEC Safety 62109-1,EN-IEC 62109-2 62109-2 EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-3-11,EN61000-3-12...
- Page 33 TBB Power Co., Ltd Web: www.tbbpower.com Tel: +86-592-5796068/5796287 Fax: +86-592-5796070 Email: TBBSupport@tbbpower.com...
