Clamp-on Height Adjustable
Keyboard Tray
MOUNT-KB05HB Series
Assembly Manual
Individual Product SKUs
MOUNT-KB05HB
MOUNT-KB05HA
MOUNT-KB05HD
MOUNT-KB05HW

Advertisement

loading
Need help?

Need help?

Do you have a question about the MOUNT-KB05HB Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo MOUNT-KB05HB Series

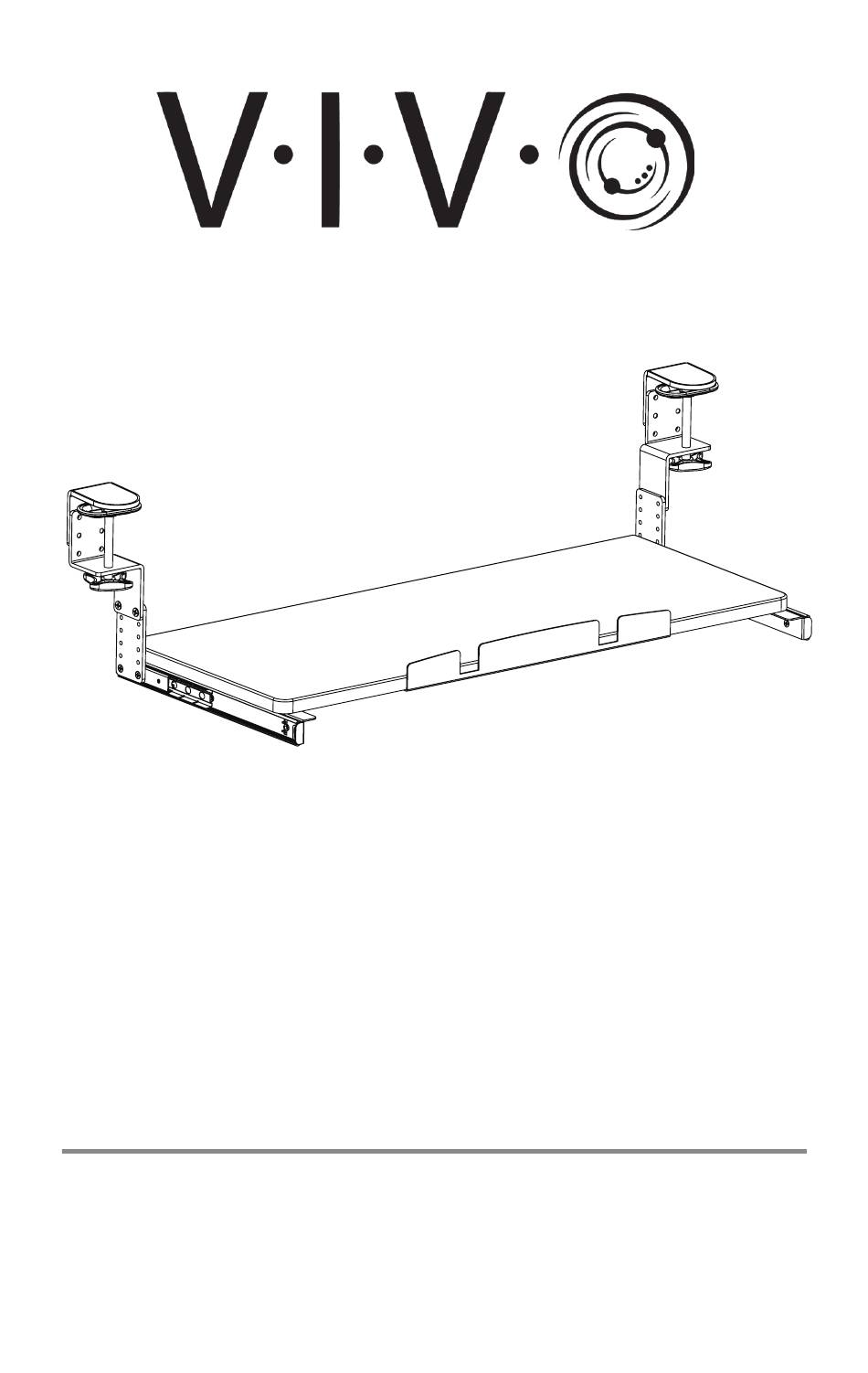

  • Page 1 Clamp-on Height Adjustable Keyboard Tray MOUNT-KB05HB Series Assembly Manual Individual Product SKUs MOUNT-KB05HB MOUNT-KB05HD MOUNT-KB05HA MOUNT-KB05HW...
  • Page 2 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
  • Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 4 Package Contents A (x1) B (x2) C (x2) Keyboard Tray Rails Clamp D (x2) E (x2) Support Bracket Included Hardware & Tools S-A (x8) S-C (x6) T-A (x1) S-B (x8) M4x7mm Screws M5x12mm Screws M5x8mm Screws 4mm Allen Wrench Weight Capacity: Tools Needed: 11 lbs (5 kg)
  • Page 5: Assembly Steps

    Assembly Steps STEP 1 Choosing Assembly Method Tray features two extension options based on the desired extension distance. Extended Standard Standard Extended Tray will be flush with desktop edge. Tray will be able to extend an additional 1.2” (30mm) when in use, but won’t be flush with desktop edge.
  • Page 6 STEP 1 - Cont’d Assemble Rails (B) to the Support Brackets (D) in the desired position using M4x7mm Screw (S-A) and a Phillips screwdriver. Inset Holes Ensure Inset Holes are facing outwards. Alternate Assembly For increased leg room under keyboard tray, the Clamps (C) can be installed directly to the Rails (B) without the use of Support Brackets (D).
  • Page 7 STEP 2 Assemble Rails (B) with Support Brackets (D) to the Keyboard Tray (A) using M5x12mm Screws (S-B) and a Phillips screwdriver. The Rails (B) should protrude from the back of the Keyboard Tray (A). Back (Bottom View) Front...
  • Page 8 STEP 3 Assemble Clamps (C) to Support Brackets (D) at the desired height using M5x8mm Screws (S-C) and a Phillips screwdriver. 5 Height Settings The Support Brackets (D) offers five height settings. Choose the setting that best fits your needs, ensuring the same setting is used for both Support Brackets. Lowest Setting Less leg room Highest Setting...
  • Page 9 STEP 4 Place the assembled keyboard mount on the edge of desk, then slide Pads (E) on the underside of each Clamp (C). Tighten Clamps to secure to desktop. To prevent an uneven work space, do not over-tighten the Clamps. Clamp Does Not Fit Desktop? The Clamps (C) are pre-assembled for compatibility with desktops 0-2.56”...
  • Page 10 Assembly Complete Place accessories onto the keyboard tray. The tray can be pulled out or stowed away as needed.
  • Page 11 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
  • Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
