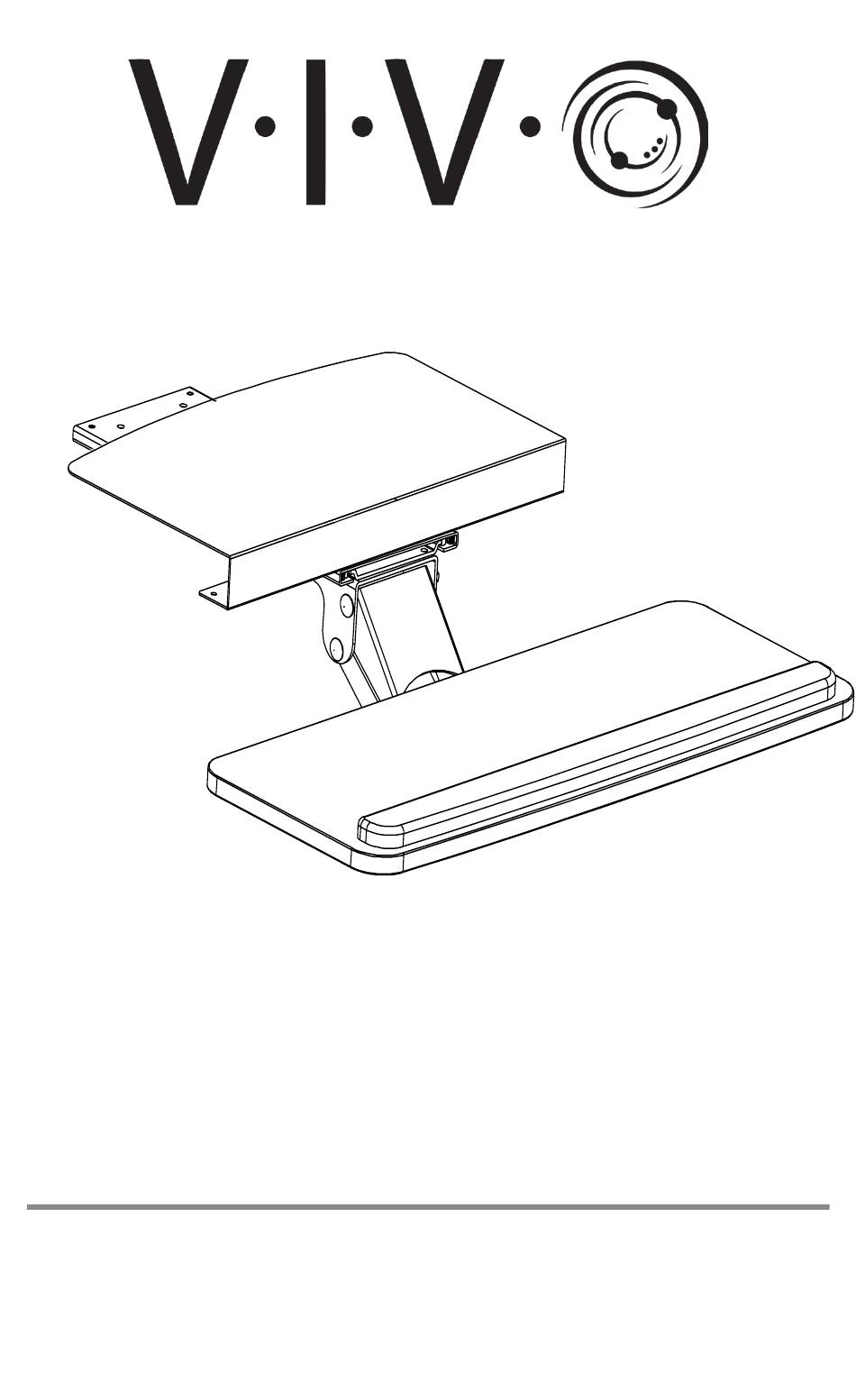

- Page 1 Corner Desk Keyboard Tray MOUNT-KB03B-C Assembly Manual...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
- Page 3 Package Contents B (x1) C (x1) A (x1) Mount Wrist Pad Desk Sleeve D (x1) E (x1) F (x1) Tray Connecting Plate Mounting Template Included Hardware & Tools S-A (x4) S-B (x3) S-C (x2) S-D (x6) M5x35mm M5x8mm M6x8mm Spacing Screw Screw Screw...
-
Page 4: Assembly Steps
Assembly Steps STEP 1 Place Mount (B) upside down and loosen the lever on the side. Raise Arm (B1). Slide Arm out from Track (B2). - Page 5 STEP 2 Assemble Tray (D) using Connecting Plate (E) and M5x12mm Screws (S-H) with a Phillips Screwdriver. STEP 3 Connect Arm (B1) to the tray assembly using M5x16mm Screws (S-K) and a Phillips Screwdriver.
- Page 6 STEP 4 Place Desk Sleeve (A) on the desktop. Measure the gap between the bottom of the desktop and the Desk Sleeve to determine needed Spacers (S-E) for STEP 6. Remove the sleeve. Note Spacer Size Individual Spacers are 1mm tall. Install Track (B2) into Desk Sleeve using M5x8mm Screws (S-B).
- Page 7 STEP 5 Fit Desk Sleeve (A) and Track (B2) to the desktop. Following the infographic below, drill pilot holes into the desktop at the front end of the Desk Sleeve and the rear end of the keyboard Track (circled above). Drill Bit: 1/8”...
-
Page 8: Track Installation
STEP 6 Secure Desk Sleeve (A) and Track (B2) to the desktop using M5x35mm Screws (S-A), Spacing Washers (S-D), and Spacers (S-E) from STEP 4. Tighten with a Phillips screwdriver. Track Installation Sleeve Installation DESKTOP DESKTOP DESKTOP DESKTOP... - Page 9 STEP 7 Slide Arm (B1) into Track (B2).
- Page 10 STEP 8 Swivel Mount (B) sideways, then install M4x12mm Screws (S-I) and Bumpers (S-J) into the front corners of the Track using a Phillips screwdriver.
- Page 11 STEP 9 Swivel the the assembled mount forward, then remove paper backing from the Wrist Pad (C) and place on top of Tray (D) near the front edge.
- Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
