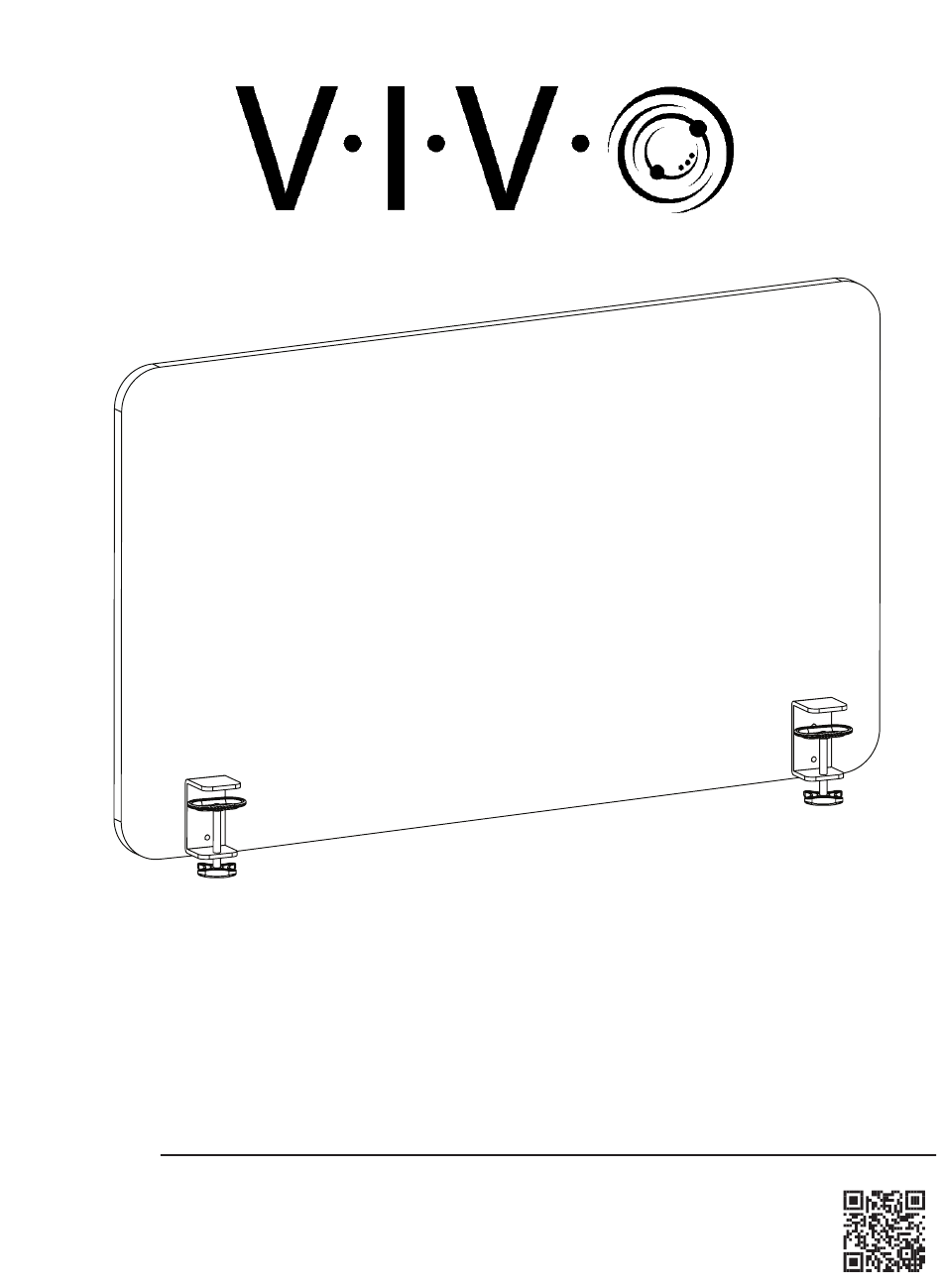

- Page 1 60” x 24” Clamp-on Desk Privacy Panel SKU: PP-1-V060G/D Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/pp-1-v060g...
- Page 2 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product techncians to...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts.
-
Page 4: Package Contents
Package Contents D (x2) A (x1) B (x2) C (x2) Clamp Pad Panel Clamp Mounting Bracket E (x1) Template Included Hardware & Tools S-A (x4) S-B (x4) S-C (x4) S-D (x4) S-E (x4) Spacer Washer M6x50mm ST5x16mm M6x30mm Screw Screw Screw Tools Needed: Phillips... - Page 5 ASSEMBLY OPTIONS 1. Clamp-On 2. Clamp-On Over Desk Under Desk pg. 6 pg. 8 3. Screw Mount 4. Screw Mount Over Desk Under Desk pg. 10 pg. 12...
- Page 6 1. Clamp-On [Over Desk] STEP 1 Flush Mount: Panel Sits Flush Against Desktop Attach Clamps (B) to Panel (A) using M6x30mm Screws (S-E) and Washers (S-B). Tighten with a Phillips screwdriver. Flush Mount Desktop STEP 2 Flush Mount: Panel Sits Flush Against Desktop Place the assembled panel on the edge of the desk with Clamp Pad (D), and tighten Clamps (B) to secure.
- Page 7 STEP 1 Cable Gap: Provides a Gab Between Desktop & Panel for Cables Attach Clamps (B) to Panel (A) using M6x50mm Screws (S-C), Washers (S-B) and Spacers . Tighten with a Phillips screwdriver. (S-A) Cable Gap Desktop STEP 2 Cable Gap: Provides a Gab Between Desktop & Panel for Cables Place the assembled panel on the edge of the desk, and tighten Clamps (B) with Clamp Pad (D) to secure.
- Page 8 2. Clamp-On [Under Desk] STEP 1 Flush Mount: Panel Sits Flush Against Desktop Attach Clamps (B) to Panel using M6x30mm Screws (S-E) and Washers (S-B). Tighten with a Phillips screwdriver. Flush Mount Desktop STEP 2 Flush Mount: Panel Sits Flush Against Desktop Place the assembled panel on the edge of the desk, and tighten the Clamps (B) to secure.
- Page 9 STEP 1 Cable Gap: Provides a Gab Between Desktop & Panel for Cables Attach Clamps (B) to Panel (A) using M6x50mm Screws (S-C), Washers (S-B) and Spacers . Tighten with a Phillips screwdriver. (S-A) Cable Gap Desktop STEP 2 Cable Gap: Provides a Gab Between Desktop & Panel for Cables Place the assembled panel on the edge of the desk, and tighten the Clamps (B) to secure.
- Page 10 3. Screw Mount [Over Desk] Flush Mount: Panel Sits Gap Mount: Provides a Gab Between Flush Against Desktop Desktop & Panel for Cables Desktop Desktop STEP 1 Align the edge of Template (E) opposite of the slot markers with the desktop edge and tape in place.
- Page 11 STEP 2 Assemble the Mounting Brackets (C) to the Privacy Panel (A) using M6x30mm Screws (S-E) for flush mounting, or M6x50mm Screws (S-C) for gap mounting, and Washers (S-B). It is recommended to use the top hole set for the most privacy, but the lower hole sets can be used as well and will decrease the height in 0.78”...
- Page 12 4. Screw Mount [Under Desk] Desktop Desktop Option 1: Gap Fit Above Desk Bottom Desktop Desktop Option 2: Flush Fit Above Desk Bottom Desktop Desktop Option 3: Flush Fit at Desk Bottom Desktop Desktop Option 4: Gap Fit Below Desk Bottom STEP 1 OPTION 1 &...
- Page 13 STEP 2 OPTION 1 & 2 Using the top hole set on Mounting Brackets (C), assemble the Mounting Brackets (C) to the Privacy Panel (A) using M6x30mm Screws (S-E) for flush mounting, or M6x50mm Screws (S-C) for gap mounting and Washers (S-B). Tighten using a Phillips screwdriver. Spacers (S-A) can be installed to create a gap between the panel and desktop for cable management.
- Page 14 4. Screw Mount [Under Desk] STEP 1 OPTION 3 Align the edge of Template (E) with the slot markers with the desktop edge and tape in place. Mark the two closest holes to the desktop edge with a pencil/marker and remove the template.Drill ½” (12mm) deep pilot holes using a ⅛”...
- Page 15 STEP 3 OPTION 3 Attach the assembly to the desktop using ST5x16mm Screws (S-D) and a Phillips screwdriver or drill.
- Page 16 4. Screw Mount [Under Desk] STEP 1 OPTION 4 Align the edge of Template (E) with the slot markers with the desktop edge and tape in place. Mark the two closest holes to the desktop edge with a pencil/marker and remove the template.Drill ½” (12mm) deep pilot holes using a ⅛”...
- Page 17 STEP 3 OPTION 4 Attach the assembly to the desktop using ST5x16mm Screws (S-D) and a Phillips screwdriver or drill.
- Page 18 WHO WE ARE VIVO is more than a brand of ergonomic office furniture. We are a team of creative and innovative indivuduals working together to offer high quality, affordable ergonomic solutions. We think and work outside of the box to serve...
-
Page 19: Need Assistance
Call Us: 309-278-5303 Average Resolution Time: 5m 4s Chat Us: www.vivo-us.com Average Resolution Time: < 15m Email Us: help@vivo-us.com Average Resolution Time: 1HR 8M 23% within < 15m 38% within <... - Page 20 LAST UPDATED: 12/30/2023 REV2 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
