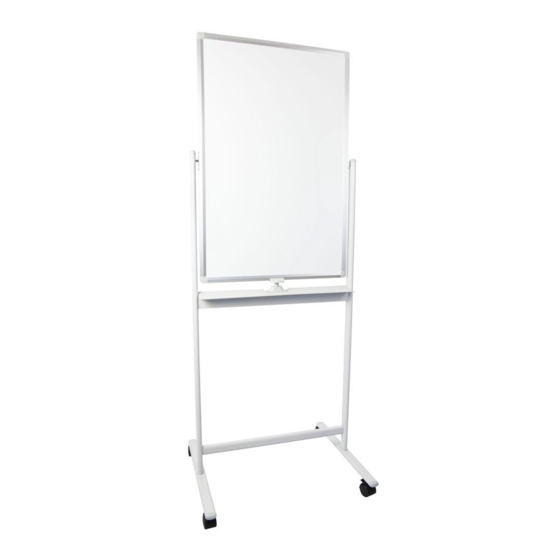

24" x 36" Mobile Double Sided Whiteboard
Instruction Manual
SKU: CART-WB24A
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/cart-wb24a
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo CART-WB24A
Summary of Contents for Vivo CART-WB24A
- Page 1 24” x 36” Mobile Double Sided Whiteboard Instruction Manual SKU: CART-WB24A Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/cart-wb24a GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Fasten casters (K) to feet (F) using the wrench (M). Install feet to lower vertical supports (B) using M6x30mm bolts (P) and tighten with the 5mm Allen wrench (L). STEP 2 Assemble mid support (H) and base support (G) to vertical supports using M6x30mm bolts (P) and tighten with the Allen wrench (L). - Page 4 STEP 3 Attach marker tray (I) and rotation lock (J) to mid support using M4x16mm screws (Q). Tighten screws with a Phillips screwdriver. STEP 4 Slide support connectors (D) onto lower vertical supports. Secure each with x2 M4 screws (E) and tighten with a Phillips screwdriver.
- Page 5 STEP 5 Insert upper vertical supports (C) into support connectors. Secure each with x2 M4 screws (E) and tighten with a Phillips screwdriver.
- Page 6 STEP 6 Slide board (A) into frame. Cover open ends of vertical supports using pole caps (N).
- Page 7 STEP 7 Push the rotation lock down to release and rotate the board. CLEANING TIP: A mild dish washing liquid can be used with a soft cloth to clean the surface.
