CALEFFI Z-one Z2 Series Replacement Instructions

Z-one™ Z2 / Z3 series zone valves
© Copyright 2024 Caleffi
Z2
Replacement instructions

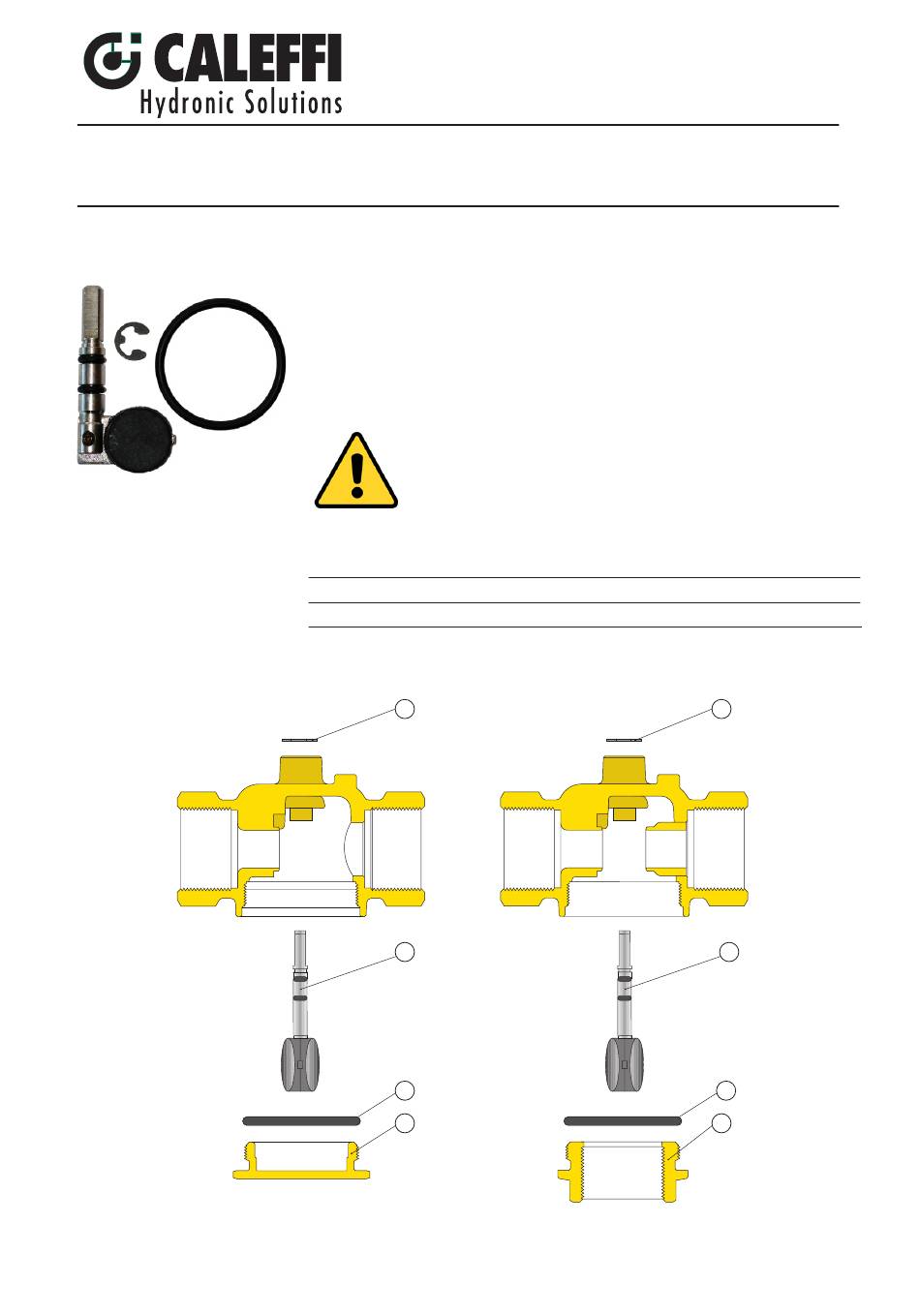

For stem replacement (1), carefully extract the damaged stem after
removing the C-clip on the upper part (2) and the valve plug on the
lower part (3). Then insert the new stem, replace the C-clip and the
closing plug after replacing the O-Ring (4).
CALEFFI declines all responsibility for damages caused
by a wrong installation of the stem or valve malfunction.
Code Description
F69293
Repair kit for all 1/2" & 3/4" sweat Z2, Z3 valves
F69294
Repair kit for 3/4" NPT and all 1" Z2, Z3 valves
2
1
4
3
1
www.caleffi.com
code F69293-F69294
Z3
68486.02
2
1
4
3
