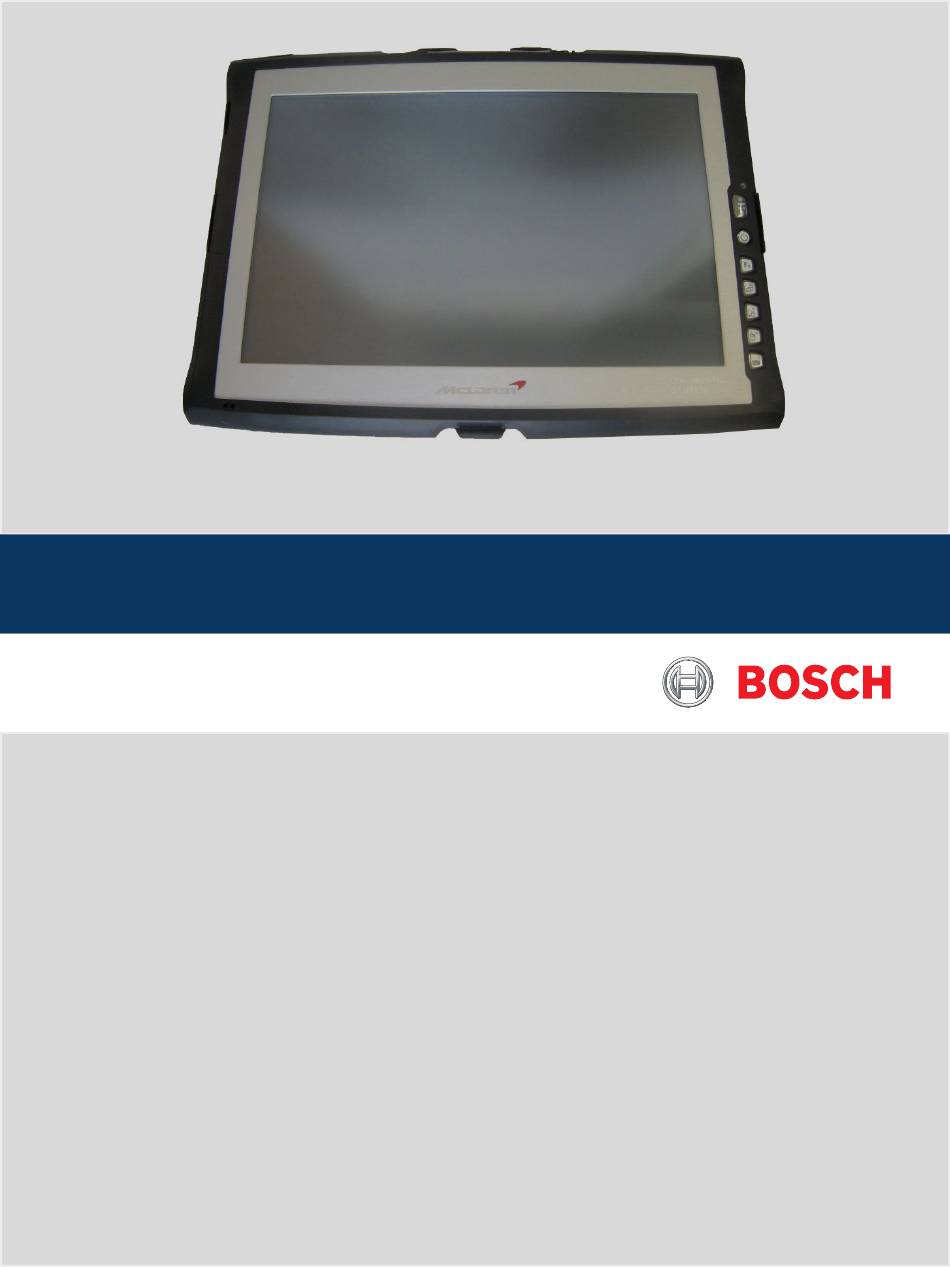

- Page 1 DCU 130-M en Operating instructions Diagnostic Control Unit...
-
Page 3: Table Of Contents
| DCU 130-M | 3 Contents English Symbols used Software-Tools (only Administration) In the documentation Configuration Center 1.1.1 Warning notices - 6.1.1 Battery Structure and meaning 6.1.2 Front key illumination 1.1.2 Symbols in this documentation 6.1.3 Softkeyboard On the product 6.1.4... -
Page 4: Symbols Used
DCU 130-M and must always be heeded. Electromagnetic compatibility (EMC) The DCU 130-M is a class B product as per EN 55 022. R&TTE Directive The DCU 130-M is a class 1 wireless device (R&TTE 1999/55/EC) approved for use in Europe. In France, use of the DCU 130-M is only permissible indoors. -
Page 5: Wireless Radio Link
(ISM: Industrial, Scientific, Medical) or 5 GHz range. operating limits are. We recommend using the 5 GHz range where possible, If the DCU 130-M is used inside a vehicle (Faraday as Bluetooth connections (e.g. mobile phone, KTS cage), radio communication may be severely im- module) limit the WLAN communication in the 2.4 GHz... -
Page 6: Bluetooth Restrictions
(ISM: Industrial, Scientific, Medical). This frequen- cy range is not subject to state legislation and can be The DCU 130-M is a mobile tablet PC for workshop use. used without a license in most countries. Consequently Windows XP is pre-installed as operating system. The... -
Page 7: Description Of Unit
Product description | DCU 130-M | 7 Description of unit The DCU 130-M is a portable, mobile tablet PC for work- shop use. It is operated by means of a pen (for the LCD touch screen) and a virtual keypad. Data and measured values can be printed out by way of the USB interface on... -
Page 8: Interfaces
With a recessed USB port, it is not possible to con- nect a DVD drive without its own power supply. 459901-01-1_Rf The functions of the front keys on the DCU 130-M are as follows: Fig. 5: View of DCU 130-M interfaces (right side) -
Page 9: Status Display (Led)
Not lit DCU 130-M switched off It is advisable to charge the batteries for at least Green light Internal power supply three hours before running the DCU 130-M off the (battery operation) batteries. Yellow light External power supply Flashing yellow Battery being charged from... -
Page 10: Operation
Touch screen with pen Pressing the button for more than 4 seconds will The touch screen of the DCU 130-M is operated with a switch off DCU 130-M without shutting down Win- pen which basically has the same functions as a mouse. -
Page 11: Virtual Screen Keypad
Operation | DCU 130-M | 11 Virtual screen keypad System settings 5.8.1 Brightness adjustment The DCU 130-M features a virtual keypad. Pressing the Keypad key opens the virtual screen keypad. Symbol Function Increases the brightness of the display Reduces the brightness of the display 5.8.2... -
Page 12: Information On Problems
2. Switch on the DCU 130-M again. This switch-off procedure is only to be employed if the DCU 130-M will not react to any key being pressed, as it may result in loss of data on the hard disk if it is implemented during regular operation. -
Page 13: Umts
UMTS 5.13 RFID reader (only for production) The DCU 130-M is provided with a Mini-PCI Express The RFID reader provides passive RFID TAGS card of the Sierra Wireless MC8775V type. The UMTS (RFID chip / keycard) for automatic system login. -
Page 14: Software-Tools (Only Administration)
14 | DCU 130-M | Software-Tools (only Administration) Software-Tools Power status (only Administration) The "Power status" tab shows the statuses of the upper (battery 2) and lower (battery 1) batteries. The lithium- ion batteries are charged alternately when the 19 V DC Configuration Center power supply unit is connected. -
Page 15: Wireless Configuration (Wlan + Bluetooth)
ELO touch screen calibration to adjust the screen display accordingly. After switching the Bluetooth class it is essential to re-start the DCU 130-M as the changes only take ef- 1. Select "Start >> Control panel >> ELO Touch- fect following re-starting. -
Page 16: Maintenance
Test Power Cleaning Only use a soft cloth and neutral detergents to clean the housing and display of the DCU 130-M. Do not use abrasive cleaning agents and coarse workshop cloths. Battery replacement WARNING - Risk of explosion when charg-... -
Page 17: Decommissioning
Operating temperature 5 °C – 40 °C 41 °F – 104 °F ¶ The DCU 130-M is only ever to be transported in the Storage temperature -25 °C – 60 °C original or equivalent packaging. -4 °F – 140 °F ¶... - Page 20 Robert Bosch GmbH Diagnostics Franz-Oechsle-Straße 4 73207 Plochingen DEUTSCHLAND www.bosch.com bosch.prueftechnik@bosch.com 1 689 989 109 | 2013-11-20...
