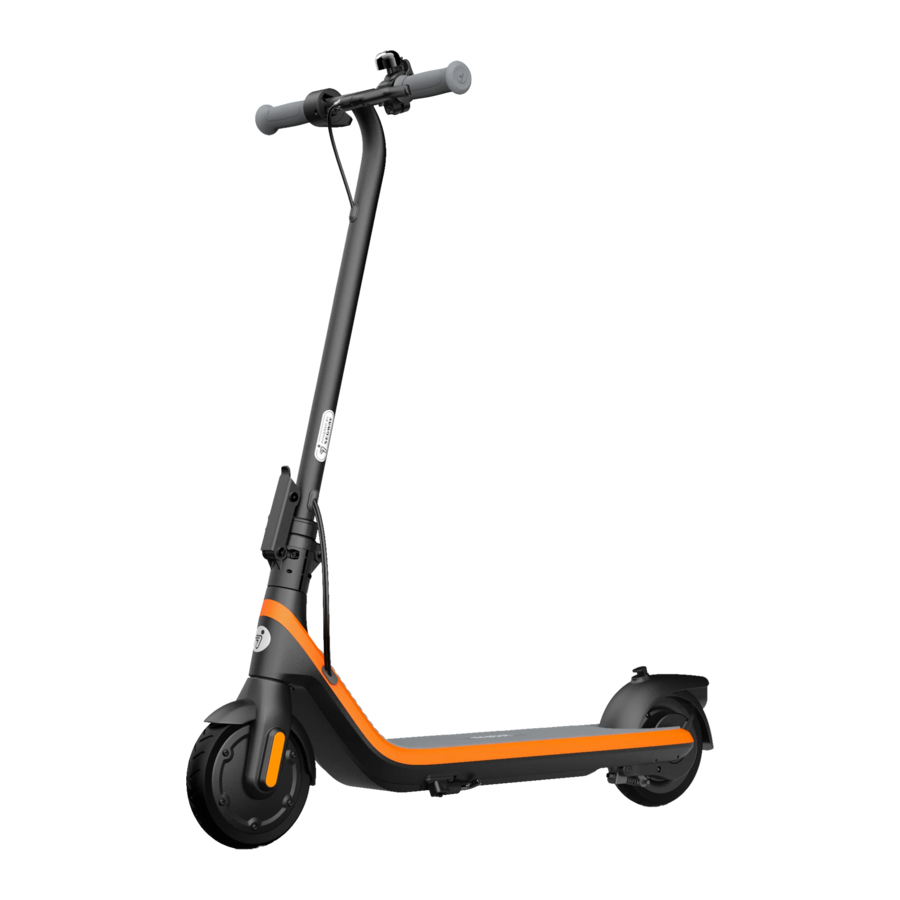

Ninebot eKickScooter C2, eKickScooter C2 Pro Manual

Diagram

C2 Pro
Dashboard & Power Button

Power Button: Press the button to power on the scooter; press and hold the button for 2 seconds to power it off. When the scooter is on, press twice to switch between the speed modes. Press three times to turn on/off the ambient light. Press five times to switch the unit between km/h and mph.
Speedometer: It displays the current speed of the scooter, as well as error codes.
Speed Mode: There are three modes available. The top speed is as follows:

* Ranges of Speed Modes: tested while riding with a full battery, 50 kg (110 lbs) load, 25°C (77°F), at the max. speed of each speed mode on average on pavement.

Error Notification: It indicates that the scooter has detected an error.
Bluetooth: It indicates that the scooter has been successfully connected to the mobile device.
Temperature Warning: It indicates that the battery temperature has reached 55°C (131°F) or is below 0°C (32°F).
* At this point, the vehicle cannot accelerate normally and may not be charged. Do not use until the temperature has reverted to the normal range.
Locking Reminder: When the icon lights up, it means the scooter is locked.
Battery power: The total battery power equals 5 bars.
* The battery power is very low when the first battery bar is red. Please charge your scooter immediately.

Specifications

	Item	Parameter
Product	Name	Ninebot eKickScooter C2	Ninebot eKickScooter C2 Pro
	Model	051403E	051404E
	Length × Width × Height	Approx. 910 × 400× 960 mm (35.8 × 15.7 × 37.8 in)	Approx. 910 × 400× (885/960/1035) mm (35.8 × 15.7 × 34.8/37.8/40.7 in)
	Folded: Length × Width × Height	Approx. 910 × 400× 500 mm (35.8 × 15.7 × 19.7 in)
	Net Weight	Approx. 10.4 kg (22.9 lbs)	Approx. 10.7 kg (23.6 lbs)
Rider	Max. Payload	50 kg (110 lbs)
	Recommended Age	6+
	Required Height	120–160 cm (3'9''–5'2'')	115–170 cm (3'8''–5'6'')
Machine	Max. Speed	Approx. 16 km/h (9.9 mph)
	Theoretical Range [1]	Approx. 11 km (6.8 miles)	Approx. 17 km (10.6 miles)
	Range at Max. Speed [2]	Approx. 10 km (6.2 miles)	Approx. 16 km (9.9 miles)
	Riding Time [3]	Approx. 56 mins	Approx. 102 mins
	Max. Slope	Approx. 5%
	Traversable Terrain	Mostly smooth roads or normal asphalt, tarmac roads
	Operating Temperature	-10–40°C (14–104°F)
	Storage Temperature	-10–50°C (14–122°F)
	IP Rating	IPX4
	Duration of Charging	Approx. 3.5 h	Approx. 4 h
Battery	Nominal Voltage	21.6 V
	Max. Charging Voltage	25.2 V
	Charging Temperature	0°C–45°C (32–113°F)
	Nominal Energy	56 Wh [4]	108 Wh
	Nominal Capacity	2550 mAh	5000 mAh
	Battery Management System	Protection against overvoltage/undervoltage/short circuit/overcurrent/overheat
Motor	Nominal Power	130 W	150 W
	Max. power	160 W	260 W
Charger	Model	NBW25D201D0D	NBW25D201D5N-EU
	Output Power	24.2 W	36.3 W
	Input Voltage	100-240 V~ 50-60 Hz
	Max. Output Voltage	25.2 V
	Rated Output	24.2 V 1 A	24.2 V 1.5A
Tire	Tires	7-inch inner hollow shock-absorbing tires

1. Theoretical Range: tested while riding with a full battery, 110 lbs (50 kg) load, 77°F (25°C), 70% of max. speed on average on pavement.
2. Range at Max. Speed: tested while riding with a full battery, 110 lbs (50 kg) load, 77°F (25°C), at the max. speed on average on pavement.
   * Some of the factors that affect range include speed, load, number of starts and stops, ambient temperature, etc.
3. Riding time under the testing conditions of theoretical range.
4. From SN N2SEA2312P0001 to SN N2SEB2424P1549, the battery is 54 Wh; from SN N2SEB2424P1550, the battery is 56 Wh.
