Morphy Richards IB27015 Operating Instructions Manual

Morphy Richards IB27015 Operating Instructions Manual

Dab digital radio
Hide thumbs

Advertisement

Table of Contents

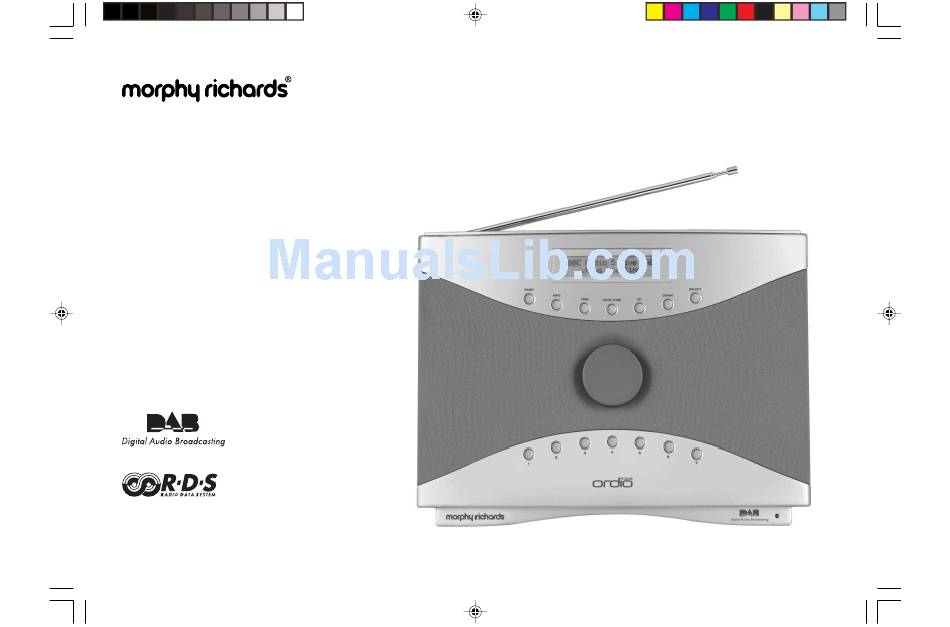

DAB digital radio
27015
Operating instructions

Advertisement

Table of Contents
loading

Related Manuals for Morphy Richards IB27015

Summary of Contents for Morphy Richards IB27015

  • Page 1 DAB digital radio 27015 Operating instructions...
  • Page 2 Illustration Power on/off button Telescopic aerial LCD display Band button Info button Time button Autotune button Up button Down button 10 Select button 11 Volume control 12 Power on LED 13 Preset buttons 1-7 14 Mains power connector 15 Earphone socket 16 Line out socket 17 Battery compartment...

  • Page 3: Electrical Requirements

    Electrical Requirements Installing batteries (not supplied) Check the voltage on the rating plate of your DAB digital radio 1 Remove the battery compartment cover (located at the rear of the corresponds with your house electricity supply, which must be A.C. unit).

  • Page 4: What Is Dab Digital Radio

    • The stations broadcast on a single frequency network, called an Morphy Richards ordio DAB radio. The display will show autotune ensemble or multiplex. These can contain many different stations full scan and then a bar chart will appear with a digit on the right and are on 1 frequency.

  • Page 5: Advanced Operation

    Advanced operation Tuning (DAB) Turning the radio on and off To tune to another station, press the UP or DOWN button, the top line 1 Press and release the POWER button to turn on. If the unit is will show the station name and the bottom line will show the type of switched on for the first time, the unit will automatically select DAB station.

  • Page 6: Manual Tuning - Fm

    Automatic tuning (FM) • Use the UP or DOWN buttons to scroll through the blocks available to DAB. The radio will tune to that block if available. Press the SELECT button and the radio will tune to the last station. ‘MAN’ will 1 Press and release the AUTOTUNE button, the frequency will appear in the left hand corner.
  • Page 7 Info button - DAB 3 Press INFO button again and the signal quality will be displayed. This is useful for tuning purposes. The INFO button alters the information displayed on the second line of the display. The displays shown are an example of what can be expected.
  • Page 8 Info button FM 3 Press the INFO button again and the frequency will be displayed. • The displays shown are examples of what can be expected. The display on your radio will be different depending upon the station being listened to. •...

  • Page 9: Time Button

    Time button • After the autotune has finished, the radio will return to the previous station. The stations will be updated in the list and can be selected by pressing the UP or DOWN buttons. This is available on both DAB and FM. However not all FM stations transmit the time signal.

  • Page 10: Down Button

    Up button Storing a station Use this button to search upwards - whilst in DAB you can search by If you want to store a station that you are listening to in a memory preset location, press and hold the preset button that you wish to station name.

  • Page 11: Signal Quality

    Volume Reset Turn the central VOLUME knob to adjust the volume control. Turn This is used to restore the factory default settings. It removes all clockwise to increase the sound level and anti-clockwise to decrease preset settings. the sound level. 1 Turn the unit off and back on again.
  • Page 12 Unscrew the telescopic aerial by undoing the nut and removing the Improving the reception on your DAB radio aerial on the unit. Connect the lead from the external or loft aerial to the unit using an F-type connector. The telescopic aerial supplied will be good enough in most locations if the DAB signal strength is fair to good.

  • Page 13: External Connectors

    External connectors Technical specifications Ensure that the radio and any external devices are turned off before AC Power supply: 230v 50Hz connecting. Battery: 4 x “D” size (not provided) Compliant with ETS 300 401. You can connect earphones to the radio for private listening or Capable of decoding all DAB transmission modes 1 –...

  • Page 14: Troubleshooting Guide

    Trouble shooting guide Use this guide if you experience any problems with your DAB digital radio Problem Possible cause Solution No power. Ensure the power cord is inserted firmly and socket is switched on. Ensure batteries No display. are correctly inserted. Try new batteries. Signal strength.

  • Page 15: Maintenance

    Maintenance Do not expose your DAB radio to extremes of temperature. The product should be kept in a warm environment free from dust and damp. For external cleaning use only a soft, clean, damp cloth. Use of detergents may damage the finish. Ventilation warning The normal ventilation of the product shall not be impeded for intended use.
  • Page 16 Richards guarantee your product to be free from manufacturing and component defects for a period of TWO YEARS from date of purchase. If your product proves to be defective within 28 days of purchase, the Morphy Richards dealer from whom the product was purchased will be pleased to replace it free of charge.
