S6 SERIES
INSTRUCTION MANUAL
CONTROLS
OUTPUT LED
The red LED indicates the output status.
STABILITY LED (S6/S6T/S6R-5-M25)
The green LED ON indicates that the received signal has a reserve
greater than 30% compared to the output switching value.
SENSITIVITY TRIMMER (S6/S6T/S6R-x-A/B/C/F/T)
ADJUSTMENT SCREW (S6/S6T/S6R-5-M25)
This control can be used to adjust sensitivity (trimmer) or cutoff distance
(screw); the operating distance increases turning the control clockwise.
DARK/LIGHT TRIMMER (S6-1-A/B/C/F/T)
The
DARK/LIGHT
mode
can
be
set
rotating
counterclockwise or clockwise.
WARNING: The trimmers rotation is limited to 270° by a mechanical
stop. Do not apply excessive torque when adjusting (max 40 Nmm).
POWER ON LED (S6/S6T-x-G)
The red LED indicates that the sensor is operating.
CONNECTIONS
S6-5-A/B/C/M/T
S6-5-F
RED
RED
DARK - /LIGHT +
DARK - /LIGHT +
BROWN
BROWN
+
10 ... 30 Vdc
+
10 ... 30 Vdc
BLUE
0 V
BLUE
0 V
CYAN
WHITE
WHITE
+
PNP ALARM OUT 30mA
NPN
100mA
100mA
WHITE
WHITE
BLACK
NPN
BLACK
100mA
PNP
BLACK
BLACK
S6-5-G
S6R-5-A/B/C/F/M/T
BROWN
+
10 ... 30 Vdc
+
WHITE
NC
2
1
TEST +
(WHITE)
BLACK
3
4
-
0 V
NO
TEST -
(BLUE)
(BLACK)
BLUE
0 V
S6T-5-A/B/C/F/M/T
S6T-5-G
DARK - / LIGHT +
+
10 ... 30 Vdc
TEST +
+
2
1
2
1
(WHITE)
(WHITE)
(BROWN)
3
4
3
4
-
-
0 V
PNP
0 V
TEST -
(BLUE)
(BLACK)
(BLUE)
(BLACK)
S6-1-A/B/C/F/T
S6-1-G
RED
BLACK
WHITE
3A
250 Vac
15 ... 264 Vac/Vdc
RESISTIVE LOAD
BROWN
BLUE
BLUE
15 ... 264 Vac/Vdc
BLACK
50.0
=
40.0
the
trimmer
OUTPUT LED
Sensitivity trimmer
Adjustment screw (S6/S6T/S6R-5-M25)
Power supply:
Ripple:
+
100mA
Current consumption
PNP
(output current excluded):
Output:
Output current:
10 ... 30 Vdc
(BROWN)
Output saturation voltage:
Response time:
Switching frequency:
Indicators:
Setting:
Operating temperature:
10 ... 30 Vdc
Storage temperature:
(BROWN)
Electric shock protection:
Operating distance (minimum):
Emission type:
Ambient light rejection:
48 ... 60 Hz
Vibration:
Shock resistance:
LIGHT/DARK selection:
Housing:
Lenses:
Protection class:
Connections:
Weight:

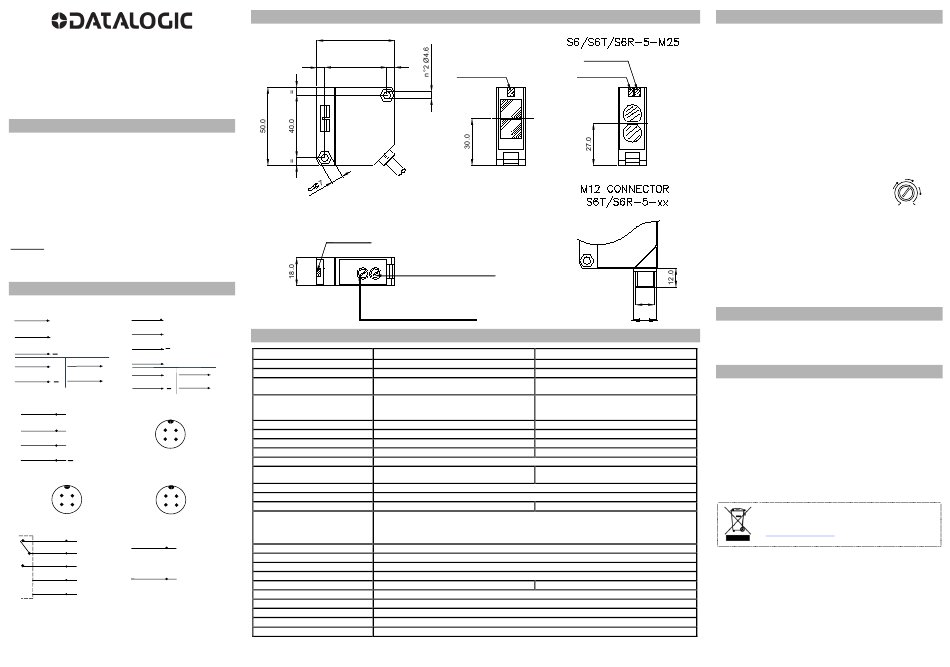

DIMENSIONS
=
OUTPUT LED
DARK/LIGHT trimmer (S6-1-xxx)
mm
TECHNICAL DATA
S6/S6T/S6R-5-xx
10 ... 30 Vdc limit values
15 ... 264 Vac (48 ... 60 Hz) limit values
2 Vpp max.
30 mA max.
S6: NPN/PNP; 30 Vdc max.
Relay 1 NO and NC contact 250 Vac, 30 Vdc
S6T: PNP; 30 Vdc max.
min.applicable load: 5 Vdc, 10 mA
S6R: NPN or PNP NC/NO; 30 Vdc max.
100 mA max. (short-circuit protection)
1.5 V max. (NPN/PNP output)
1 ms max. / 2 ms max. mod. F/G
500 Hz max. / 250 Hz max. mod. F/G
OUTPUT LED (RED) / STABILITY LED (GREEN) mod. M25 / POWER ON LED (RED) mod. G
sensitivity trimmer excluding mod. G/M10
sensitivity trimmer excluding mod. G
adjustment screw mod. M25
dark/light trimmer excluding mod. G
-25 ... 55 °C
-25 ... 70 °C
Class 2
A6 0.1 ... 6 m on R2 / B5 0.1 ... 5 m on R2 / T1: 0.1 ... 1 m on R2
C90: 1 ... 90 cm / C200: 1 ... 200 cm
M10: 3 ... 10 cm / M25: 3 ... 25 cm
F20/G20: 0 ... 20 m
INFRARED (880 nm) / RED (660 nm) mod. B/T/M10
according to EN 60947-5-2
0.5 mm amplitude, 10 ... 55 Hz frequency, for every axis (EN60068-2-6)
11 ms (30 G) 6 shock for every axis (EN60068-2-27)
cable or connector
ABS UL 94V-O
PMMA plastic
IP65
2 m cable ∅ 6 mm vers. S6-1 and ∅ 5 mm vers. S6-5 / M12 4-pole connector vers. S6T/S6R
160 g. max. cable versions / 40 g. max. connector versions
The following procedures are valid for LIGHT mode operation.
Alignment S6/S6T/S6R-x-A/B/T
Position the sensor and reflector on opposite sides.
Turn the sensitivity trimmer to maximum. Find the points where the red
STABILITY LED
LED (OUT) is switched ON and OFF in both vertical and horizontal
positions, and fix the sensor in the centre between these points.
OUTPUT LED
If necessary, reduce sensitivity using the trimmer, in order to detect very
small or transparent targets. In order to improve alignment, repeat the
procedure detailed above whilst progressively reducing the sensitivity.
Alignment S6/S6T/S6R-x-F/G
Position the sensors on opposite sides.
Turn the sensitivity trimmer to maximum. Find the points where the red
LED (OUT) is switched ON and OFF in both vertical and horizontal
positions, and fix the sensor in the centre between these points.
If necessary, reduce sensitivity using the trimmer, in order to detect very
small targets. In order to improve alignment, repeat the procedure
detailed above whilst progressively reducing the sensitivity.
Alignment S6/S6T/S6R-x-C
Position the sensor and turn the sensitivity trimmer at minimum:
the red LED is OFF.
Place the target opposite the sensor. Turn the
sensitivity trimmer clockwise until red LED turns ON.
(Target detected state, pos.A).
Remove the target, the red LED turns OFF. Turn the trimmer clockwise
until the red LED turns ON (Background detected state, pos.B).
The trimmer reaches maximum if the background is not detected.
Turn the trimmer to the intermediate position C, between the two
positions A and B.
Alignment S6/S6T/S6R-5-M25
Position the sensor and turn the adjustment screw to maximum.
Place the target opposite the sensor at a slightly greater distance than
desired. Turn the screw counterclockwise until the sensor switches.
Verify the adjustment moving the target closer and further the sensor;
tune the adjustment if necessary.
M12
It is recommended to operate with the stability LED turned ON.
TEST FUNCTION (S6/S6T-5-G)
Ø15
The TEST+ and TEST- inputs can be used to inhibit the emitter and
verify that the system is correctly operating.
The receiver output should switch when the test is activated while the
beam is uninterrupted. The inputs activating voltage range is 10 ... 30
S6-1-xx
Vdc, whilst respecting the polarity.
ALARM FUNCTION (S6/S6T-5-F)
-
The alarm output switches ON whenever the received signal remains
40 mA max.
without a safety margin (greater than 30% compared to the output
switching level) for longer than 3 seconds.
The sensors are NOT safety devices, and so MUST NOT be used in the
3 A max. (resistive load)
-
Datasensing S.r.l.
30 ms max.
Strada S. Caterina 235 - 41122 Modena - Italy
2 Hz max.
Tel: +39 059 420411 - Fax: +39 059 253973 - www.datasensing.com
The warranty period for this product is 36 months. See General Terms
and Conditions of Sales for further details.
Class 1
© 2007 - 2023 Datasensing S.r.l ALL RIGHTS RESERVED. Without
limiting the rights under copyright, no part of this documentation may be
reproduced, stored in or introduced into a retrieval system, or
transmitted in any form or by any means, or for any purpose, without the
trimmer
express written permission of Datasensing S.r.l. ♦ Datasensing and the
Datasensing logo are trademarks of Datasensing S.r.l. ♦ Datalogic and the
Datalogic logo are registered trademarks of Datalogic S.p.A. in many
countries, including the U.S and the E.U.
SETTING
A
C
B
MIN
MAX
safety control of the machines where installed.
For information about the disposal of Waste Electrical and
Electronic Equipment (WEEE), please refer to the website
at www.datasensing.com.
806001130 Rev. A
