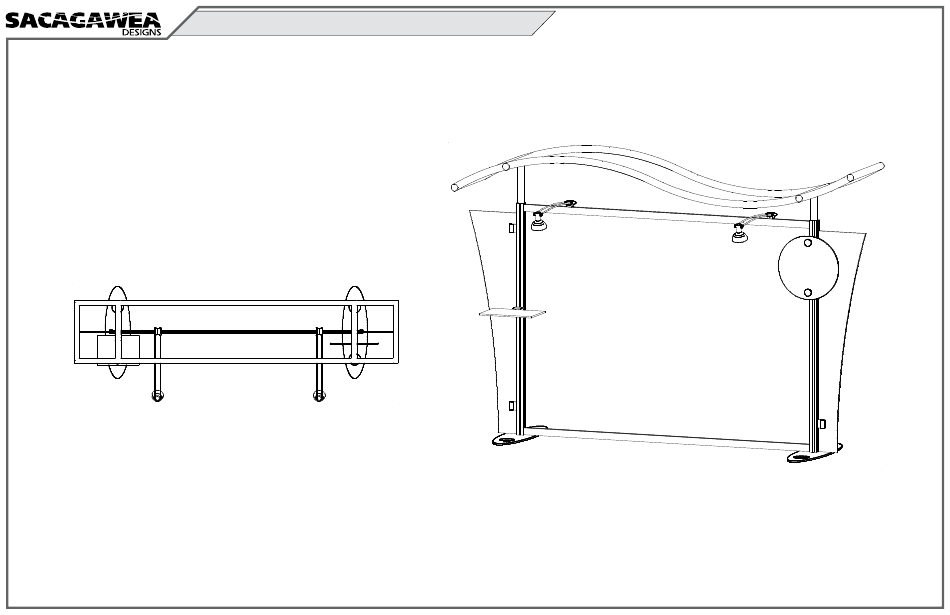

- Page 1 © 2025 Order #XXXXX VK-1292 Table Top Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: General Setup Instructions
© 2025 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 3 © 2025 Order #XXXXX Case Packing Top View of Each Level Canopy Pieces Connectors Lights Wings Base Plates Graphics Shelf Header Setup Hardware Level 1 Level 2 Level 3 (Bottom level) Case 1 of 1...
- Page 4 © 2025 Order #XXXXX Backwall Assembly Steps: Item Qty. Description 1) Attach base plates [1] to verticals [2] and [3]. Base Plate 2) Connect horizontals [4A to 4B] and [5A to 5B], using connectors. 42” Vertical Extrusion w/ Clamps & Canopy Mount Straight Connection with Knobs detail.
-
Page 5: Canopy Assembly
© 2025 Order #XXXXX Canopy Assembly Steps: 1) Connect canopy pieces together as shown. 2) Slide fabric cover over assembled canopy then zip closed. Using Your Setup Instructions The Aero Setup Instructions are created specifically for your configuration. The instructions include an exploded view of the frame which is sequentially labeled. - Page 6 © 2025 Order #XXXXX Backwall Attachments Steps: 1) Attach wings and shelf to clamps. See A10 Clamp detail. 2) Attach shelf to vertical [2], using clamp. 3) Attach graphic to vertical [3], using standoffs and caps. Graphic Attachment detail. 4) Connect lights where desired. See Light Connection detail.
